Happymodel ES900RX 915MHz ELRS Receiver
Stok 3
OVERVIEW:
ES900TX and ES900RX modules are a set of Long Range 915MHz/868MHz(optional) wireless transmission equipment developed and designed based on the open source software ExpressLRS. This set of modules is characterized by ultra-long range, stable operation and low latency. The module is compatible with most Opentx remote controllers, especially suitable for Radiomaster TX16S and Jumper T12 T16 T18 series remote controllers, basically plug and play. We have specially customized the heat sink for the transmitter module, and also reserve the installation position of the 2006 fan which can help the transmitter module to operate stably under high power conditions.
Specifications:

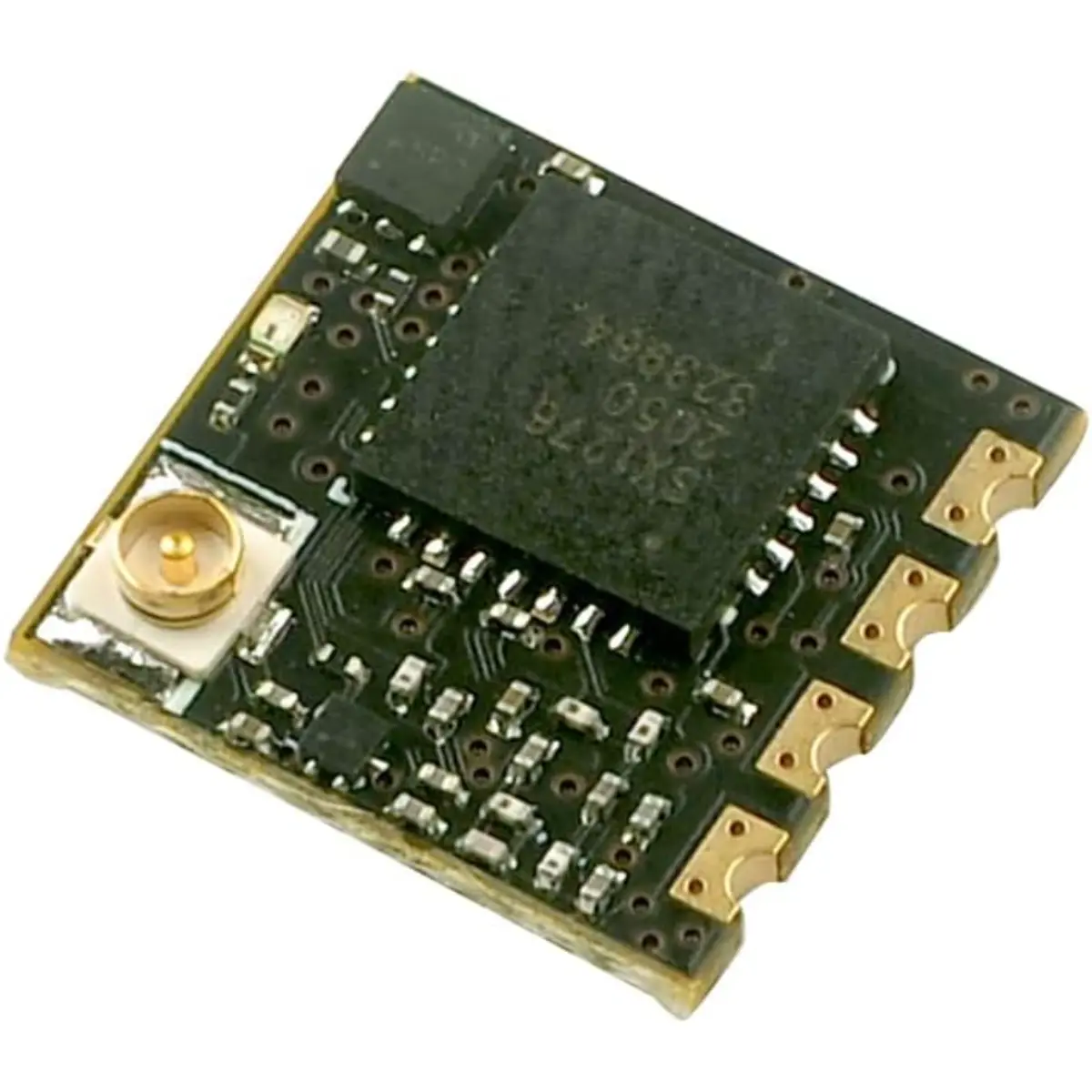

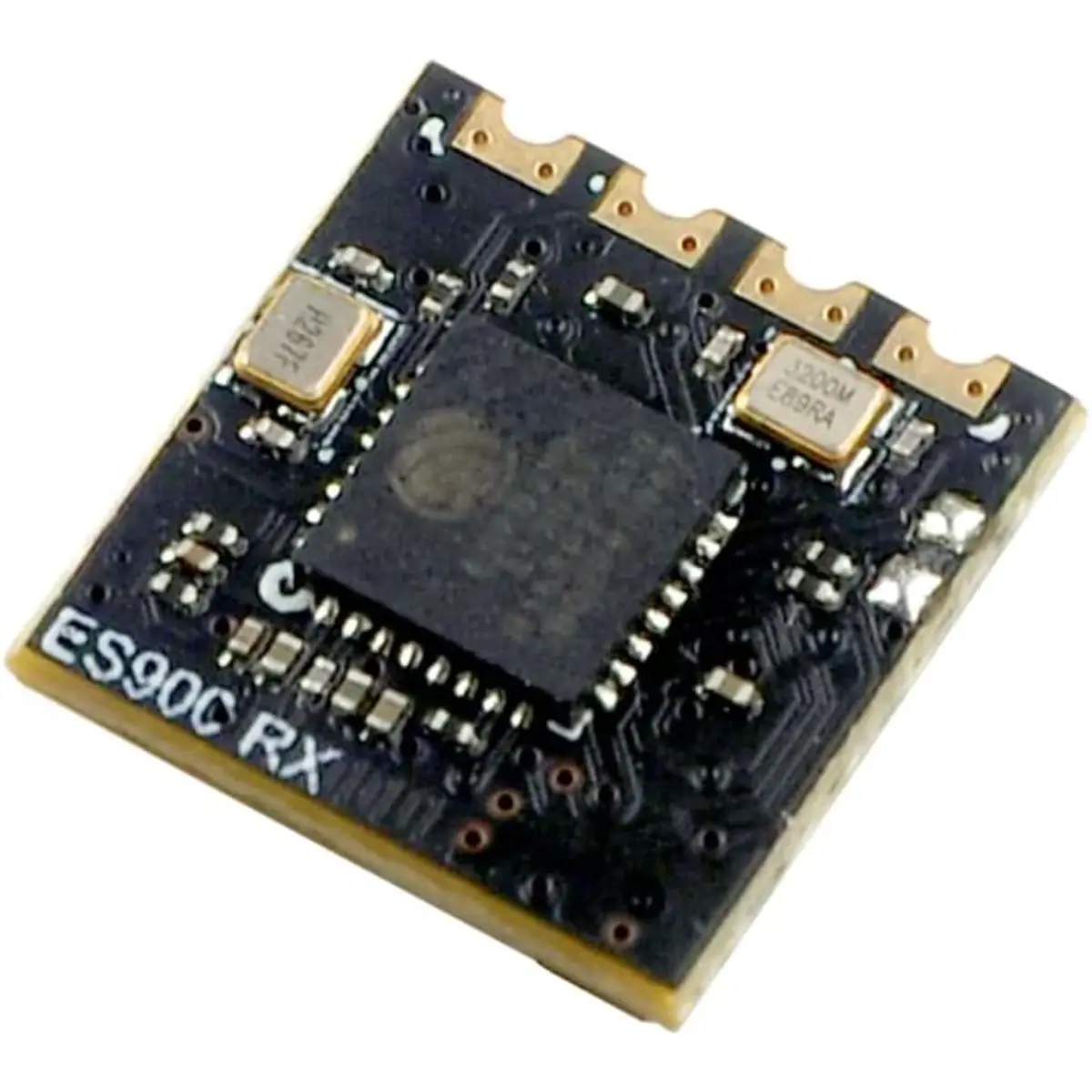

ES900RX:
MCU: ESP8285
VCC input: 5v
Operation current: ~100Ma
Rx To FC protocol: CRSF
RF Frequency optional: 915mhz or 868mhz(EU)
Dimension: 12mm*12mm*3mm
Weight: 0.60 gram (exclude antenna)
Antenna connector: IPEX1
Telemetry output Power: <17dBm
RC7 Firmware for ES900RX download:
ExpressLRS RC7 firmware for ES900 RX 915MHz and 868MHz [update by wifi]

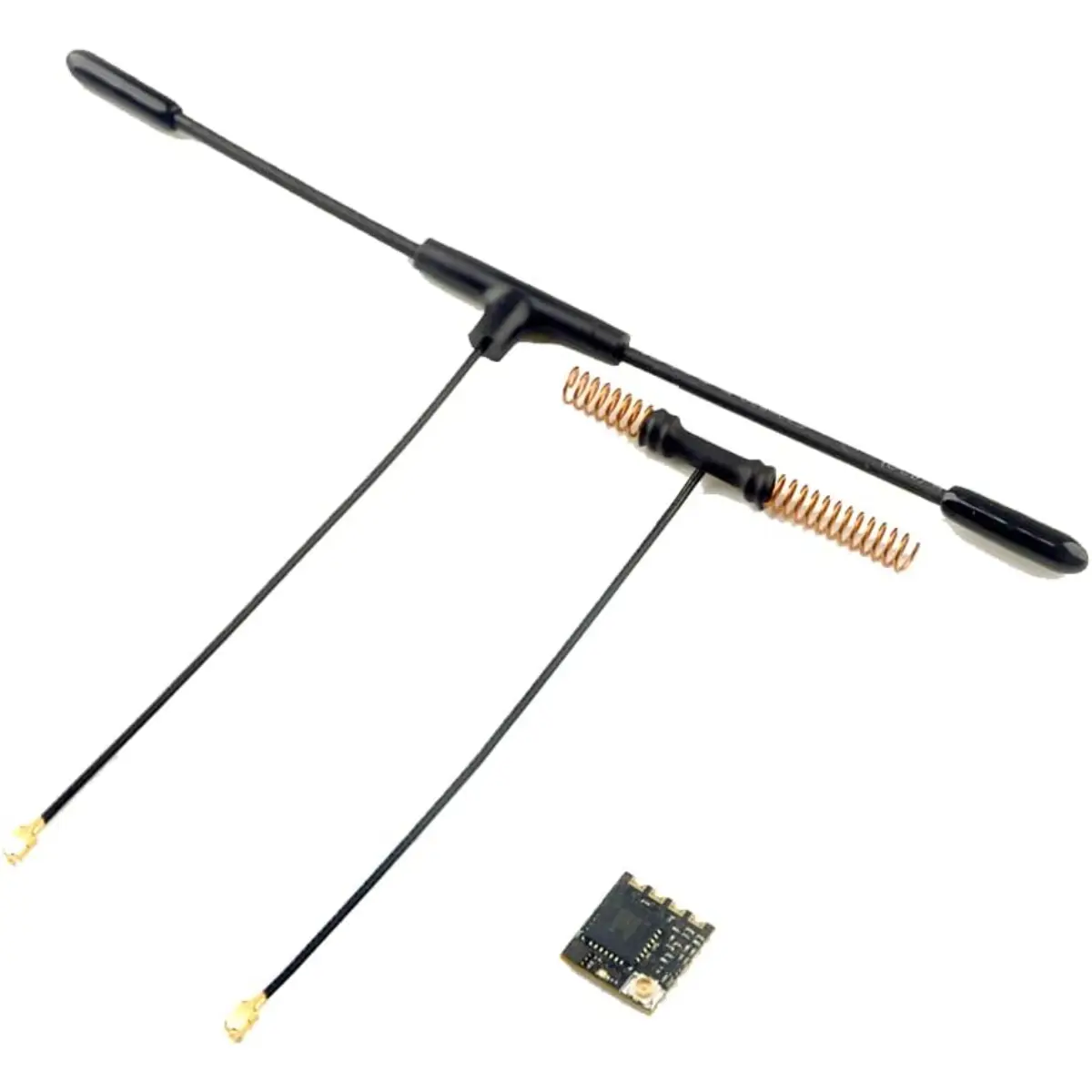

Package Include:
ES900RX 915MHz:
1 x ES900RX 915MHz Receiver
2 x RX 915MHz Antenna
| Berat | 0,1 kg |
|---|
