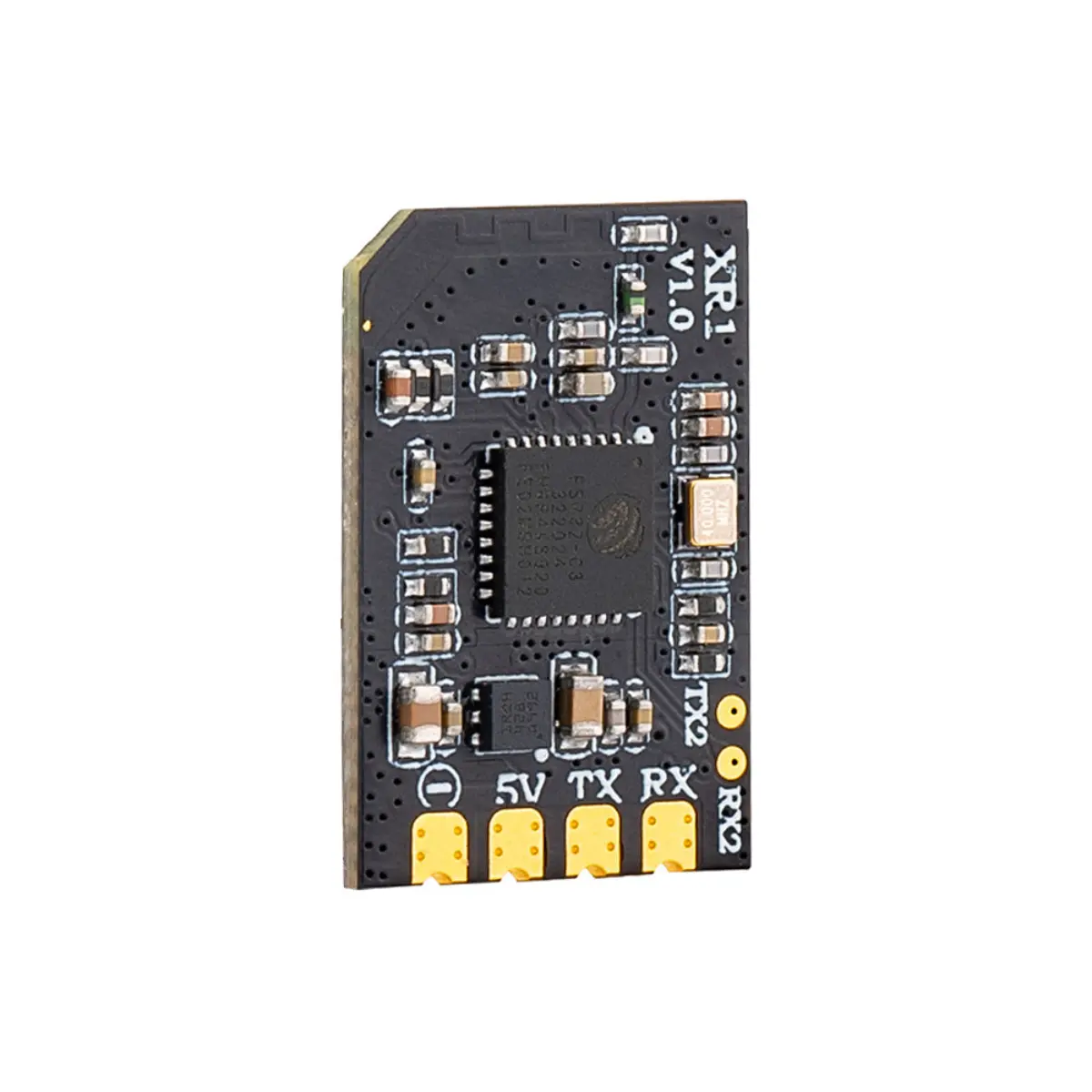

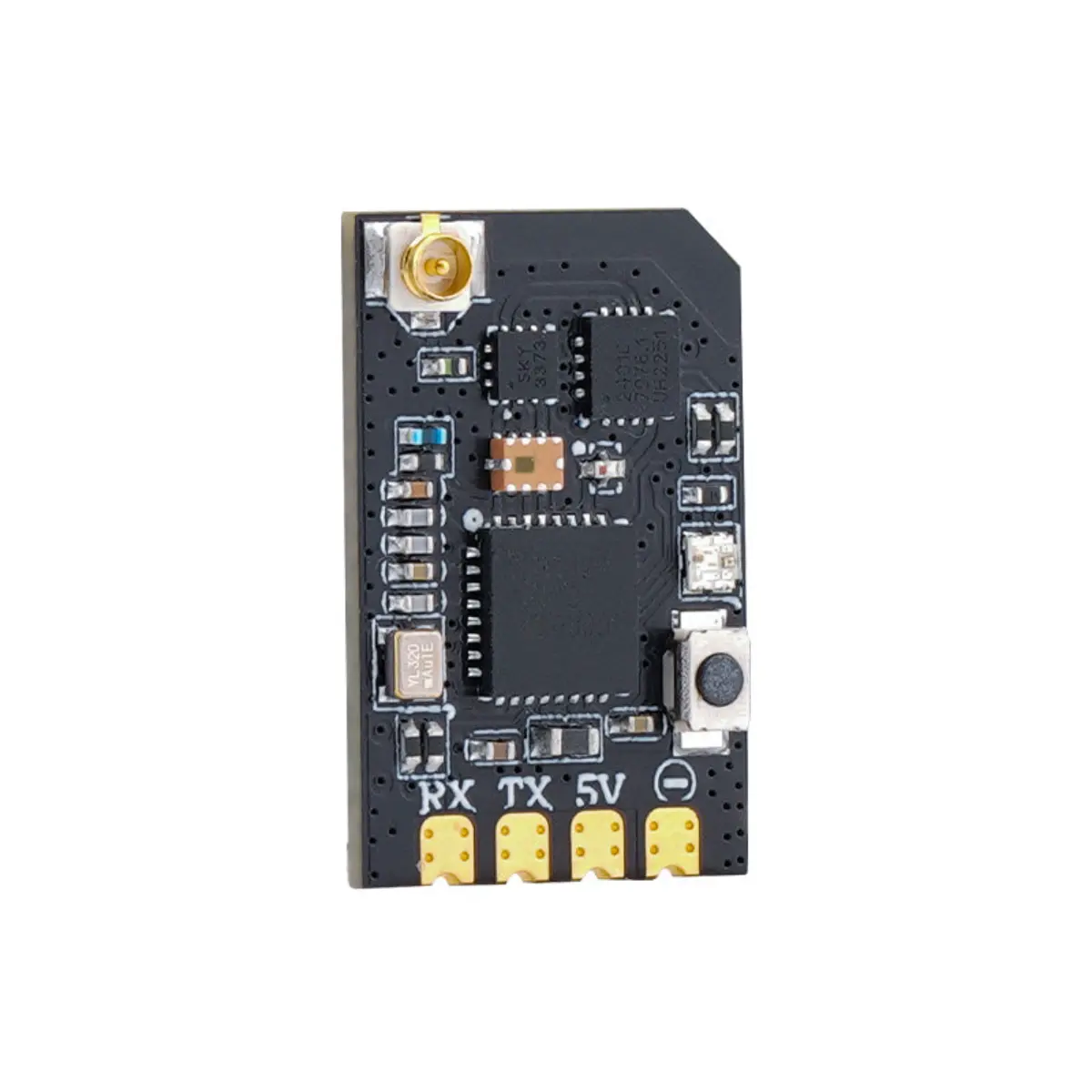

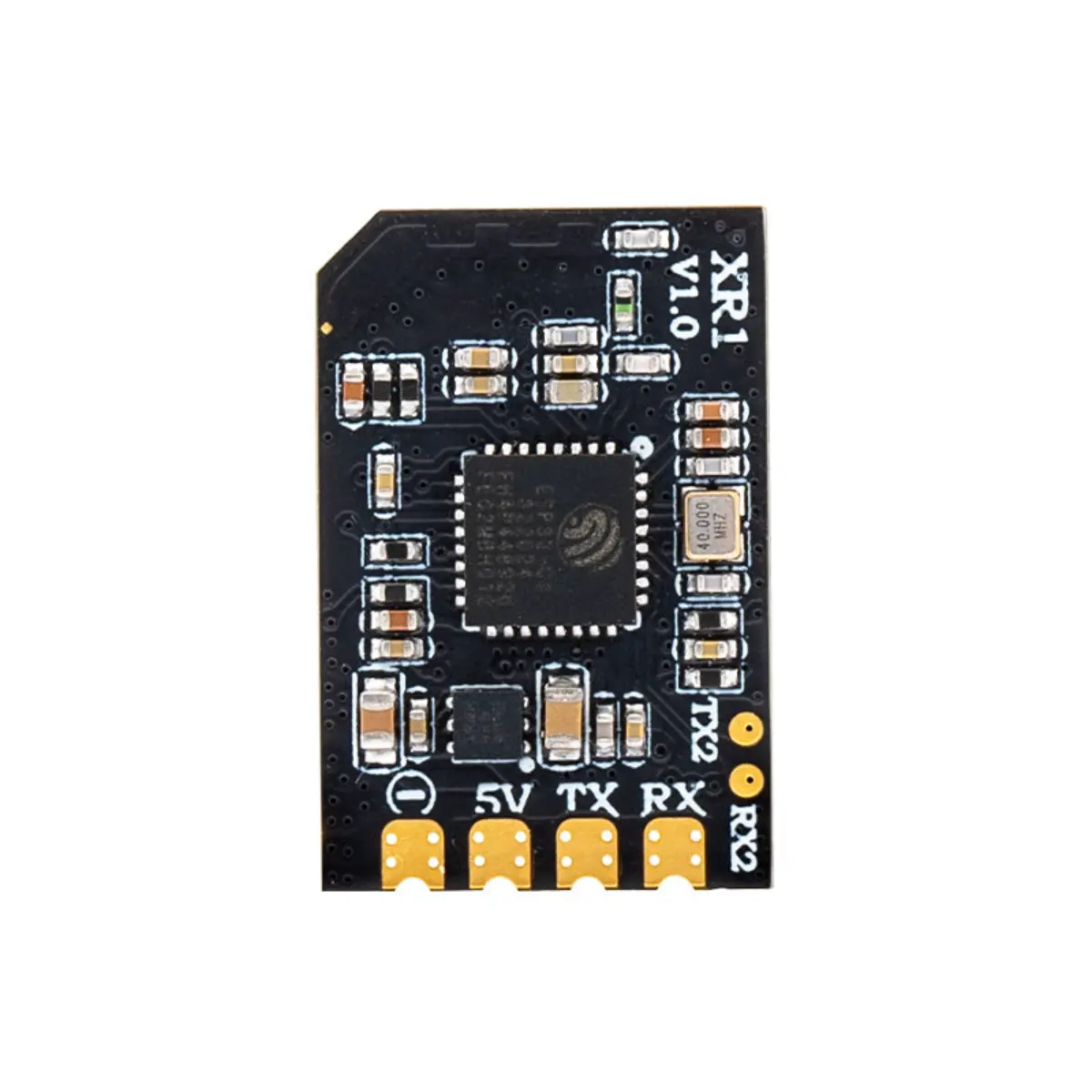

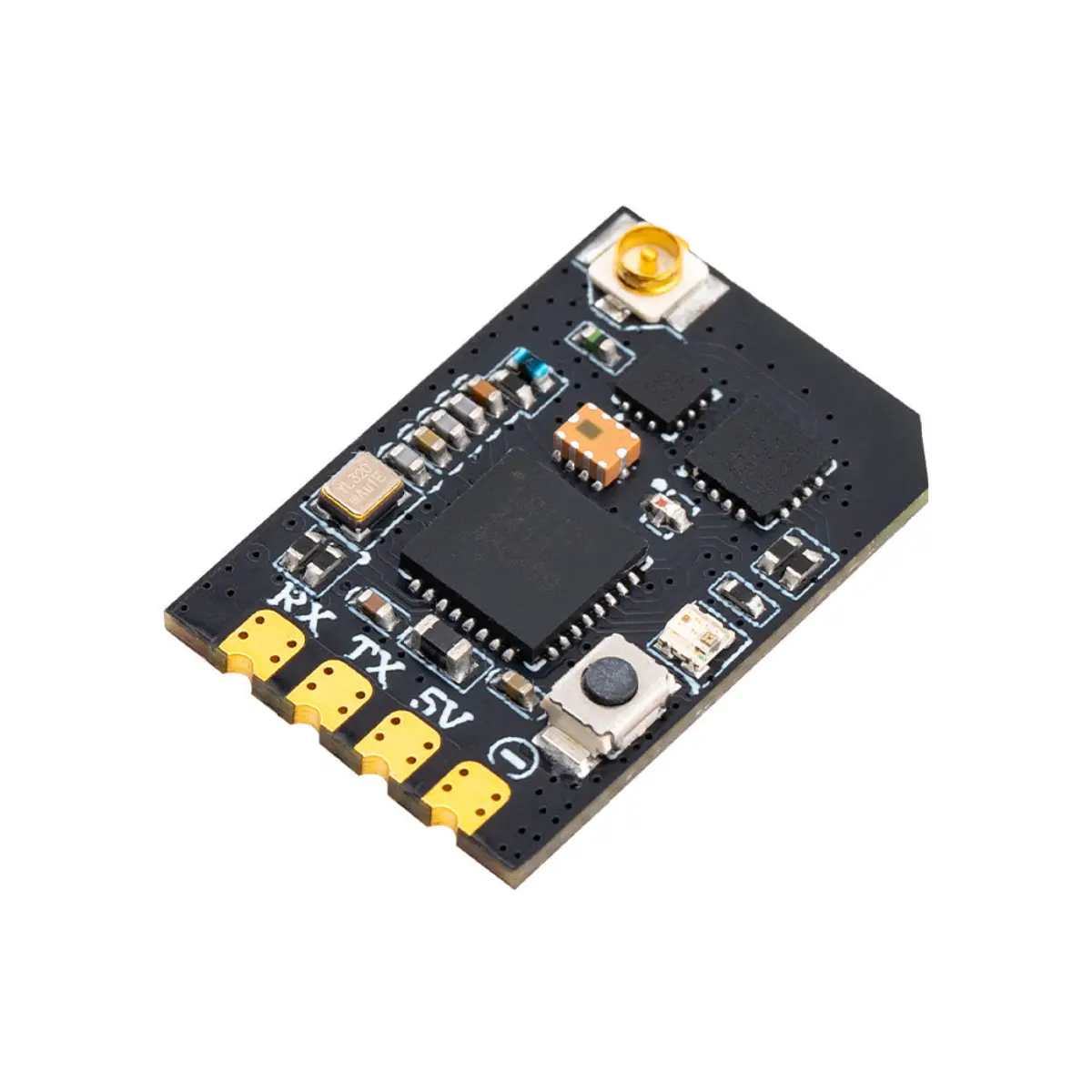

The XR1 Receiver is a versatile, ultra-compact ExpressLRS receiver measuring just 20 × 13 mm. Powered by the third-generation Semtech LR1121 transceiver, the XR1 operates on either the 2.4 GHz or Sub-G 900 MHz bands. Whether using 2.4 GHz or 900 MHz, the XR1 delivers strong range and sensitivity in a small, lightweight package—well suited for a wide range of builds. With the reliability of ExpressLRS, you can focus on operation without worrying about link quality.

Designed for convenience, the XR1 features built-in Wi-Fi for effortless configuration and firmware updates. Access and manage settings through an intuitive WebUI on your PC or mobile device with ease.

Features
Telemetry RF power: 100mW
ExpressLRS 2.4GHz or Sub-G 900MHz
ESP32C3 high-performance MCU
Semtech LR1121 2.4GHz & Sub-G 900MHz Transceiver
Secondary UART port
Castled pads for easy soldering

Specification
Item: XR1 Nano Multi-Frequency ExpressLRS Receiver
Type: ISM2.4 or CE868
MCU: ESP32C3

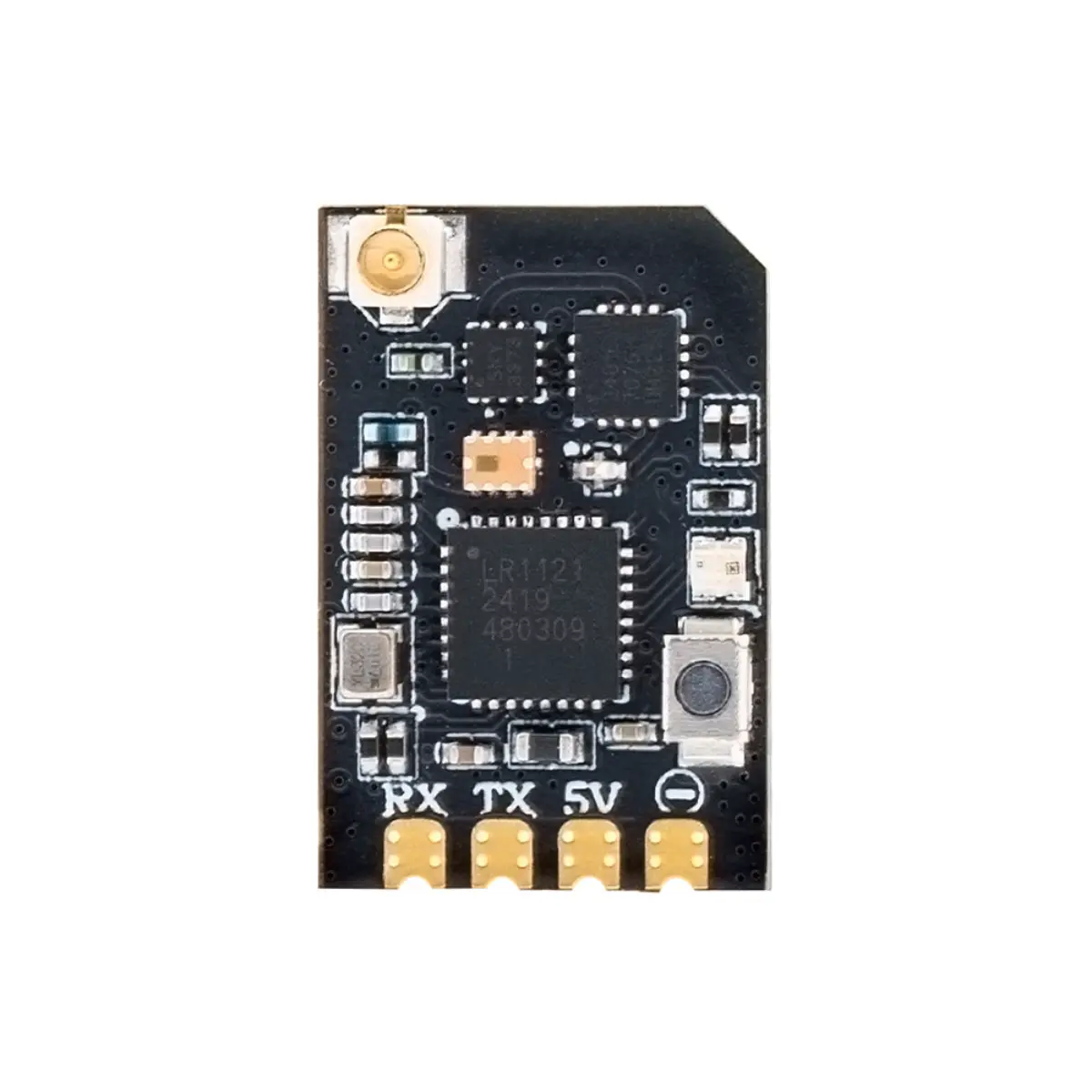

RF chip: Semtech LR1121
RF connector: IPEX-1

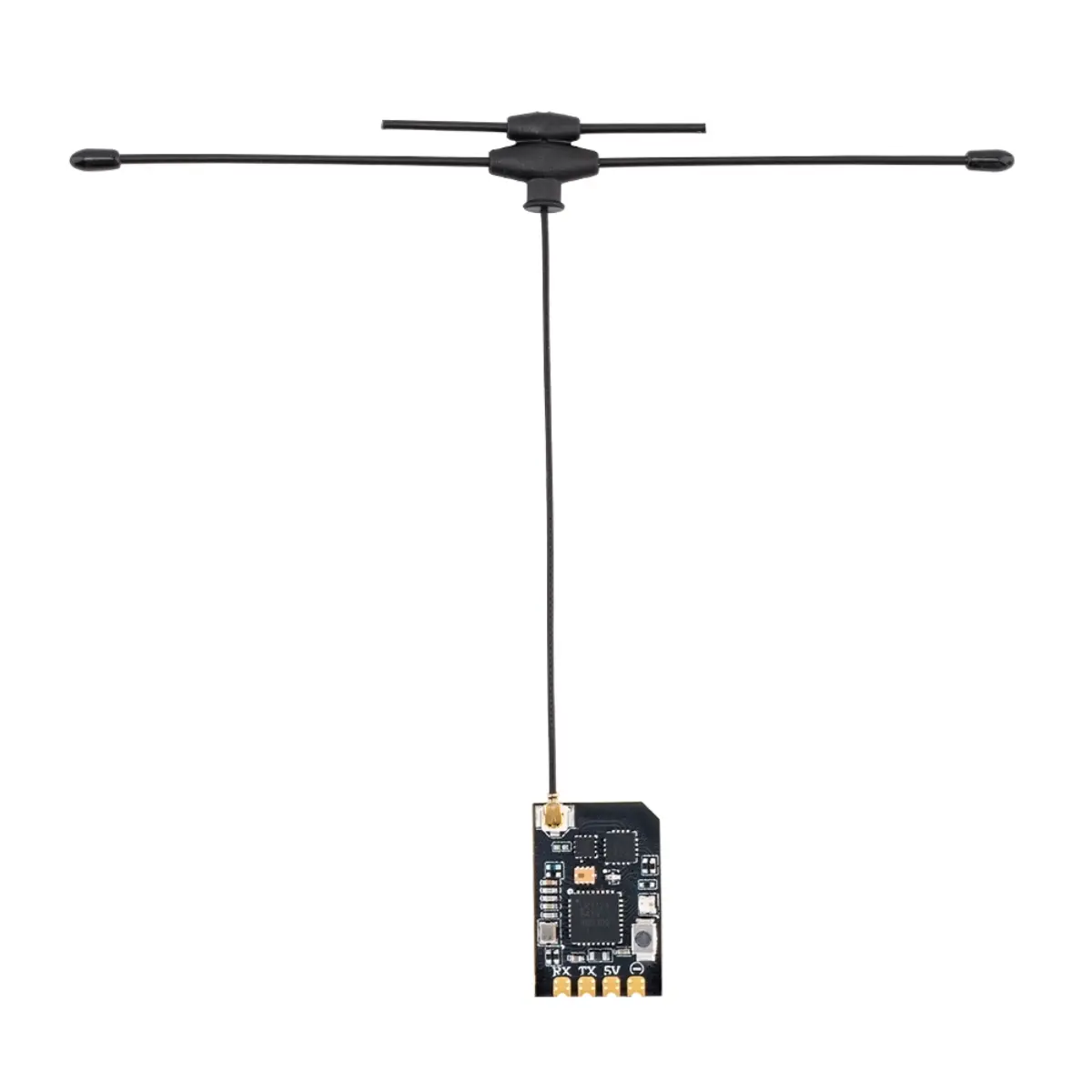

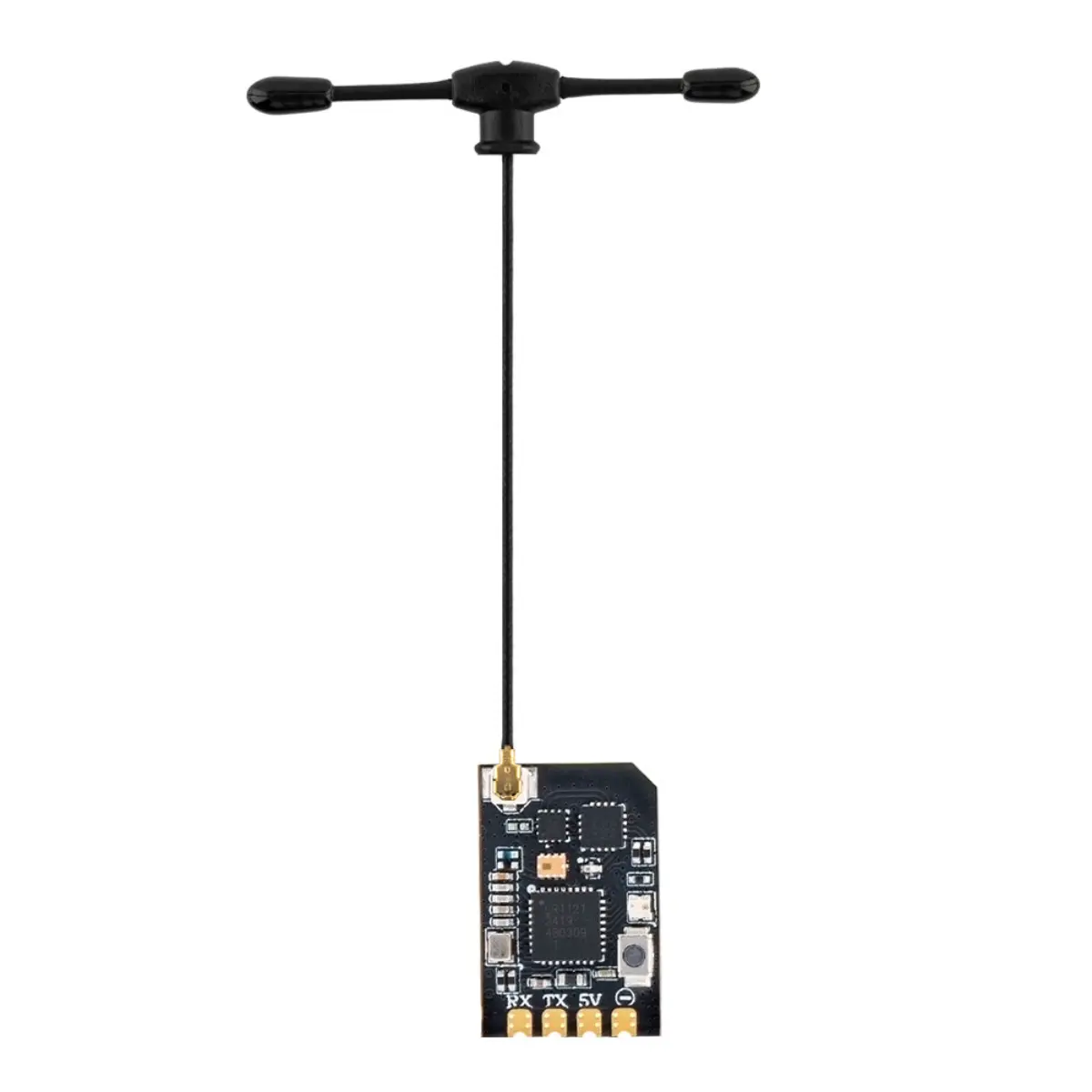

Antenna: 1x T-Antenna (Either 2.4GHz, 900Mhz or Dual-band depending on selected package)
Frequency Range: 2.4GHz or Sub-G 900MHz
Telemetry Power: 100mW
Maximum Packet rate: DK500Hz / K1000Hz
Minimum Packet refresh rate: 50Hz
Working voltage: 5V
Weight: 1.0g (without antenna)
Dimension: 20mm * 13mm * 3mm
Firmware Version: ExpressLRS v3.5.1 pre-installed
FW Target: RadioMaster XR1 2.4/900 RX
Bus interface 1: CRSF
Bus interface 2: UART

Package Includes
1 * XR1 Nano Multi-Frequency ExpressLRS Receiver
1 * T Antenna (Either 2.4GHz, 900Mhz or Dual-band depending on selected package)
1 * CRSF wire
3 * Heat-Shrinkable Tube
1 * Manual Card
