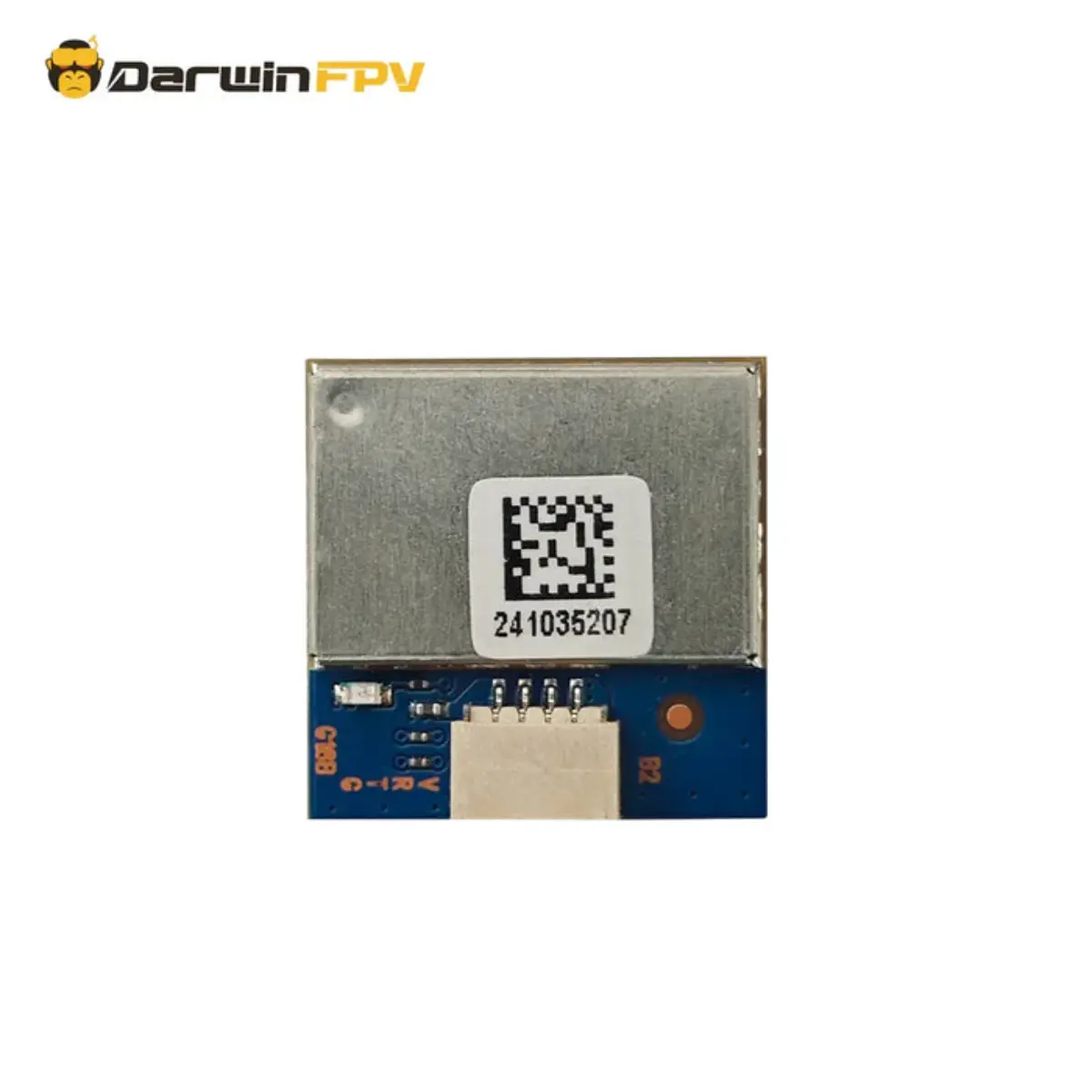

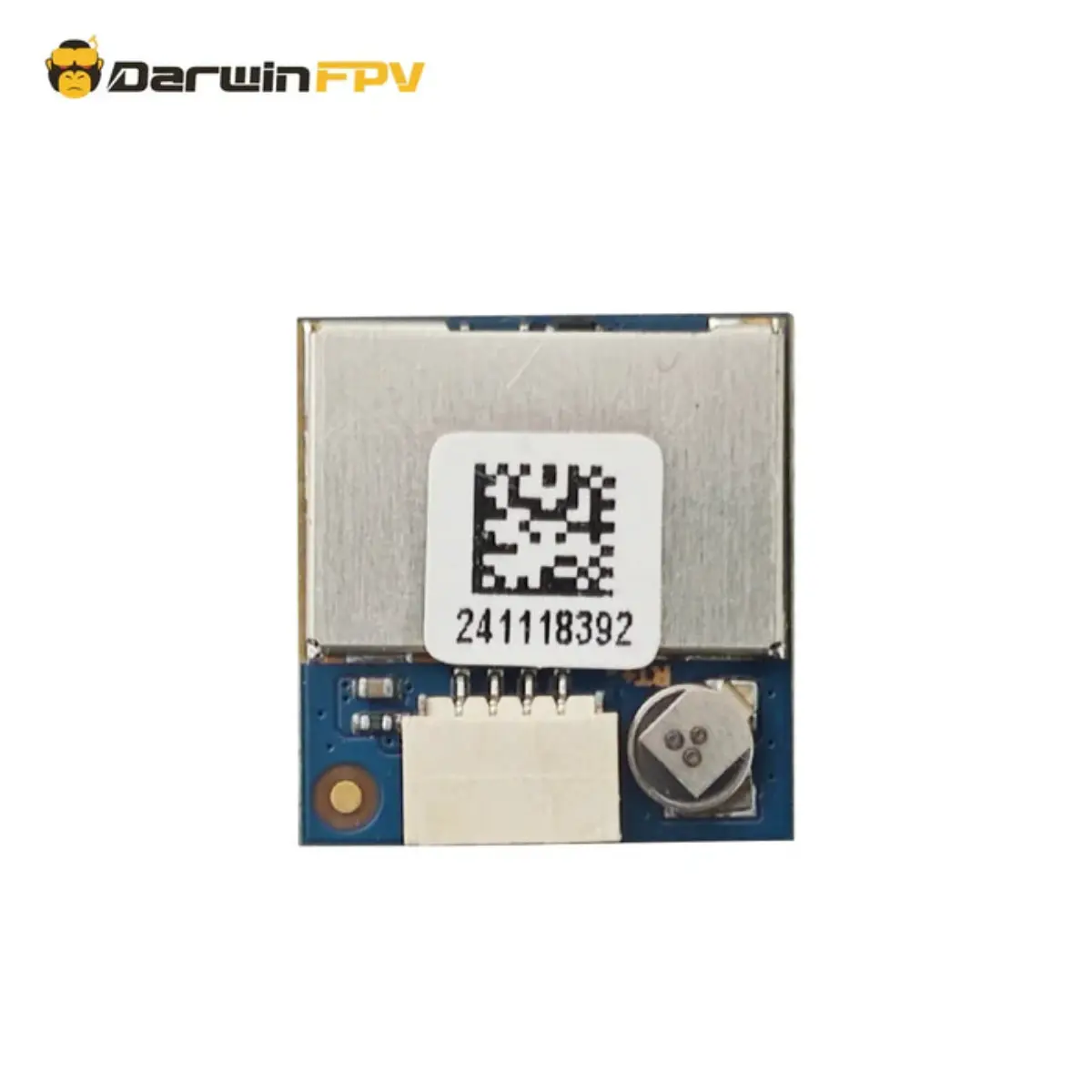

DarwinFPV-M1018/M1012 is a compact, fast-positioning and easy-to-use GPS locator. Adopting U-BLOX output protocol and 10Hz output frequency, it has stronger anti-interference ability and faster positioning speed. It supports joint positioning of GPS+BDS+Galileo+QZSS+SBAS, and can support up to 48 satellites at most. With built-in Flash chip and farad capacitor, it can save configuration parameters and realize fast thermal startup.

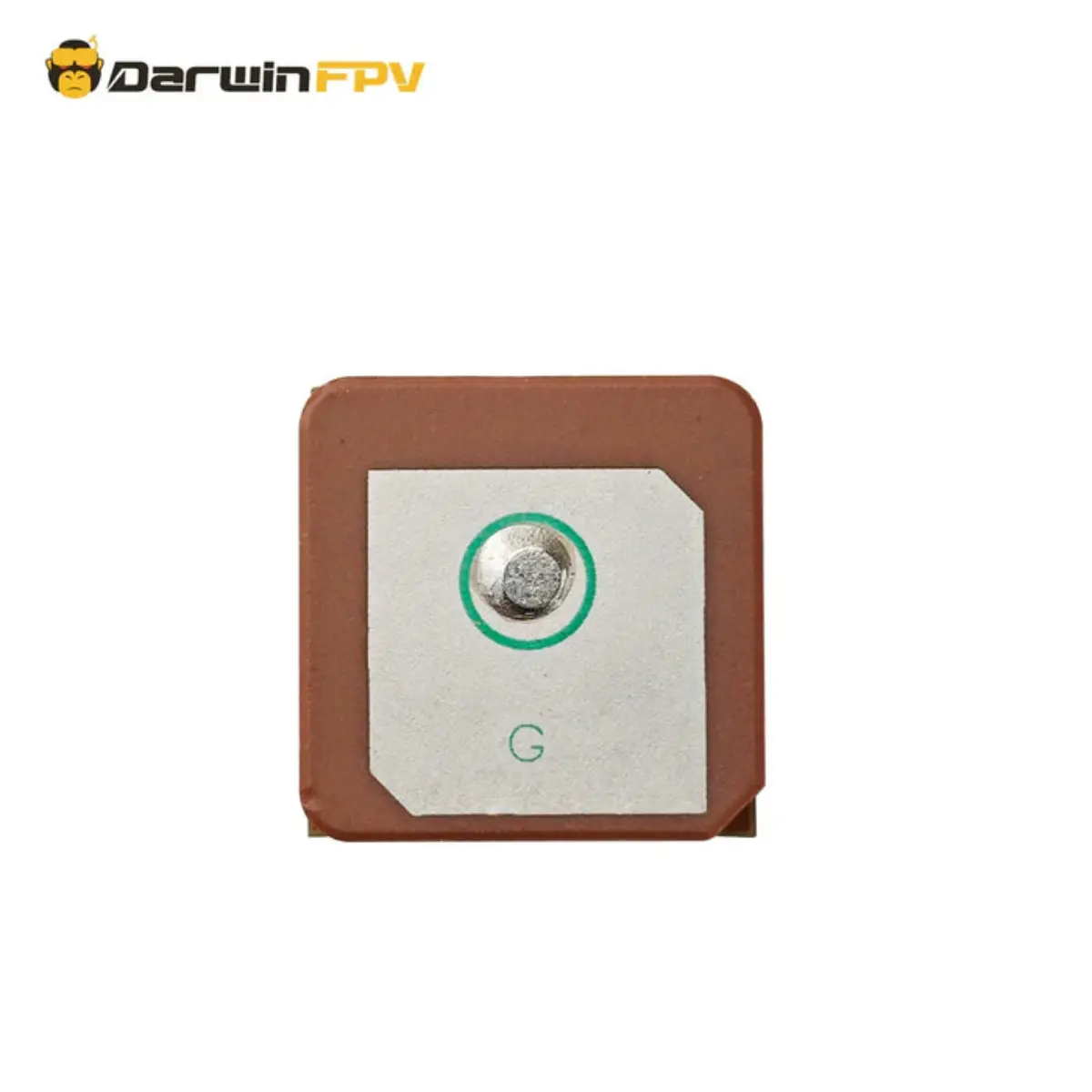

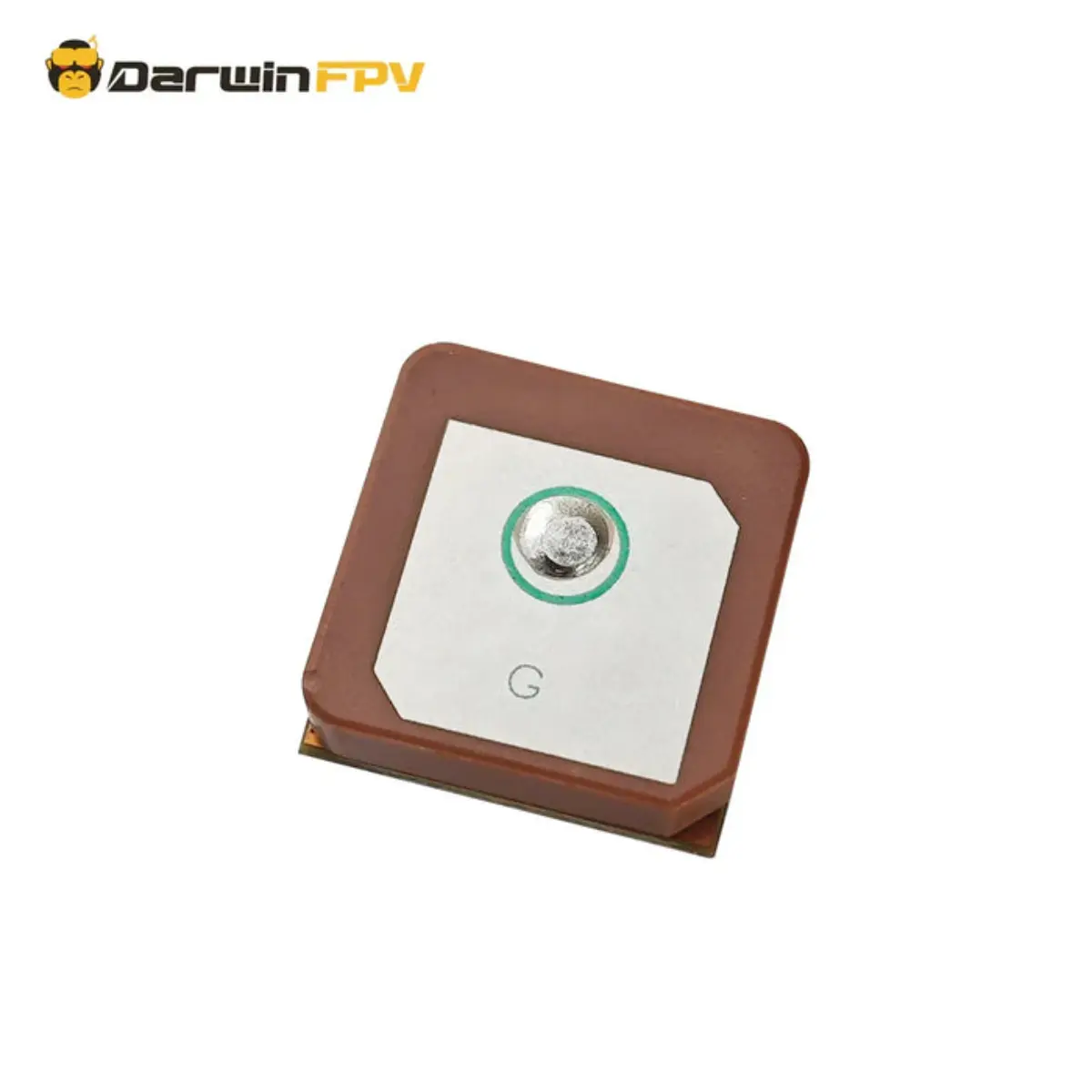

It uses 18x18mm/12x12mm high-gain omnidirectional patch antenna, which can provide accurate positioning and stable signal stability even in harsh environments. It is very suitable for use with FPV racing drones, fixed-wing aircraft and other model aircraft products.

Notes:

– Please keep the top of the ceramic antenna unobstructed, and avoid being close to metal and carbon fiber.
– To achieve the best reception effect, please use a bracket to install the GNSS antenna in an open area, and keep it away from VTX and receiver antennas as much as possible.
– The antenna is fragile, please do not hit or drop it. The scratches on the ceramic antenna are formed by manually fine-tuning the center frequency to improve the antenna performance, and are not product defects.

Features

1.Five-mode combined positioning (GPS+BDS+Galileo+QZSS+SBAS) supports up to 48 satellites.
2.High-gain omnidirectional patch antenna ensures faster positioning and more stable signal reception.
3.Built-in farad capacitor enables faster thermal startup.
4.Dual antenna specifications (18×18mm and 12×12mm) are compatible with most FPV racing drones on the market.
5.On-board indicator lights allow real-time GPS status monitoring.

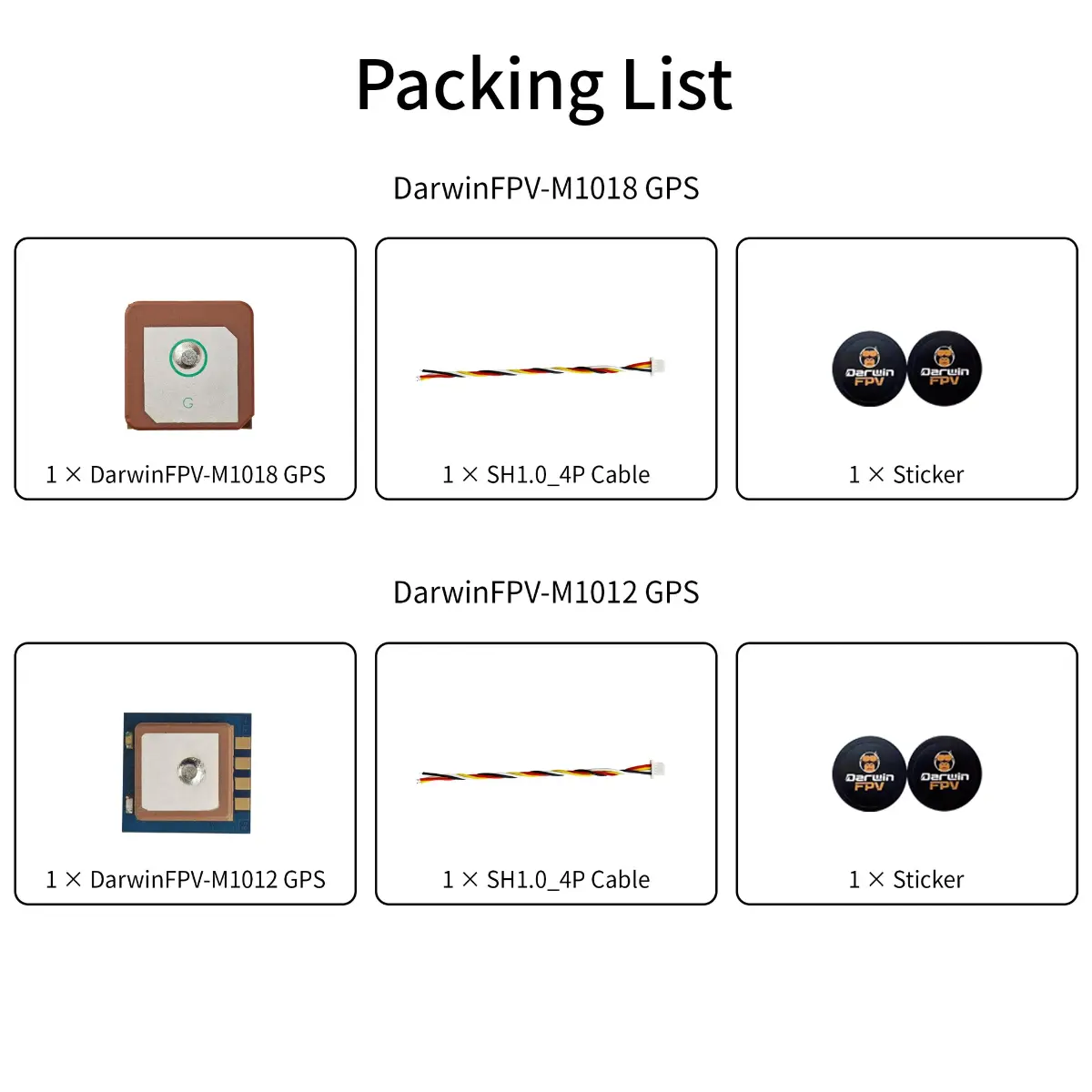

Packing List

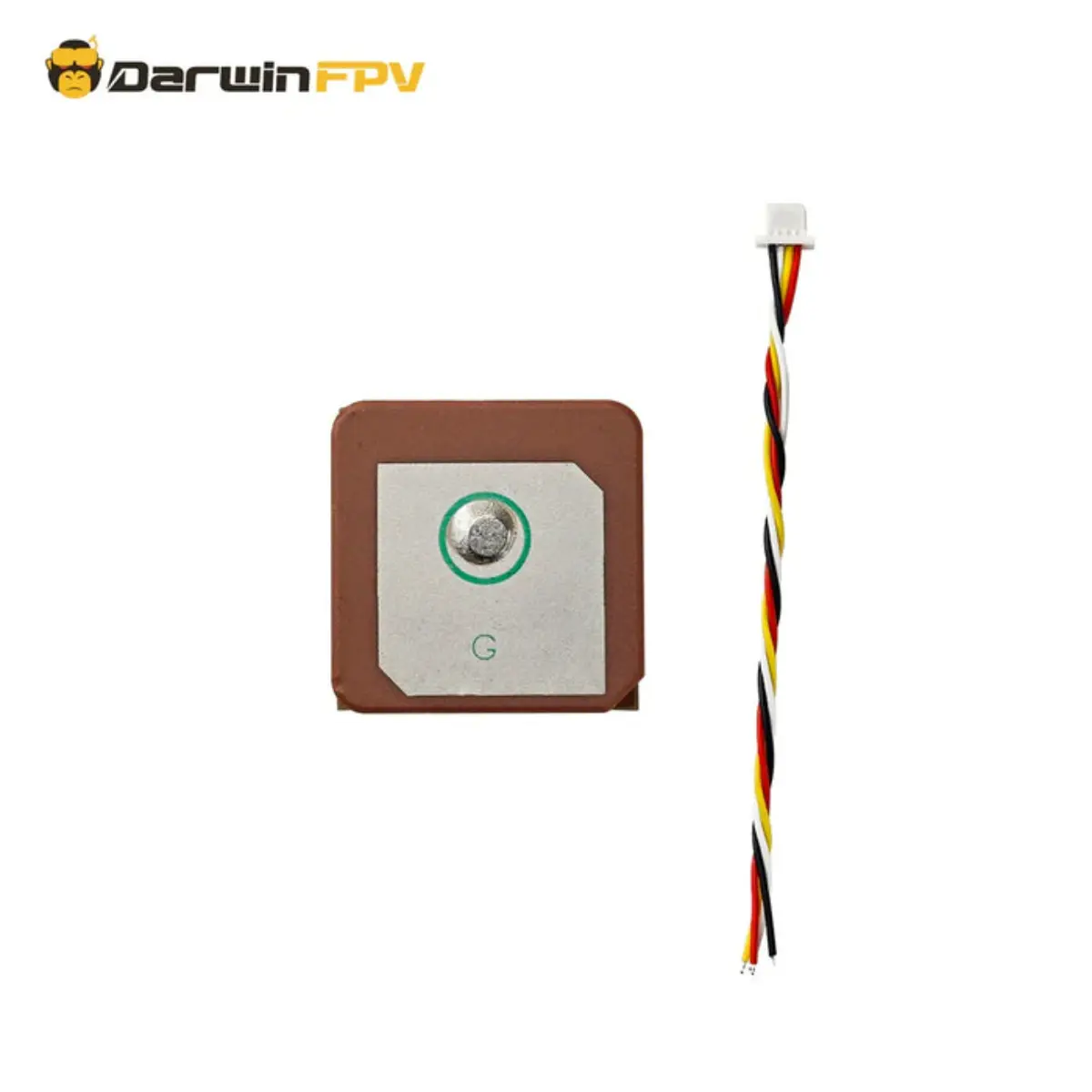

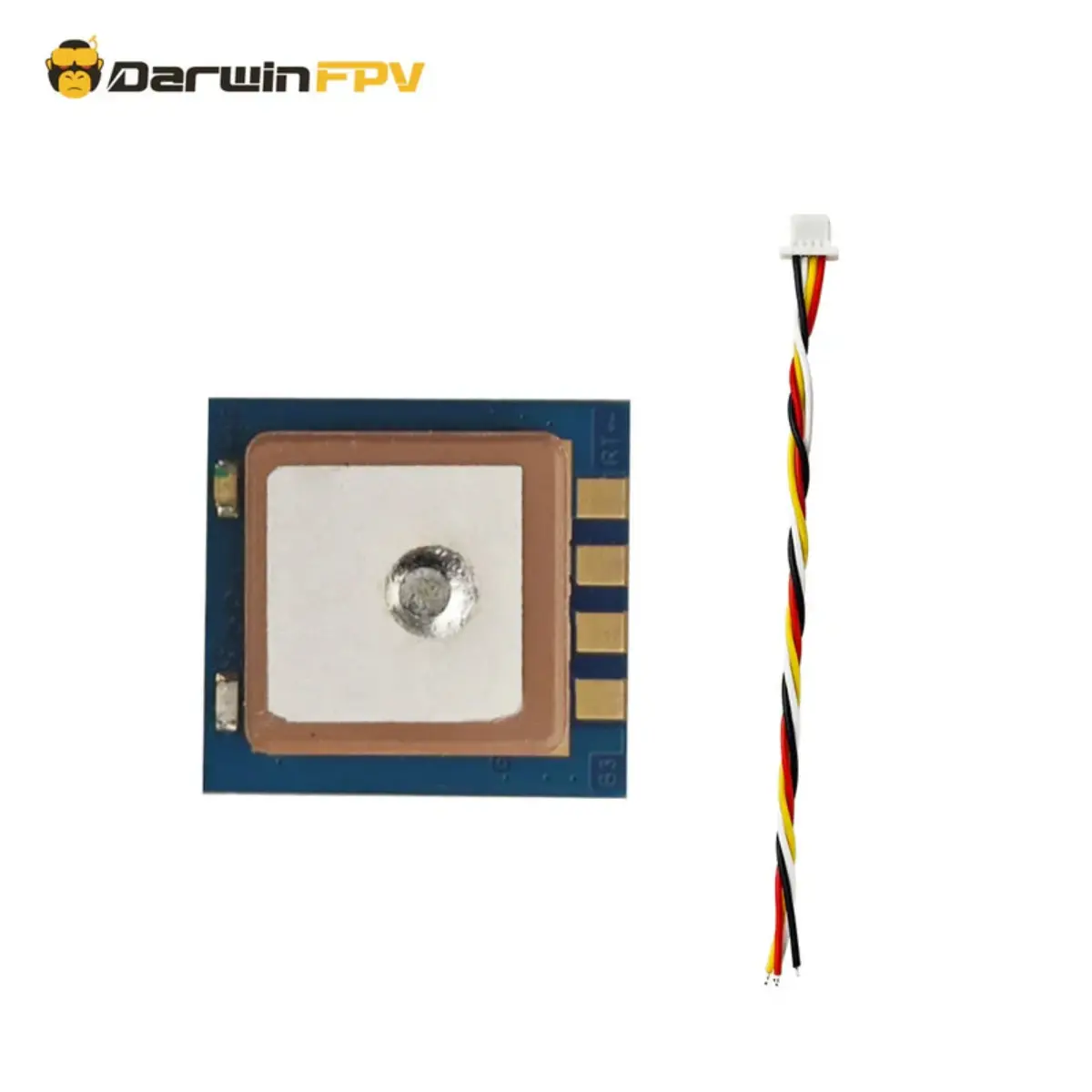

1 × DarwinFPV GPS
1 × SH1.0_4P Cable
1 × Sticker
