Introduction:

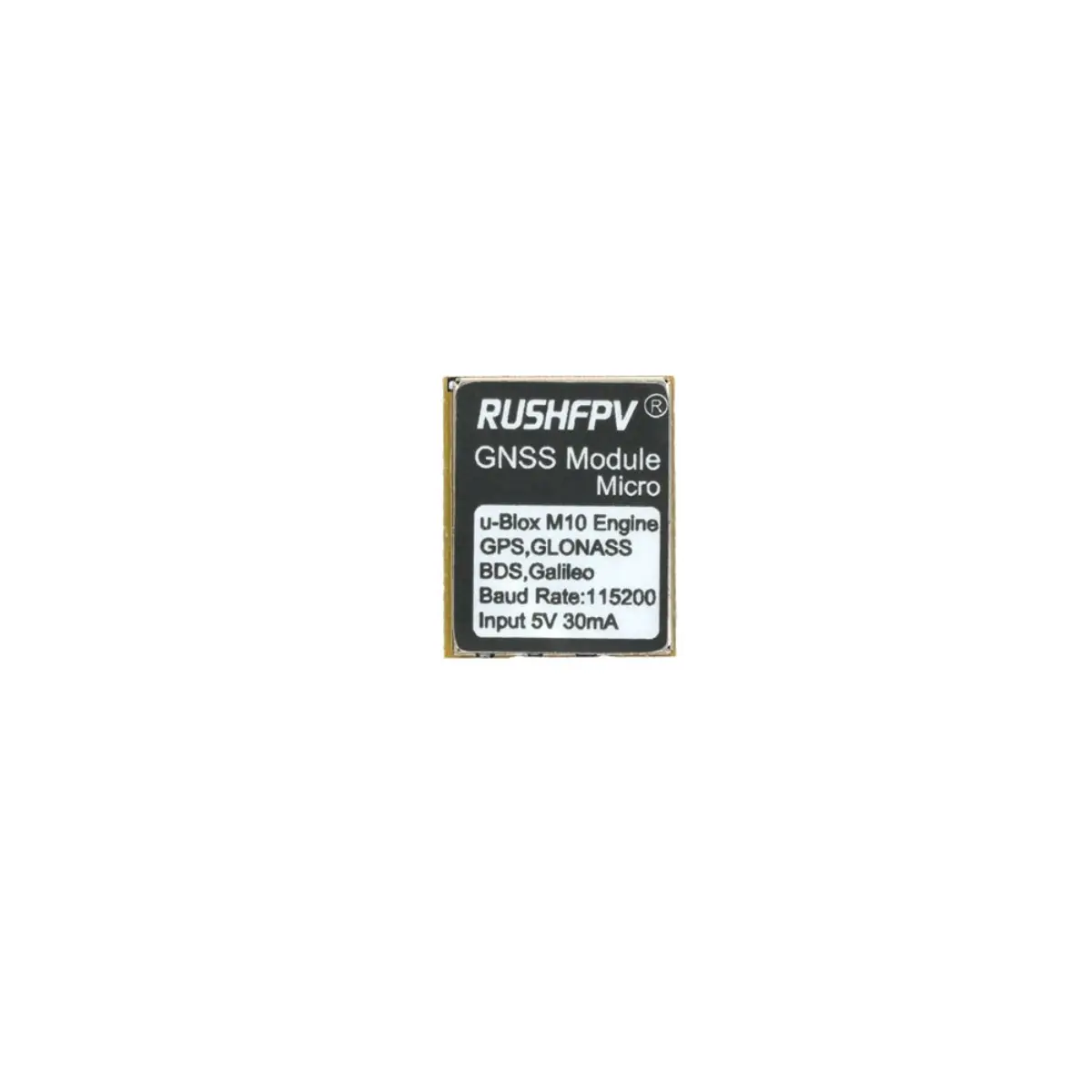

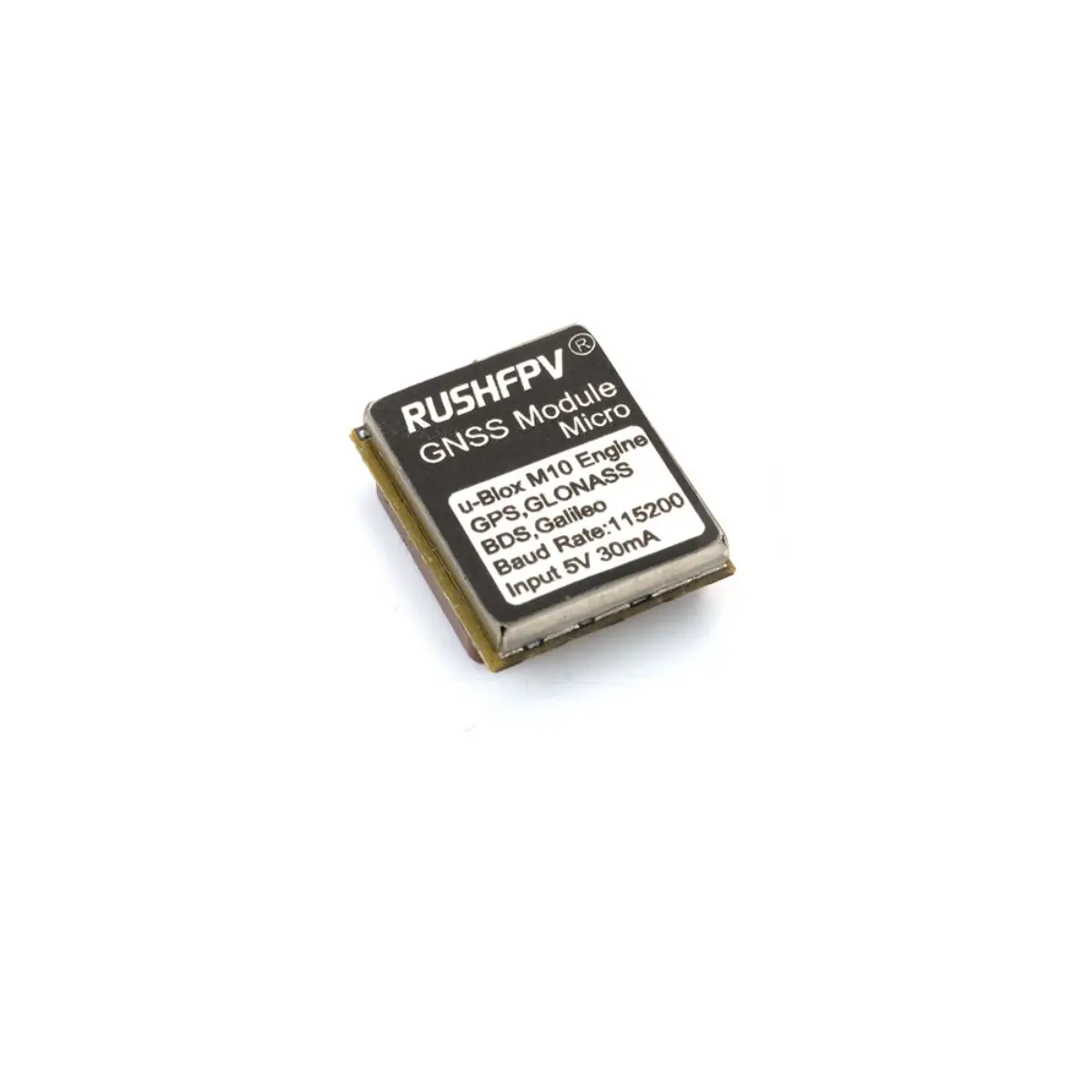

Compact navigation module designed for small FPV UAVs.
The new M10 engine supports GPS, BDS, GLONASS and GALILEO navigation systems and can be connected to three of them at the same time.
Refresh rates up to 10 Hz.
Built-in backup battery and storage, supports fast hot start.
Ceramic antenna with anti-fouling coating and sealed circuitry for reliability and durability.

Parameters:
Receiving bands: GPSL1, GLONASSL1, BDS B1, GALILEOE1, SBAS L1, QZSS L1
Receive channel:72 CH
Receiving Sensitivity:-1 62dBm
Output protocol:UBX
Baud rate:115200dps
Output refresh rate:1HZ-10Hz
Power input:5V30mA
Speed accuracy:0.05m/s
Positioning accuracy:2DACC1.5m
Maximum working height:50,000m
Maximum moving speed:500m/s

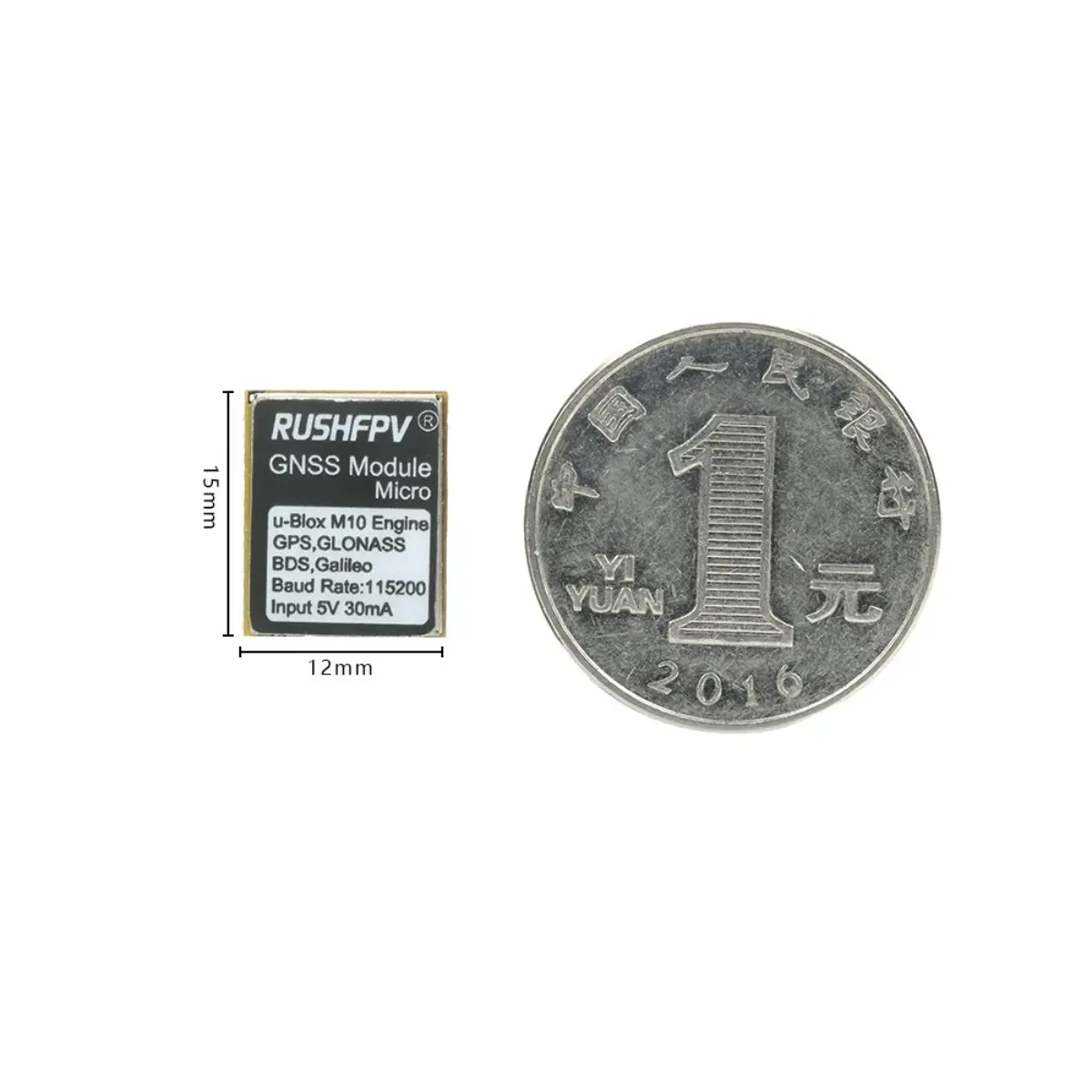

Size:12x15x4.8mm
Weight:2.4g

Precautions
Please keep the ceramic antenna without obstruction above, avoid near metal and carbon fiber. To get the best reception, please make Mount the GNSS antenna with a bracket in the clear space and as far away as possible from VTX and R/C receiver antennas.

When connecting to the flight control, please connect the RX of GNSS module to the TX of the flight control and the TX of the module to the RX of the flight control.

The antenna is fragile, please do not hit it.

The engraving marks on the ceramic antenna are for improving the performance of the antenna by manual fine-tuning of the center frequency, not a product defect.

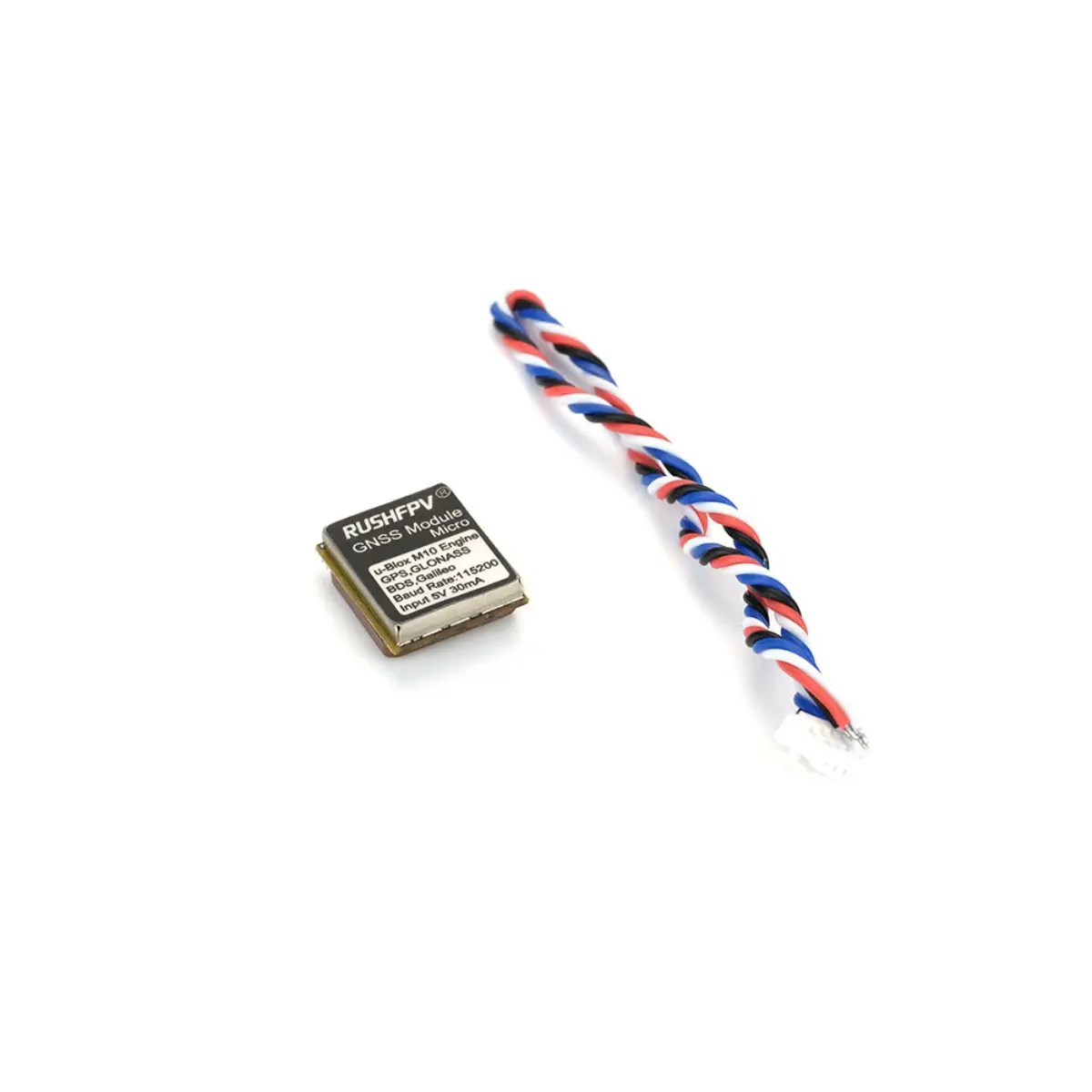

Package List
1x GPS Module
1x SH1.04pin Silicone cable
