SpeedyBee Nano 2.4G-TCXO ExpressLRS ELRS Receiver
Rp99.999.999
Stok habis
Specifications
| Model | SpeedyBee Nano 2.4GHz RX |
| Name | ExpressLRS Receiver |
| Frequency | 2.4Ghz |

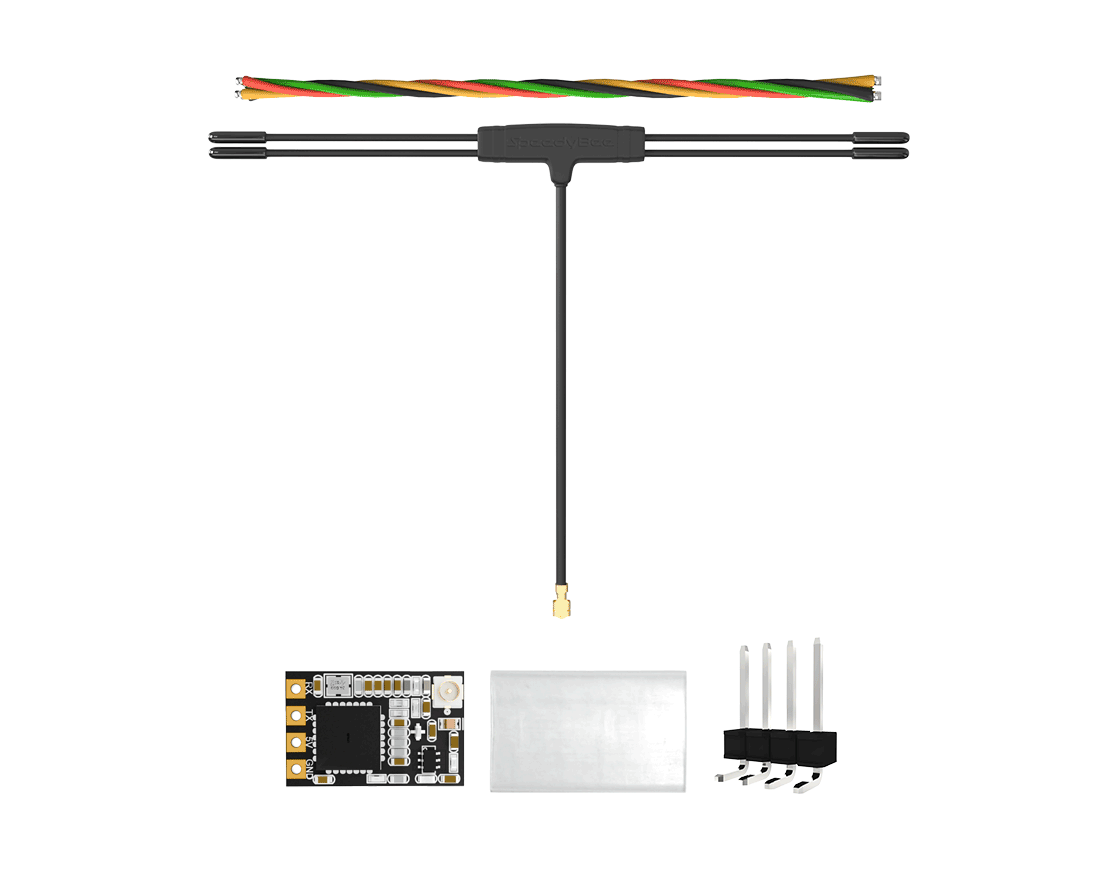

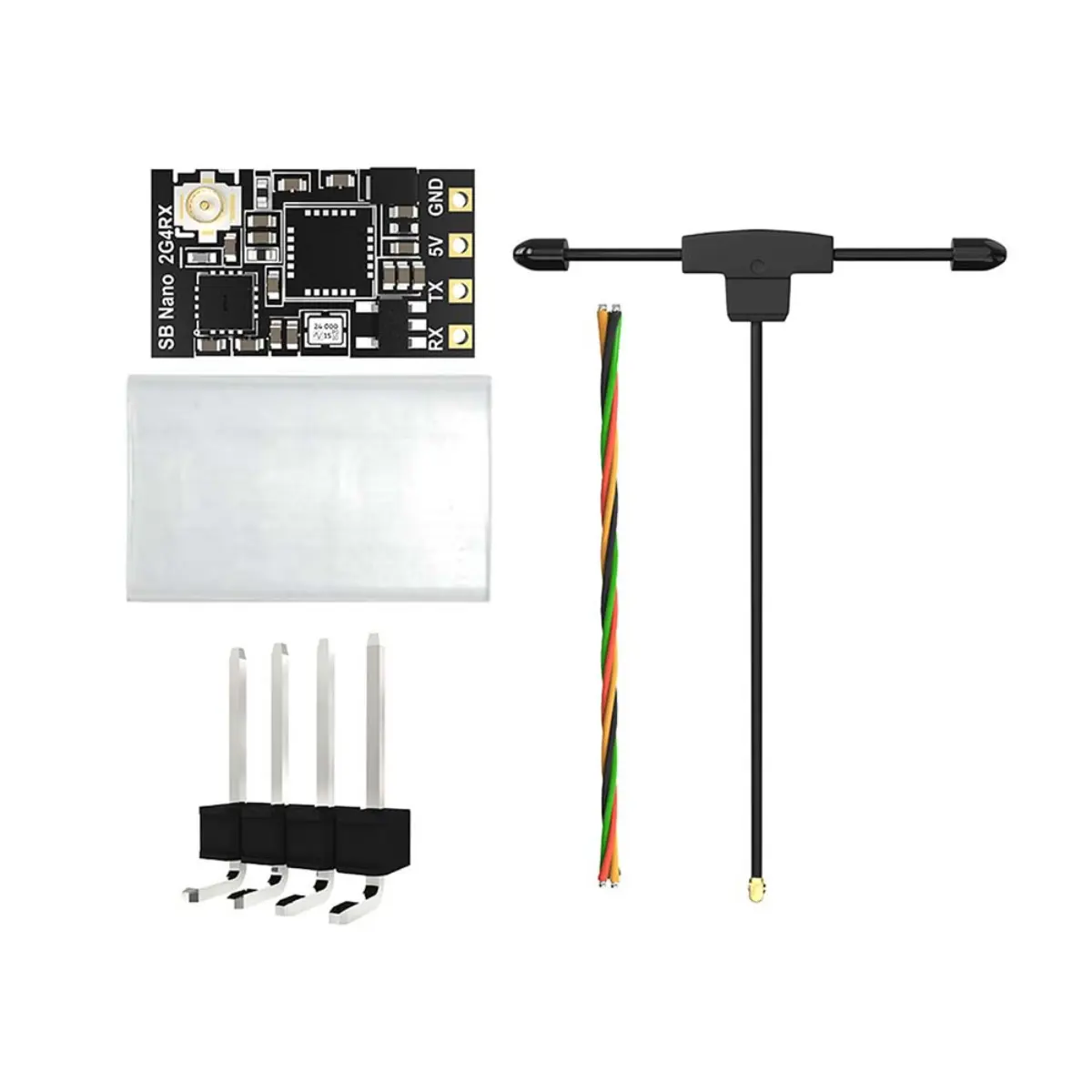

| Antenna | T-antenna (49*79mm, 0.8g;52*79mm, 0.9g) |

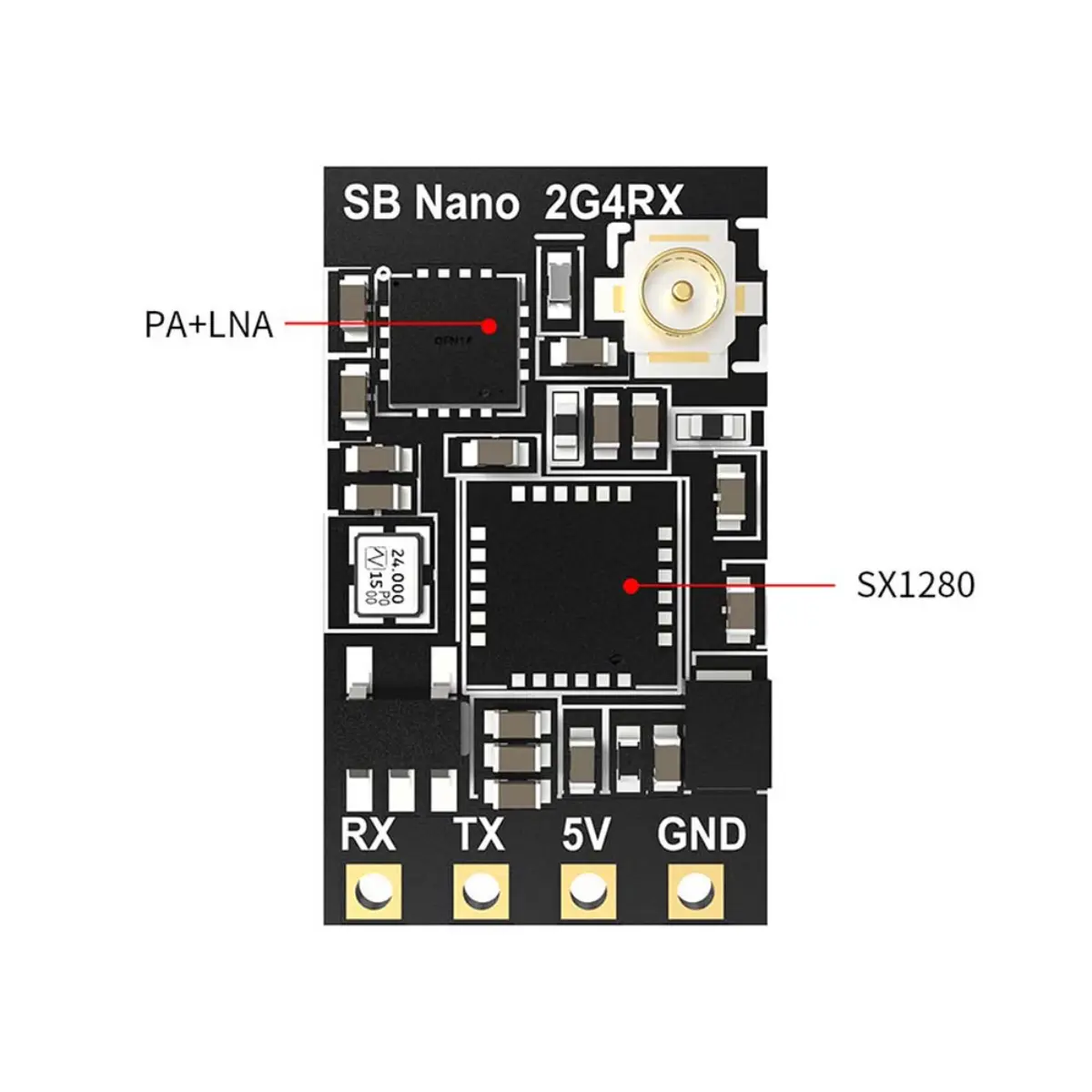

| Chip | SX1281+ESP8285 |
| Power | 100mW |
| Input voltage | 5V |
| Antenna connector | IPEX1 |
| Weight | 0.7 gram(without antenna) |

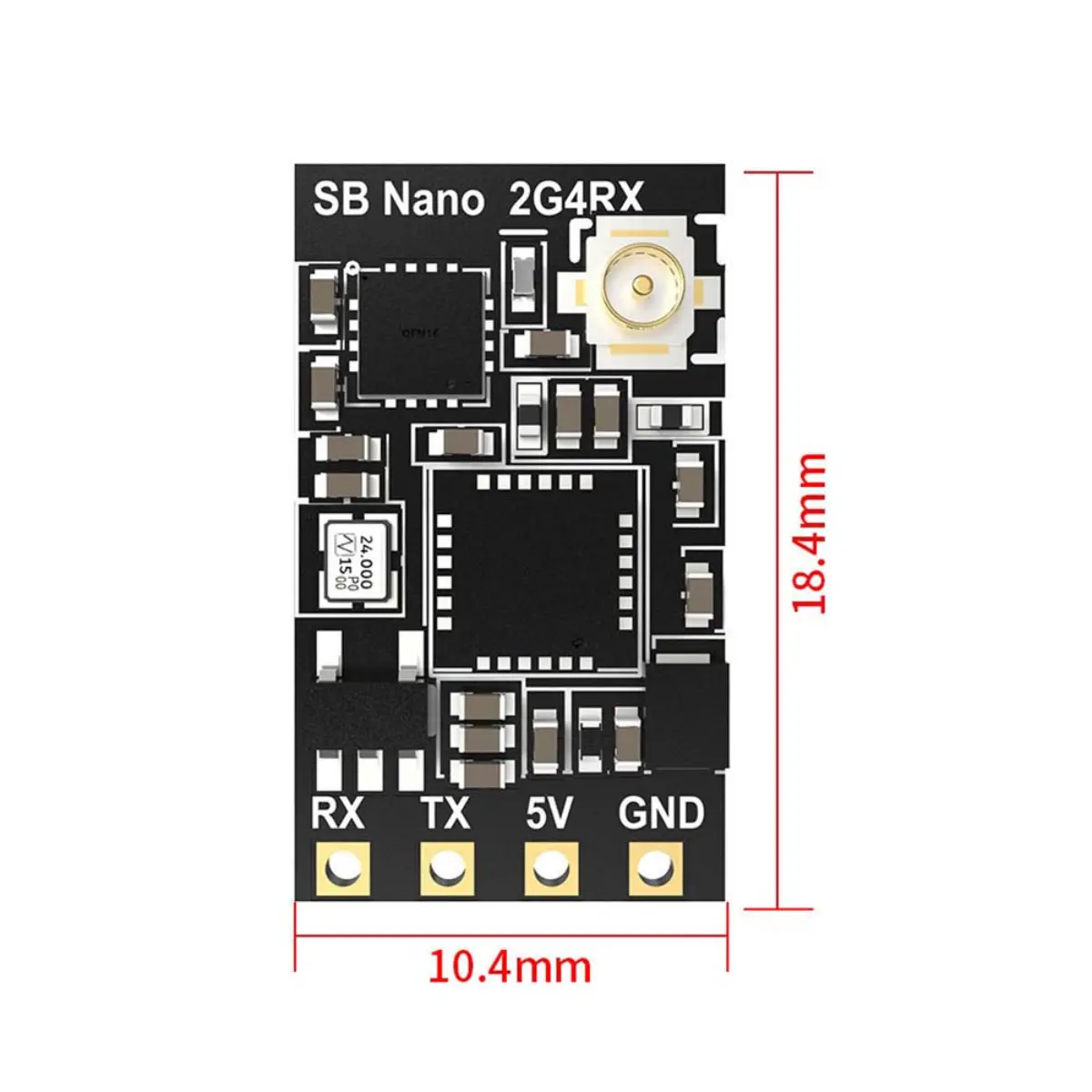

| Dimension | 10.4mm*18.4mm |
| Default Firmware | SpeedyBee Nano 2.4GHz RX 3.5.6 |
Light Indicator
| Double red blinking | binding |
| Slow red blinking | powering up but unlinked, no packages received from the transmitter |
| Solid red | receiver is connected, with signal received |
| Fast red flashing | Wi-Fi is turned on, and updating via Wi-Fi is available |
PS.
To turn on Wi-Fi, wait for 60 seconds after powering on or long press button for 3 seconds
Quick to cut off the power 3 times, it enters the binding mode
