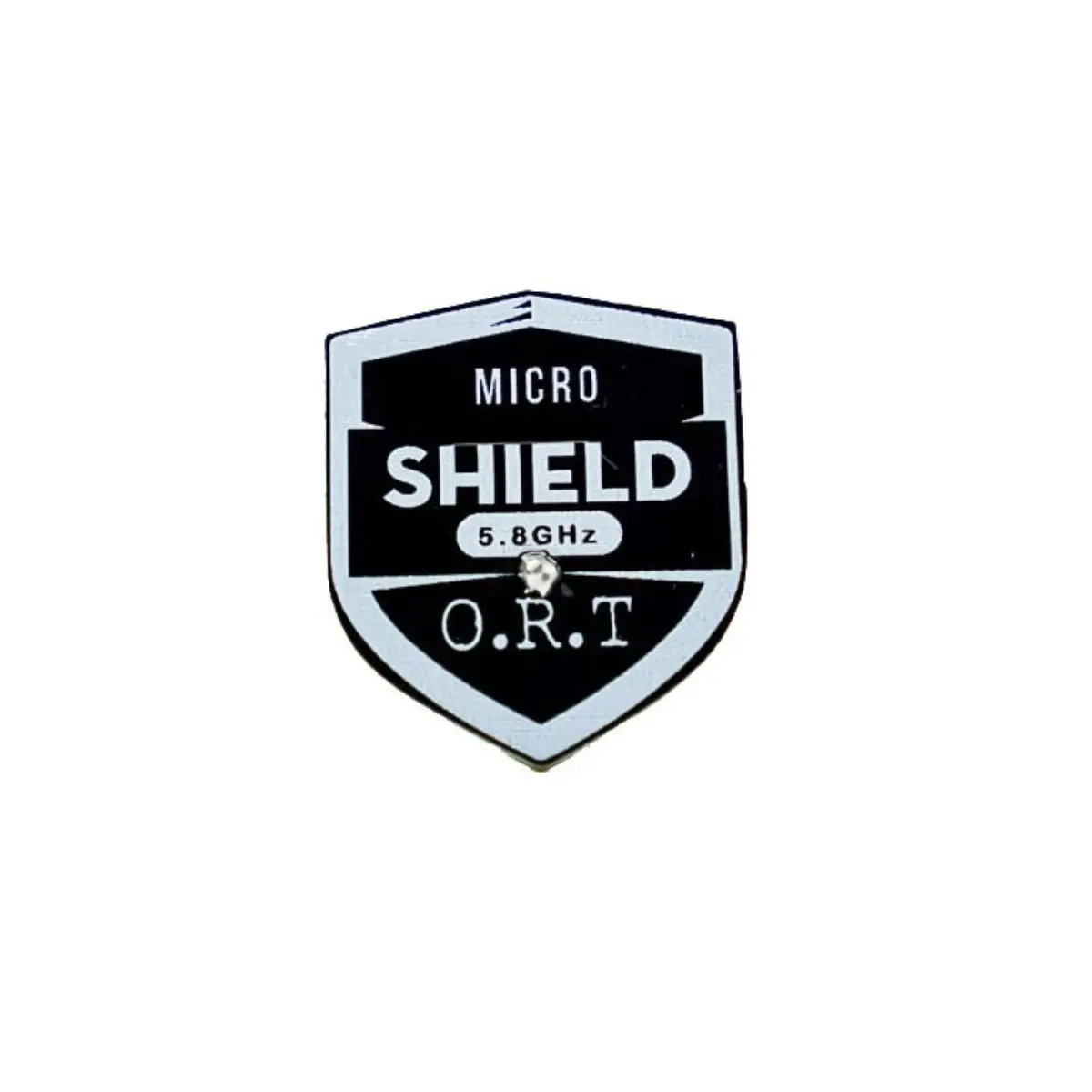

ORT Micro Shield Patch 5.8GHz
Freq Range : 5600 ~ 6000 GHz
Gain (dBi) : 6.5 dbic
Swr / S11 : <1:1.5
Polarization : Circularly Polarized – RHCP
Gain Pattern : Directional – Need to be pointed on general flying area
Beam Width : vertical and horizontal, 160° at -7db, 130° at -5db, 90° at -3d
Dimensions / Weight : 3*3.5cm / 6 Grams.
Colour : Black / White

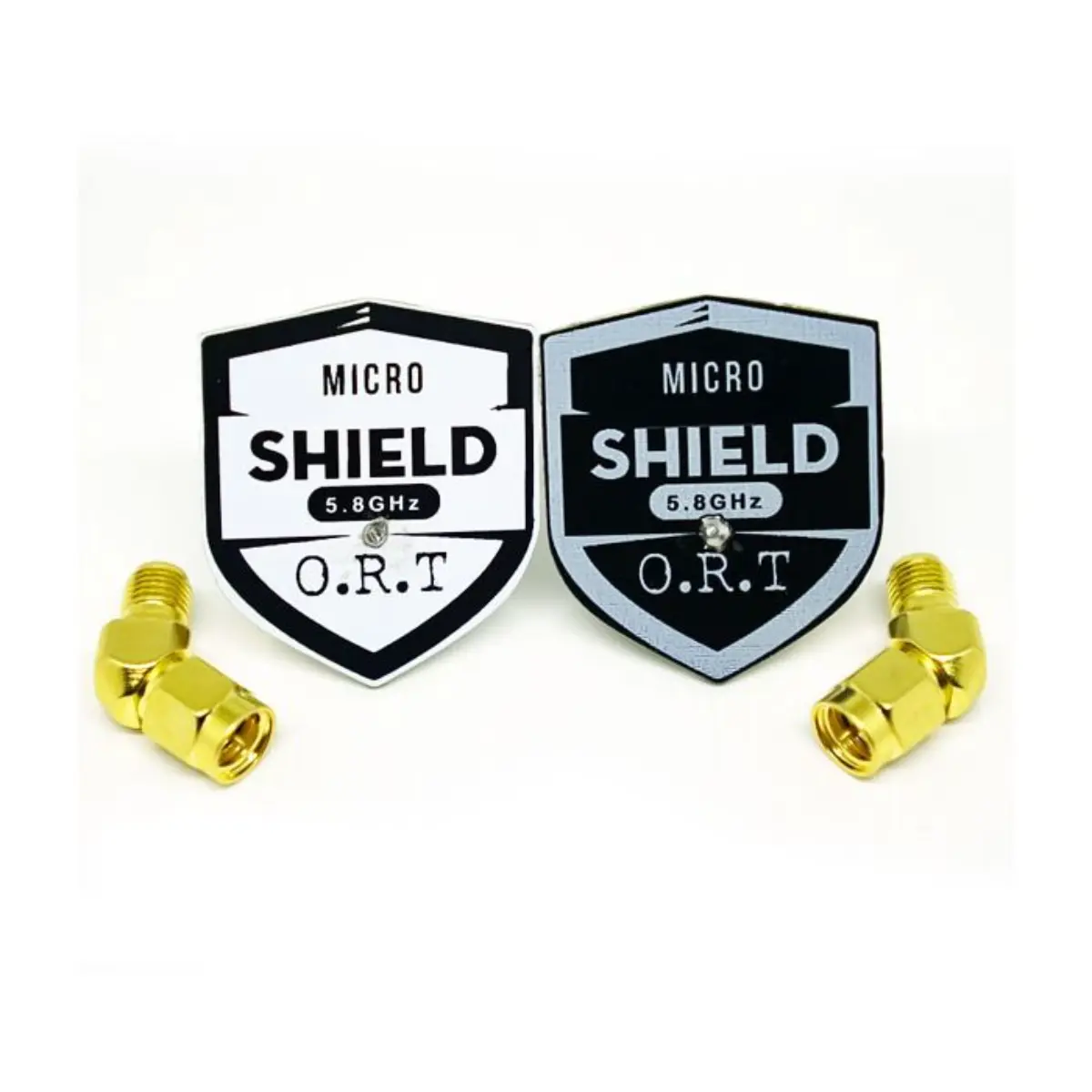

Connector : Available in SMA & RPSMA (45 degree adapter included)

ORT Micro Shield 5.8GHz is smallest, lightest and high perfomance circular directional antenna from ORT design board. ORT Micro Shield is based on patch or microstrip antenna by Howell in 1972, that we refine and re tuned for specific use on 5.8GHz FPV Frequency.

ORT Micro Shield 5.8GHz is compact & low cost solution of directional circular antenna for your goggles diversity for daily flying, race, or even playing some micro at a park. It has 6.5dbic gain for comfortable wide beamwidth coverage, yet double the range and have higher penetration capability than your regular omni antenna.

Includes:
1x ORI Micro Shield Antenna
