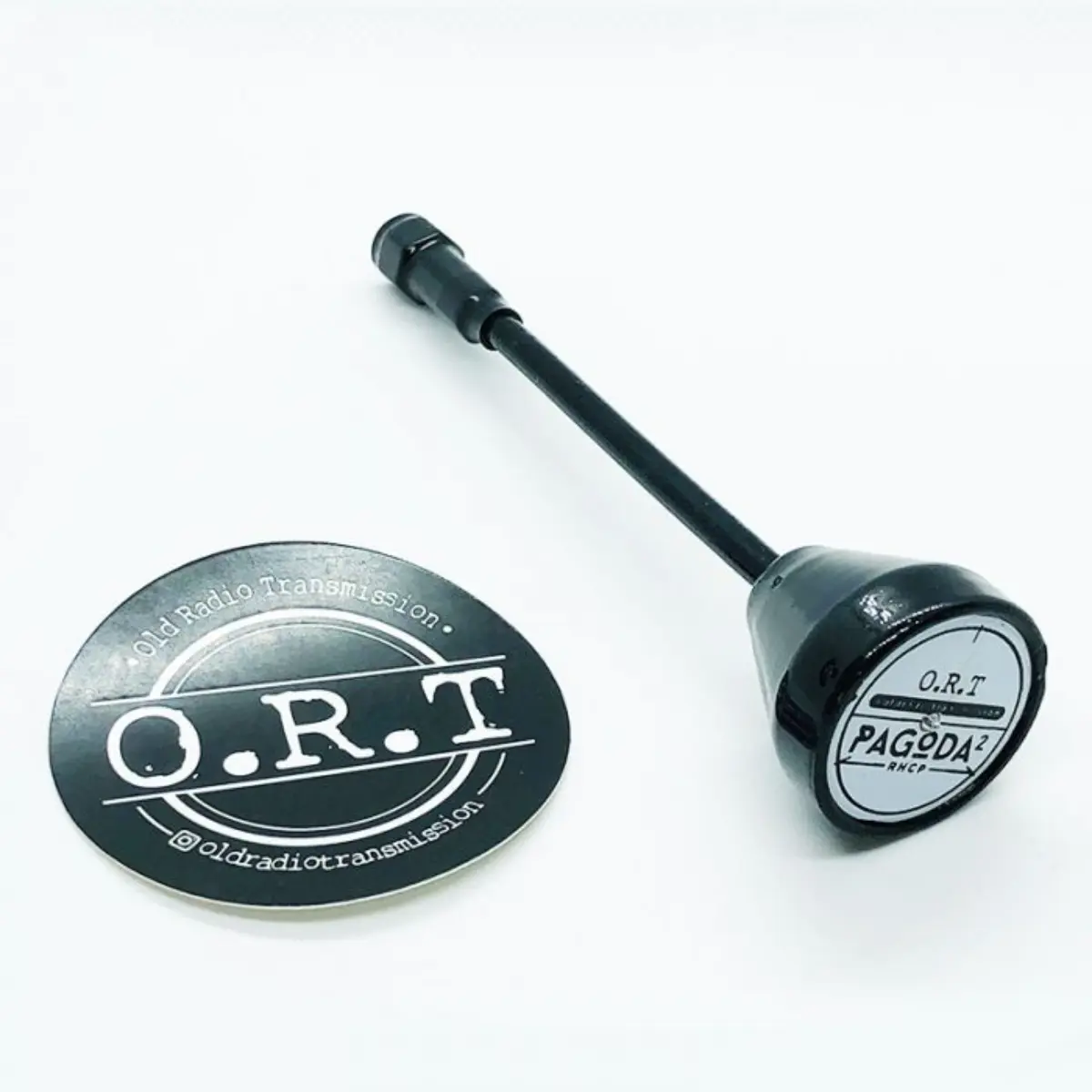

ORT Pagoda X2 Long Edition FPV Antenna RHCP
Specifications:
Freq Channel : 5550 ~ 6050 GHz
Gain (dBi) : 1.2 ~ 1.3 dBi
Axial Ratio : < 1.3
Matching Swr / S11 : S11 < 20dB, VSWR < 1.22 (Center Frequency)
Polarization : Circularly Polarized – RHCP/LHCP
Gain Pattern : Omni Directional (cover signal in all direction)
Radiation Efficiency : 95%
Connector : Available in SMA & RPSMA
ORT Pagoda 2 Extreme Series is designed by Maarten Baert, we are thankful for his generous design to make affordable yet strong(er) VTX quad race antenna. We are proudly present this to you, with ORT correct production method and check thru our special devices to ensure no more flicker and glitchy video due to incorrect alignment.
ORT Pagoda Long edition is built to provide a high-quality antenna for long-range quad or fixed-wing without sacrificing your wallet. Featuring 11cm long cable to prevent signal blocking by carbon fiber or lipo battery.
Package Includes:
1x ORT Pagoda Extreme Series Antenna
| Berat | N/A |
|---|---|
| Polarisasi | RHCP |
| Konektor | RP-SMA, SMA |
| Warna | Hitam, Putih |
