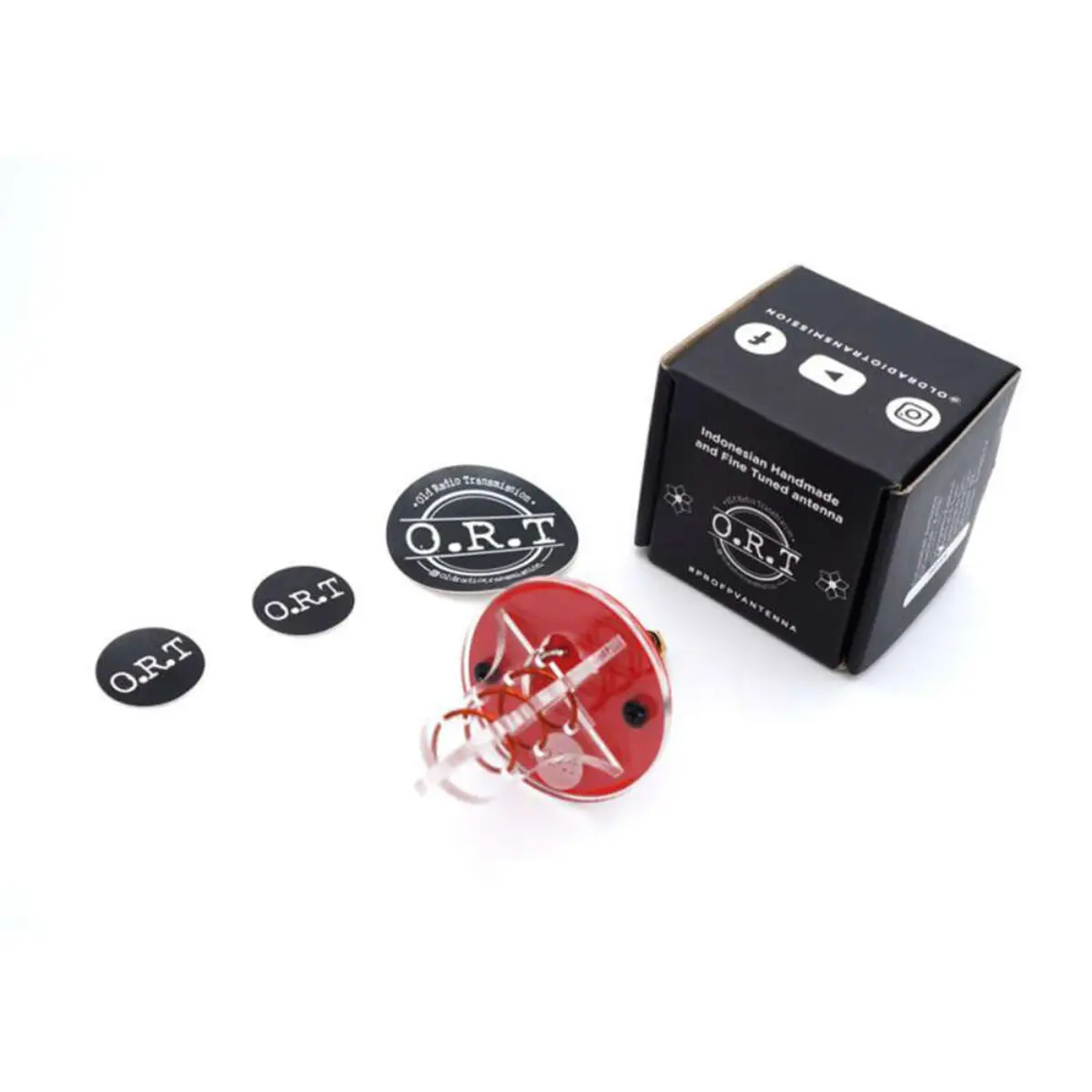

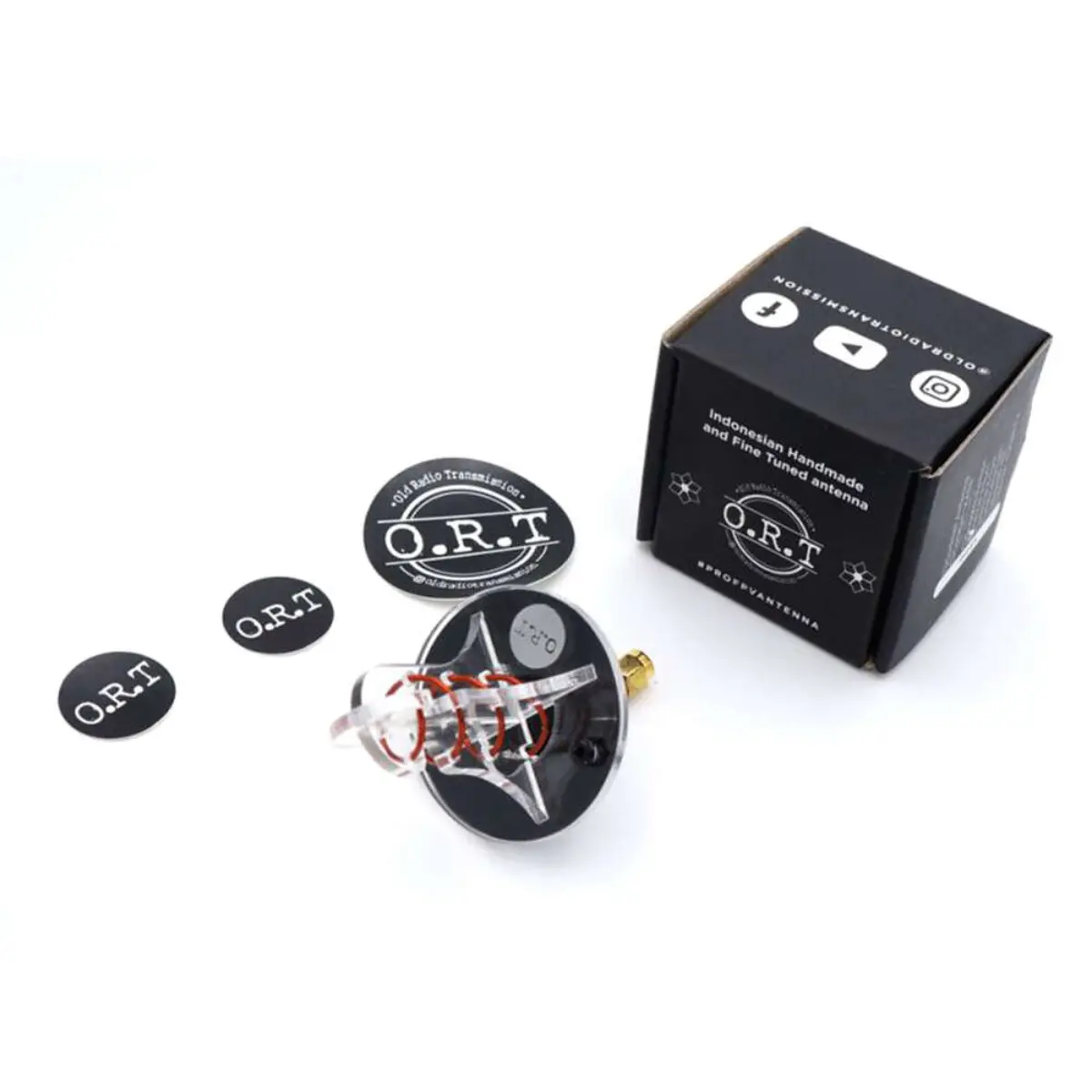

ORT Helical 3 Turn – 7dBi Gain

Hand Tuned, providing wide beam width with 180-degree coverage and greater penetration thru trees and dense material.
High-quality Enameled Supreme Wire (anti-rust).
Original Low loss RG402 cable.
High-quality acrylic, providing a premium look.
Effective range, 6~10km and beyond on 600mW Vtx (depends on the flying area noise level, receiver sensitivity, and FPV setup)

Freq Channel : 5600 ~ 6000 GHz
Gain (dBi) : 7 dBic
SWR/S11 : < 1:1.3
Beam width : 180 degrees
Polarization : Circularly Polarized – RHCP/LHCP
Gain Pattern : Directional (need to be pointed on general flying area)
Connector : SMA

The helical design has a 180ohm impedance which is not matched with our FPV system with 50ohm impedance. Hence so-called helical tuning is the most important part to ensure the antenna match with our FPV system to provide you with the most efficient directional antenna. A perfect balance between beamwidth vs range.

ORT 3 Turn Helical is designed to match with your circular transmitter antenna (match best with our ORT Cocktail). The Helical has better axial ratio compare to cheapo circular patch antenna with printed PCB out there. If you handle ‘hard’’ RF environment such as surrounding with building & trees or need better penetration thru obstacles, and also light enough to mount in your goggles, this is your perfect choice. Strap one and get the clearest video even on hardest RF environments.

Feature :
Hand Tuned, providing wide beam width with 180-degree coverage and greater penetration thru trees and dense material.
High-quality Enameled Supreme Wire (anti-rust).
Original Low loss RG402 cable.
High-quality acrylic, providing a premium look.
Effective range, 6~10km and beyond on 600mW Vtx (depends on the flying area noise level, receiver sensitivity, and FPV setup)

Package Includes:
1x ORT Helical 3T Antenna
