Matek ELRS 2.4GHZ True Diversity Receiver, R24-TD
Stok 1

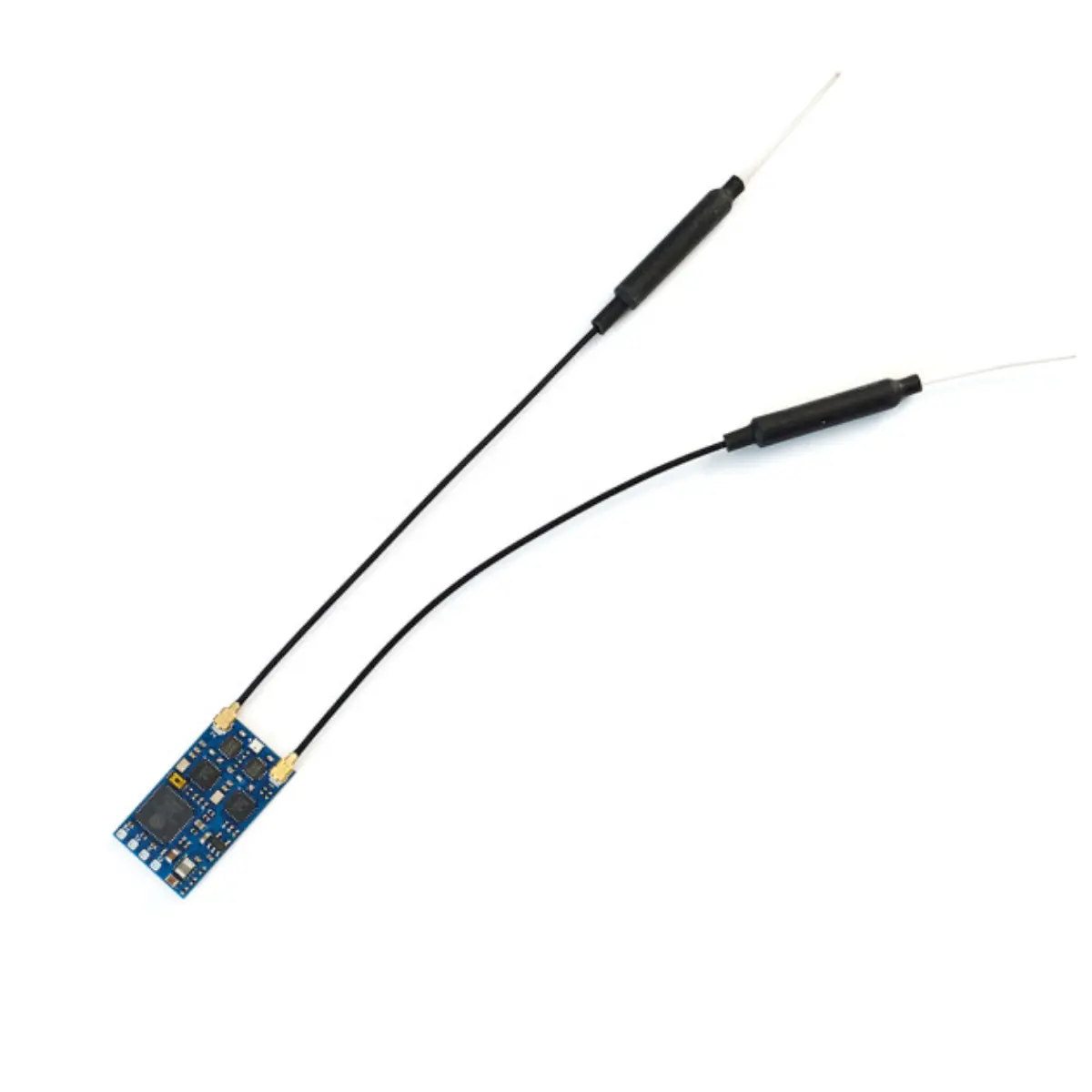

Matek ELRS 2.4G True Diversity is a small receiver for system ExpressLRS at 2.4GHz. The receiver has 2 antennas for full diversity. It will be especially appreciated by those looking for a reliable RC link over longer distances and owners of the ELRS Gemini module.The antennas are connected to the IPEX1 connector and can be easily swapped out. The receiver has telemetry with power up to 100mW. Power supply is available in the range of 4-13V.
Key Features
- Chip: ESP32-PICO-D4, SX1281
- PA/LNA: AT2401C
- Conector: IPEX1
- Frequency: 2.4GHz
- Telemetry power: 20dBm (100mW)
- Protocol: CRSF, SBUS
- Input voltage: 4-13V

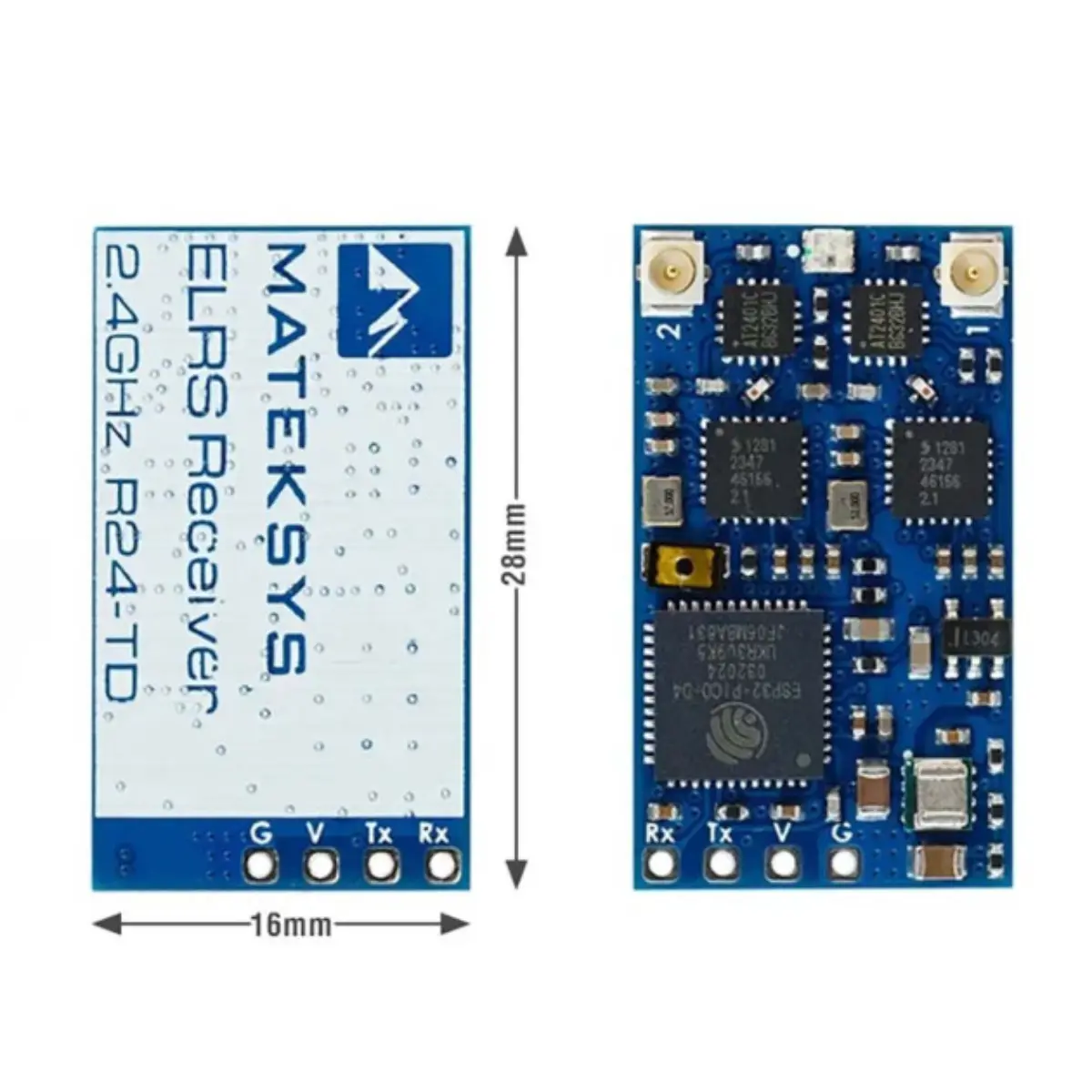

- Size: 28x16mm
- Weight: 4g (without antennas)
Package Includes
- 1x Receiver
- 2x Antenna
