BETAFPV 2.4G ELRS Micro Receiver PWM Output
Stok 29
BETAFPV Micro receiver is based on the ExpressLRS project, an open-source RC link for RC applications. ExpressLRS aims to achieve the best possible link performance in both speeds, latency, and range. This makes ExpressLRS one of the fastest RC links available while still offering long-range performance.
ExpressLRS PWM Receivers
ExpressLRS now supports direct PWM output from receivers that have been specifically designed for this mode. BETAFPV ELRS Micro receiver features PWM output for the application of fixed-wing, helicopters, RC cars, boats and etc, and supports failsafe function, which can protect RC models from being out of control. Besides, the plug-and-play design makes it very easy and friendly to use.
Specification
Item: BETAFPV ELRS Micro Receiver

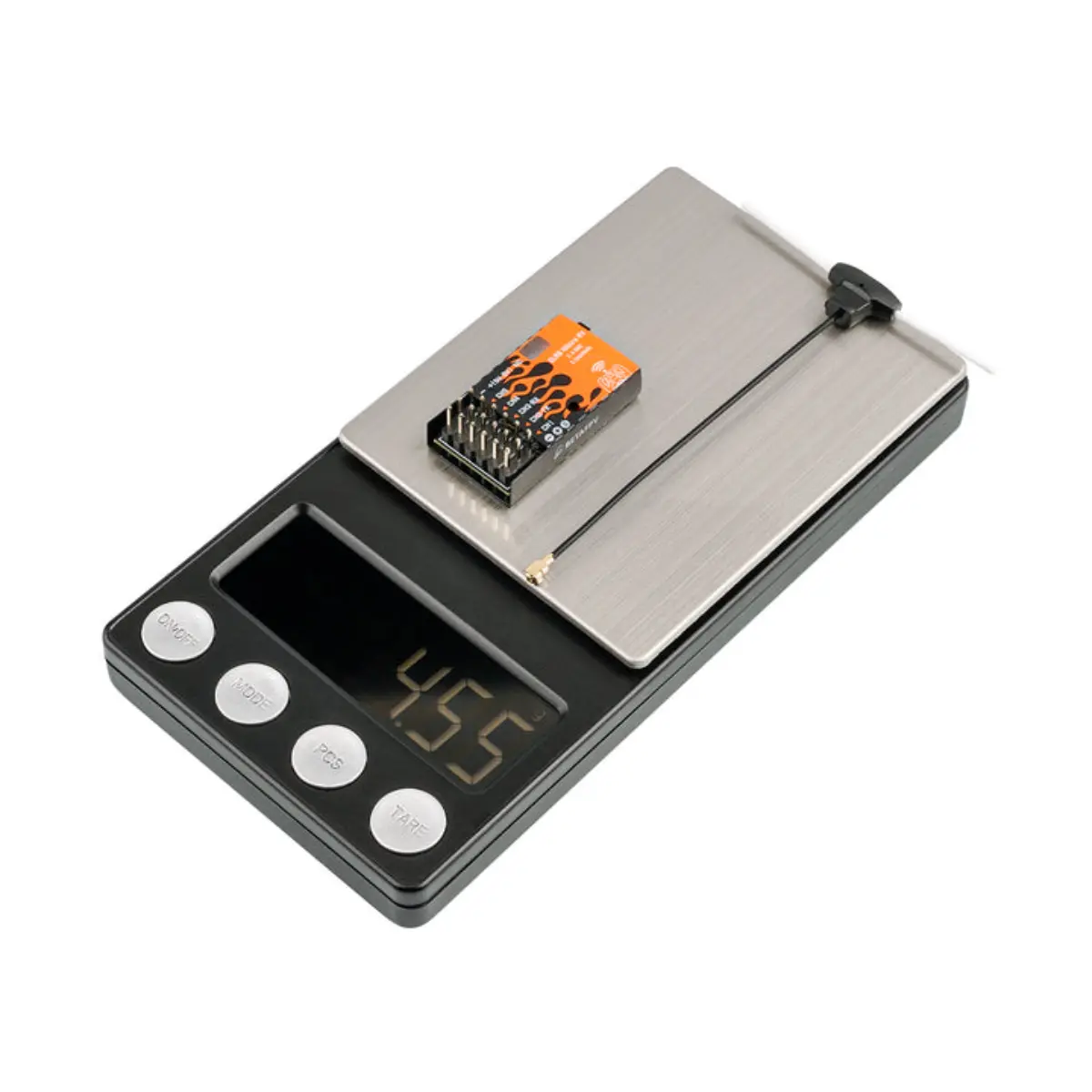

Weight: 4.5g (with antenna)
Antenna: IPEX MHF + T antenna (recommend 80mm Dipole T Antenna)
PWM channel: 5 channels
Serial output protocol: PWM or CRSF
Size: 19mm*32mm*9mm (without antenna)
MCU: ESP8285/SX1280/SX1281
Telemetry power: 12.5dbm/17mW
Frequency bands: 2.4GHz ISM
Input voltage: 5V~9V DC @ “+” pad
Default firmware version: ExpressLRS v2.0
Adapted RC Model Type: Multirotors, Fixed-wing aircraft, Helicopters, RC Cars, RC Boats and etc.

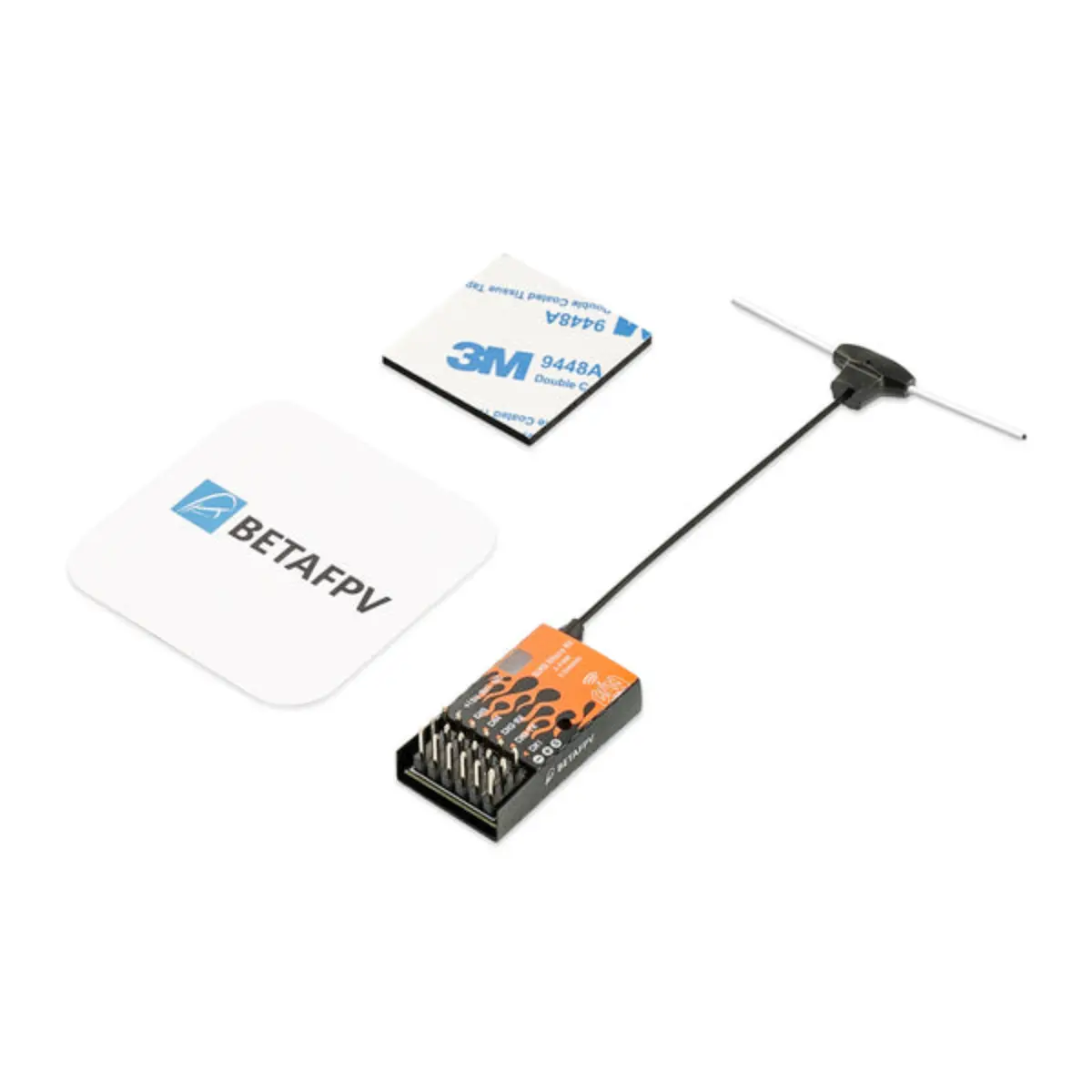

Package
1 * ELRS Micro Receiver
1 * BETAFPV 80mm T antenna
