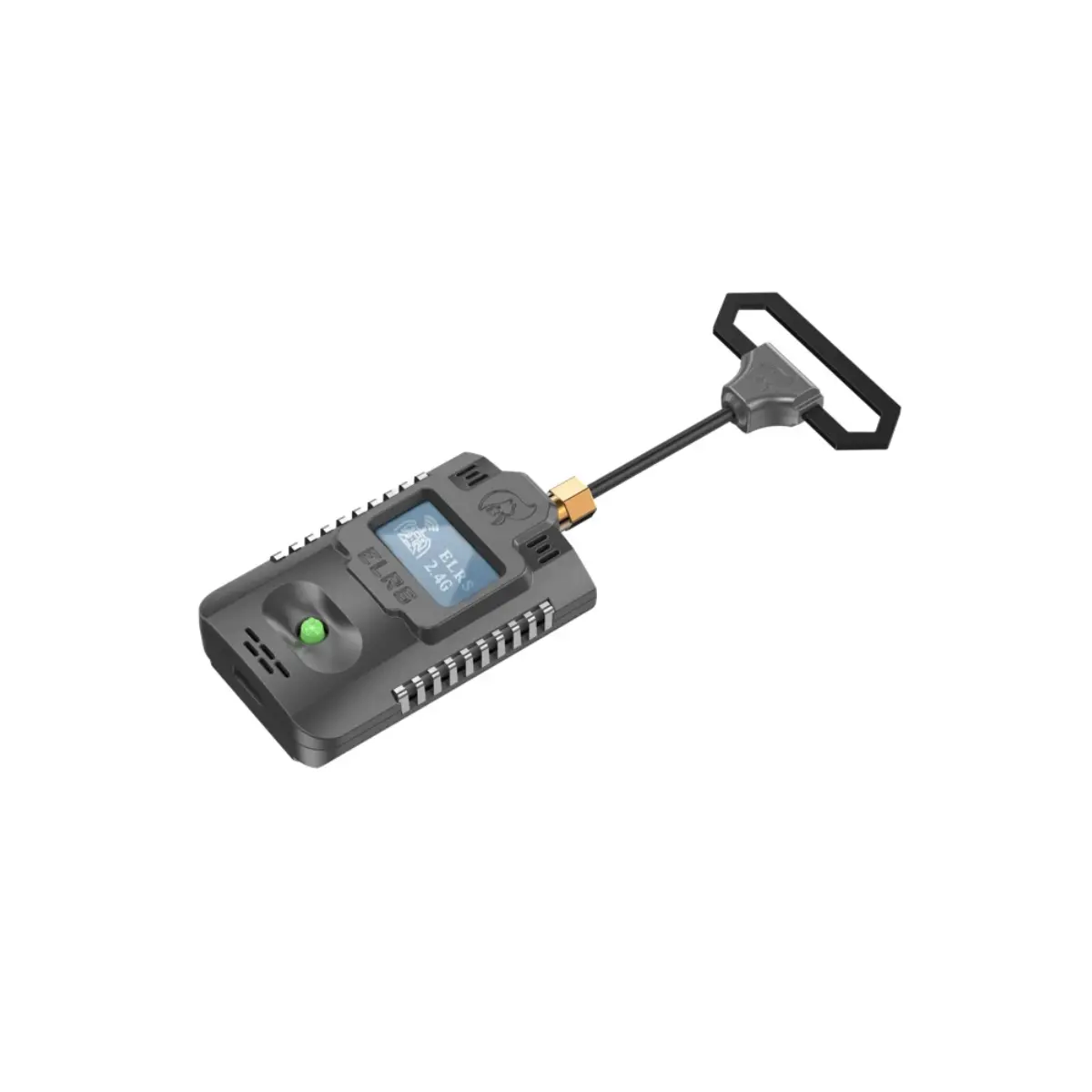

The Jumper AION Nano ELRS Tx Module is based on the ExpressLRS project, an open-source RC link for RC applications. ELSR is currently one of the most advanced RC transmissions. It offers a reliable long-distance link, a high refresh rate of up to 500Hz, adjustable power, update via wifi and more. ELRS on 2.4G outperforms classic RC systems on the same frequency in all respects while maintaining short antennas.

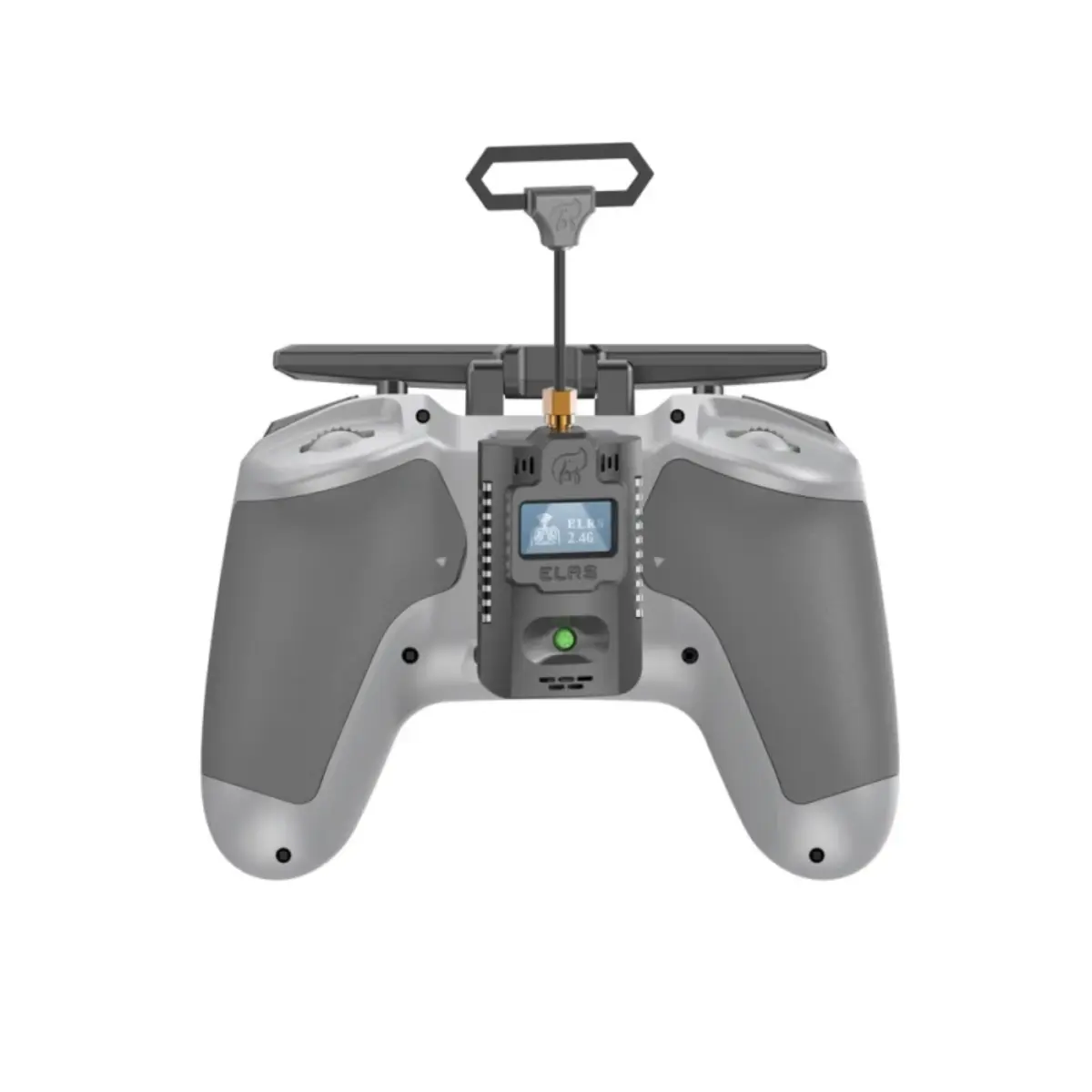

This ELRS module operates on 2.4G and supports a 500Hz refresh rate. The module is already pre-loaded with ExpressLRS firmware and can be easily updated via its USB-C connection. The module is easier to use than some others, thanks to its display screen and joystick for menu navigation. The module is compatible with radio transmitters which have the nano module bay, AKA lite module bay, e.g. Frsky Taranis X-Lite/X-Lite Pro, Frsky Taranis X9D Lite, TBS Tango 2 or Jumper T-Pro.

The module is compatible with radios that have a ‘Lite’ size module bay, such as Frsky X-lite/X-lite pro/X9 Lite, TBS Tango2 or Jumper T-Pro

Notes:

• TX module and receiver have to be in the same ELRS version, otherwise, the binding will fail.

Specifications:

• Screen: OLED
• MCU: ESP32
• RF Output Power: 10-500mw
• Frequency Range: 2.4GHz-2.5GHz
• Firmware: ExpressLRS
• Antenna: Directionality Diamond antenna for best signal penetration
• Working Voltage： DC5-8.4v
• Maximum receive refresh rate: 500Hz
• Menu button: 5 directions button
• Voltage: DC6-8.4V
• Current: ＜400mA
• Port: S.port
• Firmware update: via Wifi, UBC-C, or Blue tooth

Includes:

• 1x Jumper ELRS 2.4G TX ExpressLRS Module
• 1x Antenna
