The RadioMaster Ranger is the pinnacle of ExpressLRS module design. Built not only to look great but to last with its rugged CNC machined aluminum case that aids the high-efficiency cooling system as a heat sink. The Ranger is up to any task and provides all the power and functionality you need.

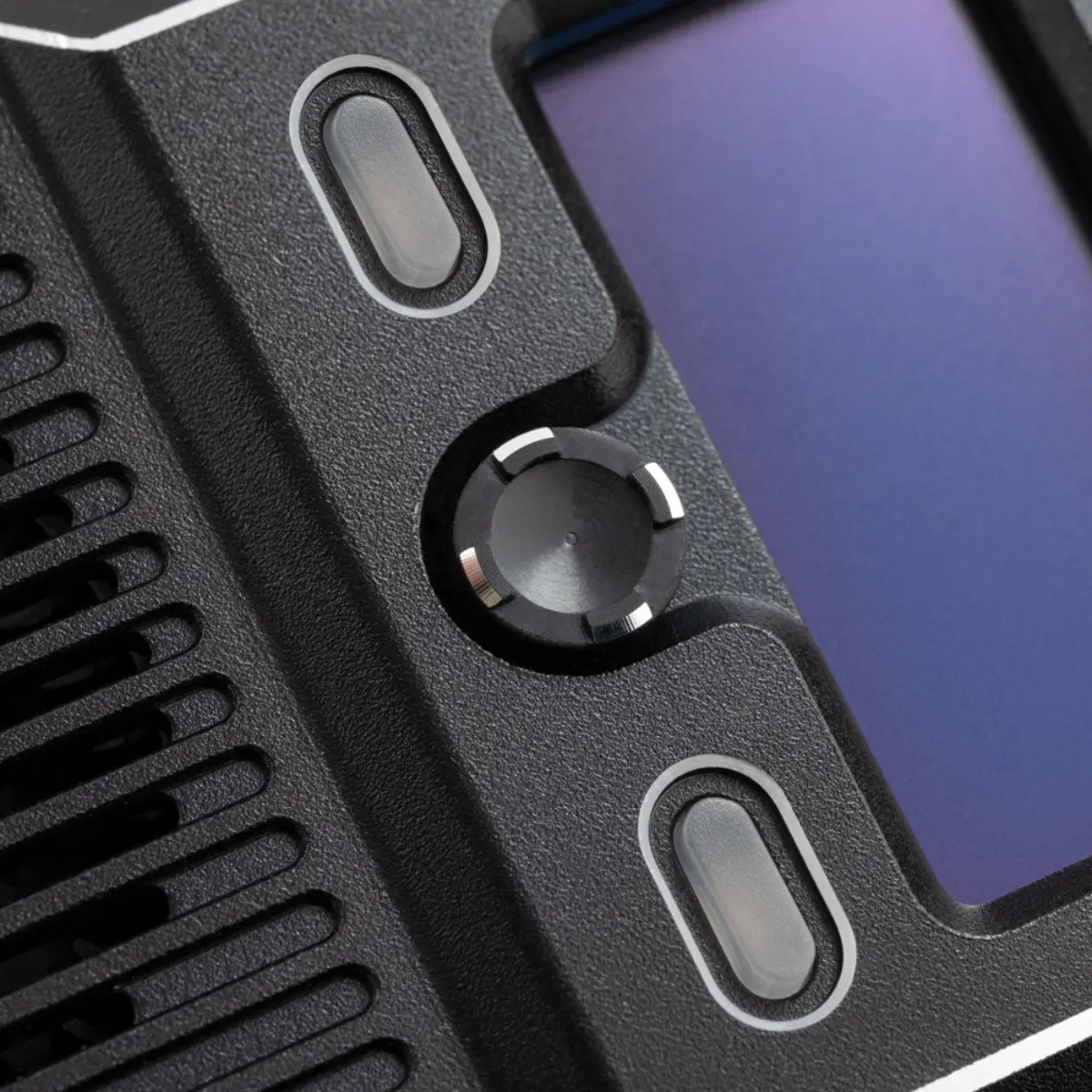

Featuring an OLED display, a directional menu key, and two assignable shortcut keys the Ranger can be adjusted and personalized to your needs.

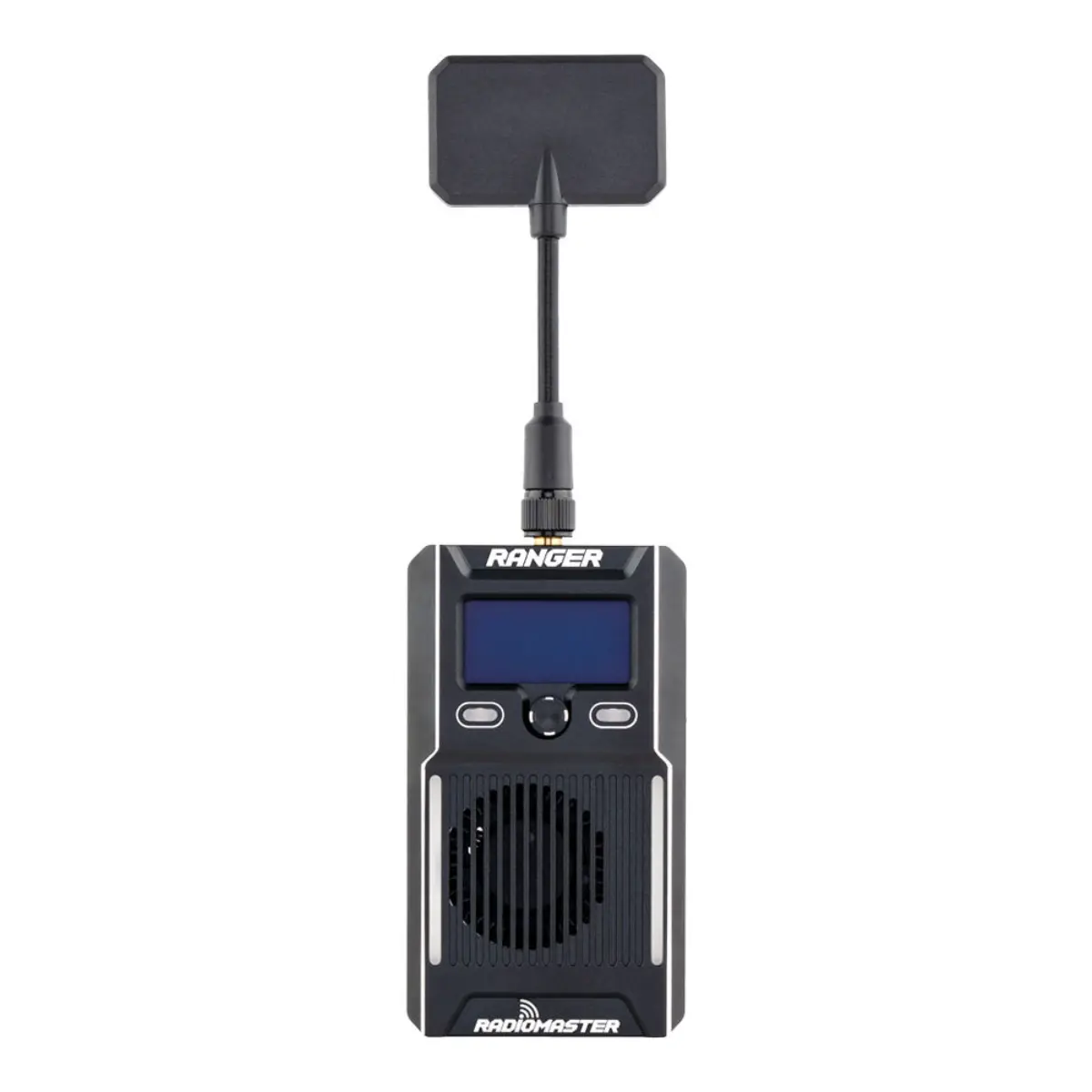

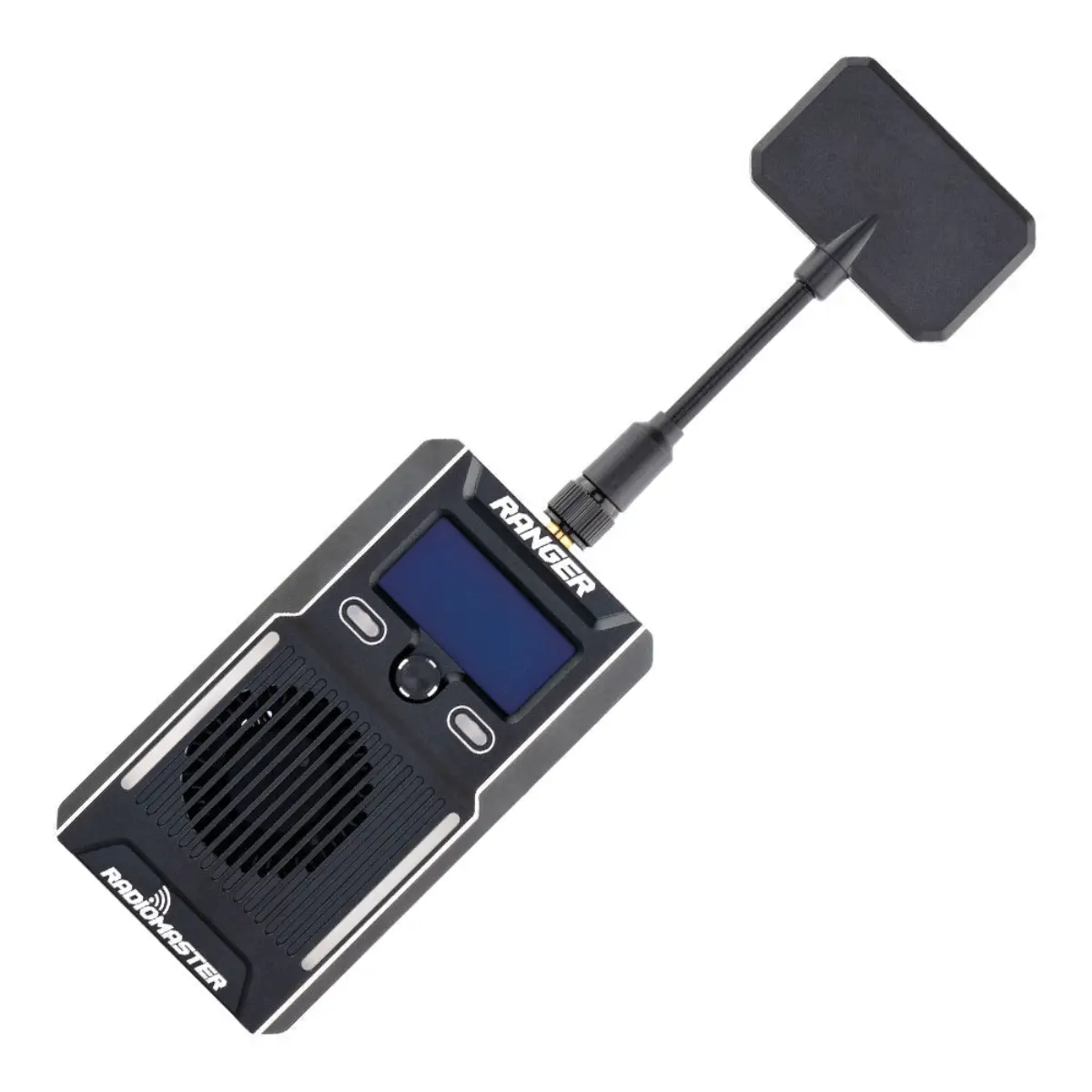

The Ranger includes an omnidirectional T-antenna for general use and a RadioMaster Moxon directional antenna for increased link quality and stability. A micro module and nano module adapter are included to ensure the Ranger is compatible with most radios on the market today. A cable has also been included for use with Futaba radios that are CRSF capable.

Except for the Ranger, we also provide the Ranger Micro ExpressLRS Module and Ranger Nano ExpressLRS Module for your choice.

Features
Built-in ExpressLRS Backpack
OLED Display
Rugged CNC Case
Built-in Accelerometer
Packet rates up to F-1000Hz
Wifi and Bluetooth support
High-efficiency cooling system
5 Direction Nav key and customizable shortcut buttons
Micro and Nano adapters included
Moxon and T-antenna included
CRSF cable for compatible Futaba radios included

Specification
Item: Ranger 2.4GHz ELRS Module
Regulatory Domain: ISM2400
MCU: ESP32(main), ESP8285(aux, as ESP backpack)
RF chip: SX1281IMLTRT
Frequency Range: 2400 MHz – 2480 MHz
Maximum packet rate: 500Hz/F-1000Hz (F-1000Hz mode requires EgdeTX 2.7.1 or later)
Minimum receiver refresh rate: 25Hz
Module bay adapters: JR standard 5pin socket & Nano standard 8pin socket
Futaba CRSF socket cable: Included
OLED screen: 64x128px
Wifi Support: Yes
Bluetooth support: Yes
3-Axis Accelerometer: Yes (STK8BA58 MEMS Accelerometer)
Built-in RGB light strip

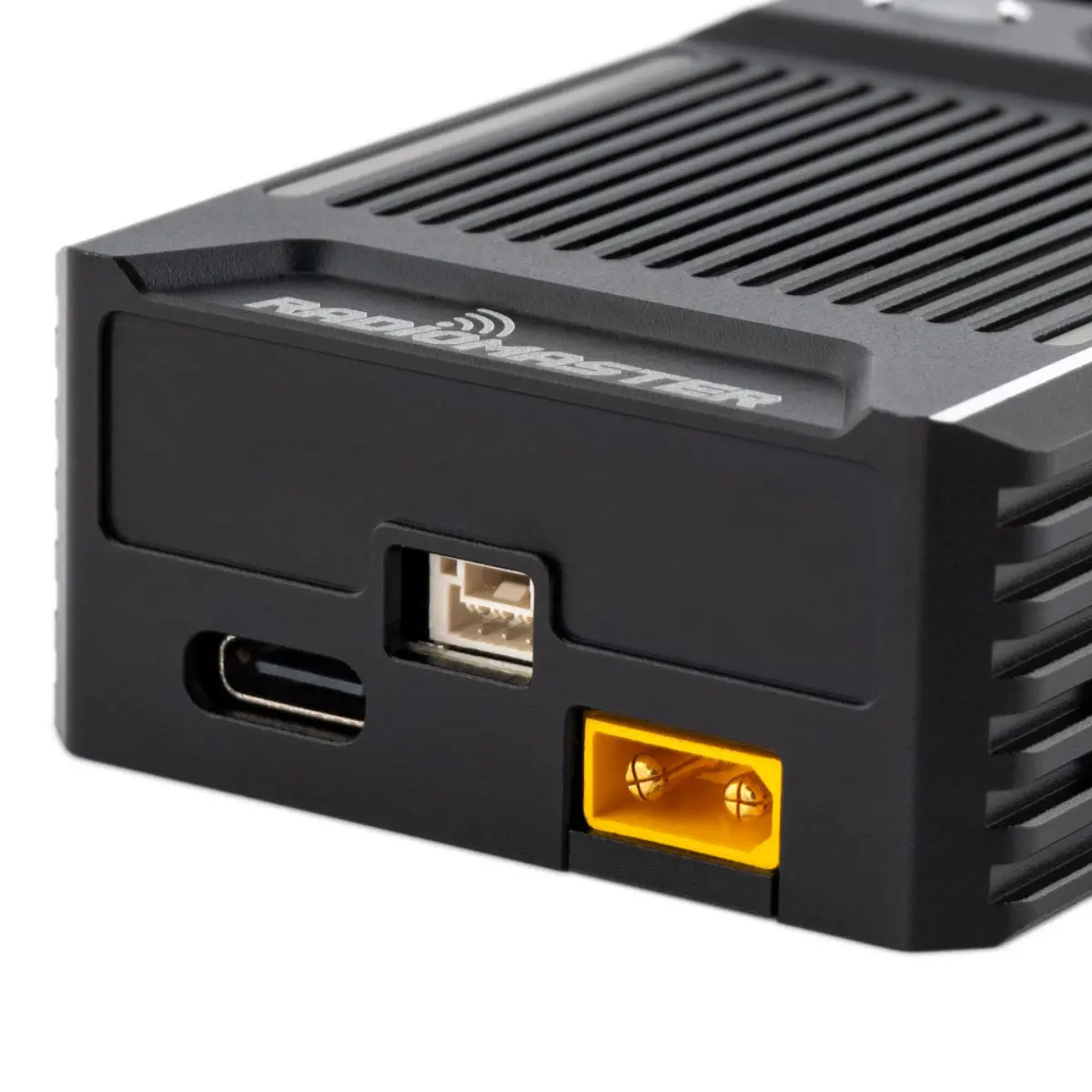

XT30 Power supply voltage: DC 6V – 16.8V
Weight: 138g (with Moxon antenna) / 135g (with T antenna) / 126g (without antenna)
Dimension: 95*51*25mm (without antenna)

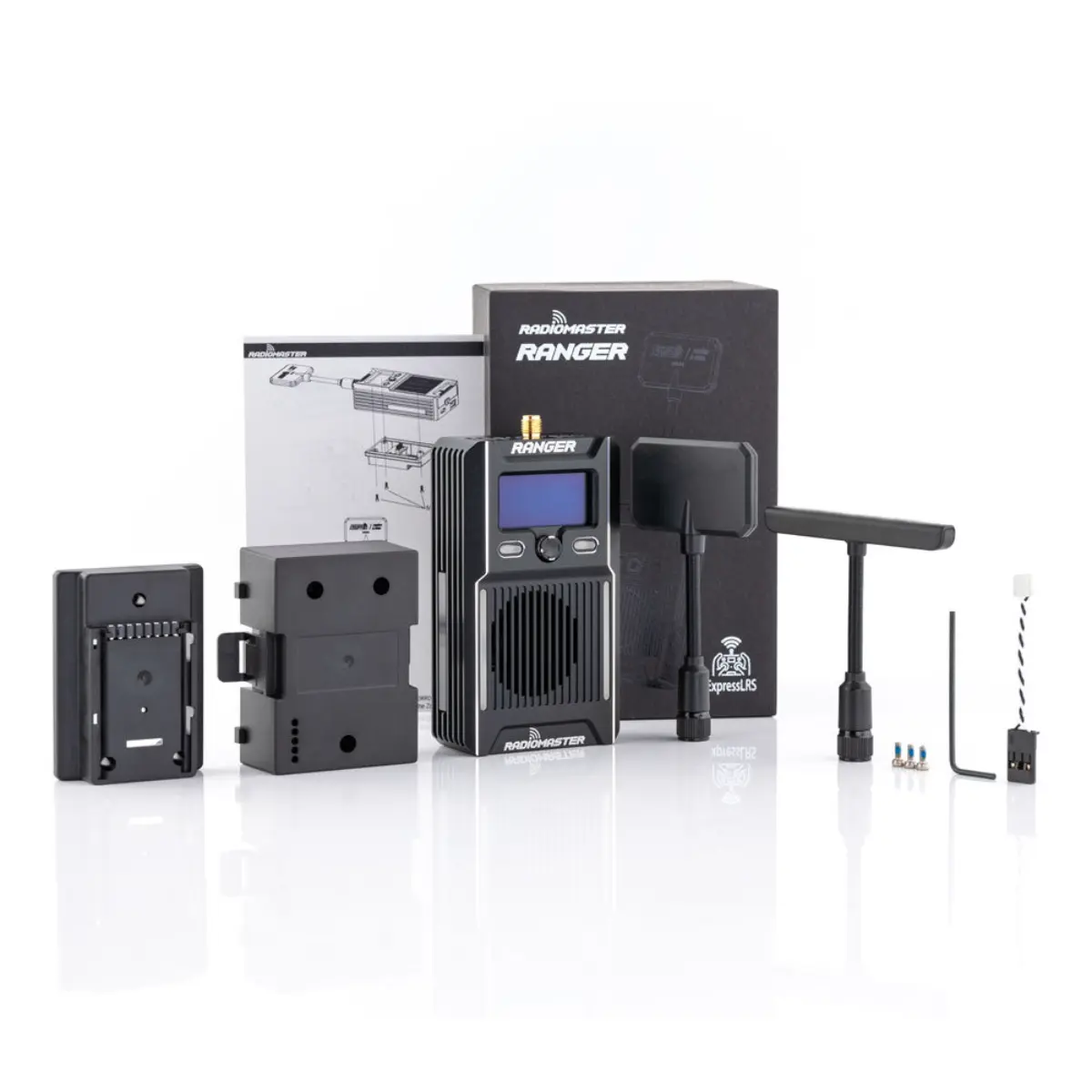

Package Includes
1 * RANGER Module
1 * Futaba CRSF socket cable
1 * Micro Adapter
1 * Nano Adapter
1 * T Antenna
1 * Moxon Antenna
1 * Hexagon socket screwdriver
3 * M2*5 Screws
1 * Assembly Manual

Need receivers too? Purchase the Ranger Combo, which includes the following items:
2 * RP1 ExpressLRS 2.4ghz Nano Receiver
1 * RP2 ExpressLRS 2.4ghz Nano Receiver
