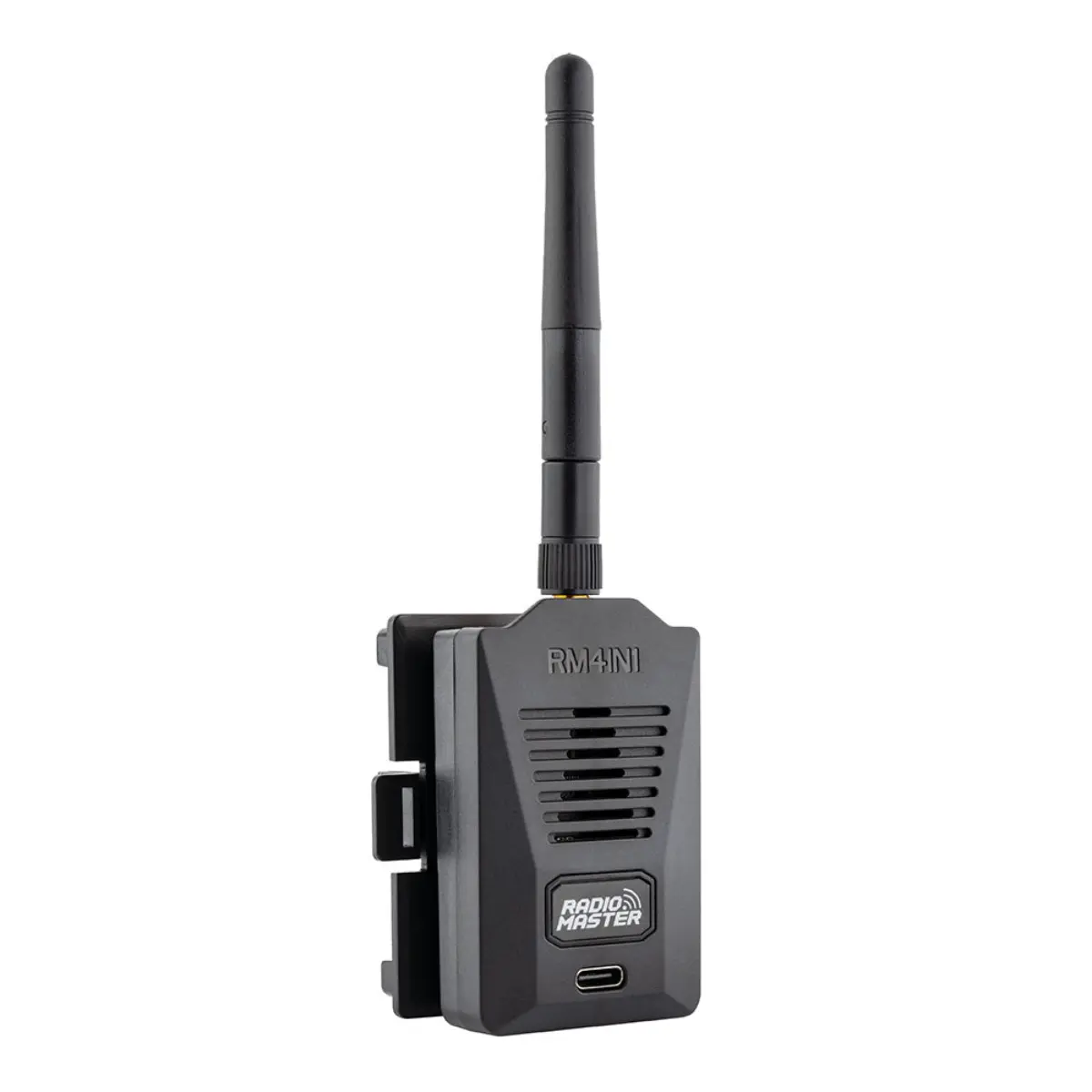

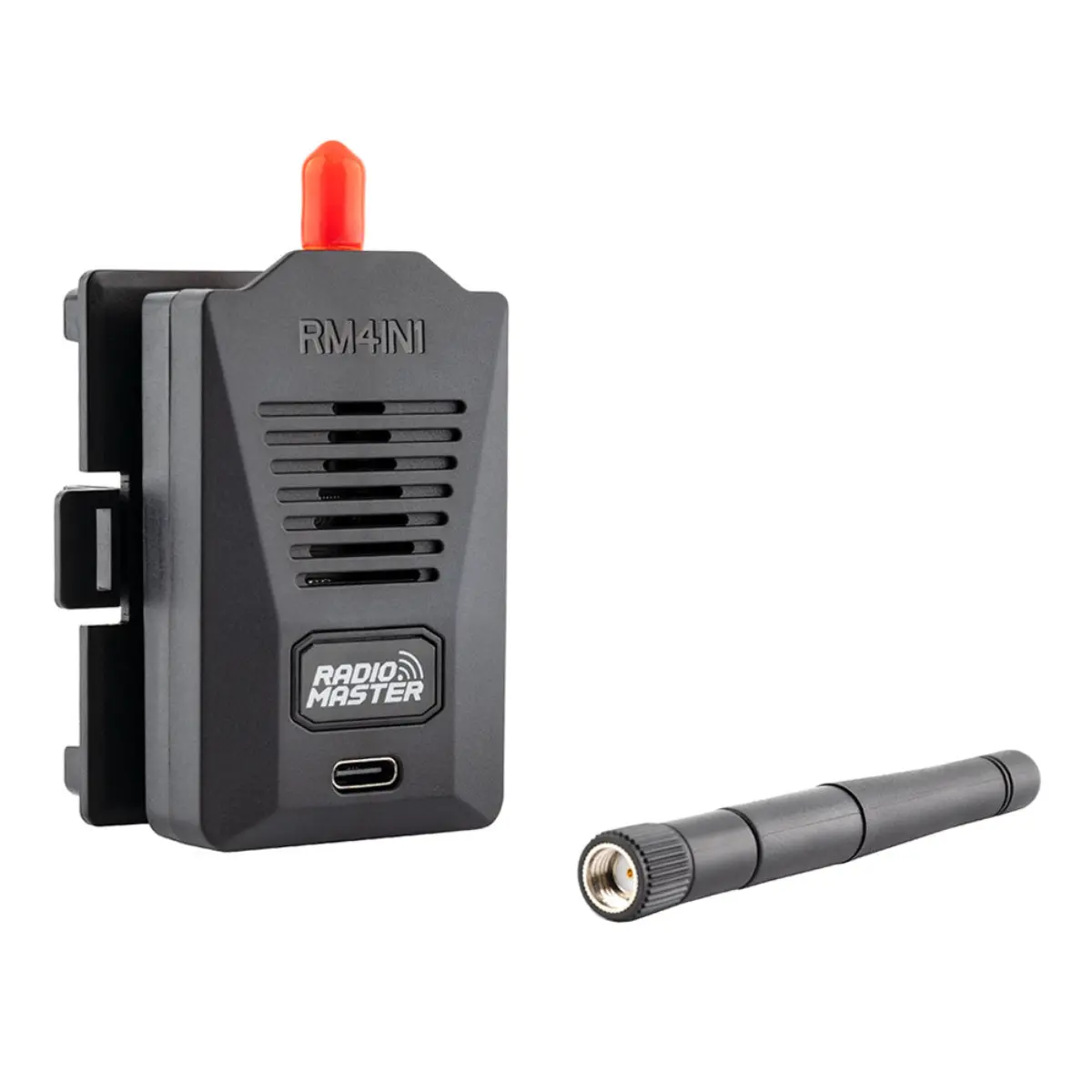

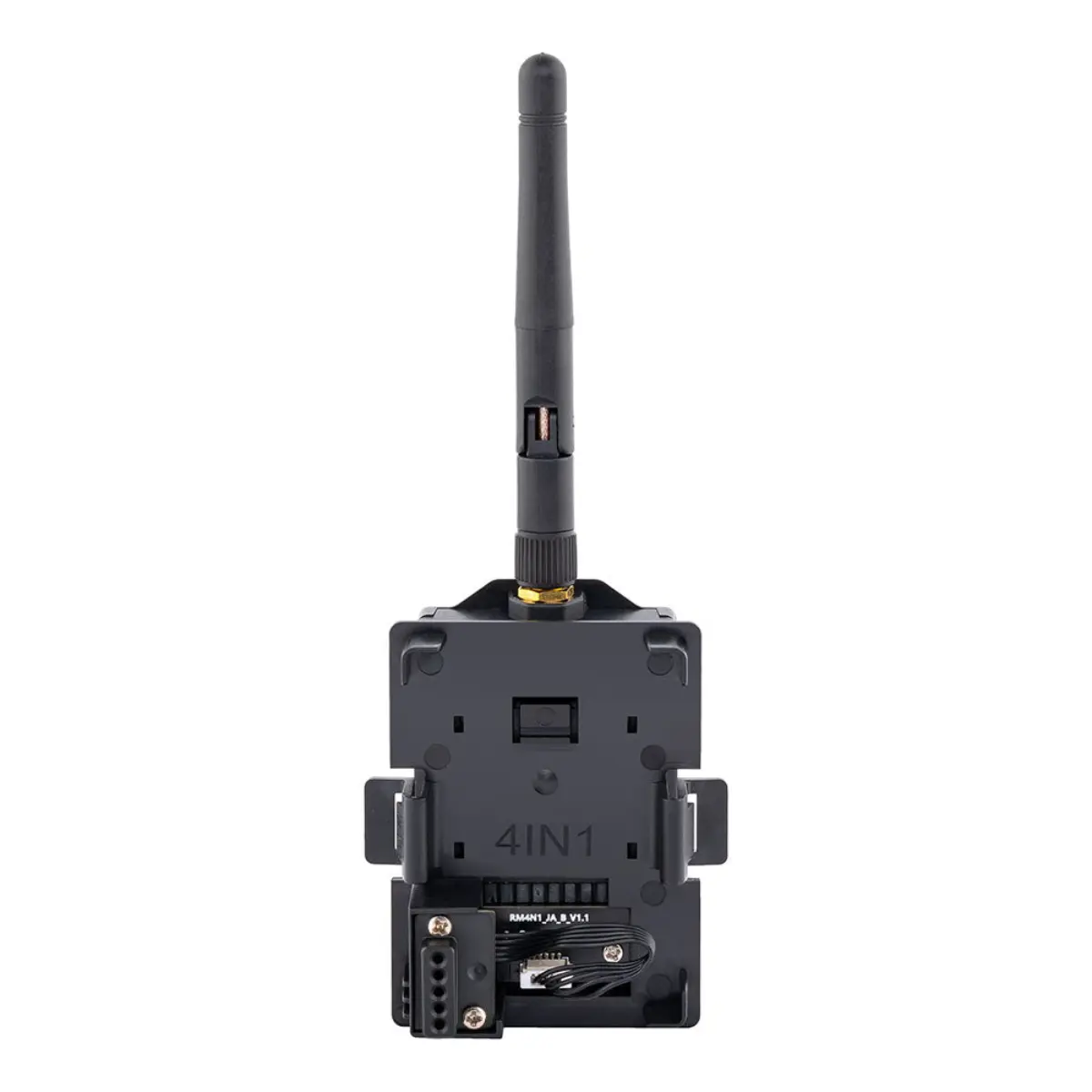

Radiomaster Micro/Nano 4in1 Module
Stok 1
The RadioMaster 4IN1 external module is a multi-protocol module that integrates CC2500, NRF24L01, A7105 and CYRF6936 RF chips. Designed for OpenTX and EdgeTX systems, the RM 4IN1 module allows the radio to connect with most mainstream protocols on the market.
Features
Up to 20dBm power output
Compatible with more than 70 RF Protocols
Wireless trainer function
For Zorro, Boxer, TX16S MKII, TX12 MKII and more
Specification
Item: RM 4IN1 Module
Operational voltage: 4.5-8.4V
Operational frequency: 2.4G ISM band (2400mHz – 2483mHz)
RF Chipsets: CC2500, NRF24L01, A7105 and CYRF6936
Operational current:≈100mA
RF Gain: +20dBm
Weight: 30g (without antenna)
Dimension: 73*42*22mm (without antenna)

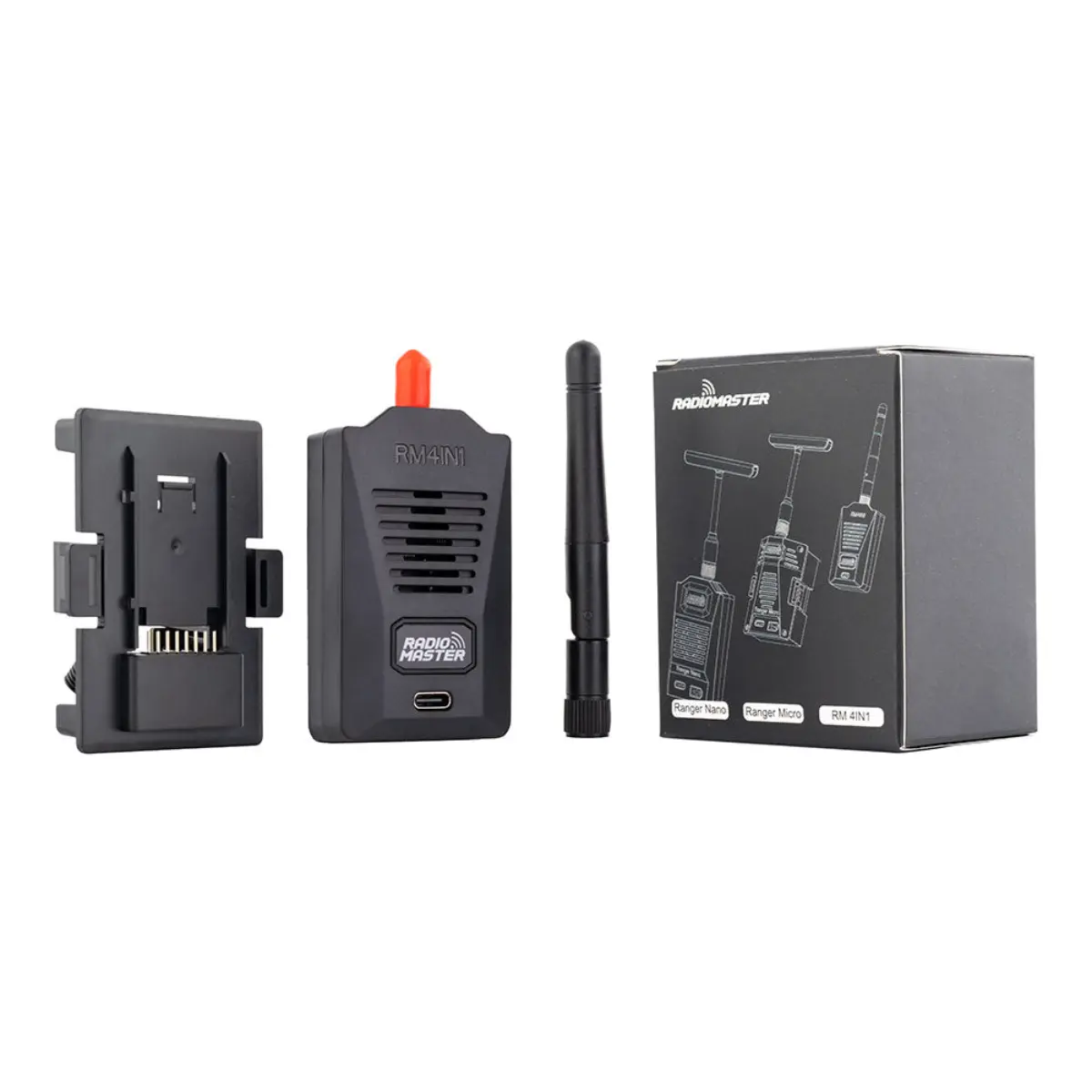

Package Includes
1 * RM 4IN1 Module

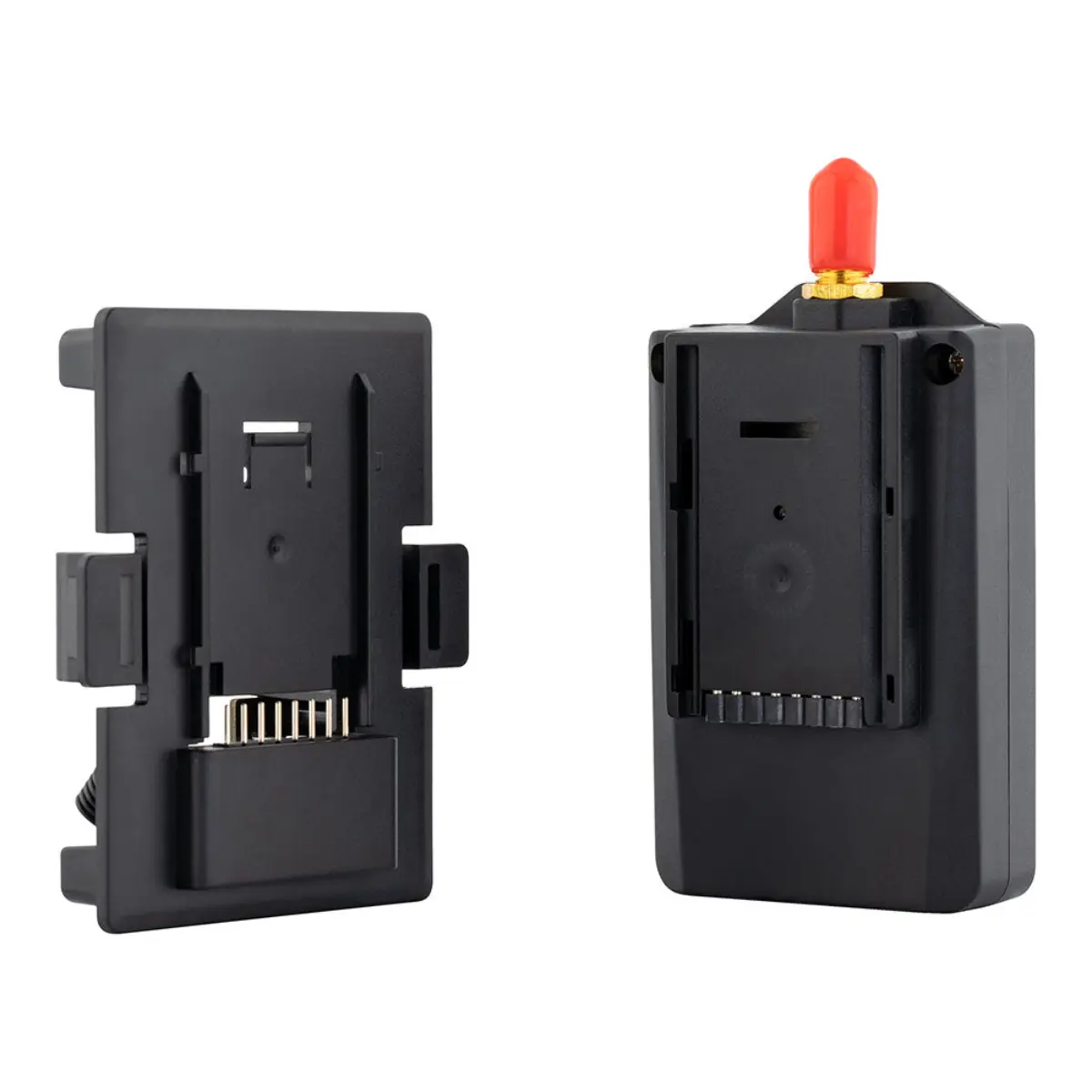

1 * Micro Adapter
1 * Stick Antenna
