Radiomaster Bandit 915mHZ Micro ELRS RF Module
Stok habis
After extensive research and collaboration with the ExpressLRS team, we are thrilled to unveil the all-new Bandit Micro ExpressLRS RF Module. This cutting-edge module represents the culmination of our efforts to deliver unparalleled performance, reliability, and low-latency links for any application.
Features
Up to 1 Watt power output
Packet rates up to 200Hz
Optimized circuitry for ultra-low power consumption
Built-in TCXO oscillator
Low noise, high comfort
High contrast OLED display
Innovative convection cooling design
Wifi and Bluetooth support
Built-in ExpressLRS backpack
5 Directional nav key

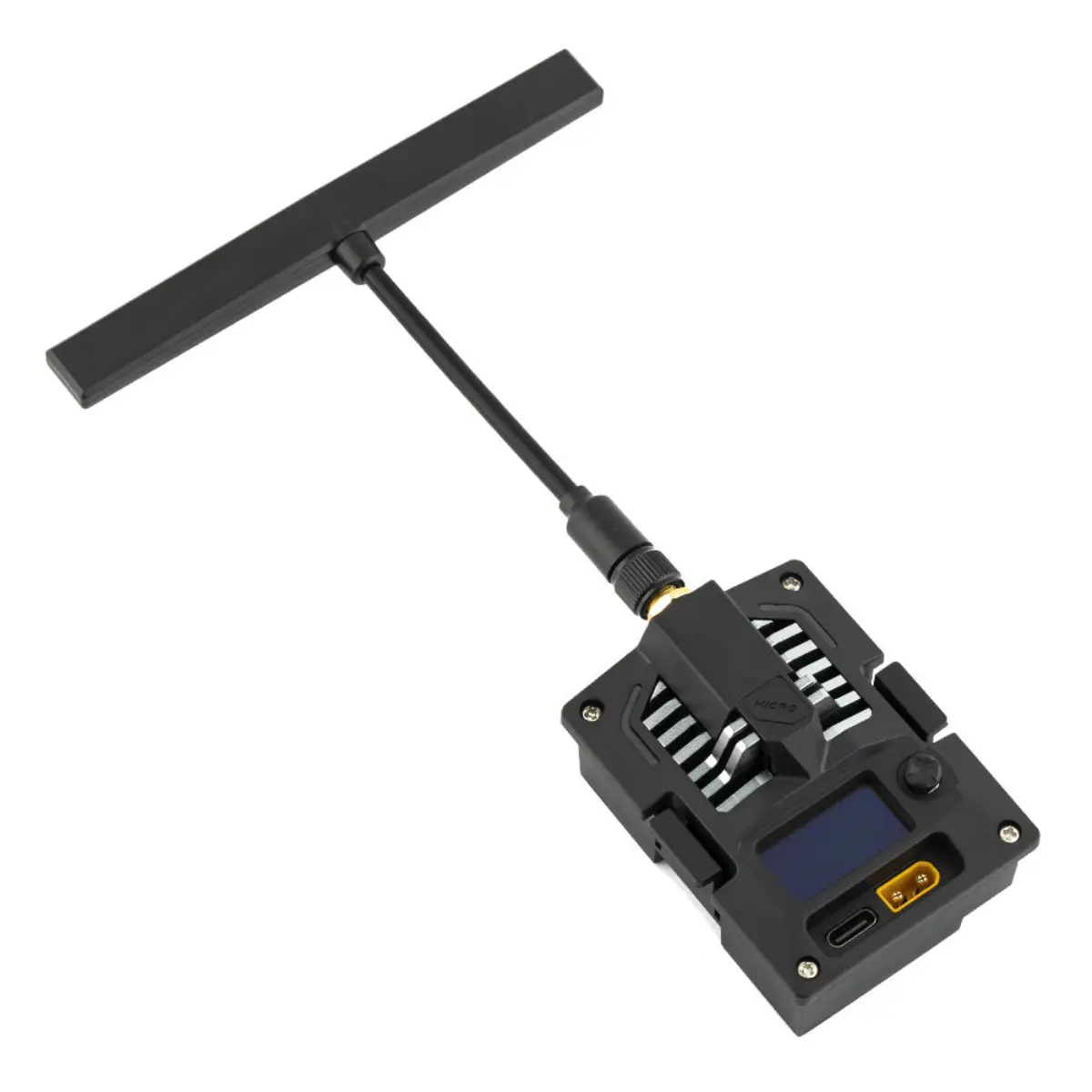

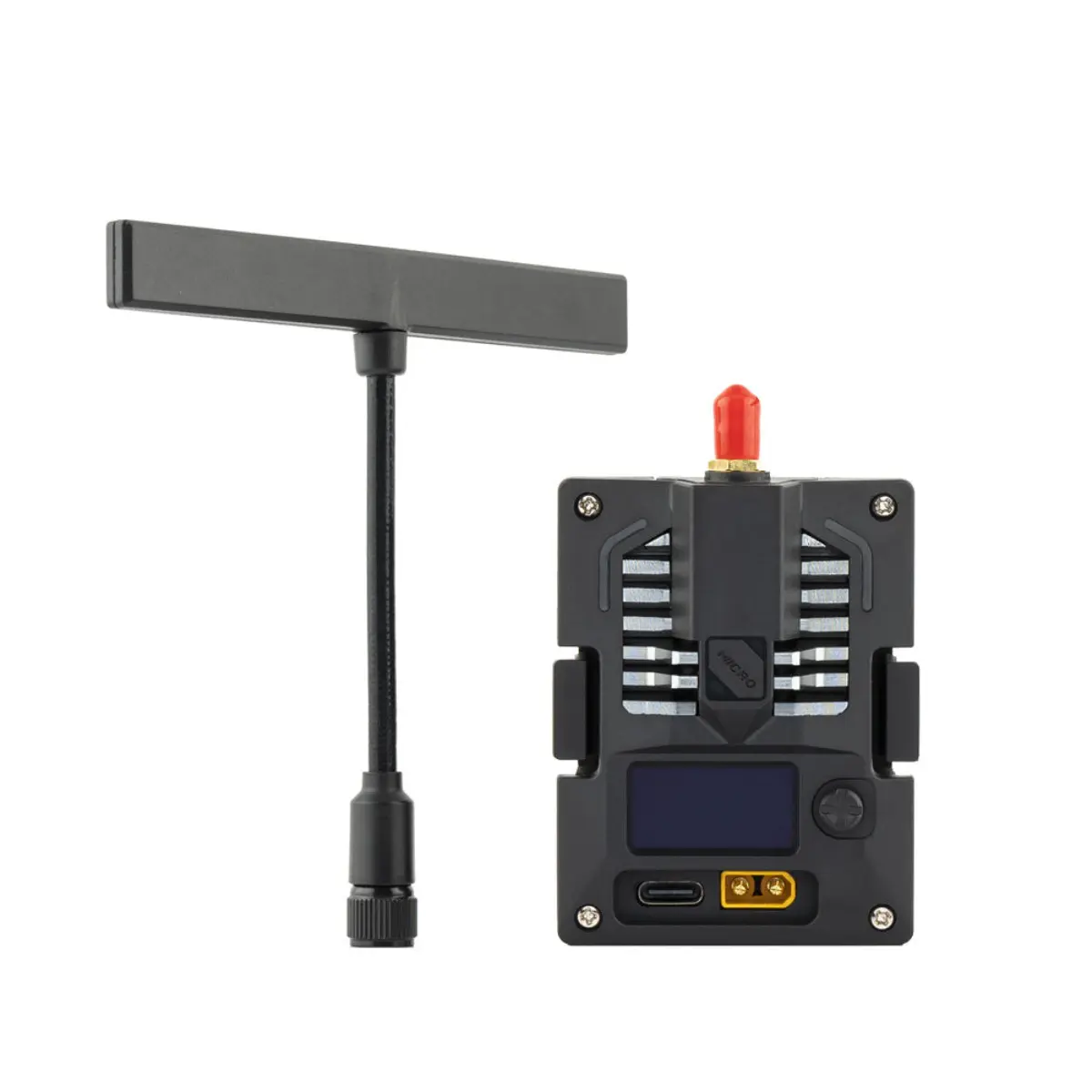

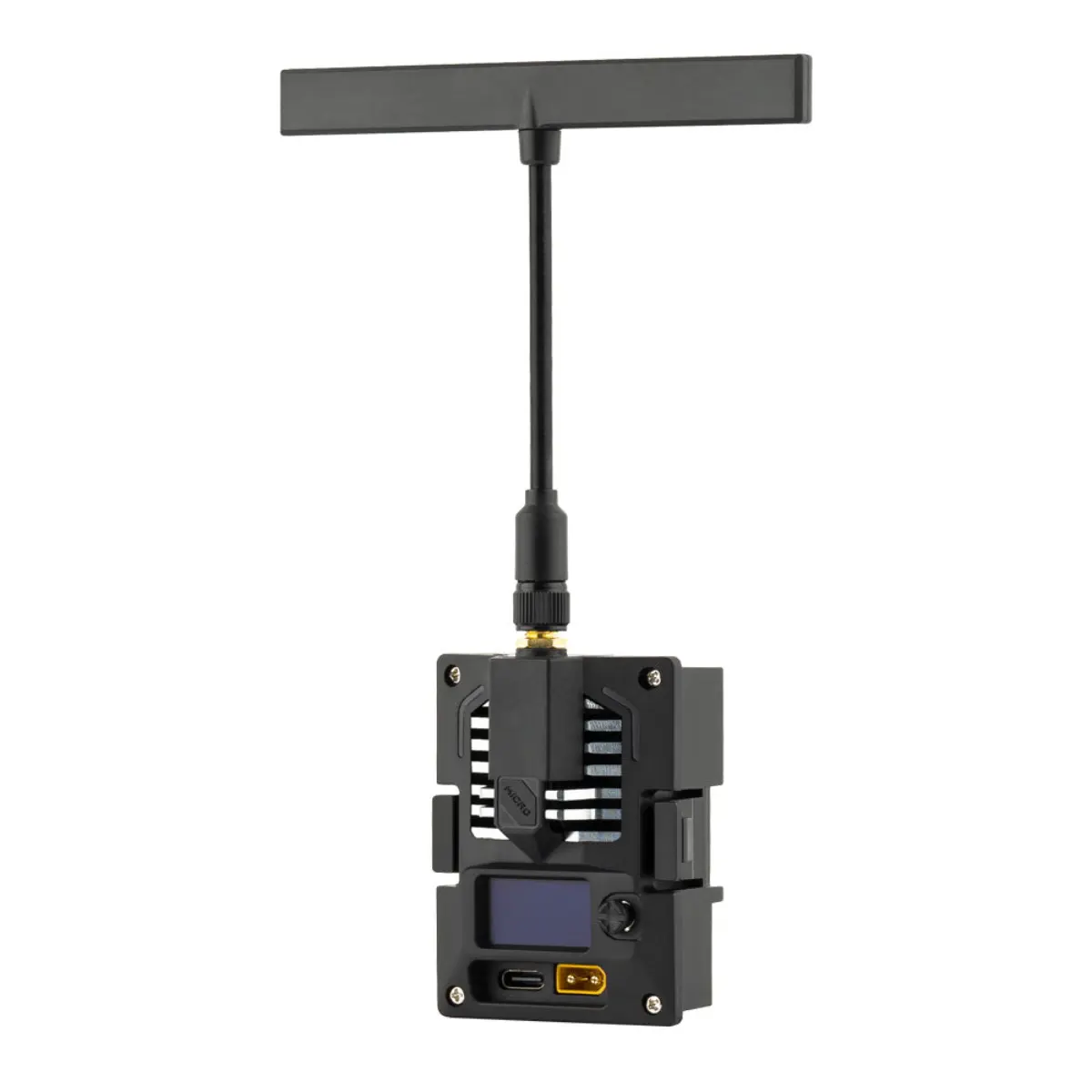

915/868MHz T Antenna included
With the Micro connector, support TX16S MKII, Boxer, and TX12 MKII radio
Specifications
Item: Bandit Micro ExpressLRS RF Module
Regulatory Domain: FCC915
MCU: ESP32(main), ESP8285(aux, as ESP backpack)
RF Chip: SEMTECH SX1276
Refresh Rate Min/Max: 25Hz/200Hz
Micro standard 5pin connector
Built-in OLED screen
XT30 Power Supply Voltage: DC 6V ~ 16.8V

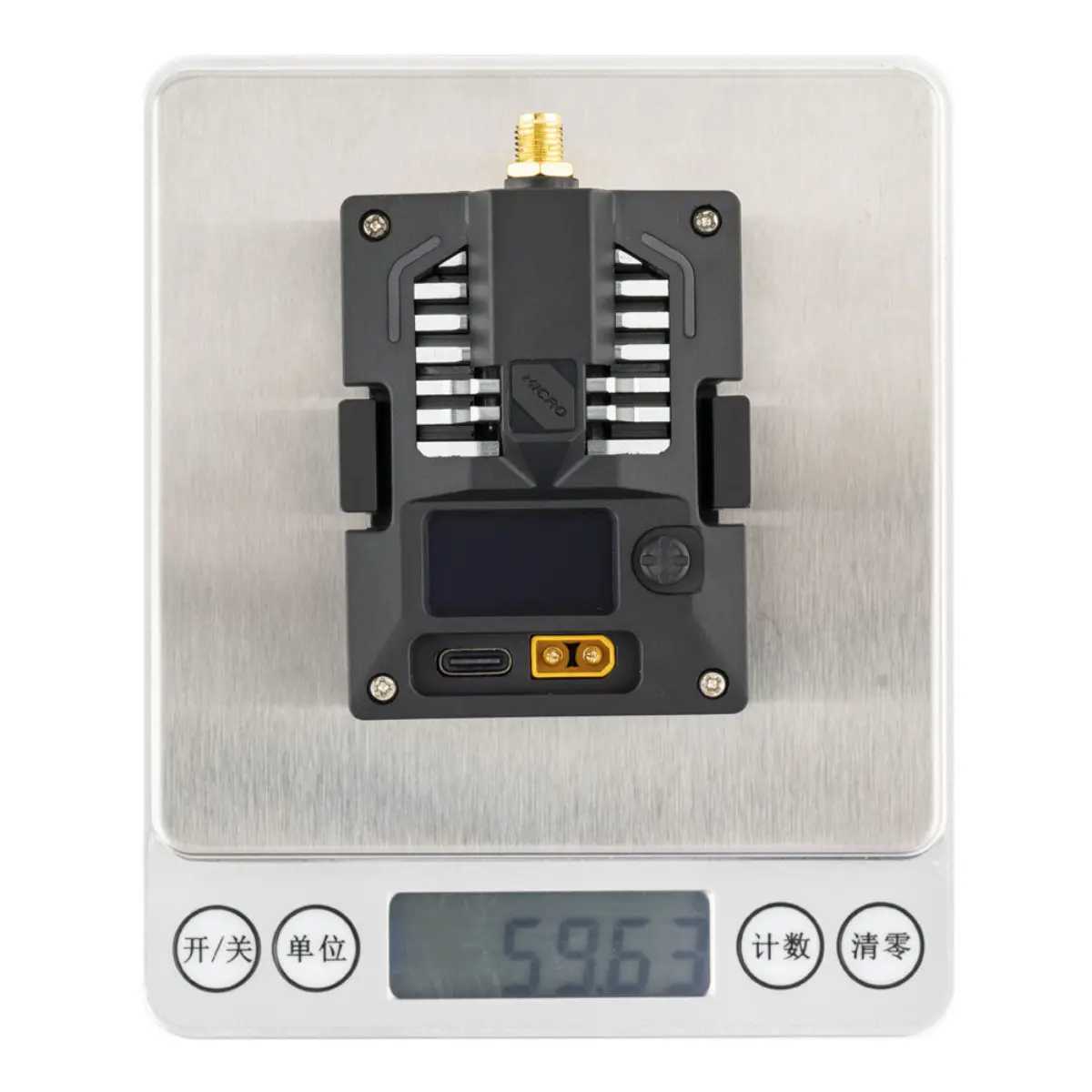

Weight: 78.0grams (with T antenna)
Dimension: 64.1*49.6*34.1mm

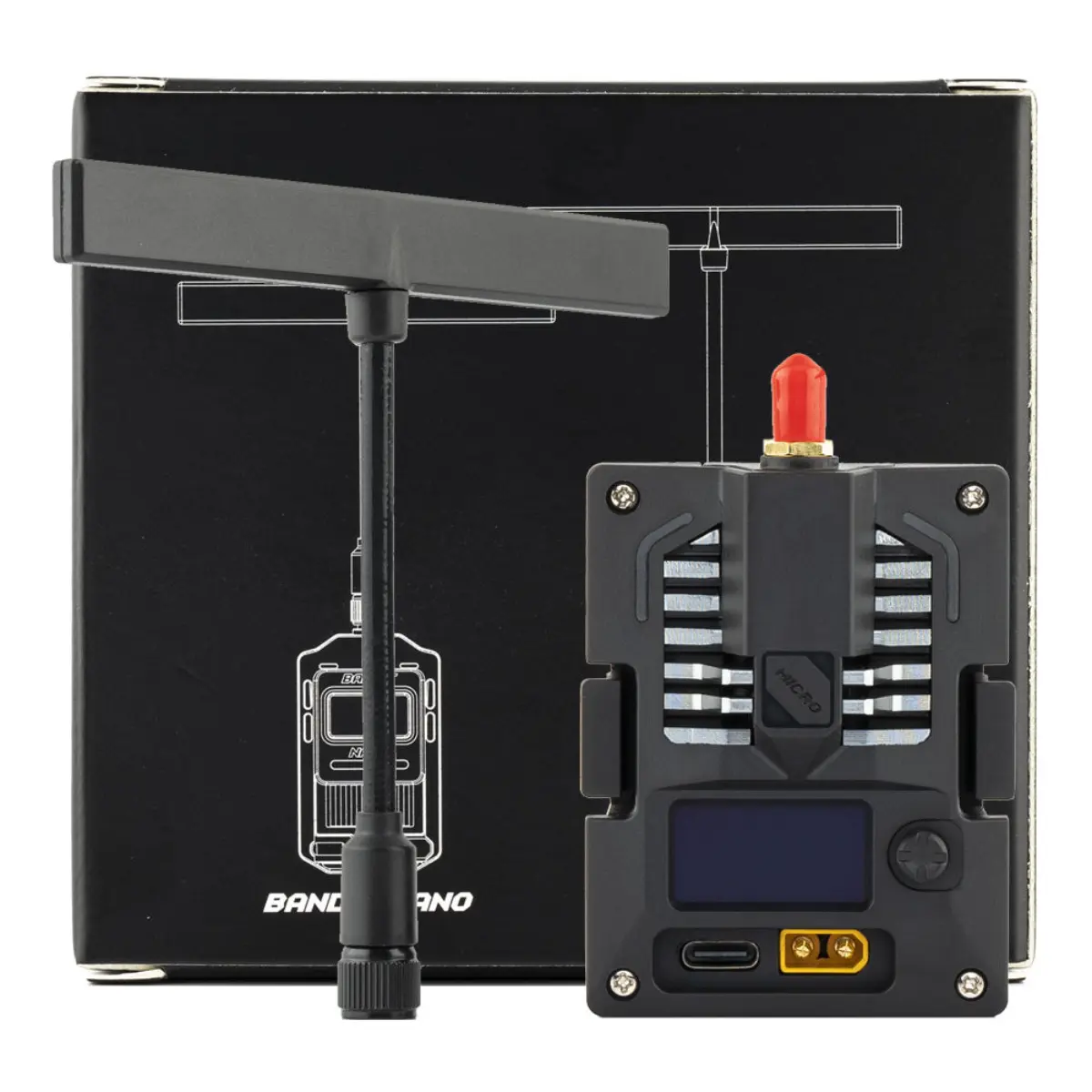

Package Includes
1 * Bandit Micro ExpressLRS RF Module
1 * 900Mhz T Antenna
1 * Manual
