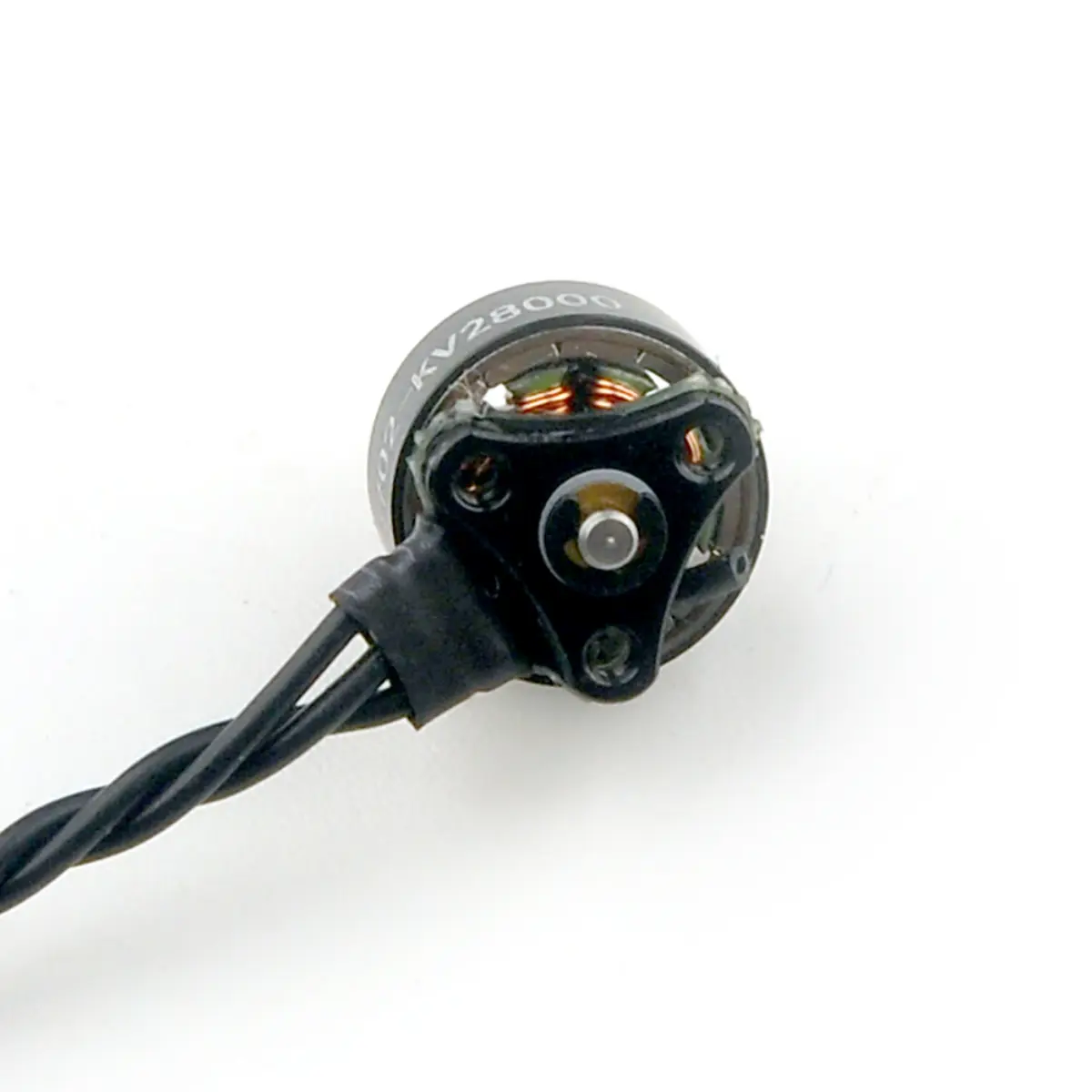

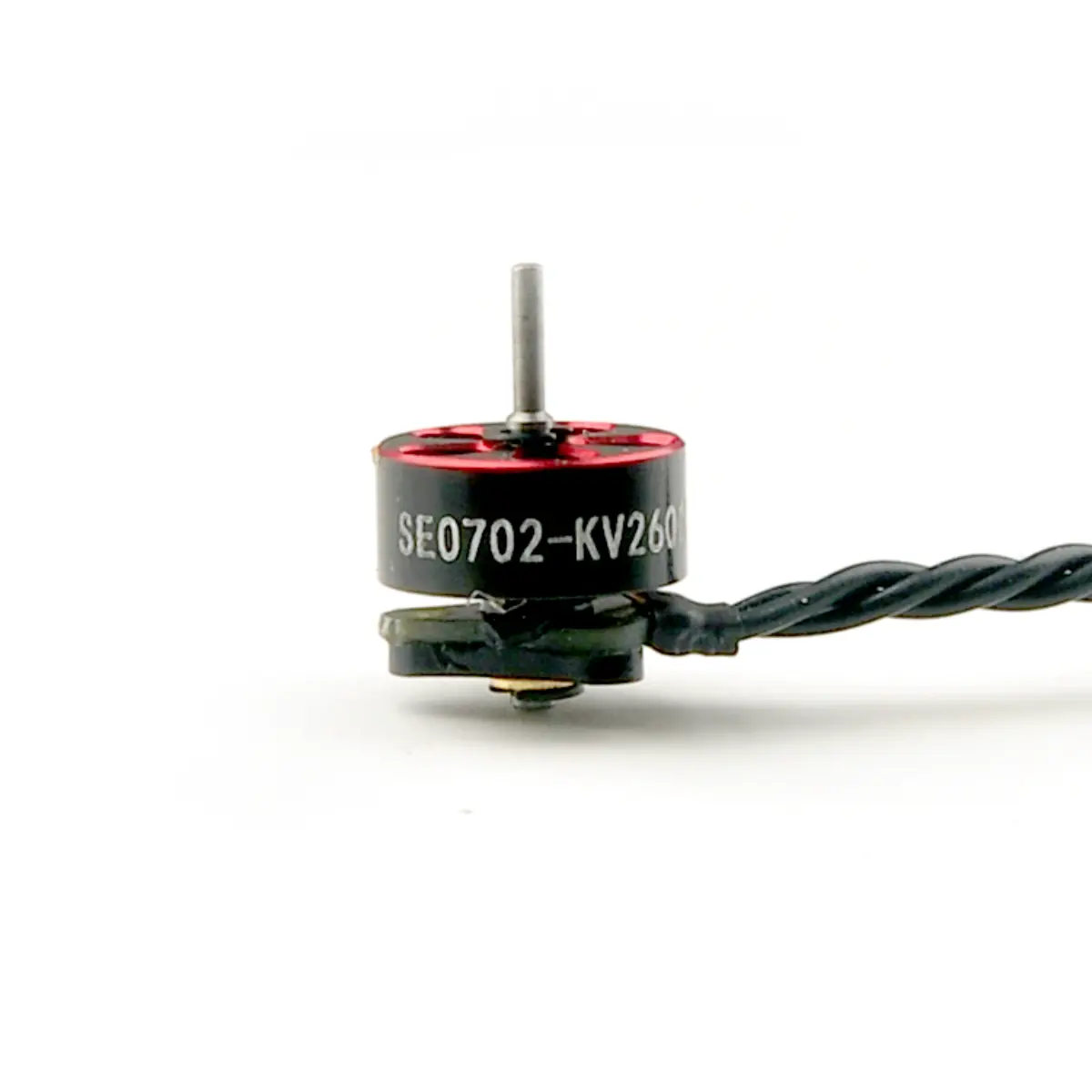

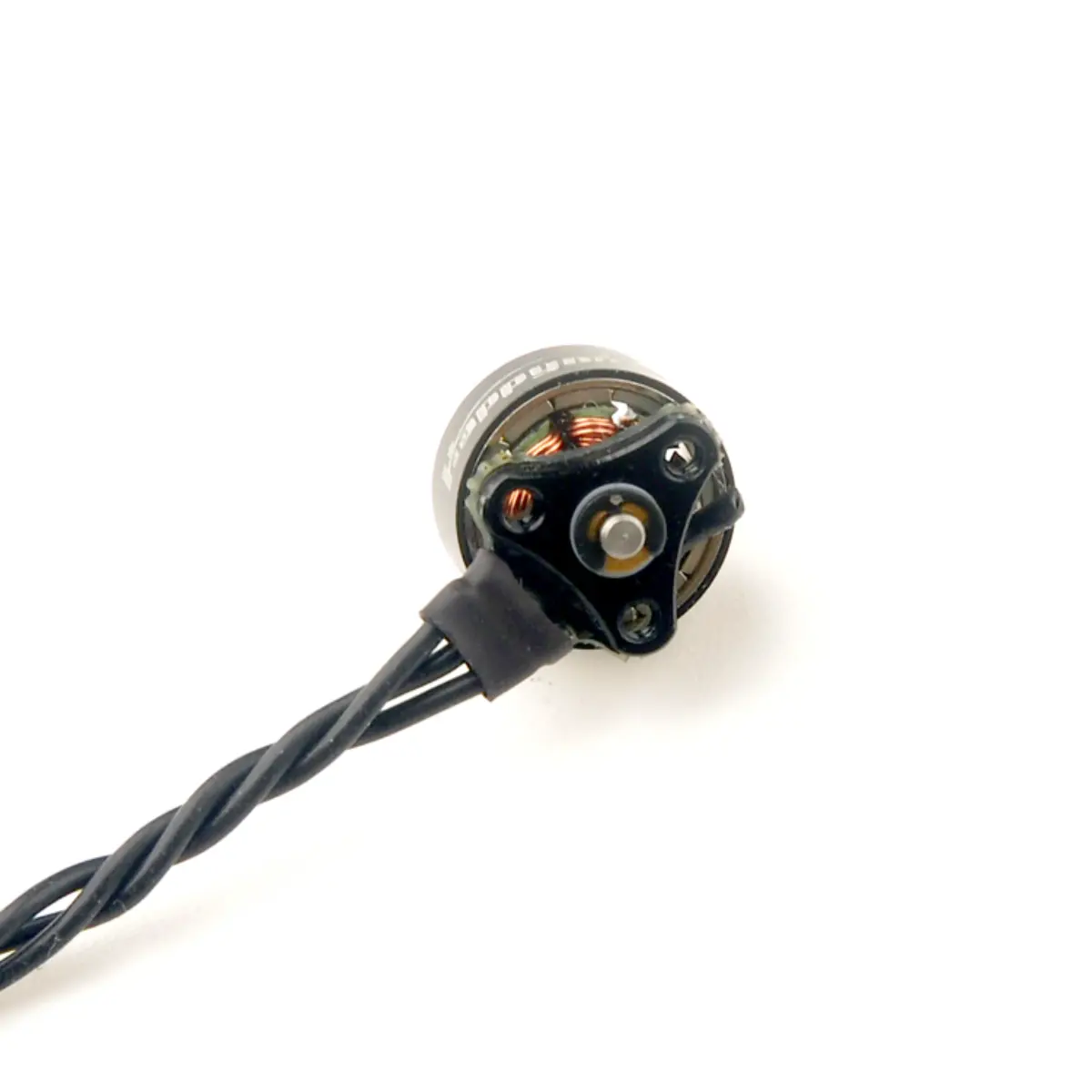

Happymodel SE0702 Brushless Motor 1mm shaft
The new appearance 0702 brushless motor has been released, and it will be shipped
You can build an extreme weight tiny whoop with this amazing motors.
Great thanks to “Angry Don FPV” for the great job on this light weight 0702 motor.
Specifications:
Brand Name: Happymodel
Mode: SE0702
KV Option:KV23000 KV26000 KV28000
Configu-ration:9N12P
Stator Diamter:7mm
Stator Length:2mm
Shaft Diameter:Φ1mm

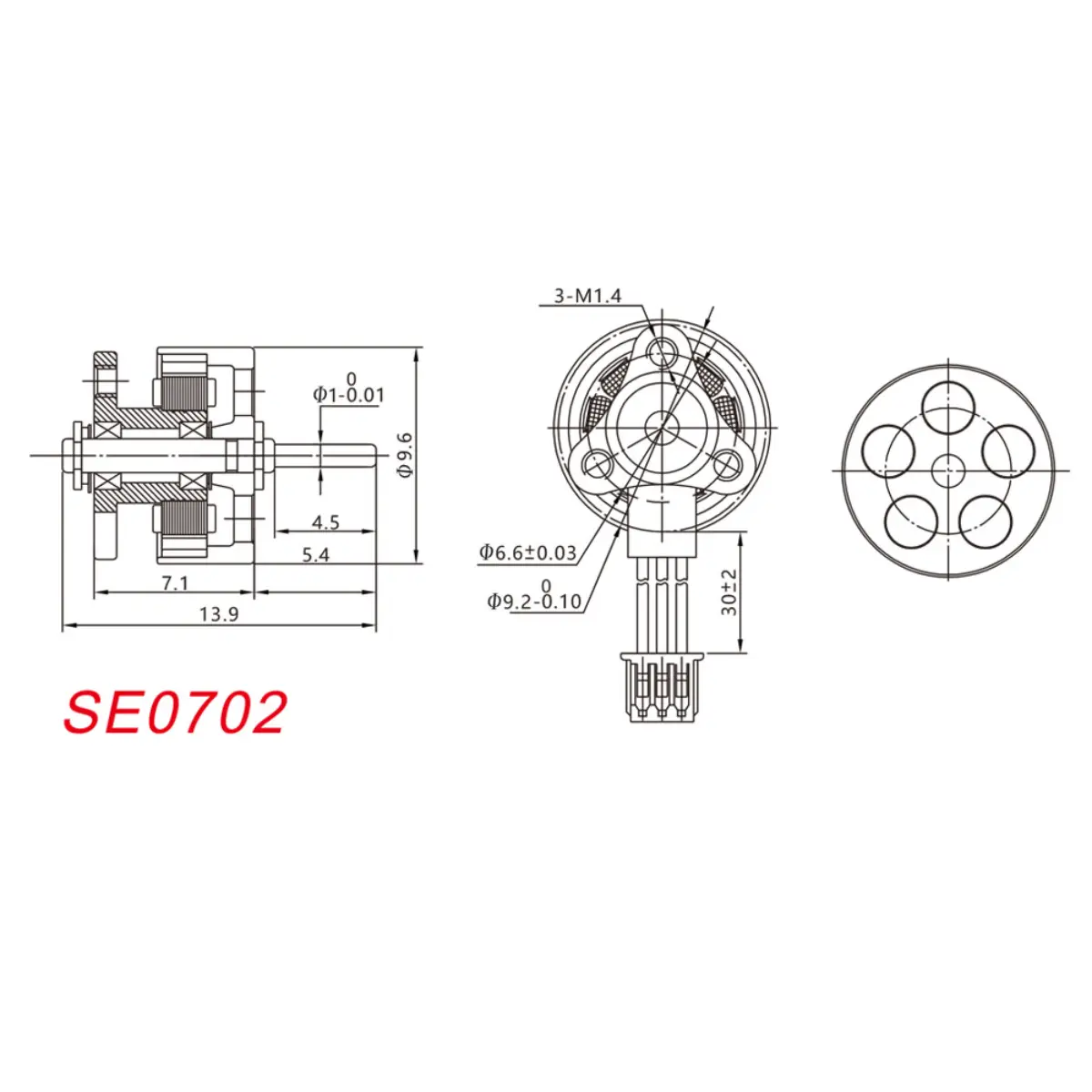

Motor Dimension(Dia.*Len):Φ9.5mm*14mm

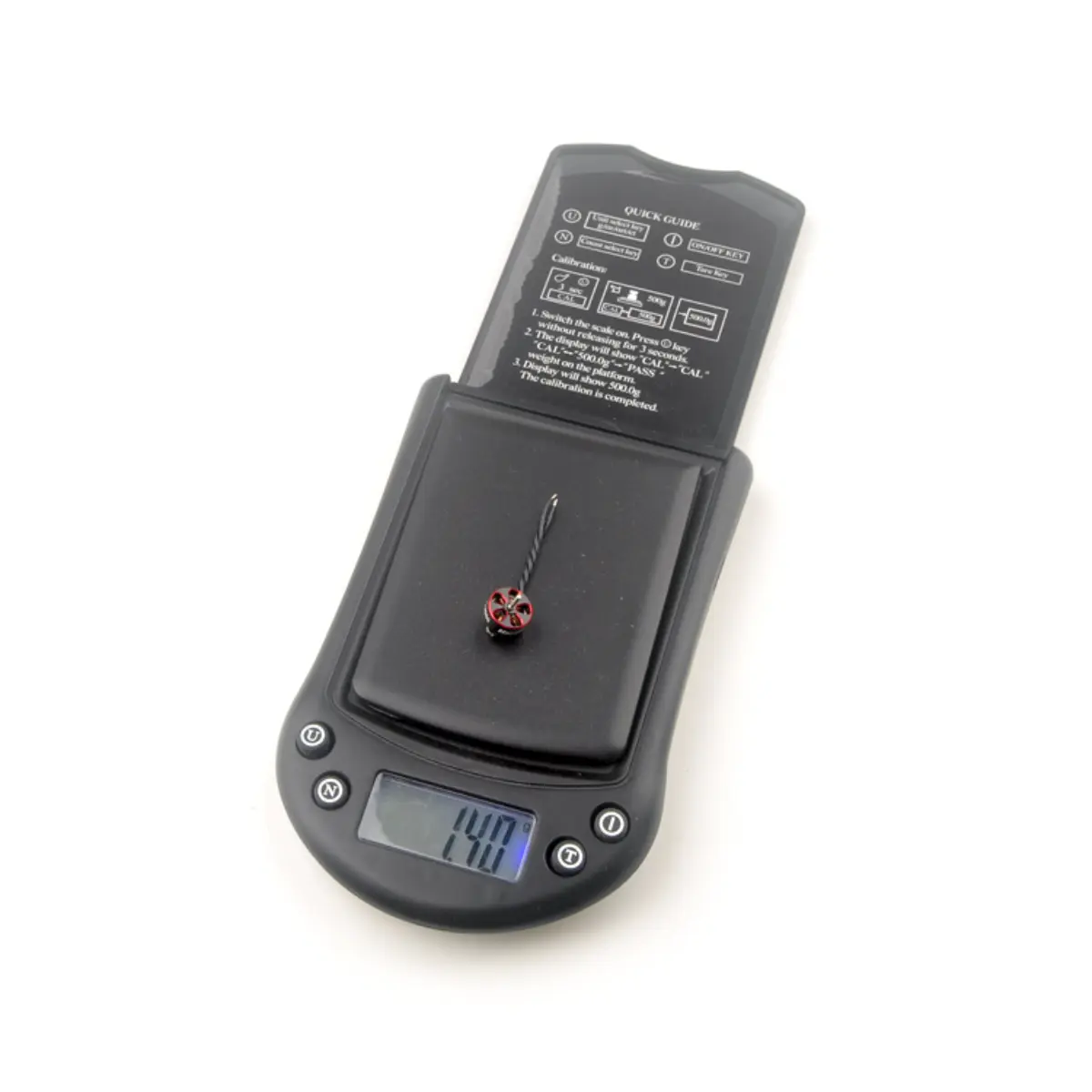

Weight(g):1.5g
No.of Cells(Lipo):1S only
Included:
1 x Happymodel SE0702 Motor
1 x Screw Set
Note:
These motors do not have threaded shafts. You can change the rotation direction (CW/CCW) by either:
1. Swapping any two of the three motor wires, or
2. Reversing the rotation direction in Betaflight.
| Berat | N/A |
|---|---|
| KV | KV23000 (1S), KV26000 (1S), KV28000 (1S) |
