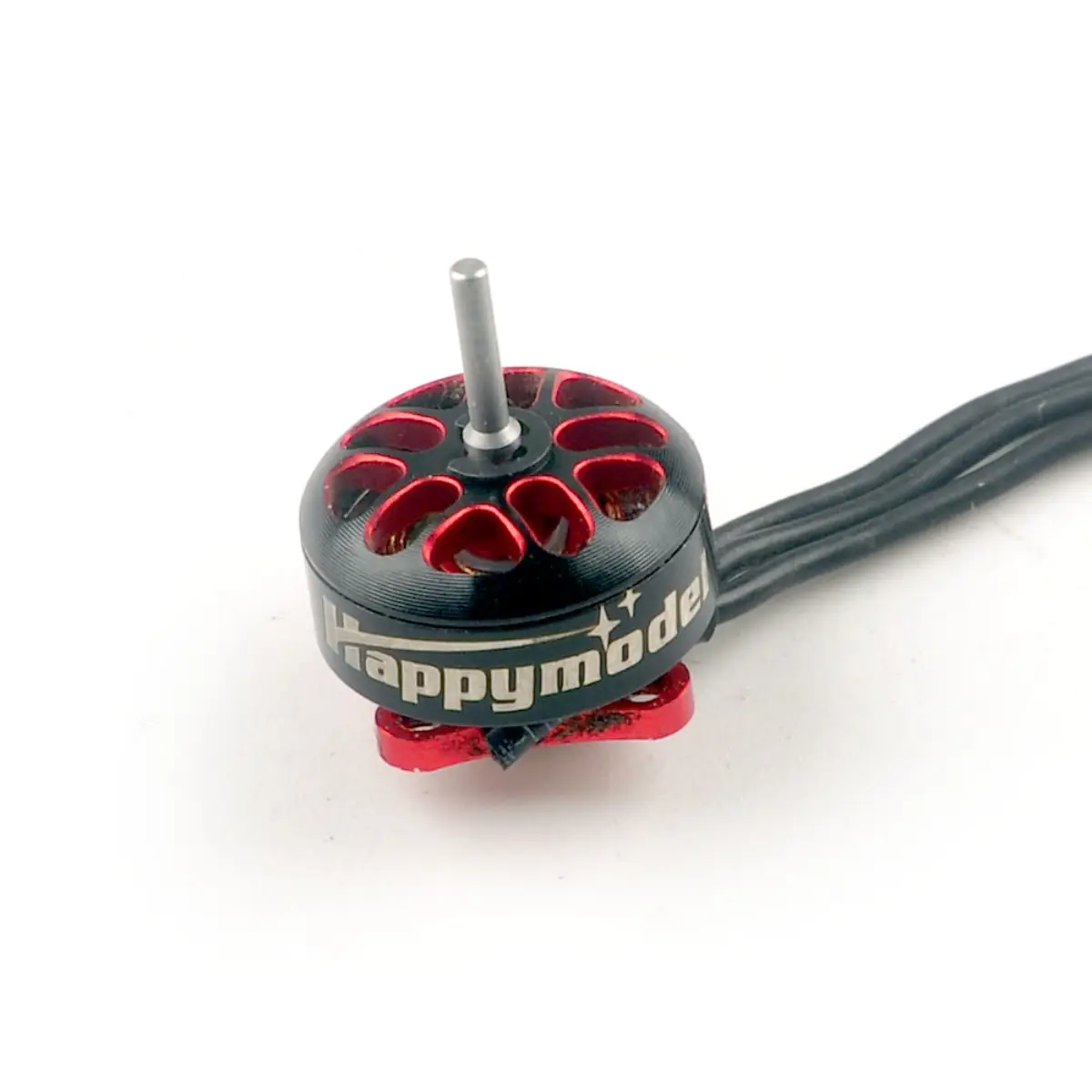

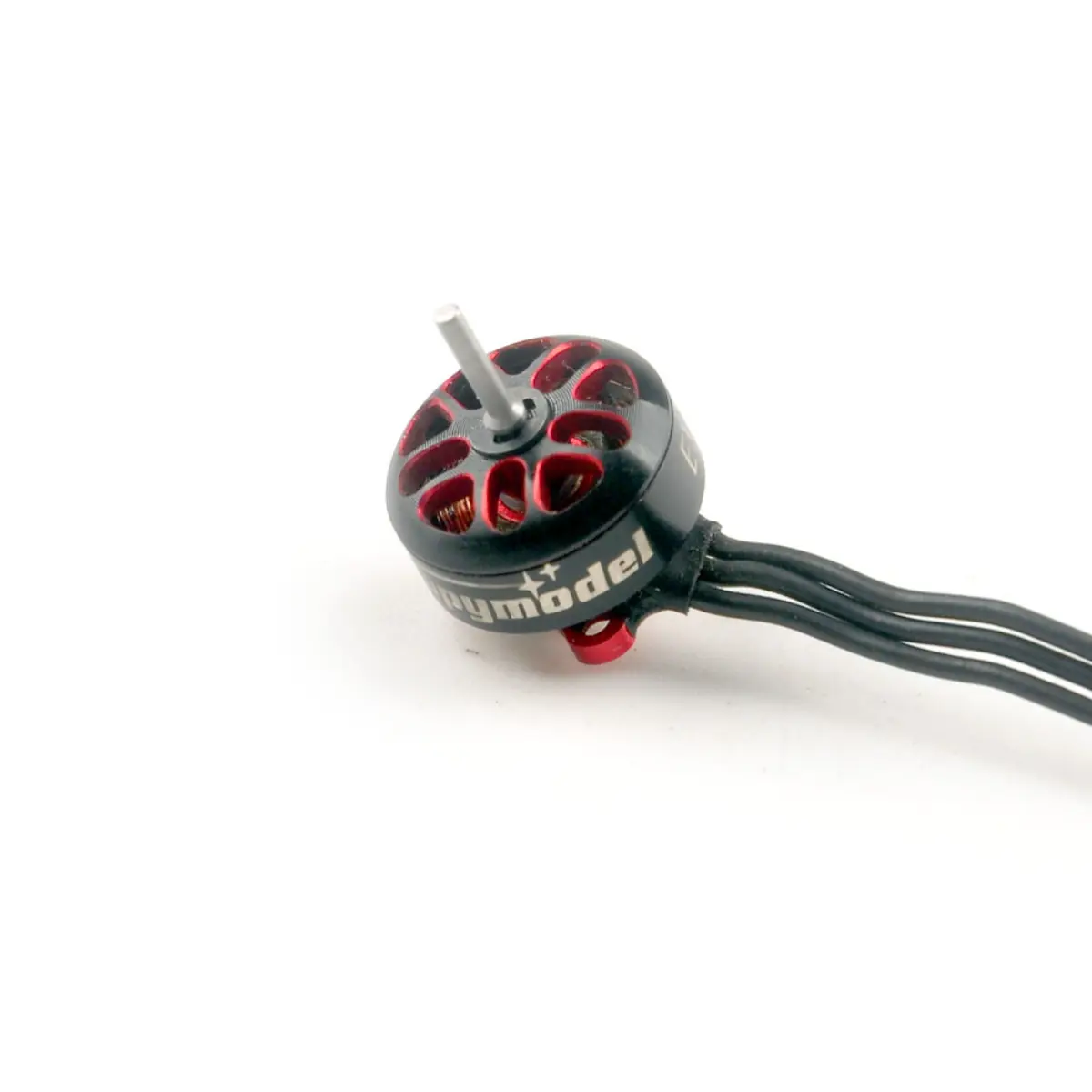

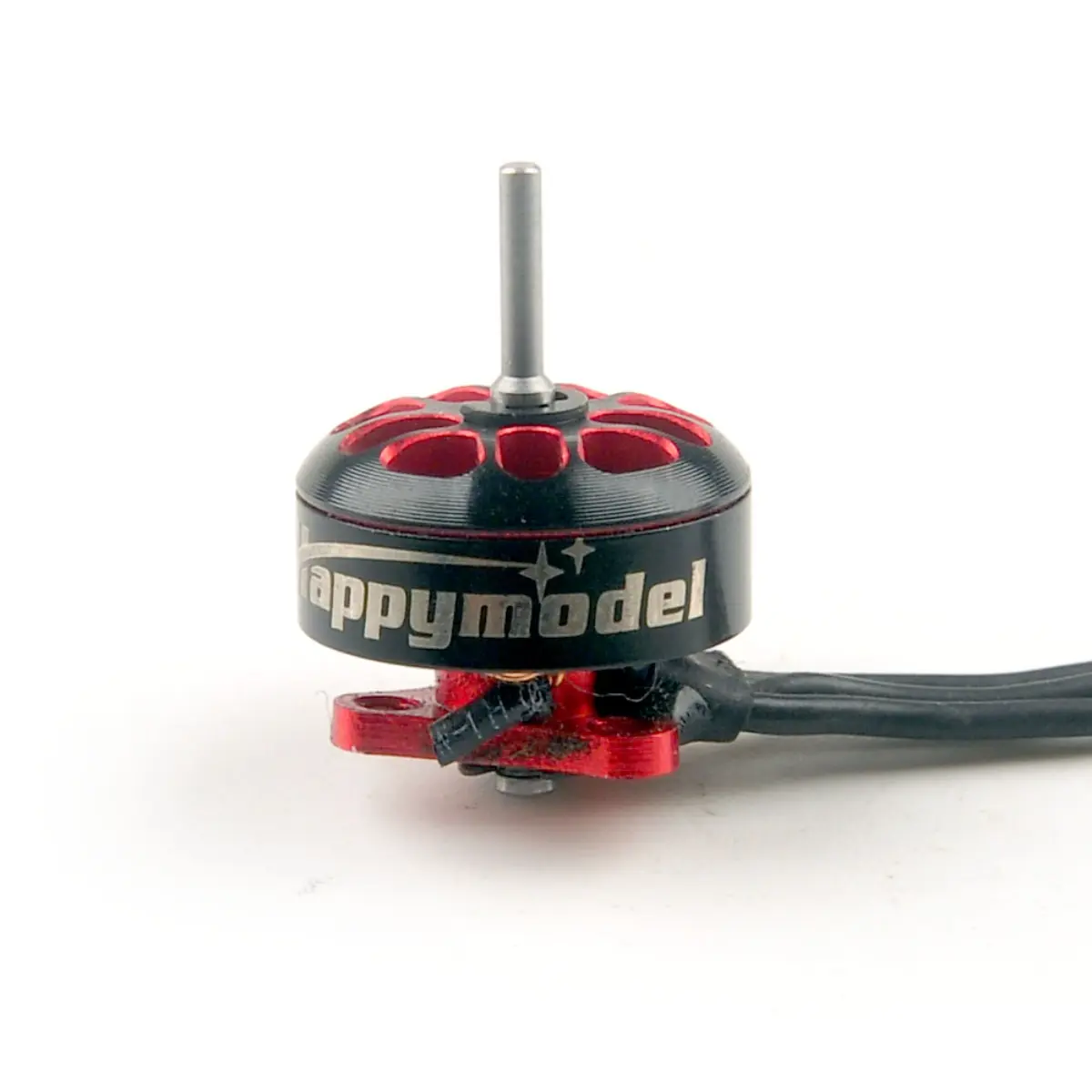

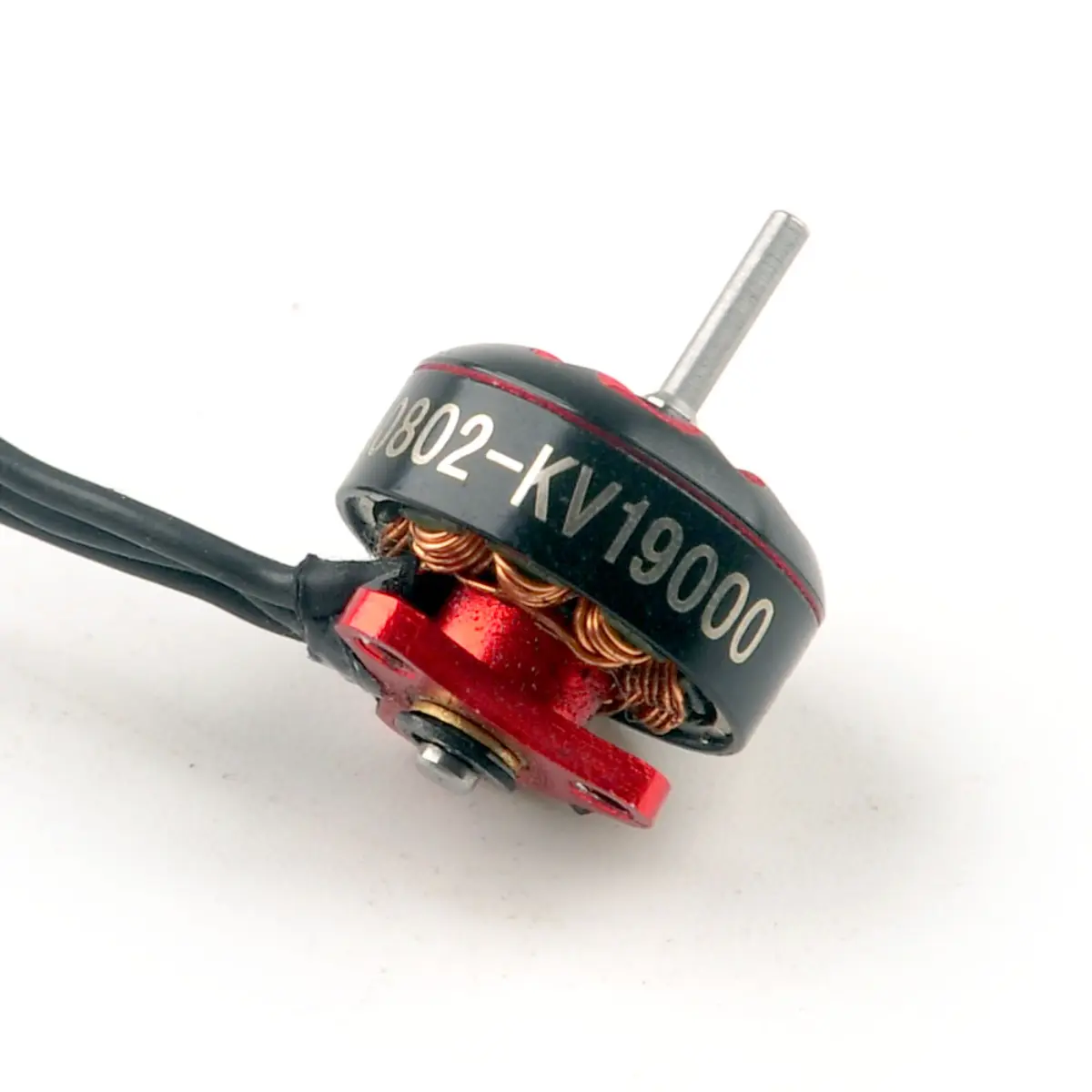

Happymodel EX0802 Brushless Motor 1mm shaft
Specifications:
Brand name: Happymodel
Item name: EX0802 brushless motor
KV: 14000KV 19000KV 22000KV 25000KV optional
Shaft Diameter: 1.0mm
Configuration: 9N12P
Stator Diameter: 8mm
Stator Length: 2mm
Motor Dimension(Dia.*Len): Φ10.5mm*14.9mm
Terminals: JST1.25mm
No. of Cells(Lipo):
19000KV/22000KV/25000KV compatible with only 1S lipo
14000KV compatible with 1-2S lipo
Wire length(include connector):
14000KV/19000KV/25000KV: 27mm
22000KV: 40mm

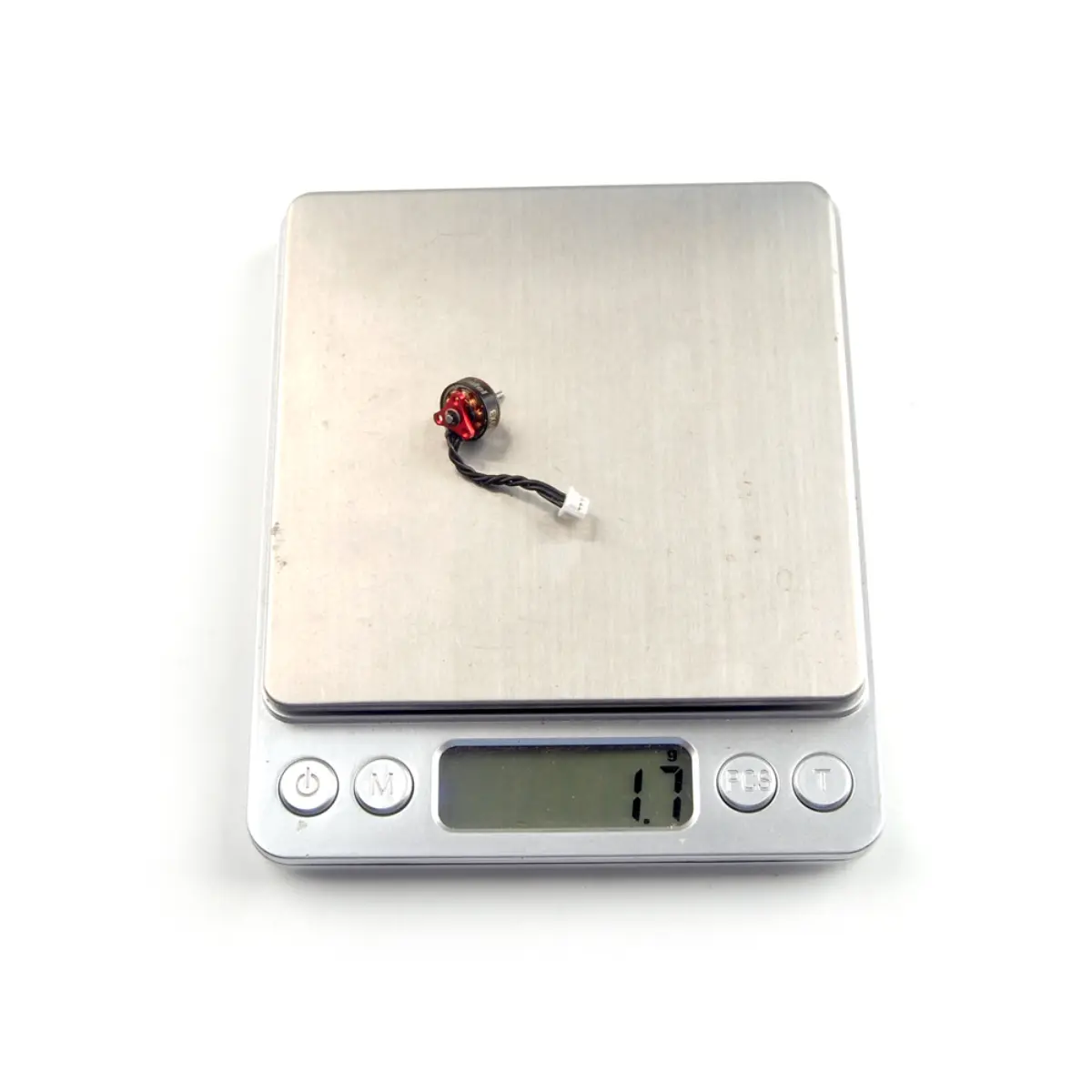

Weight: 1.7g
19000KV comes without JST plug
Features:
The lightest 0802 brushless motors around the world only 1.7g
Double E-clip design, prevent Motor bell to flying off
Good Dynamic balance
Included:
1 x Happymodel Unibell EX0802 Motor
1 x Screw Set
Note:
These motors do not have threaded shafts. You can change the rotation direction (CW/CCW) by either:
1. Swapping any two of the three motor wires, or
2. Reversing the rotation direction in Betaflight.
| Berat | N/A |
|---|---|
| KV | KV14000 (1-2S), KV19000 (1S), KV25000 (1S) |
