Happymodel Brushless Motor EX1102
Specifications:
Mode: EX1102
KV options:9000KV 10000KV 13500KV 19000KV
Configuration:9N12P
Stator Diamter:11mm
Stator Length:2mm
Shaft Diameter:Φ1mm or Φ1.5mm

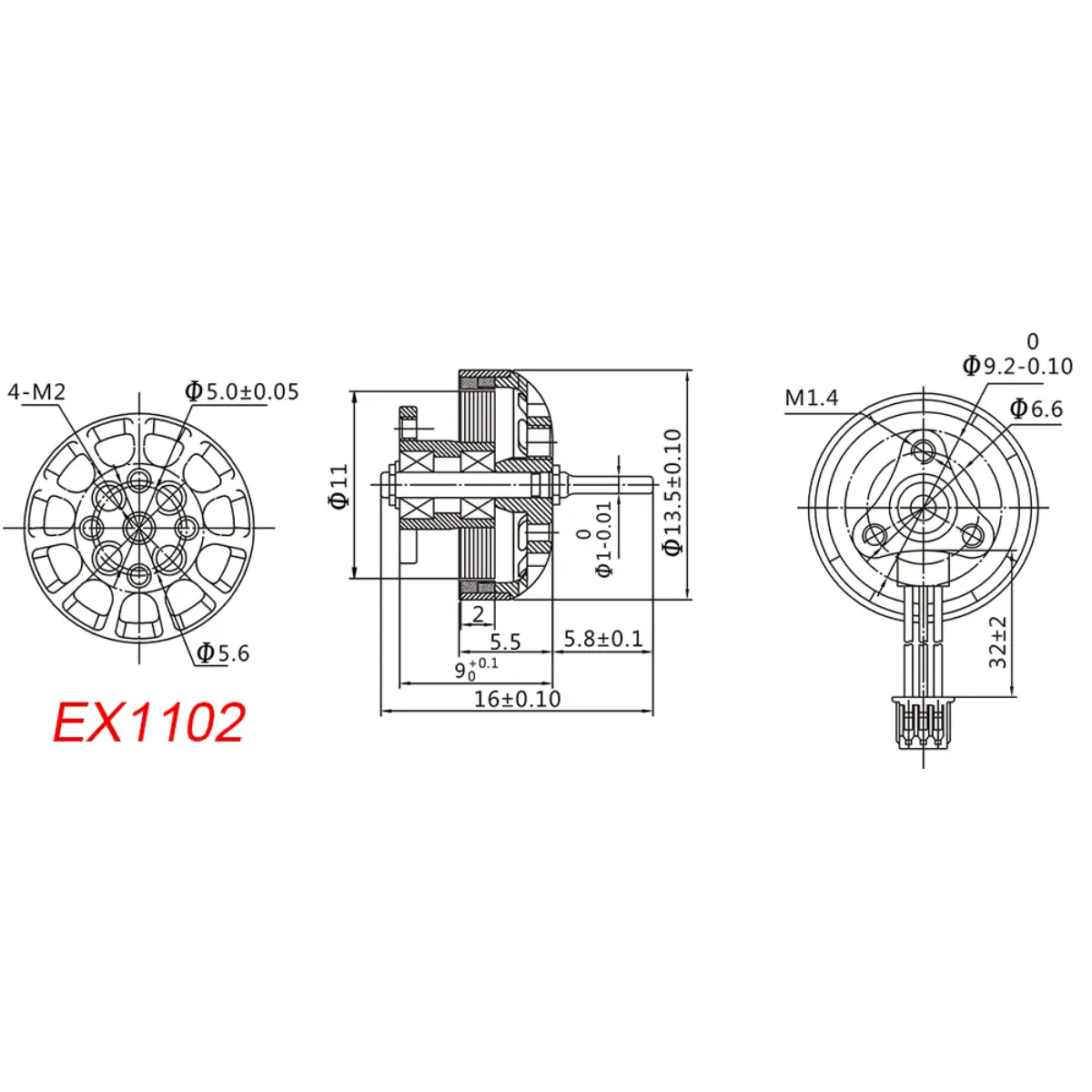

Motor Dimension(Dia.*Len):Φ13.5mm*16mm
Weight(g):2.8g
No.of Cells(Lipo):
9000KV (2-3S)
10000KV (2-3S)
13500KV (2-3S)
19000KV (1S)
Features:
The lightest 1102 brushless motor all over the world
Mobula7 HD original brushless motors
Dual bearing design and more balance
40mm – 66mm propellers compatible
Could use for 2s-3s 75mm-85mm whoops and best for 66mm ductless frame
Includes
1x HappyModel EX1102 Motor
1x Set of Motor Screws
Note:
These motors do not have threaded shafts. You can change the rotation direction (CW/CCW) by either:
1. Swapping any two of the three motor wires, or
2. Reversing the rotation direction in Betaflight.
| Berat | N/A |
|---|---|
| KV | KV9000 (2-3S), KV13500 (2-3S), KV19000 (1S), KV10000 (2-3) |
| Shaft | 1mm, 1.5mm |
