VR009 5.8G 40CH Analog FPV Goggles

Bagikan
0
(0)
0 Sold
Rp785.000
0 Sold
0
(0)
SKU: PR-PN000037_GOGGLE_EAC_(VR009) Kategori:

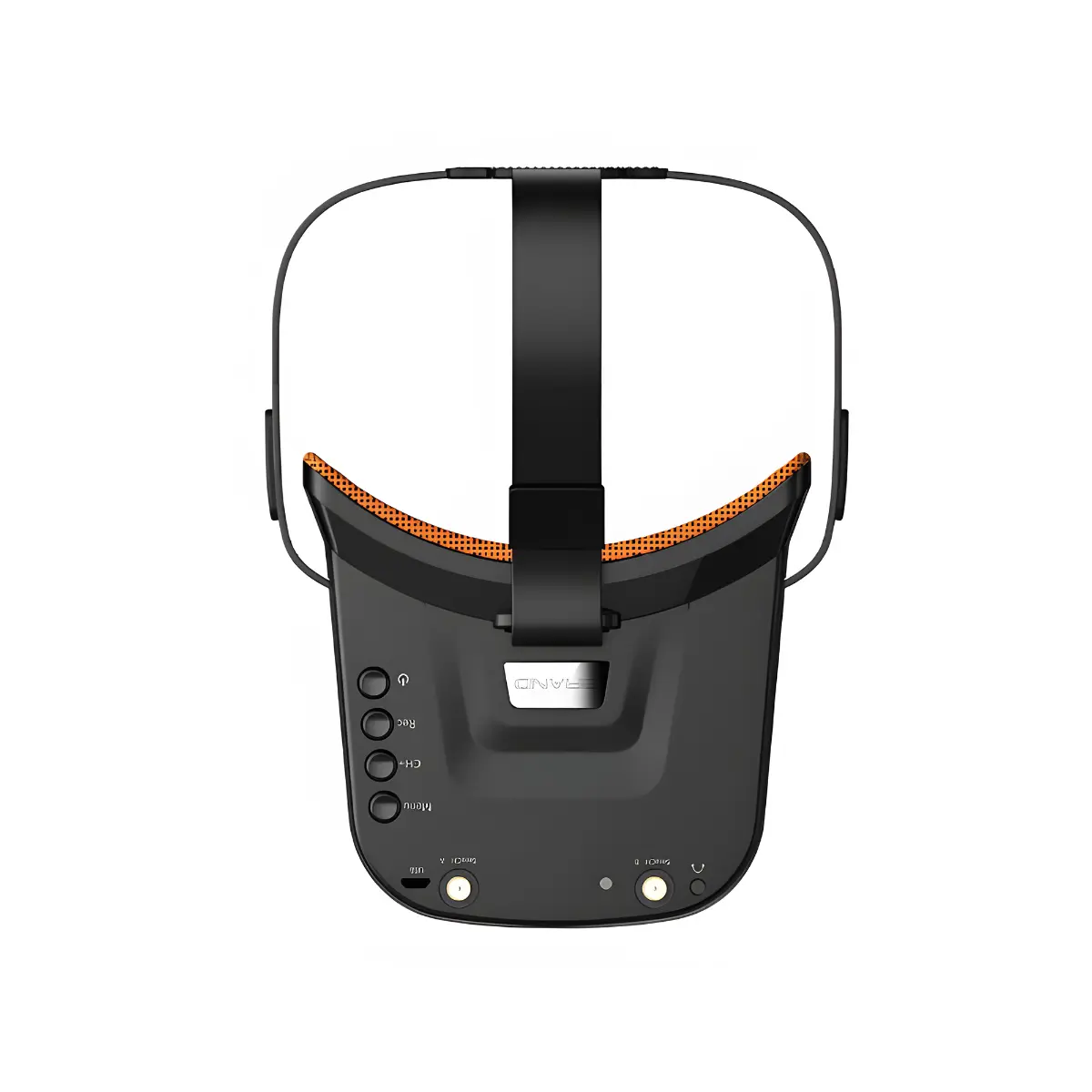

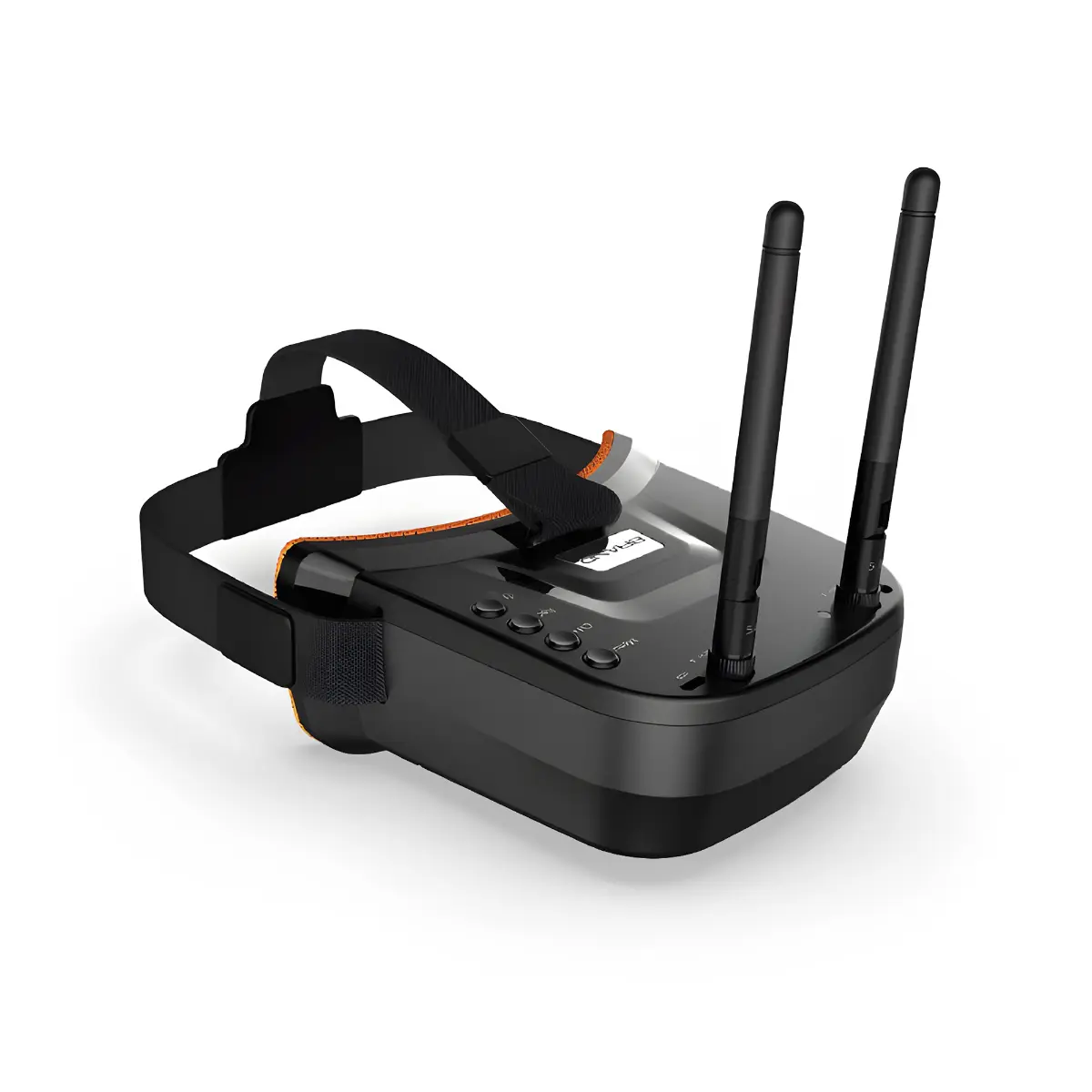

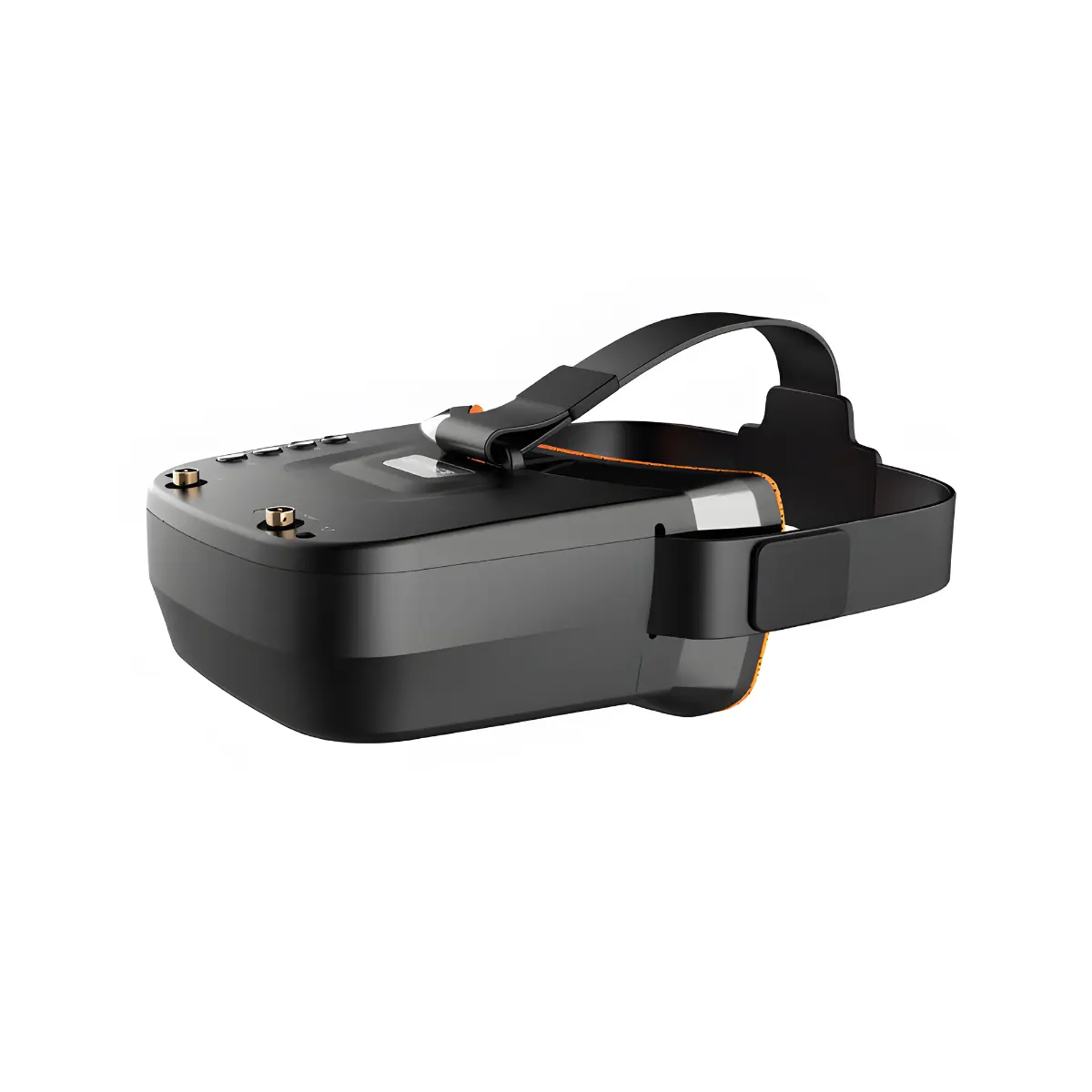

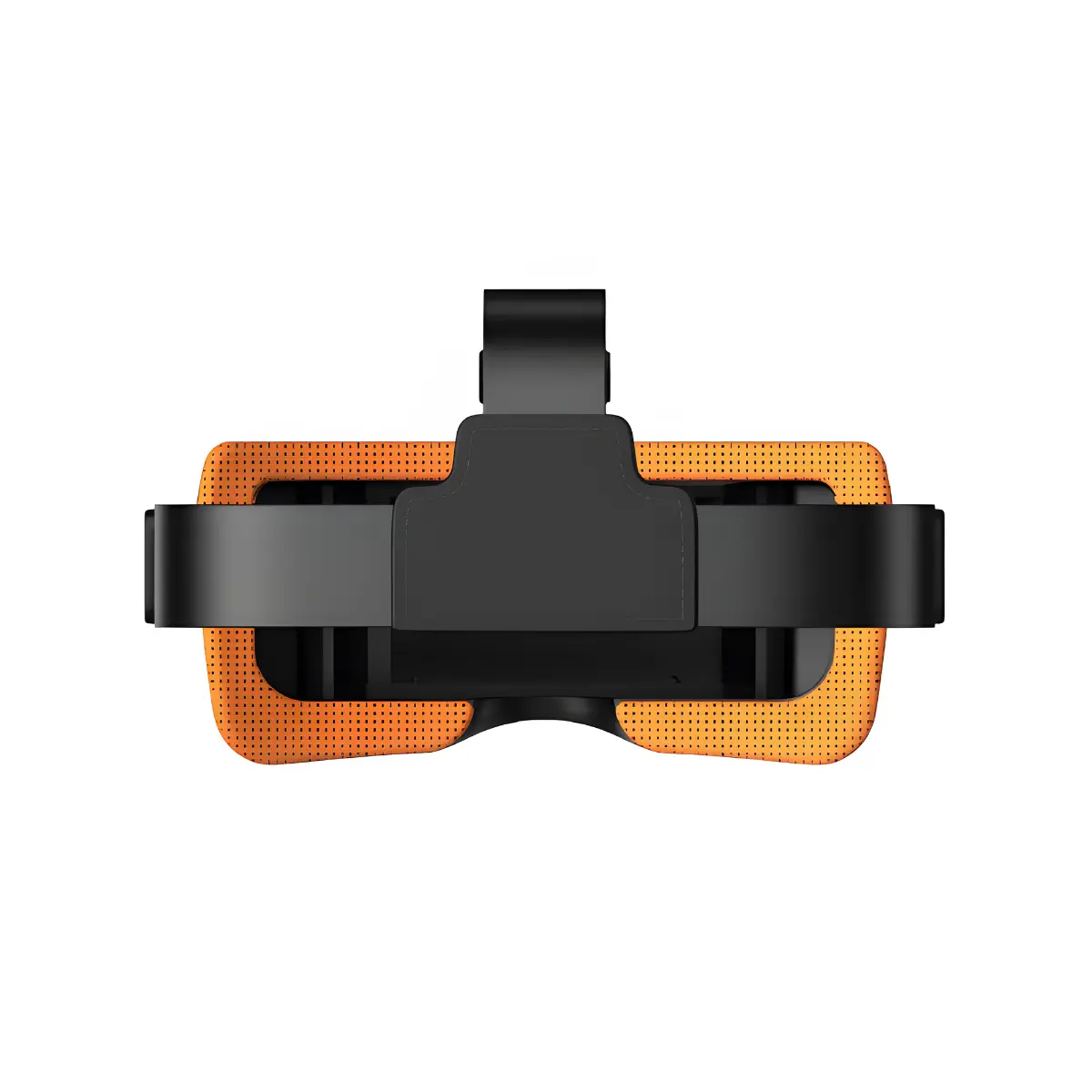

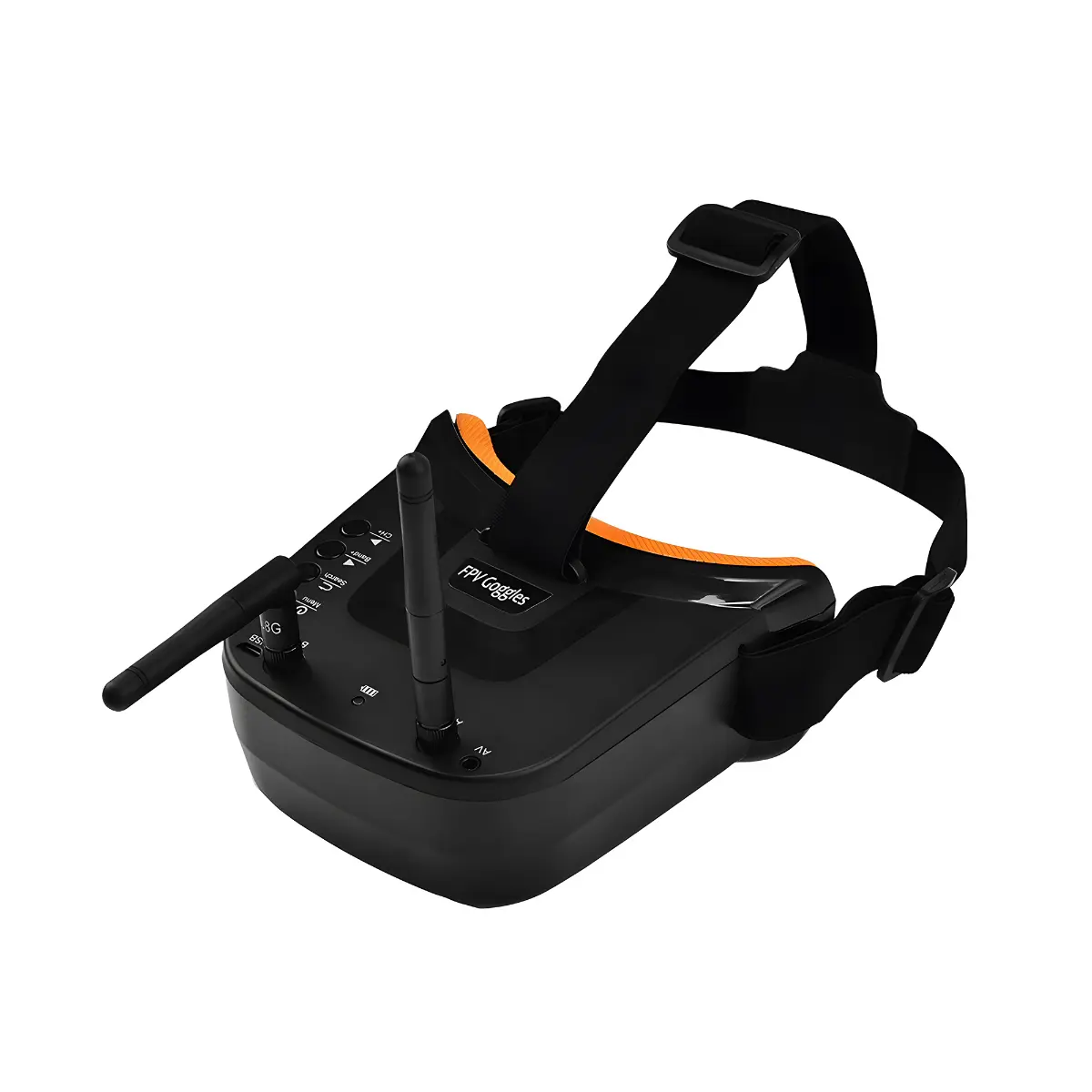

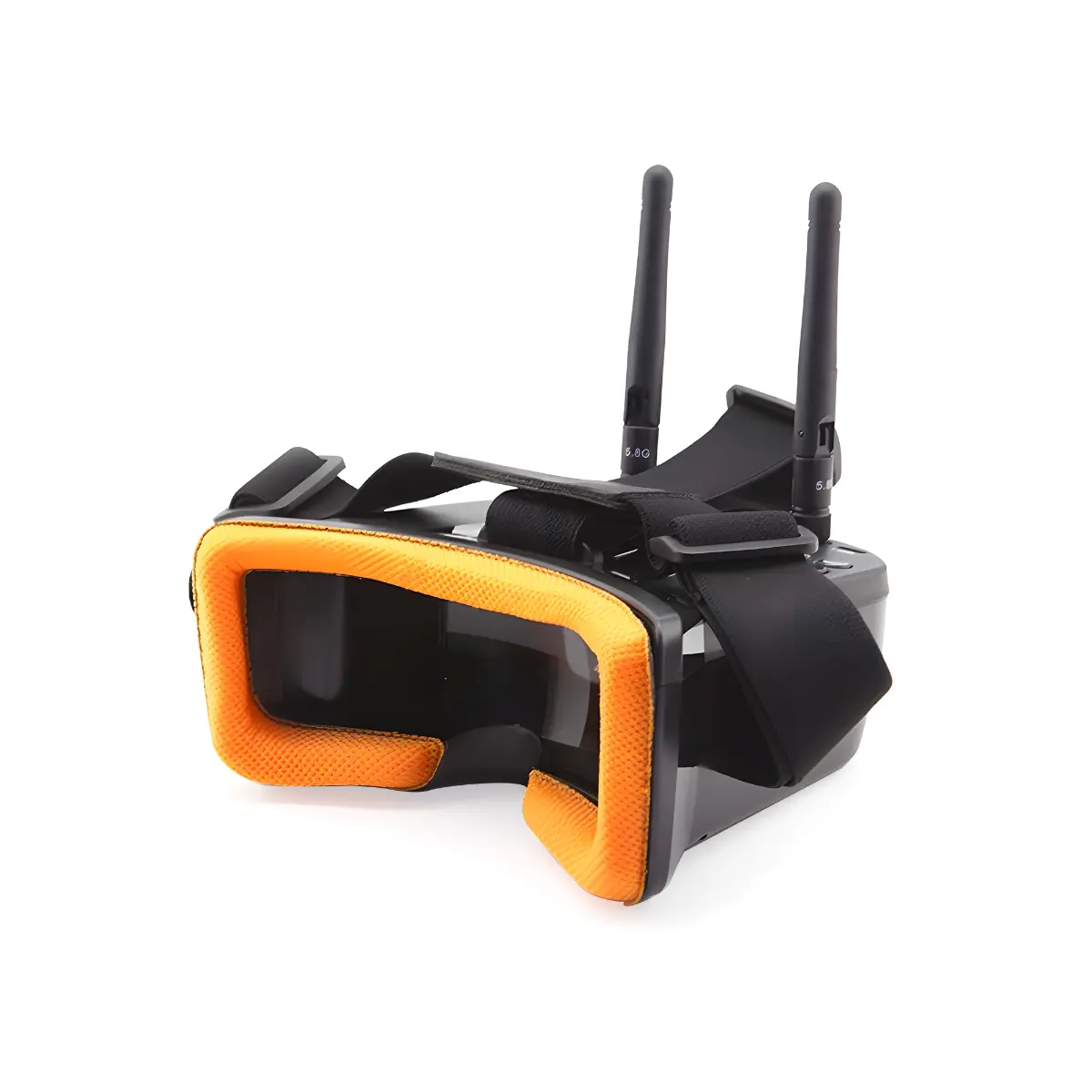

About VR009 3” 5.8GHz 40CH FPV Goggles

The VR009 FPV goggles are compact and lightweight at just 180g, making them easy to carry and comfortable for long flights. They feature a 3.0-inch 480×320 high-brightness LCD with a 16:9 aspect ratio and 4× Fresnel lenses (92% transparency) for clear, immersive FPV visuals.

Equipped with a built-in 5.8GHz 40CH receiver and dual antennas, the goggles provide stable signal reception and support 40-channel auto-scan. Video latency is under 20ms, ensuring smooth real-time FPV. External video input and AV output are supported, allowing connection to DVR devices.

Designed for low power consumption (360–400mA), the goggles include a 3.7V/1200mAh Li-Po battery for around 2.5 hours of use and can be charged via USB (DC 5V/1A). The menu supports both English and Chinese for easy operation.

Compact dimensions (13.5 × 13.2 × 6.5cm) make the VR009 an ideal FPV accessory for fixed-wing aircraft, racing drones, and multirotor drones.



Specifications



Product Name: Mini FPV Goggles

Display:

  • Screen Size: 3.0 inches
  • Resolution: 480×320
  • Aspect Ratio: 16:9
  • Viewing Angle: 6 o’clock
  • Brightness: 350 cd/m², high-brightness LED backlight
  • Video Latency: <20ms
  • Lens: 4× Fresnel lens, 92% transparency, no light distortion

Interfaces:

  • Antenna: 2 internal pins
  • USB: for battery charging
  • AV Port: external video input or internal AV output
  • Language: English / Chinese

Power:

  • Adapter: DC 5V/1A (USB)
  • Battery: 3.7V / 1200mAh Li-Po, ~2.5 hours runtime per full charge
  • Device Current: 300–330mA at 3.7–4.2V
  • Max Battery Charge Current: 500mA

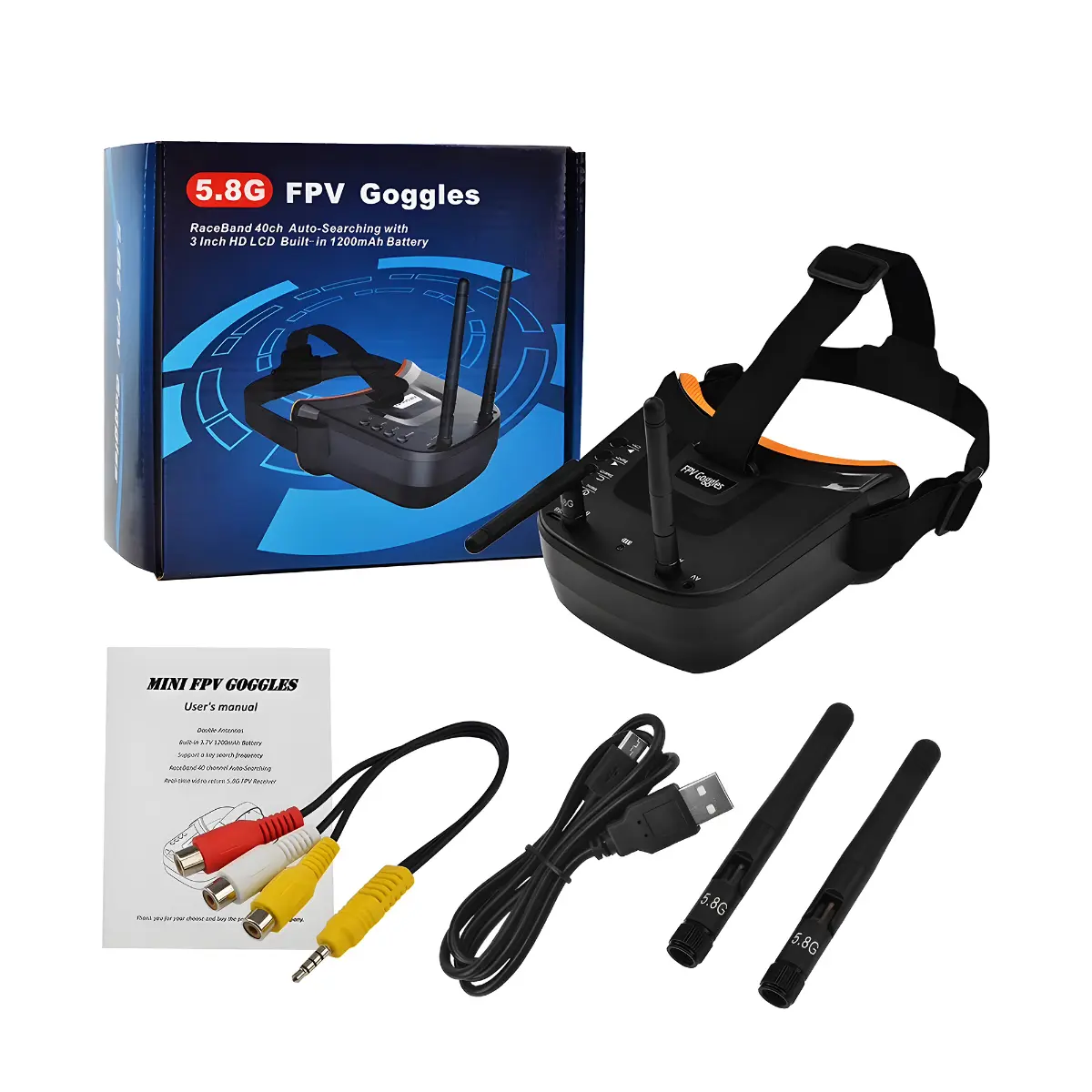

Includes:

1x Goggles

1x AV cable

1x USB cable

2x Atennas

1x Manual
