Features:

With DVR, you can record videos anytime and anywhere;
Low power consumption;
Diversity module reception to make the signal more stable;
Auto-Searching, support a key search frequency;
5 Inch 800*480 dot high brightness LCD screen;
Built-in super sensitiveness 5.8GHz 40ch receiver, especially with RaceBand;
Built-in 7.4V/1430mAh high-capacity Li-ion polymer Battery;
Universal DC055 charging interface;
Real-time video return, Very low time-delay;
The menu supports 8 languages;
Support external video signal input;
Support Audio signal output (You can connect headphones)

Description :

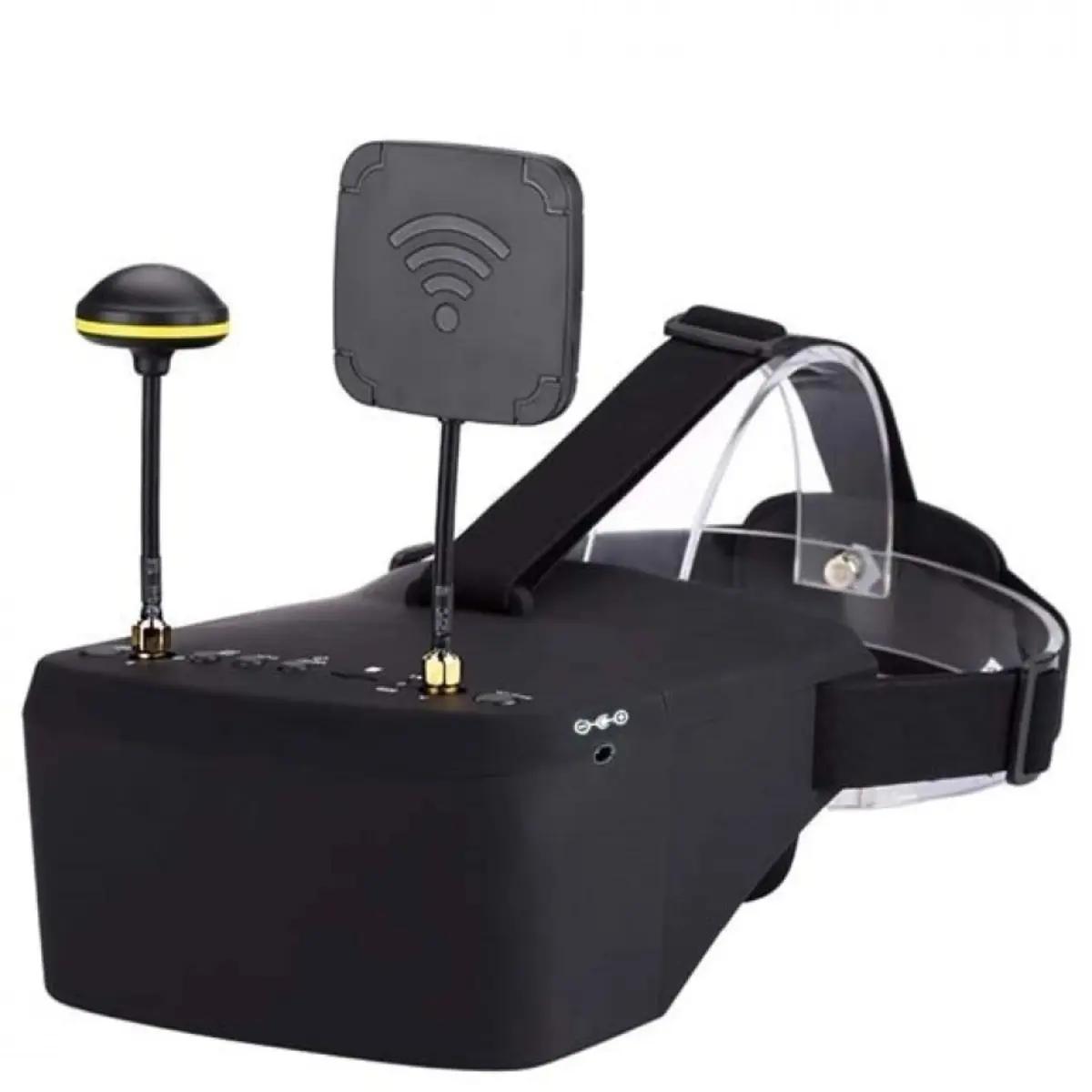

Model Name: 5.8G FPV Goggles
LCD Screen: Screen size: 5 Inch
Resolution: 800*480
Display Ratio: 16:9
View Angle: 6 o’clock
Brightness: 300cd/m² with high brightness backlight LED
Video delay: Video time-delay less than 20ms

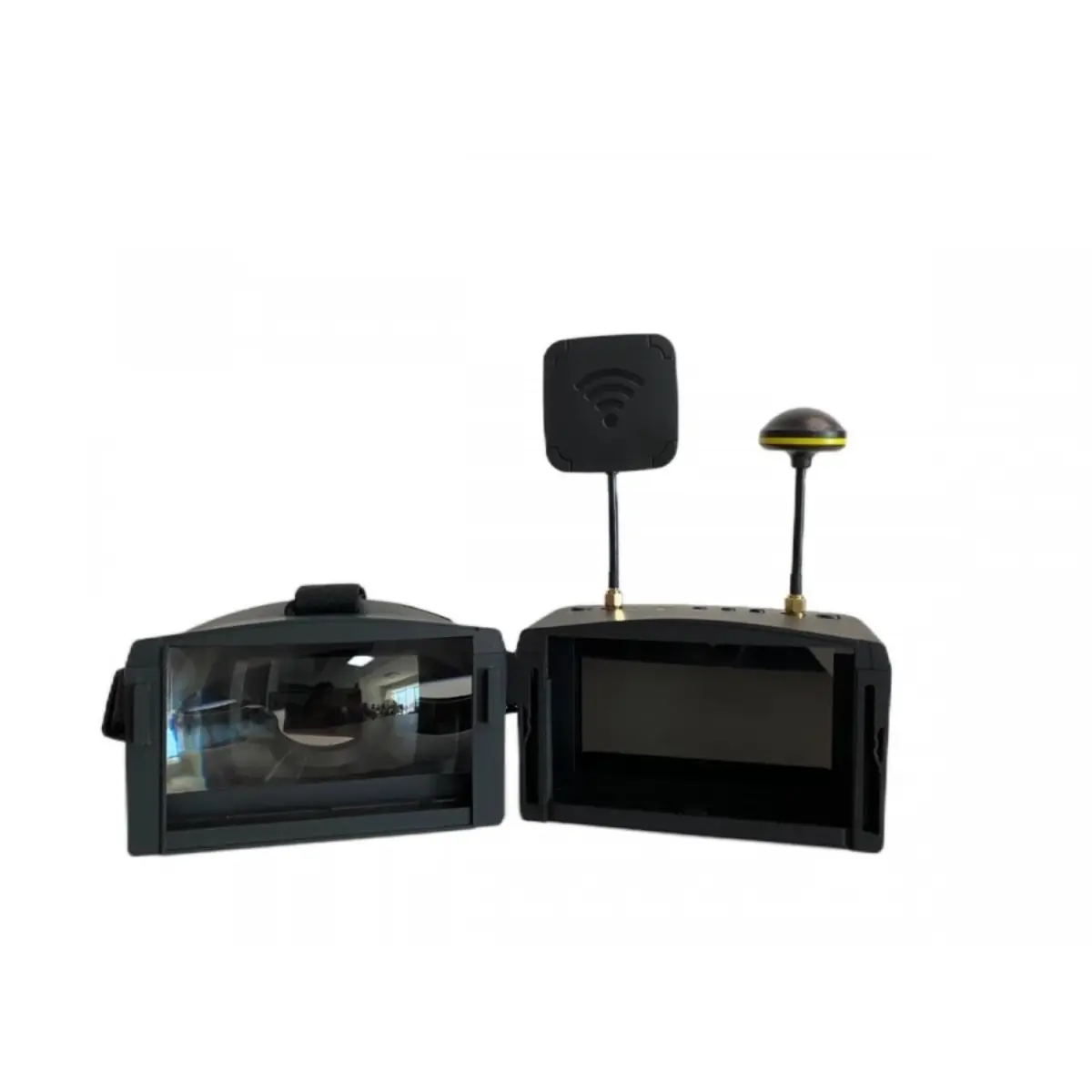

Lens: 2.8X Fresnel Lens, 92% transparent rate no distort of light

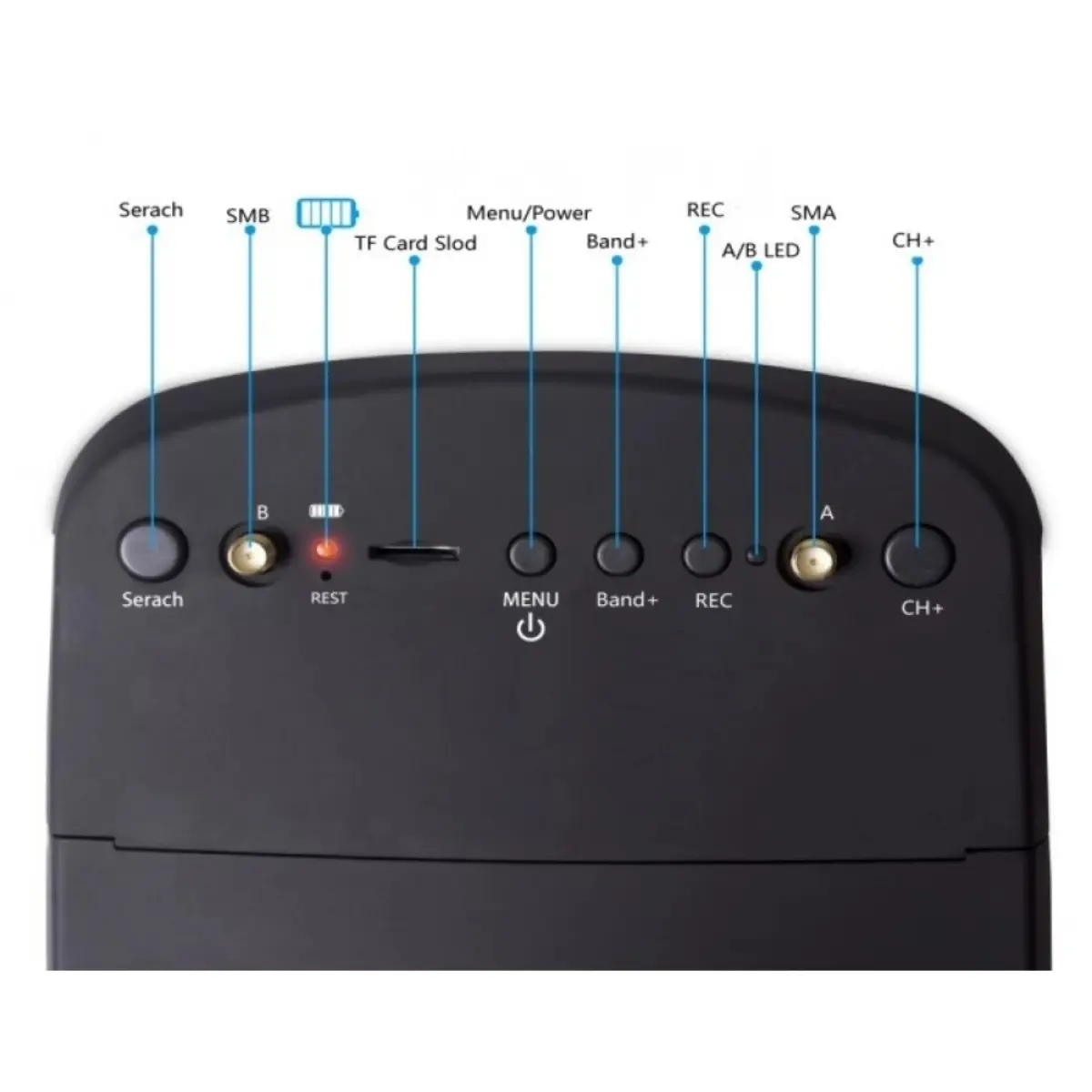

Interface: Antenna: 2 X RP-SMA male
DC055: To charge the battery
AV Jack: External video signals input or internal Audio signal output
Card slot: TF-Card, Support up to 32G(C10 recommend)
DVR: REC size: VGA / D1 / HD Selectable
REC sound: ON / OFF Selectable
REC time: OFF / 3min / 5min / 10min Selectable
Frame rate: 30 Frames
Compress format: MJPEG
Record file format: AVI
Languages: English,German,French,Spanish,Italian,Chinese,Russian,Japanese

Power Supply :

Power adapter: DC12V/2A (DC055 interface)
Battery: 7.4V/1430mAh,
DVR module ON: Each full charge revive around 2.5hr working time
DVR module OFF: Each full charge revive around 3.5hr working time

Power Consumption:

• Normal mode: The device operating current of 400mA at 3.7V;
• Record Mode : The device operating current of 620mA at 3.7V;
• Built-in battery maximum charge current of 800mA;

Note: Cannot record video input from AV port.

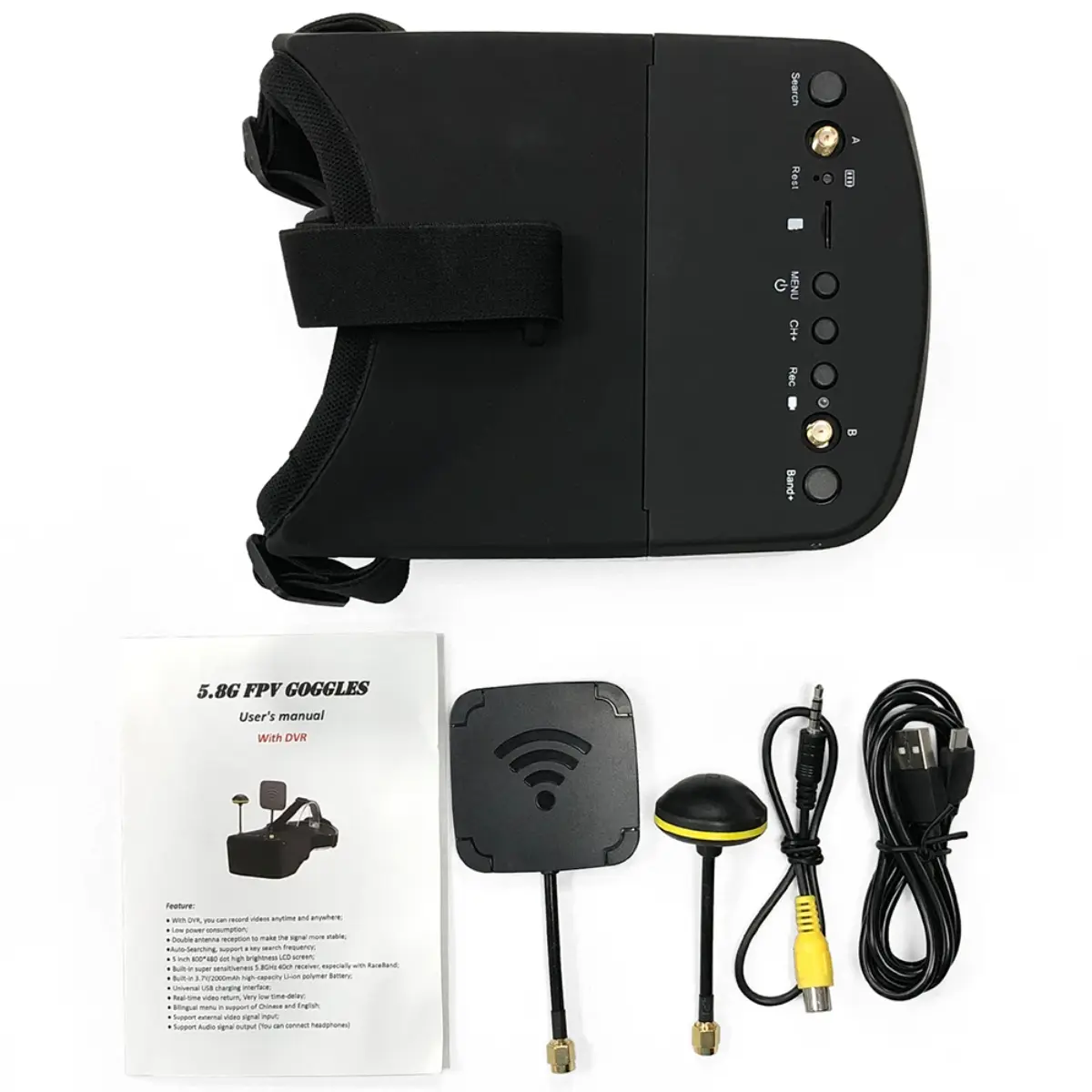

Includes:

1x EV800D Goggles
1x set of antennas
1x AV cable
1x USB
