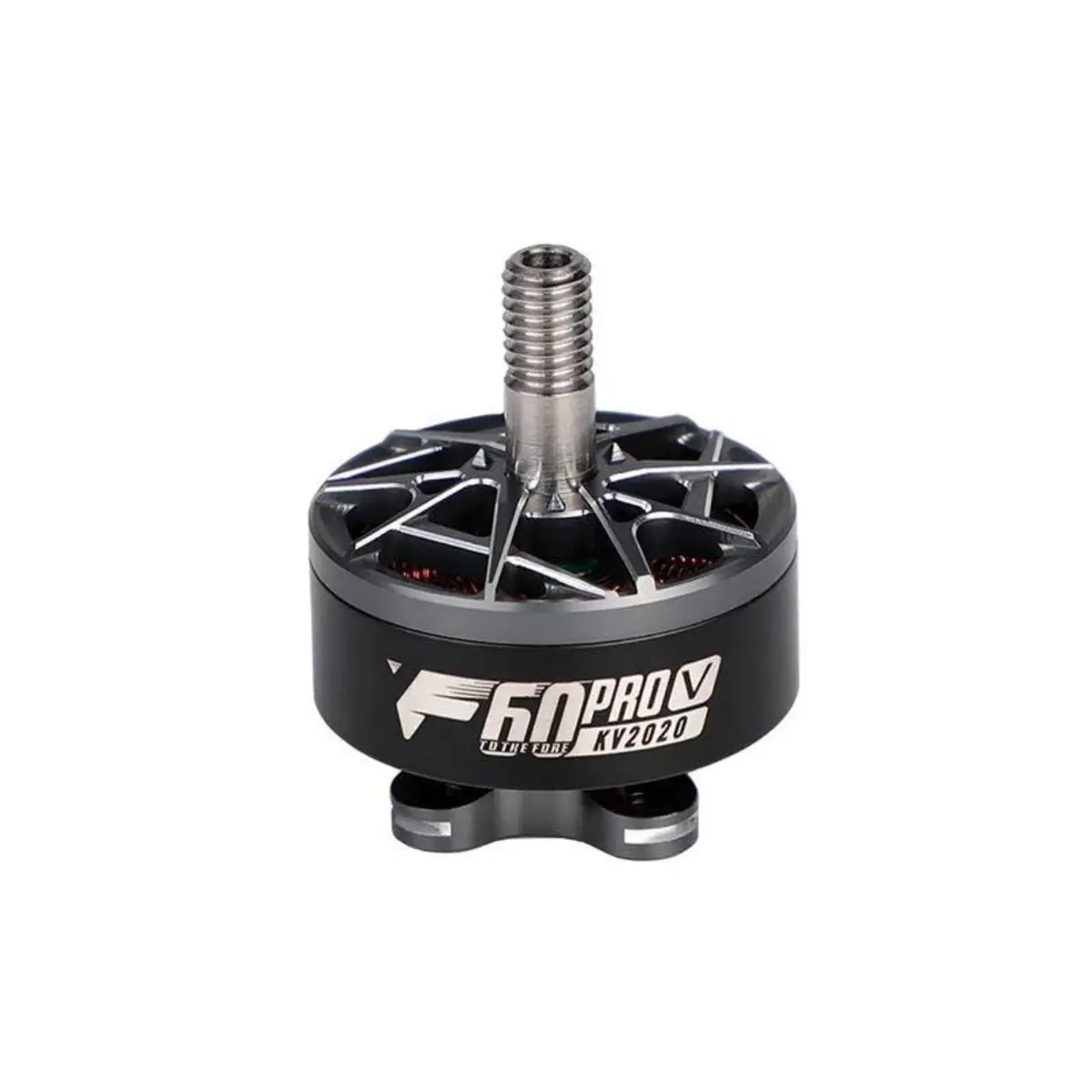

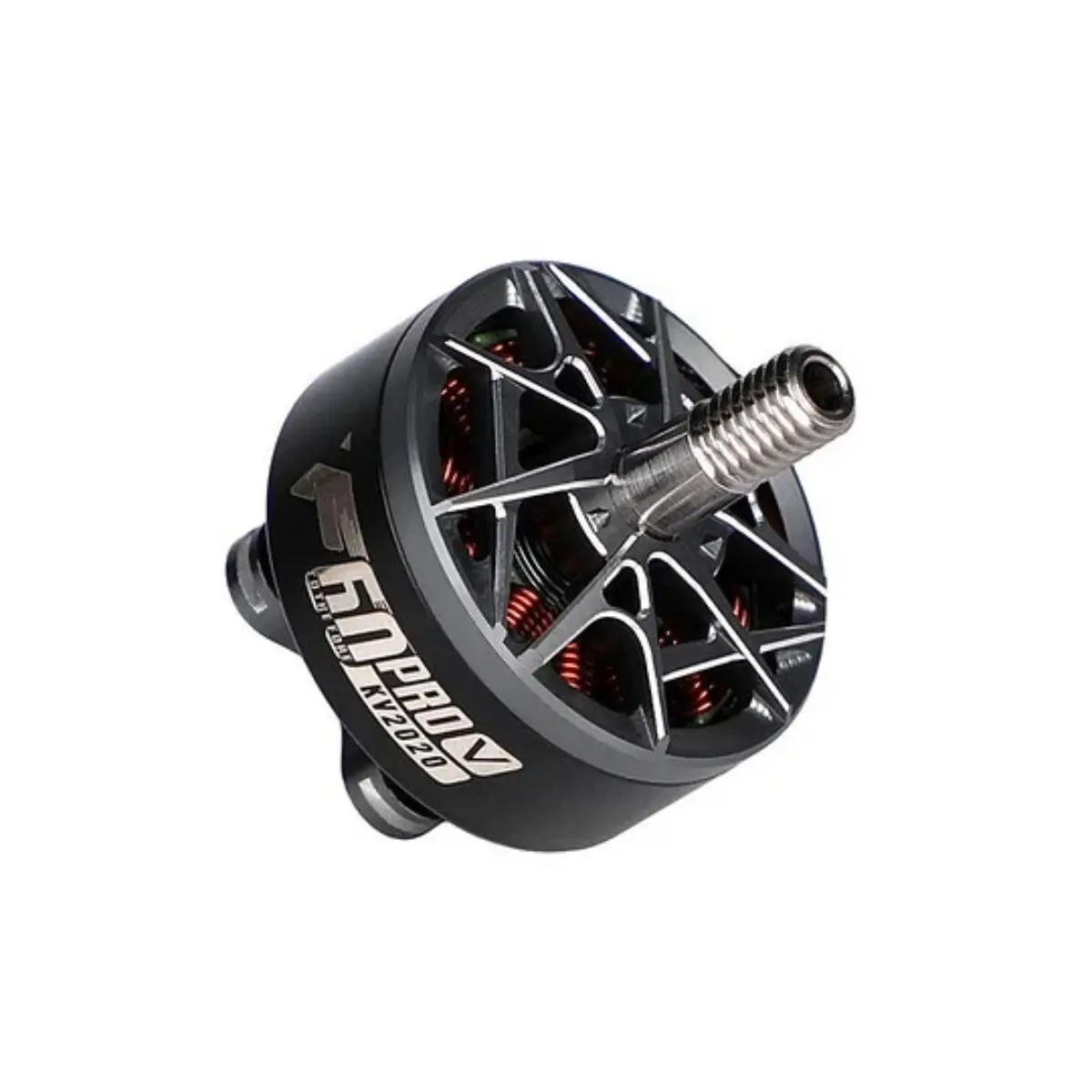

T-MOTOR F60PRO V 2207.5 Brushless Racing Motor

Bagikan
0
(0)
0 Sold
Rp330.000
0 Sold
0
(0)
SKU: PR-PN001808_MOTOR_TMT Kategori: Brand:

The TMOTOR F60 line is advancing to Pro V series!

This racing motor suitable for 5 inch FPV drones.

Increased thrust, more linearity.

More powerful and more durable than ever before.

Choose your favorite from 4 KV variants!

  • KV2020: pushing your limit, more explosive power
  • KV1950: balanced kv, fits all choice
  • KV1750: more torque, more efficiency and longer flight time
  • KV2550: suitable for 4S FPV racing

Unique Point

  • Lock Screw for Easy Motor Bell Removal
  • Anti-Slip Design
  • Excellent linearity
  • EZO Bearing
  • Multiple KV to meet different racing needs

Recommended

  • Frame: 5″ Quadcopter
  • ESC: TMOTOR FPV F55A PRO II 4 IN 1 ESC
  • Compatible Propellers:  5 inch FPV propellers
  • Battery:4S 1550Mah 120C/6s 1300Mah 120C
  • Takeoff Weight:500g with 4S Battery/520g with 6S Battery(Subject to actual take-off weight)

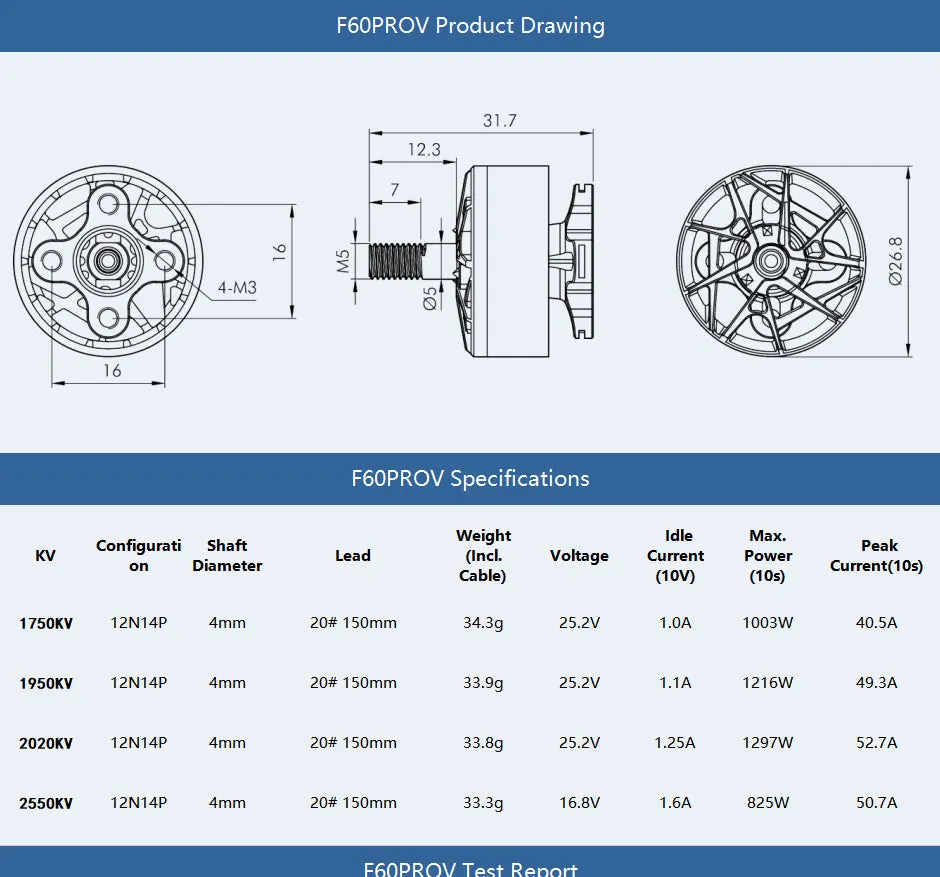

Specifications

KV: 1750

  • Motor Dimensions: 26.8*31.7mm
  • Stator: 2207.5
  • Peak Current (10s): 40.5A
  • Weight (Inc. Cable): 34.3g
  • Prop Mounting Size: 5mm
  • Max.Power (10s): 1003W
  • Rated Voltage (Lipo): 4
  • Lead: 20#AWG 150mm
  • Configuration: 12N14P
  • Shaft Diameter: 4mm
  • Idle Current: 1A
  • Voltage: 25.2V
  • KV: 1750

KV: 1950

  • Motor Dimensions: 26.8*31.7mm
  • Peak Current (10s): 49.3A
  • Prop Mounting Size: 5mm
  • Weight (Inc. Cable): 33.9g
  • Max.Power (10s): 1216W
  • Rated Voltage (Lipo): 6S
  • Lead: 20#AWG 150mm
  • Configuration: 12N14P.
  • Shaft Diameter: 4mm
  • Idle Current: 1.1A
  • KV: 1950

KV: 2020

  • Motor Dimensions: 26.8*31.7mm
  • Rated Voltage (Lipo): 5-6S
  • Weight (Inc. Cable): 33.8g
  • Peak Current (10s): 52.7A
  • Prop Mounting Size: 5mm
  • Max.Power (10s): 1297W
  • Lead: 20#AWG 150mm
  • Configuration: 12N14P
  • Shaft Diameter: 4mm
  • Idle Current: 1.25A
  • KV: 2020

KV: 2550

  • Motor Dimensions: 26.8*31.7mm
  • Weight (Inc. Cable): 33.3g
  • Rated Voltage (Lipo): 4S
  • Peak Current (60s): 50.7A
  • Max.Power (60s): 825W
  • Configuration: 12N14P
  • Lead: 20#AWG 150mm
  • Shaft Diameter: 4mm
  • Idle Current: 1.6A

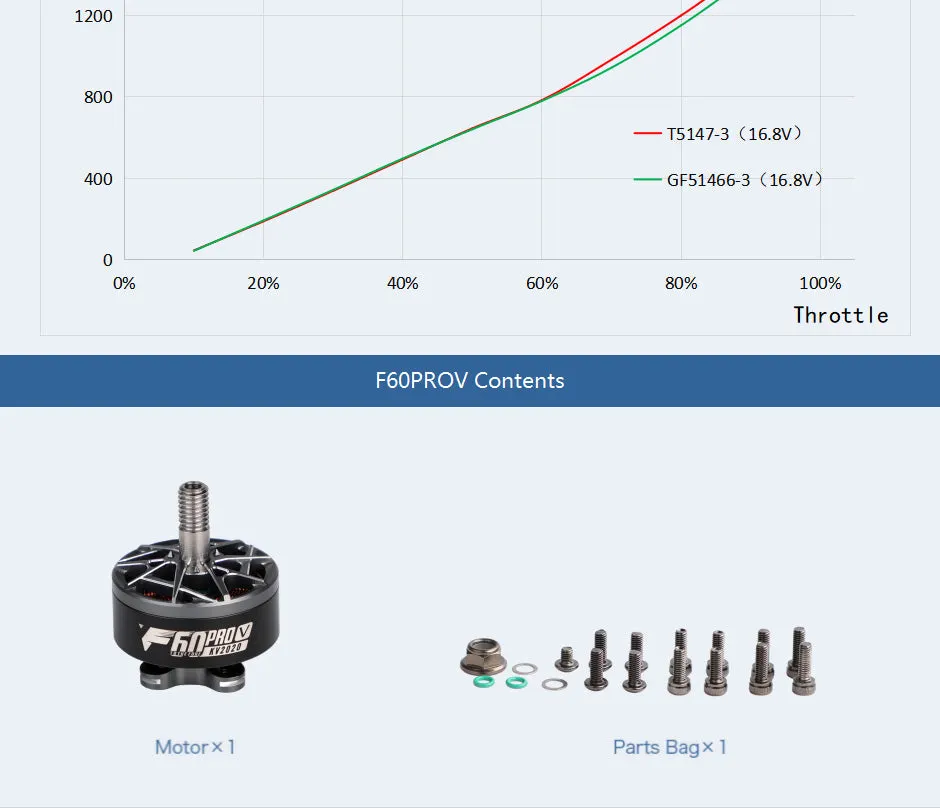

Includes

  • 1x T-Motor F60 PRO V Motor
  • 4x Socket Head Screws
  • 1x Prop Locknut
  • 1x Shaft Screw

Specification

TMOTOR-FPV-Brushless-Motor-F60PROV

TMOTOR-FPV-Brushless-Motor-F60PROV

TMOTOR-FPV-Brushless-Motor-F60PROV

TMOTOR-FPV-Brushless-Motor-F60PROV

TMOTOR-FPV-Brushless-Motor-F60PROV

TMOTOR-FPV-Brushless-Motor-F60PROV

KV

1750KV, 1950KV, 2020KV, 2550KV
