Overview

This FPV drone motor is the SpeedyBee BeeStorm 2306.5 PRO-1880KV (Bee Storm 2306.5 Pro V1.0), designed for 5-inch FPV drone builds such as the Mario5 5 inch platform. It uses a 2306.5 stator and a 1880KV low-KV setup intended for fast power response.

Key Features

  • Stator size: 2306.5
  • KV value: 1880KV (low-KV)
  • Alu-wrapped rotor

Specifications

Motor model SpeedyBee Bee Storm 2306.5 Pro V1.0
KV value 1880 KV

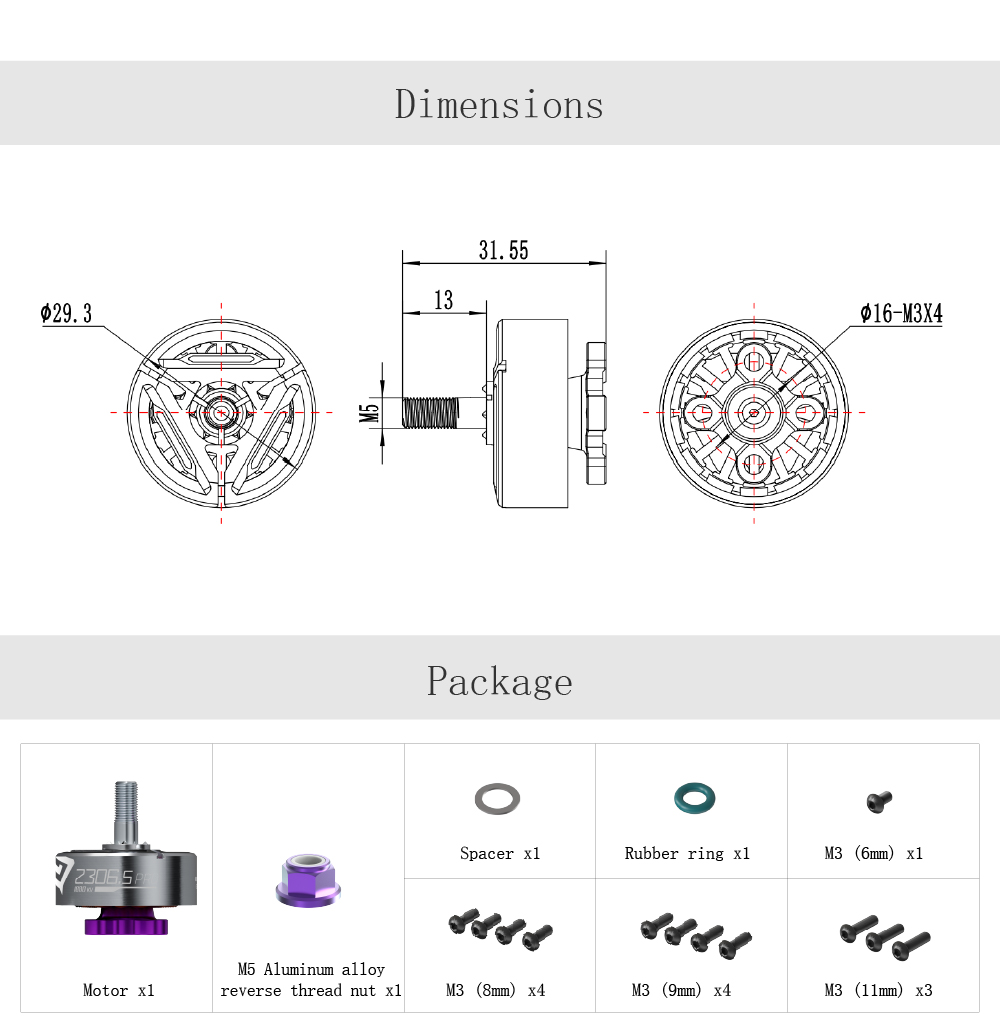

Motor size D:29.3 x 31.55 mm
Stator poles 12N14P
Rotor dynamic balance test <= 5 mg
Propeller mounting holes M5 Nut
Motor mounting holes D:16 M3X4
Shaft diameter IN: 4 mm
Lead wire specification 150mm (0.20 Black Silicone wire)
No-load current 1.26A/10V
Phase resistance (including wires) 66 mOhm
Maximum current 33.8 A
Maximum power 775.7 W
Maximum thrust 1.59 kg
Motor weight (including wires) 34.6 g
Packaged weight 58g
Compatible model 5 inches FPV drone

Thrust Test Data

HQ J37

Throttle (%) Voltage (V) Current (A) Input Power (W) Rotational Speed (RPM) Thrust (gf) System Efficiency (gf/W) Motor Temperature (C)
30 23.97 3.5 84.1 15203 371 4.4 /
40 23.88 5.6 132.5 17752 510 3.9 /
50 23.80 7.7 184.0 19922 635 3.5 /
60 23.69 10.7 254.2 22466 765 3.0 /
70 23.49 16.1 377.2 24756 1024 2.7 /
80 23.34 20.8 484.8 27207 1175 2.4 /
90 23.15 27.2 629.0 29449 1342 2.1 /
100 22.95 33.8 775.7 31635 1458 1.9 /

T5045C

Throttle (%) Voltage (V) Current (A) Input Power (W) Rotational Speed (RPM) Thrust (gf) System Efficiency (gf/W) Motor Temperature (C)
30 24.03 2.2 51.7 12357 211 4.1 /
40 23.95 3.9 94.1 15966 321 3.4 /
50 23.83 6.5 154.4 19053 505 3.3 /
60 23.73 9.8 231.4 21967 706 3.1 /
70 23.59 13.8 326.5 24971 863 2.6 /
80 23.42 19.0 445.0 27253 1081 2.4 /
90 23.27 24.3 564.5 29270 1291 2.3 /
100 23.09 30.2 697.5 31287 1497 2.1 /

HQ J40

Throttle (%) Voltage (V) Current (A) Input Power (W) Rotational Speed (RPM) Thrust (gf) System Efficiency (gf/W) Motor Temperature (C)
30 23.97 3.3 78.4 14736 315 4.0 /
40 23.88 5.4 127.8 17441 422 3.3 /
50 23.78 7.7 182.4 19515 552 3.0 /
60 23.65 10.8 255.2 22097 686 2.7 /
70 23.49 15.5 363.4 24660 856 2.4 /
80 23.33 20.6 481.1 26998 1041 2.2 /
90 23.11 26.9 621.7 29241 1202 1.9 /
100 22.90 33.5 766.9 31049 1337 1.7 /

51466

Throttle (%) Voltage (V) Current (A) Input Power (W) Rotational Speed (RPM) Thrust (gf) System Efficiency (gf/W) Motor Temperature (C)
30 24.03 2.3 56.2 12410 260 4.6 /
40 23.95 4.4 104.7 15676 411 3.9 /
50 23.84 7.3 173.3 18673 608 3.5 /
60 23.69 11.2 265.1 21482 831 3.1 /
70 23.52 16.2 380.3 24119 1041 2.7 /
80 23.35 21.9 510.9 26024 1228 2.4 /
90 23.18 27.6 640.5 27734 1420 2.2 /
100 22.99 33.3 764.4 29169 1596 2.1 /

What’s Included

  • Motor x1
  • M5 Aluminum alloy reverse thread nut x1
  • Spacer x1
  • Rubber ring x1
  • M3 (6mm) x1
  • M3 (8mm) x4
  • M3 (9mm) x4
  • M3 (11mm) x3

Applications

  • 5-inch FPV drone builds
  • Compatible model reference: 5 inches FPV drone (Mario5 5 inch)

2306.5 PRO-1880KV Motor
