Take the Lead in Every Corner

The T-HOBBY F50 2207 is engineered for competitive FPV racing where weight and responsiveness determine the winner. Weighing only 28.56g, this motor significantly reduces rotational inertia, allowing your drone to capture and respond to every subtle stick movement instantly.

Core Selling Points:

  • Ultra-Lightweight Design: At just 28.56g (excluding cables), it minimizes drone weight for superior agility and cornering authority.

  • Ample Thrust & Explosive Power: Even at full throttle, the F50 delivers a robust 2136g of thrust, providing the acceleration needed to overtake opponents on straightaways.

  • Superb Control Capability: High instantaneous torque provides a smooth, linear throttle response, ensuring stable flight during technical maneuvers.

  • Premium Engineering: Features black nickel-plated arc magnets and imported 684ZZ/MR84ZZ bearings for maximum durability and heat resistance.

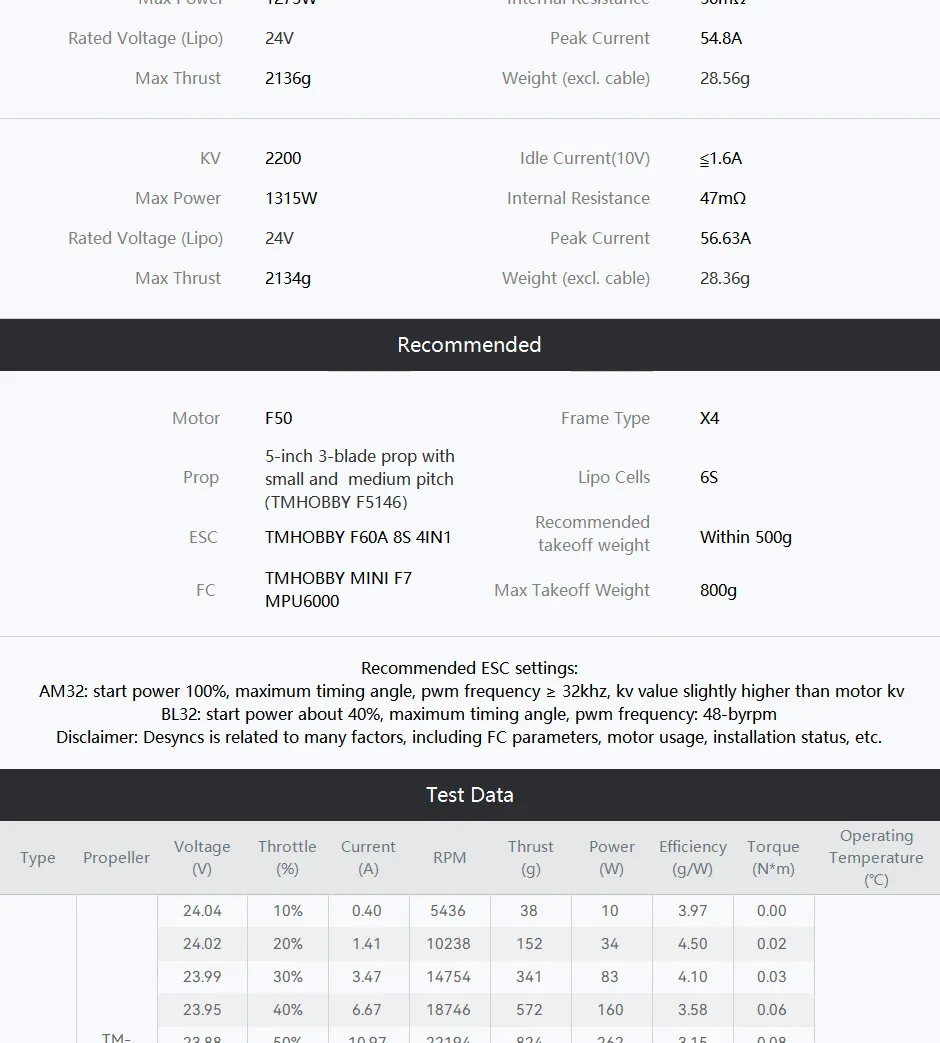

Recommended Aircraft & Combos

Component Recommended Specification
Aircraft Type 5-inch FPV Racing Drone / X4 Configuration
Propeller 5146 3-Blade Prop (e.g., T-HOBBY F5146)
ESC T-HOBBY F60A Mini 8S 4IN1 (AM32)
Flight Controller T-HOBBY Mini F7 MPU6000
Battery 6S LiPo (Optimized for 24V)
Takeoff Weight Best performance within 500g (Max 800g)

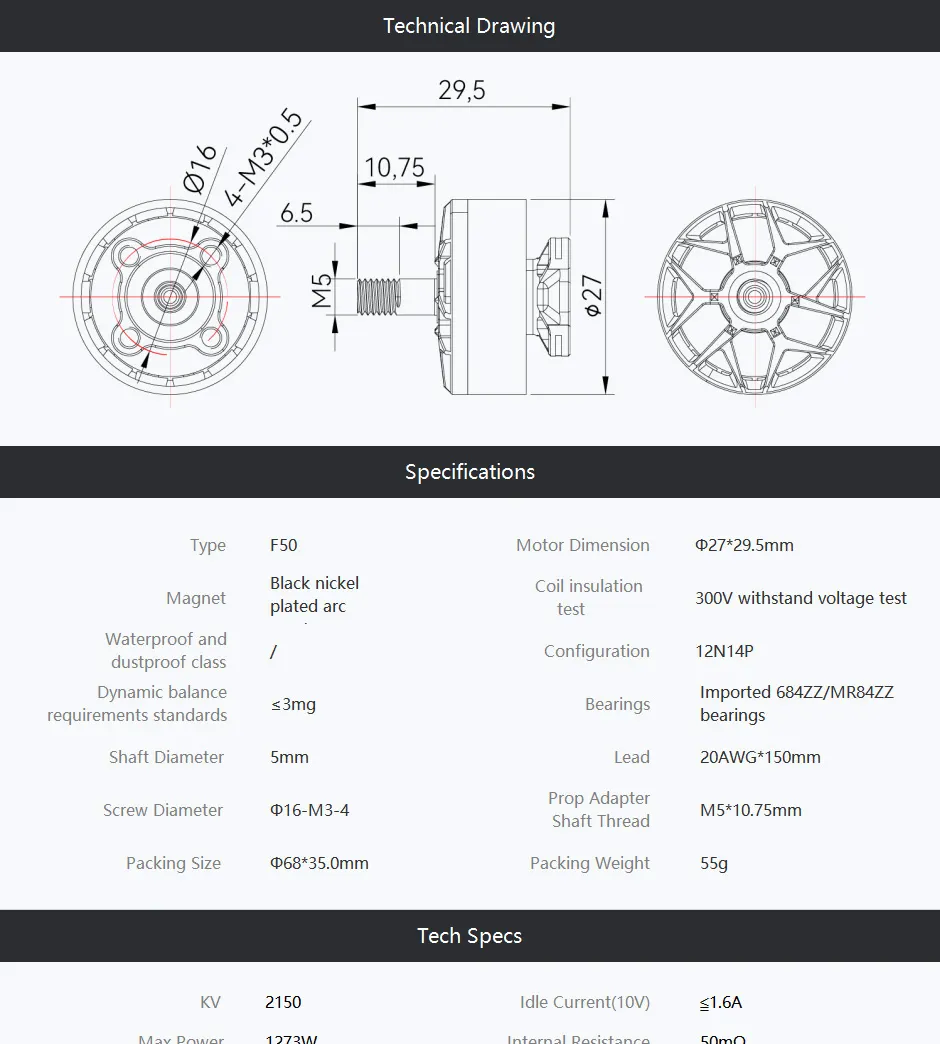

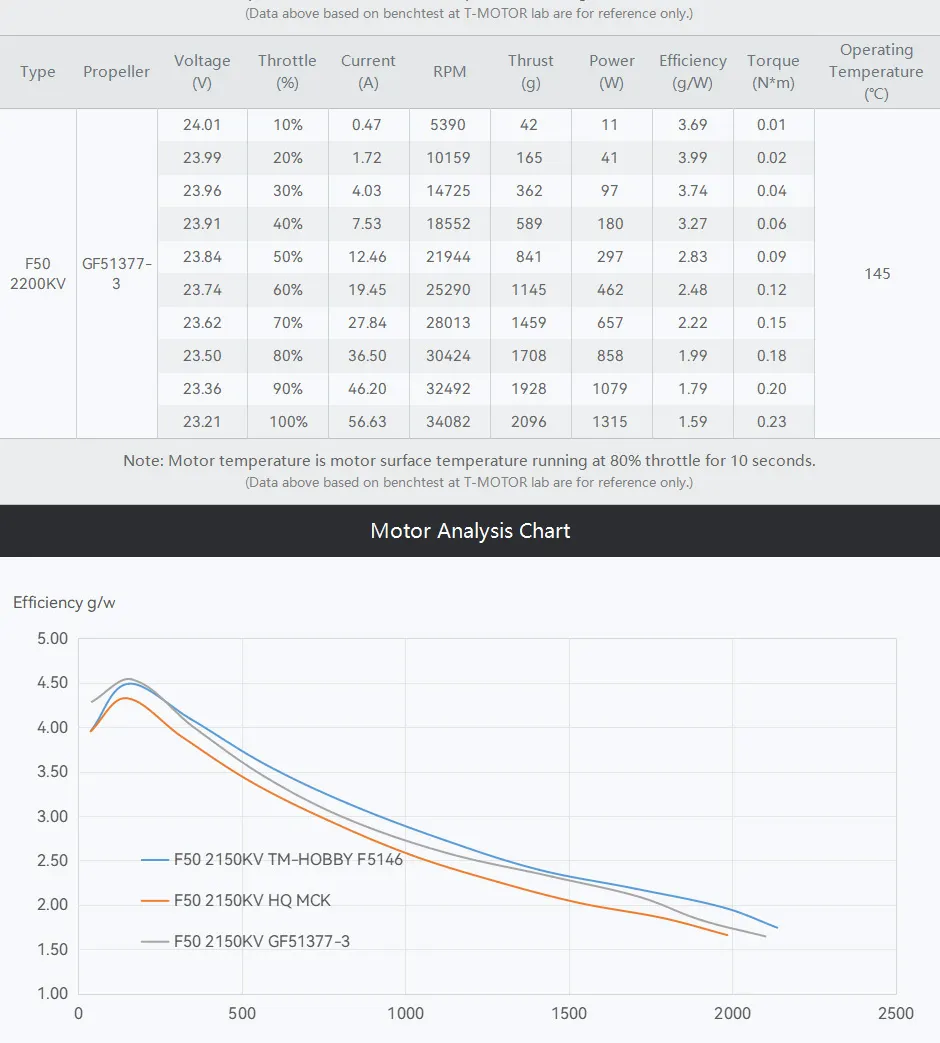

Technical Specifications

Feature Details
KV Options 2150KV / 2200KV
Stator Diameter 22mm (2207)
Weight (excl. cable) 28.56g (2150KV) / 28.36g (2200KV)
Max Thrust 2136g (2150KV) / 2134g (2200KV)
Max Power 1273W (2150KV) / 1315W (2200KV)
Dimensions Φ27 * 29.5mm
Configuration 12N14P
Internal Resistance 47mΩ – 50mΩ
Shaft Diameter 5mm

Expert Tuning Tips (ESC Settings)

  • For AM32: Set start power to 100%, maximum timing angle, and PWM frequency ≥ 32kHz.

  • For BLHeli32: Set start power to ~40%, maximum timing angle, and PWM frequency to 48-byrpm.

Specification

tmotor-F50-motor

tmotor-f50-2207-motor

tmotor-2207-F50-motor

tmotor-F50-2207-Motor

tmotor-F50-2207-Motor

tmotor-f50-2207-motor

KV

2150KV, 2200KV
