Overview:

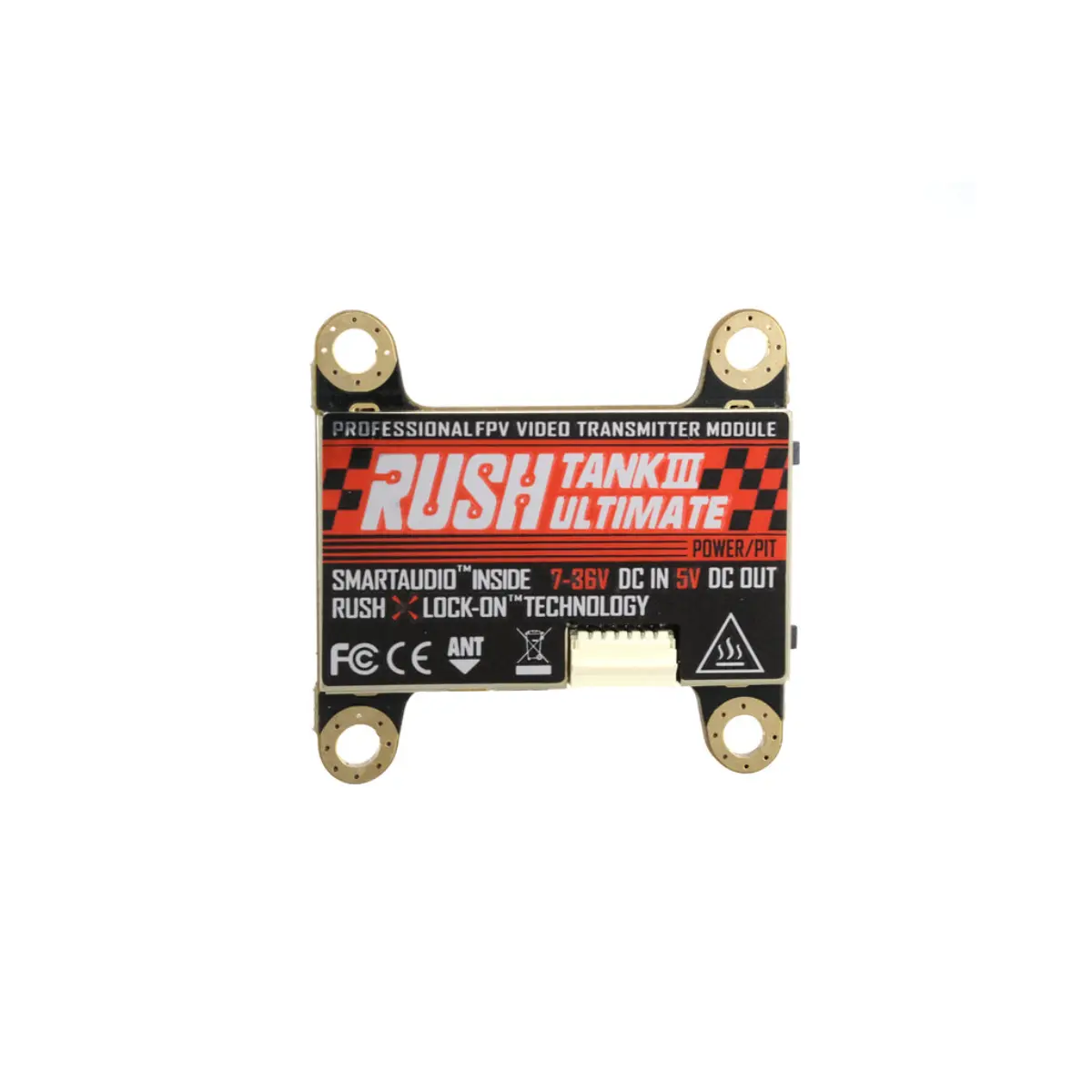

The RushFPV Tank III Ultimate VTX is a robust 5.8GHz video transmitter designed for FPV racers, freestyle drones and general flying where adjustable power and stable signal transmission are essential. Built around the well-known “Tank” platform, it delivers selectable output levels from pit mode up to 800mW and features a full-metal casing for reliable heat dissipation and protection. With SmartAudio support and a wide voltage input range, it integrates into a variety of builds while providing consistent performance across the full 48-channel band.

The RushFPV Tank III Ultimate VTX is ideal for FPV pilots seeking a durable, adaptable transmitter with reliable power options and easy control via SmartAudio, whether racing or flying freestyle without interference.

Features:
– Adjustable transmit power with four levels (PIT/25/200/500/800mW) to suit different flying environments and regulatory limits.
– SmartAudio protocol authorised by TBS allows on-screen configuration of frequency, power and other settings via OSD menus.
– LOCK-ON technology eliminates frequency drift so the VTX stays locked on the channel during use.
– Power LUT (lookup table) ensures consistent milliwatt output across all channels for fair and predictable signal levels.
– Pit Mode reduces transmission power to minimum for close-range setup without disturbing other pilots.
– High-quality power filtering system stabilises VTX operation across its wide input range.
– Fully covered metal case with multiple PCB layers enhances heat dissipation and mechanical durability.
– Side LED indicators provide intuitive visual feedback of both channel and power status.

Specification:
– Frequency band: 5.8GHz
– Channels: 48 CH
– Input voltage: 7–36V DC (supports 2–8S LiPo)
– Output voltage (BEC): 5V 1A
– Transmit power levels: PIT/25/200/500/800mW
– Audio support: external audio input supported
– Dimensions: approximately 36.5×36.5×5.2mm
– Mounting hole spacing: 30.5×30.5mm
– Connector: MMCX to SMA (included)
– Weight: around 7.2g (without cable)

Includes:
1x Tank VTX
1x MMCX to SMA Cable
1x 6pin Harness
