JHEMCU GF30F405-ICM F405 HD 3-8S Flight Controller 30x30mm

Name: JHEMCU GF30F405-ICM F405 HD 3-8S Flight Controller 30x30mm
Brand: Jhemcu
SKU: PN000762_FC_JHE
Price: 555000 IDR
Availability: OutOfStock

Dinilai 0.1 dari 5

0 Sold

Rp555.000

0 Sold

(0)

Stok habis

SKU: PN000762_FC_JHE Kategori: Flight Controller Brand: Jhemcu

Storewide 5% discount

See T&C

Min. purchase Rp200.000

Coupon is valid until 31 Dec 2026

Pilot Nakal FPV disc 6.5%

See T&C

Discount Pilot Nakal FPV

Min. purchase Rp150.000

Coupon is valid until 30 Dec 2026

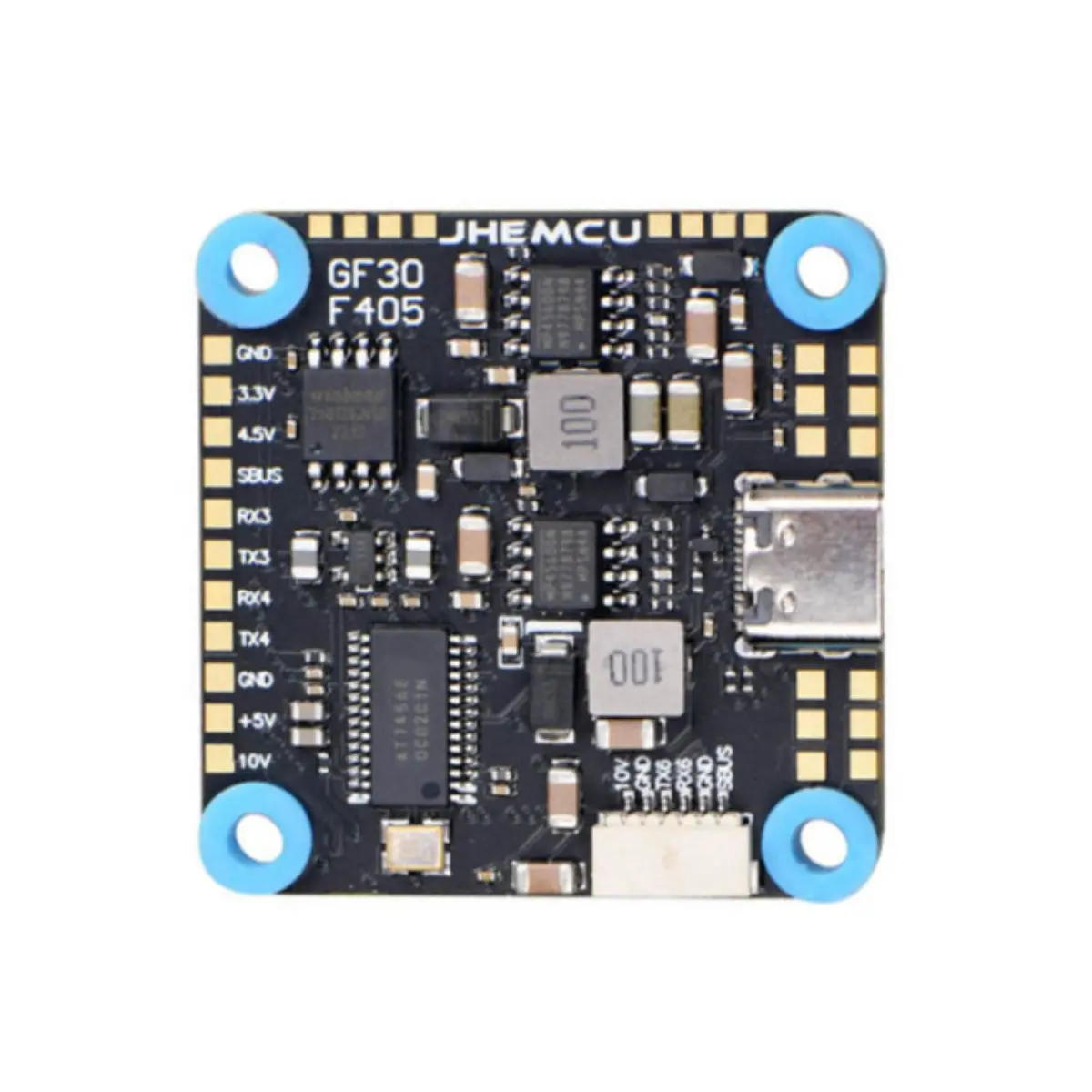

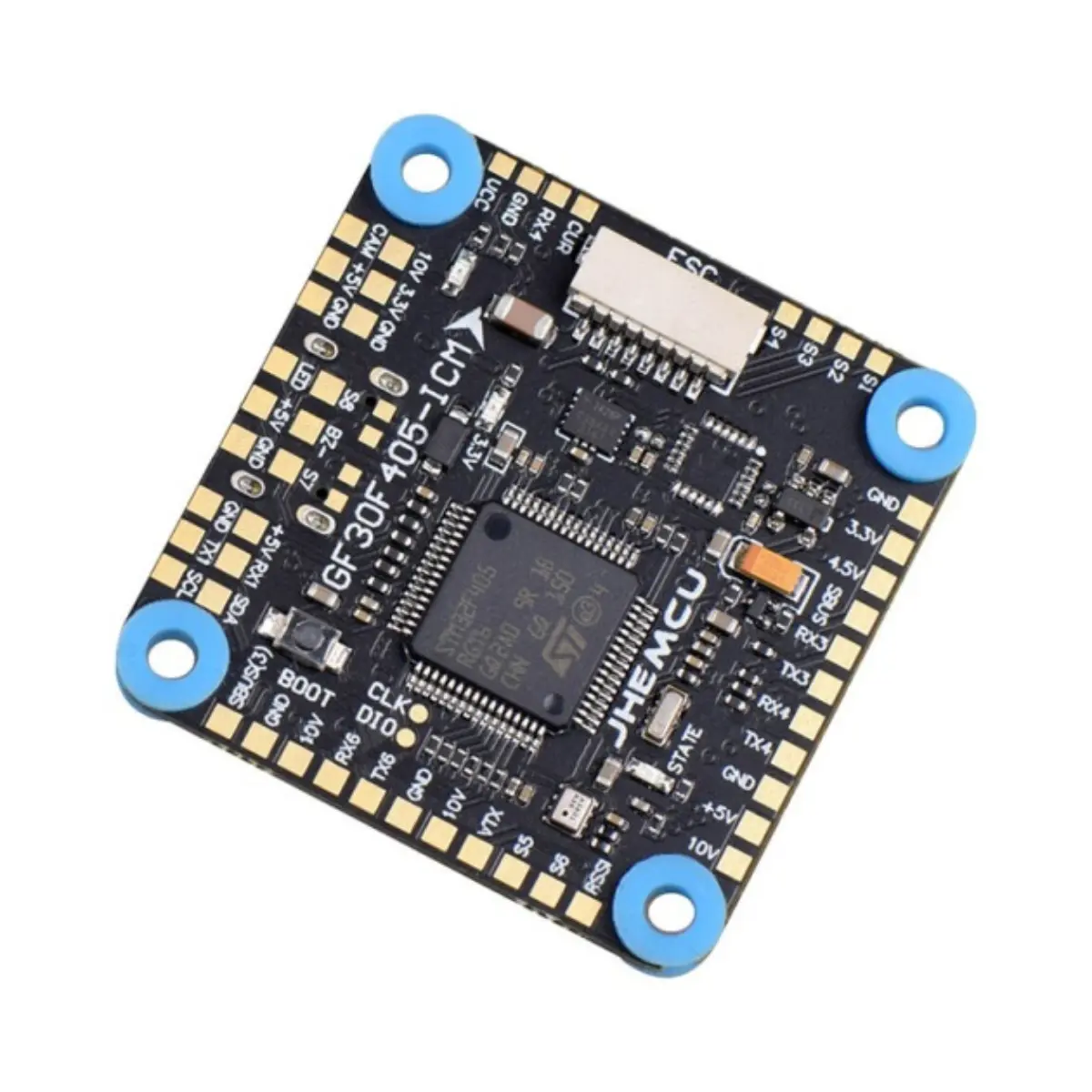

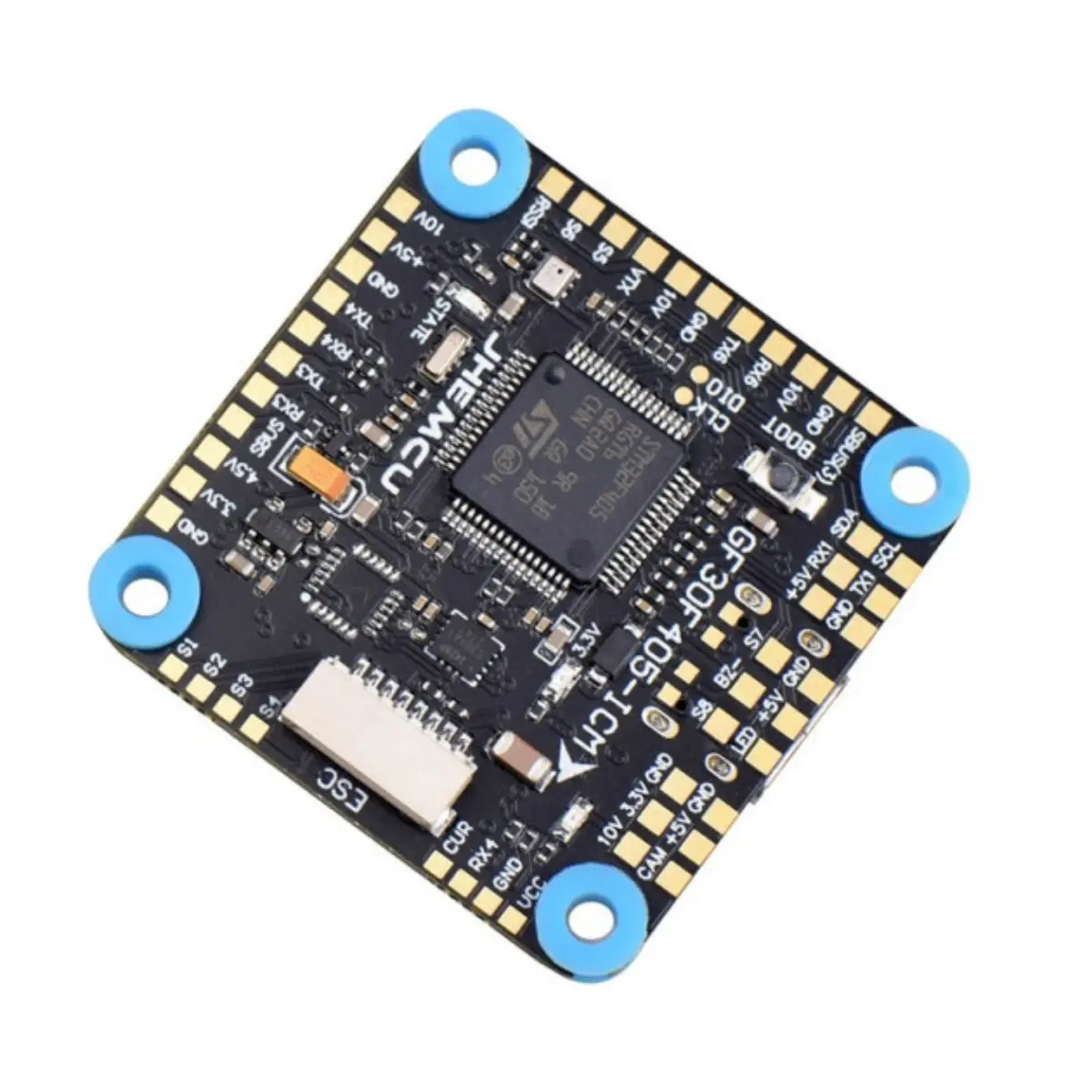

Jhemcu GF30F405 is an affordable flight controller with a mounting hole spacing of 30.5×30.5mm. The board is mainly suitable for freestyle and long-range 3-8S Lipo powered drones. The core is the F405 processor combined with the ICM-42688-P gyroscope. The board also features an integrated SPL06 barometer for altitude measurement and 16MB memory for blackbox. The board is equipped with a chip for analog OSD. It has 4 UARTs, I2C pads, 5V/3A BEC, and 10V/2A BEC.

Key Features

Input voltage: 3–8S LiPo (11–36 V)
Processor (MCU): STM32F405RGT6
Gyroscope: ICM-42688-P
Mounting holes: 30.5 × 30.5 mm
Firmware: Betaflight JHEF405pro / INAV 6.1.0 JHEMCUF405
Blackbox: 16MB
Barometer: SPL06
OSD: yes
Connector: USB-C
I2C: yes
UART ports: 4
BEC: 5 V/3A and 10V/2A
Size: 36x36mm
Weight: 8.7 g

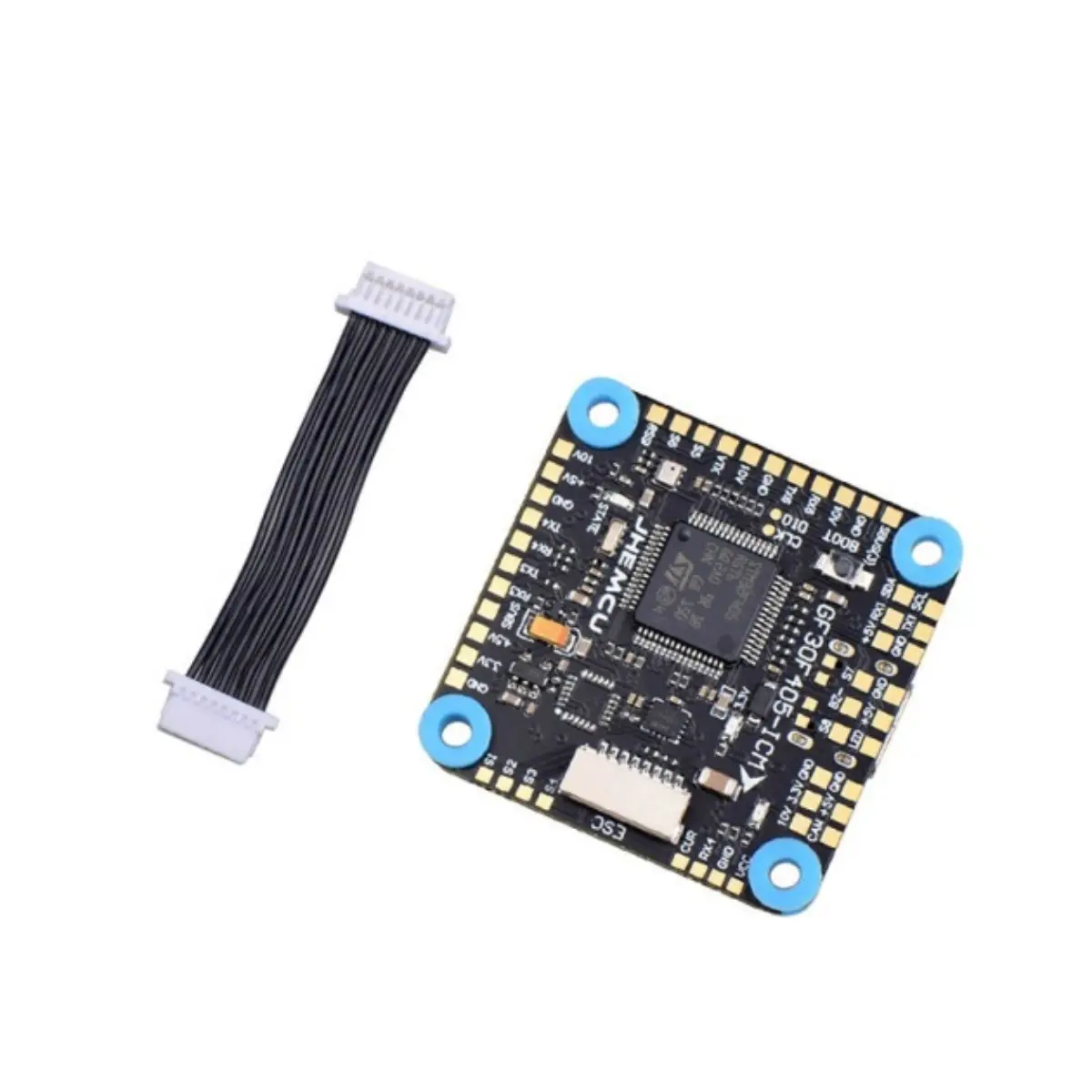

Package Includes

1× Flight controller
1× 8-pin jumper cable
4× M3 softmount
