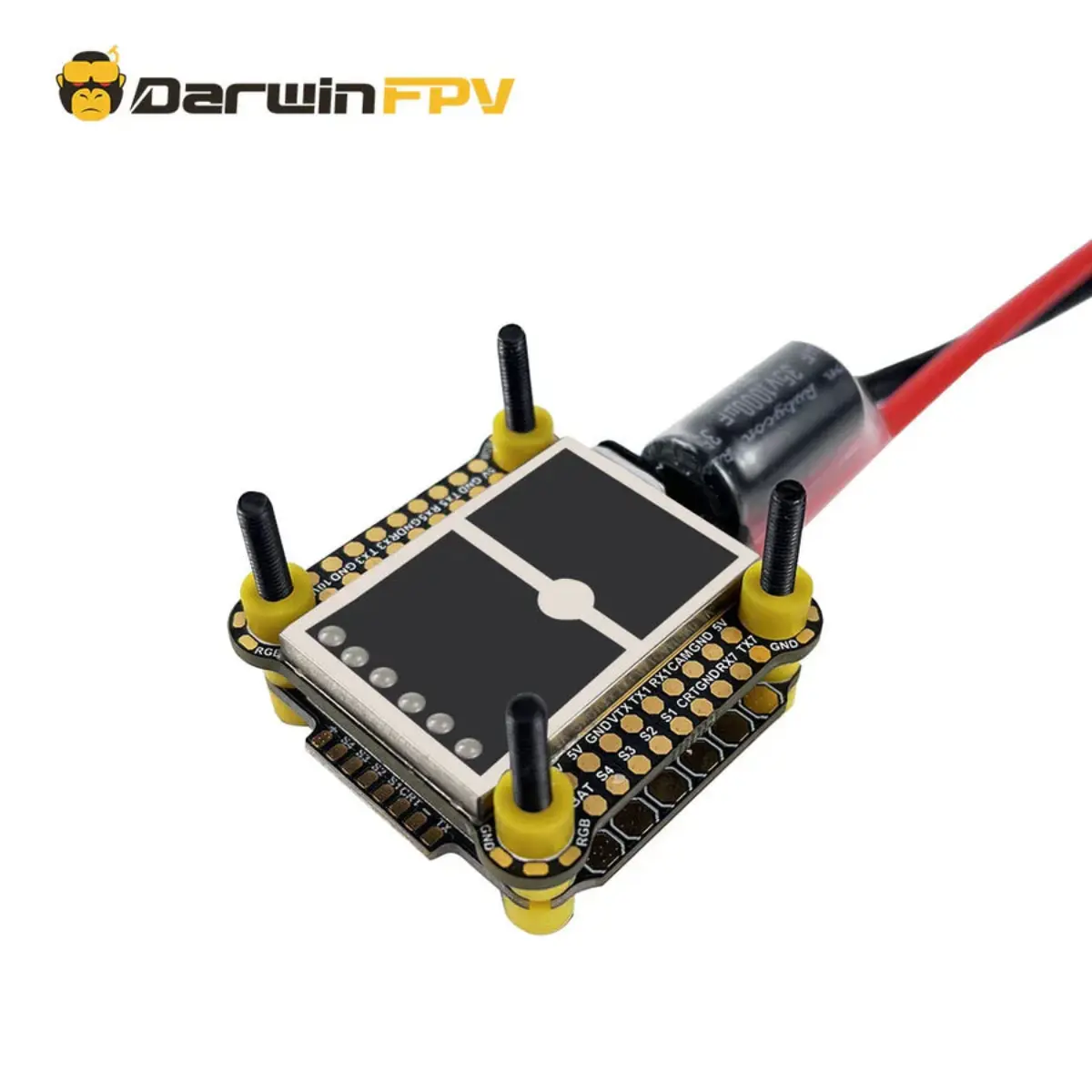

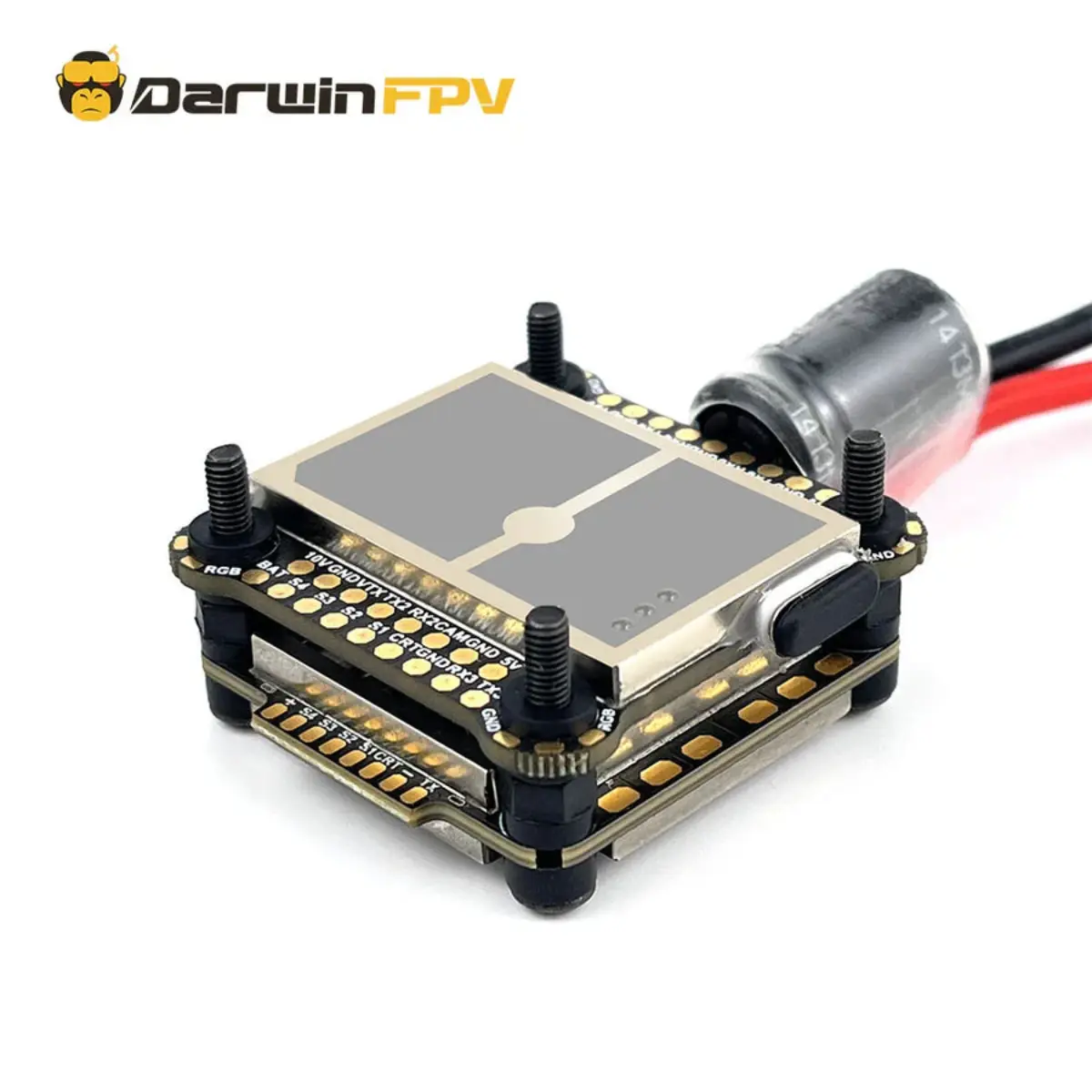

Darwin FPV “cement” ultra-durable waterproof stack is the top stack launched by the Darwin team for professional pilots. It completely solves the industry problem of poor reliability of fpv drones, allowing you to fly in any environment and greatly improving the fun of flying. Satisfy your various creative inspirations!
We have introduced many novel features on this stack, such as canceling all the easy-to-loose direct socket interfaces, canceling the traditional heat dissipation shell with low thermal conductivity, adding waterproof and impact-resistant treatment with glue filling, and adopting the ultra-high current MOS bus technology has added more than 10 core hardware protections, such as soft start protection circuit, anti-reverse connection, anti-short circuit and anti-overcurrent circuit, to ensure stability and reliability in extreme environments. And keep the product size and weight almost the same as ordinary stack, without affecting your installation compatibility and flying feel.

Features:

1: IP67 dust and waterproof rating, capable of withstanding immersion in 0.5 meters of water for 30 minutes without harm.
2: All products in the series are crafted using the highest-grade components, providing you with an unparalleled experience and top-tier enjoyment.
3: Both the F722 and F435 main control chips boast incredibly strong computing power, allowing for unrestricted full configuration operation.
4: Multiple protections including soft-start protection, reverse connection protection, short circuit overcurrent protection, and over-temperature protection ensure double the safety.
5: The innovative “sandwich” stacking scheme is employed in the electronic speed controller (ESC), offering greater current capacity, enhanced heat dissipation, and increased spatial utilization.
6: 128KHz dynamic PWM output for finer throttle control.
7: MPU6000 and ICM42688 gyroscopes optional .
8: Onboard 4G massive black box storage (16M capacity for F4 flight controller).
9: Onboard Pit Switch module (exclusive to F7 flight controller).
10: Onboard multi-level LED indicator lights for quick inspection of flight controller operation status.

Packing list:

FC:

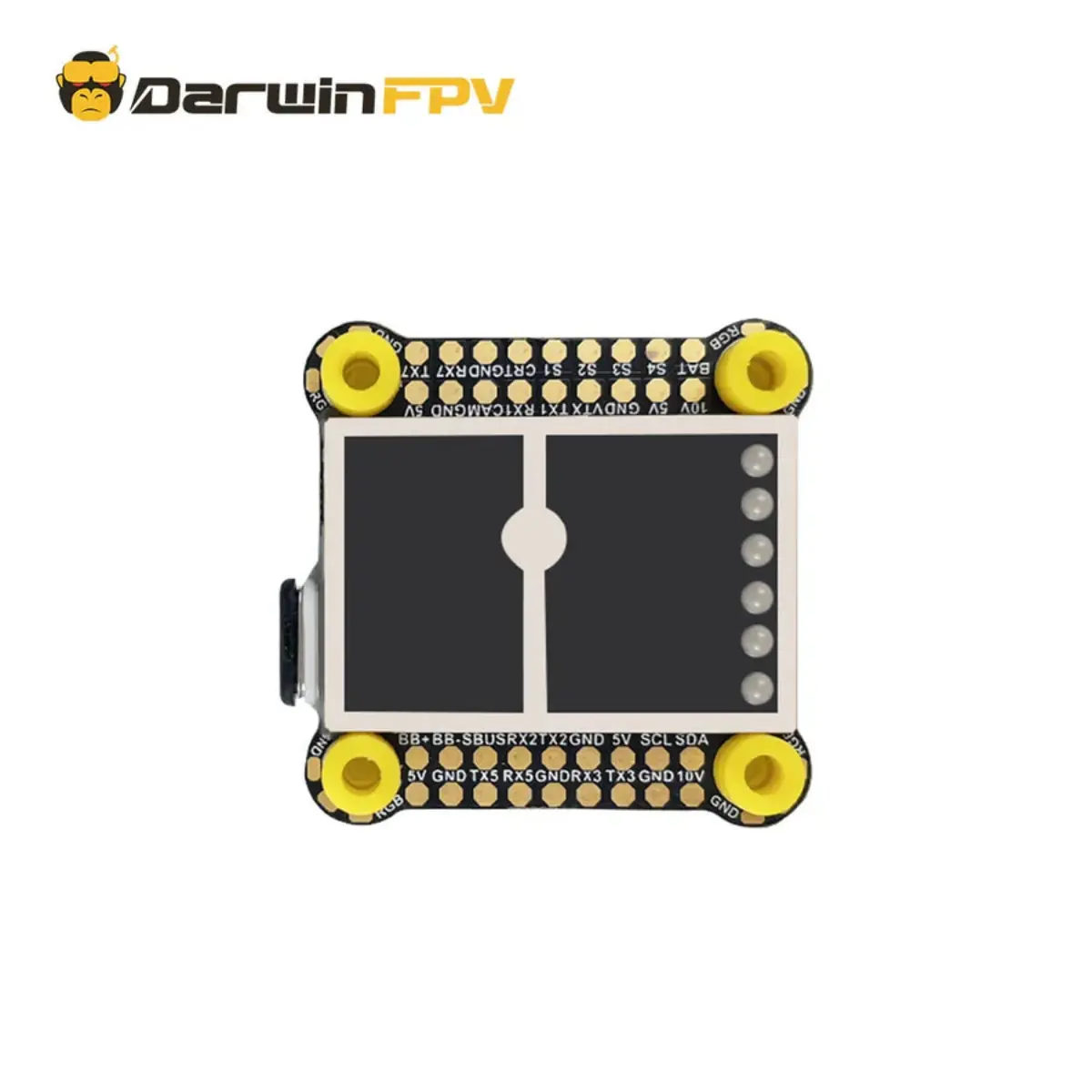

1 x DarwinFPV “Cement” Ultra Durable F4 / F7 Waterproof Flight Controller
1 x 30mm ESC cable (8P)
1 x 65mm analog VTX cable (4P)
1 x 65mm GPS cable (6P)
1 x 65mm receiver cable (4P)
1 x 65mm HD VTX cable (6P)
4 x M3*4.5mm shock-absorbing balls (installed on FC)
1 x sticker

ESC:

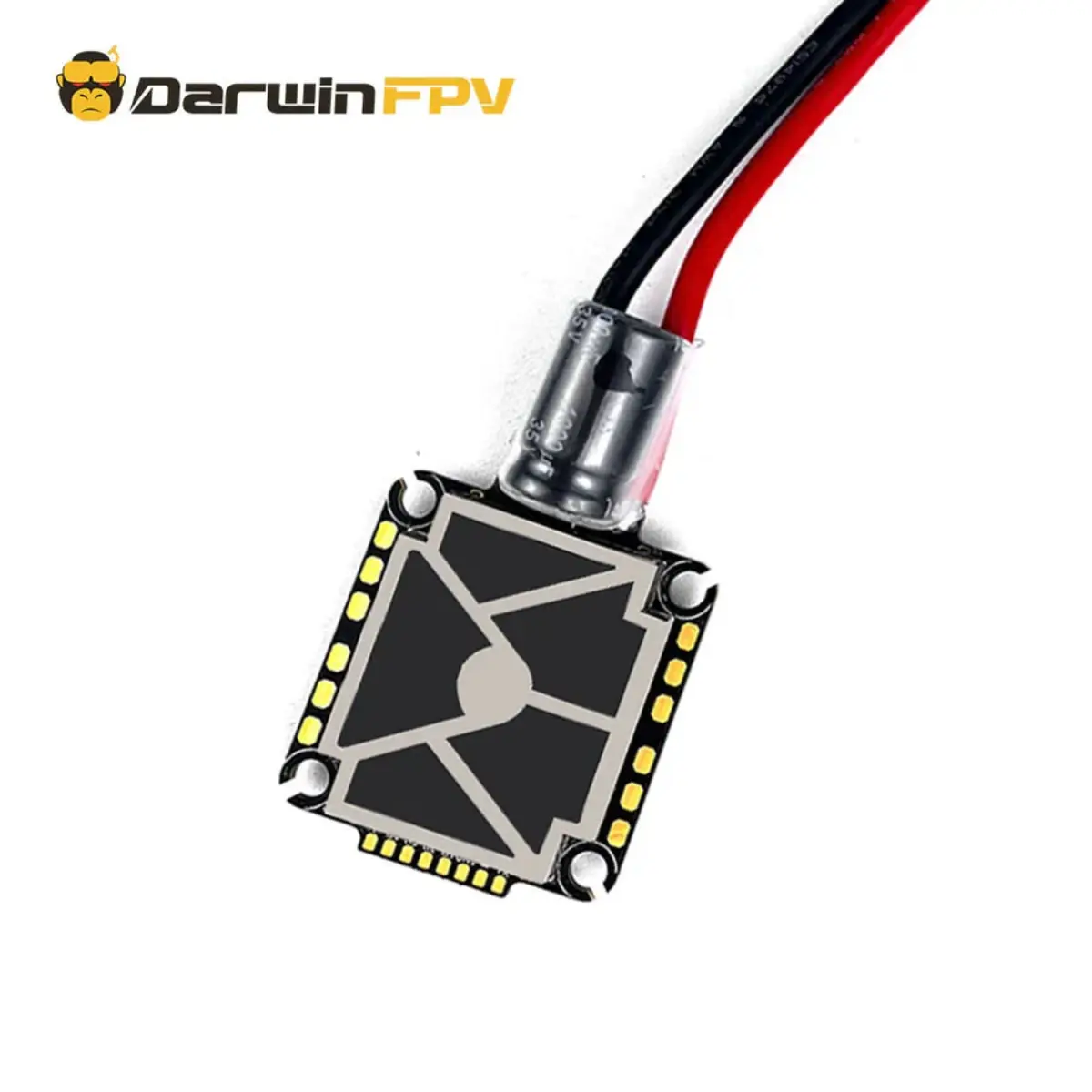

1 x DarwinFPV “Cement” Ultra Durable 100A Waterproof ESC
1 x 30mm ESC cable (8P)
1 x XT60
1 x 14AWMG power cable with a length of 120mm (soldered to the ESC)
1 x 35V/1000uF electrolytic capacitor (soldered to the ESC)
4 x M3*6.6mm shock-absorbing balls (installed on the ESC)
1 x sticker

Stack:

1 x DarwinFPV “Cement” Ultra Durable F4 / F7-100A Waterproof Stack
1 x 30mm ESC cable (8P)
1 x 65mm analog VTX cable (4P)
1 x 65mm GPS cable (6P)
1 x 65mm receiver cable (4P)
1 x 65mm HD VTX cable (6P)
1 x XT60
1 x 14AWMG power cable (length 120mm, soldered to the ESC)
1 x 35V/1000uF electrolytic capacitor (soldered to the ESC)
4 x M3*4.5mm shock-absorbing balls (installed on FC)
4 x M3*6.6mm shock-absorbing balls (installed on the ESC)
4 x M3*25 hexagon socket head black 304 screws (installed on the stack)
4 x M3 nylon nuts
1 x sticker
