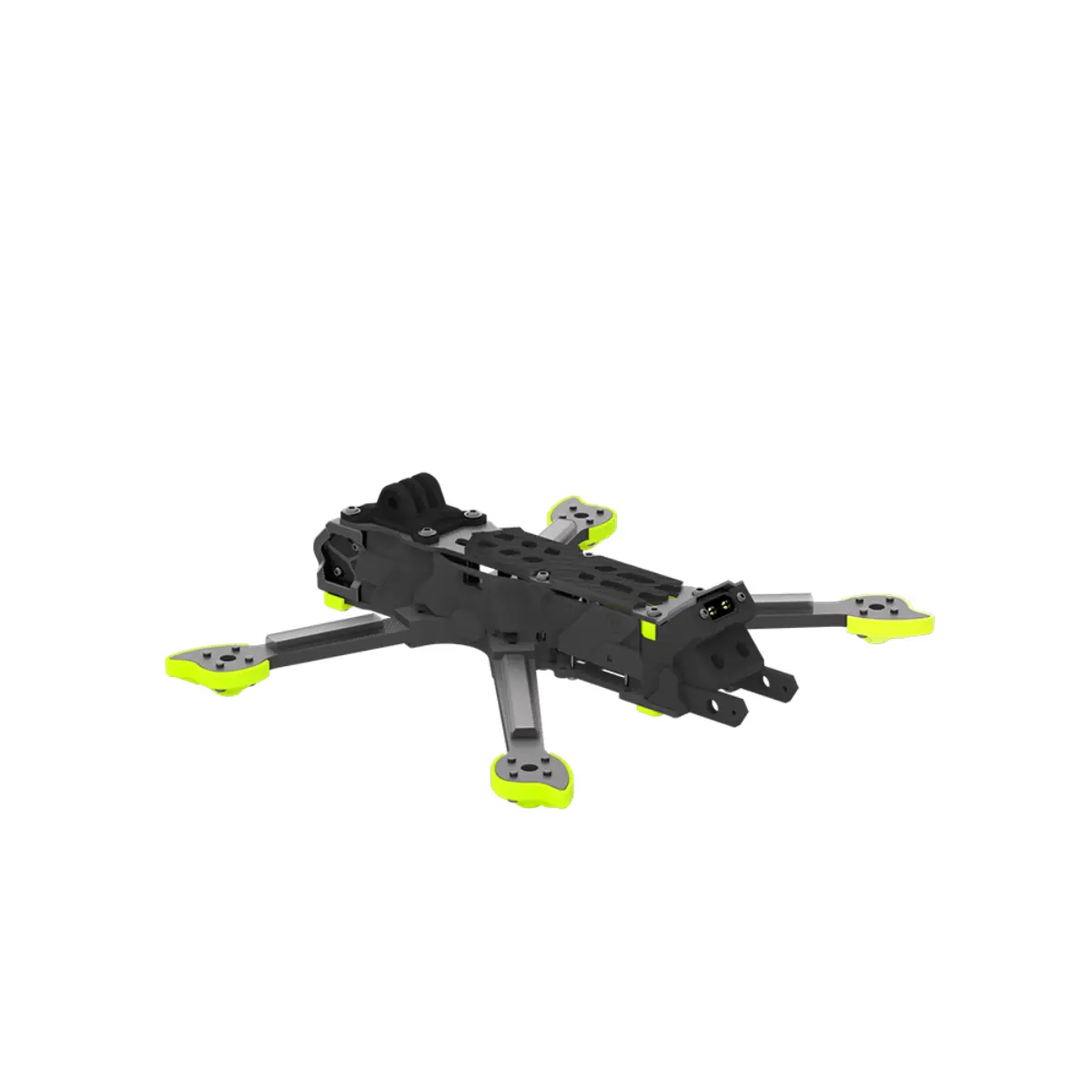

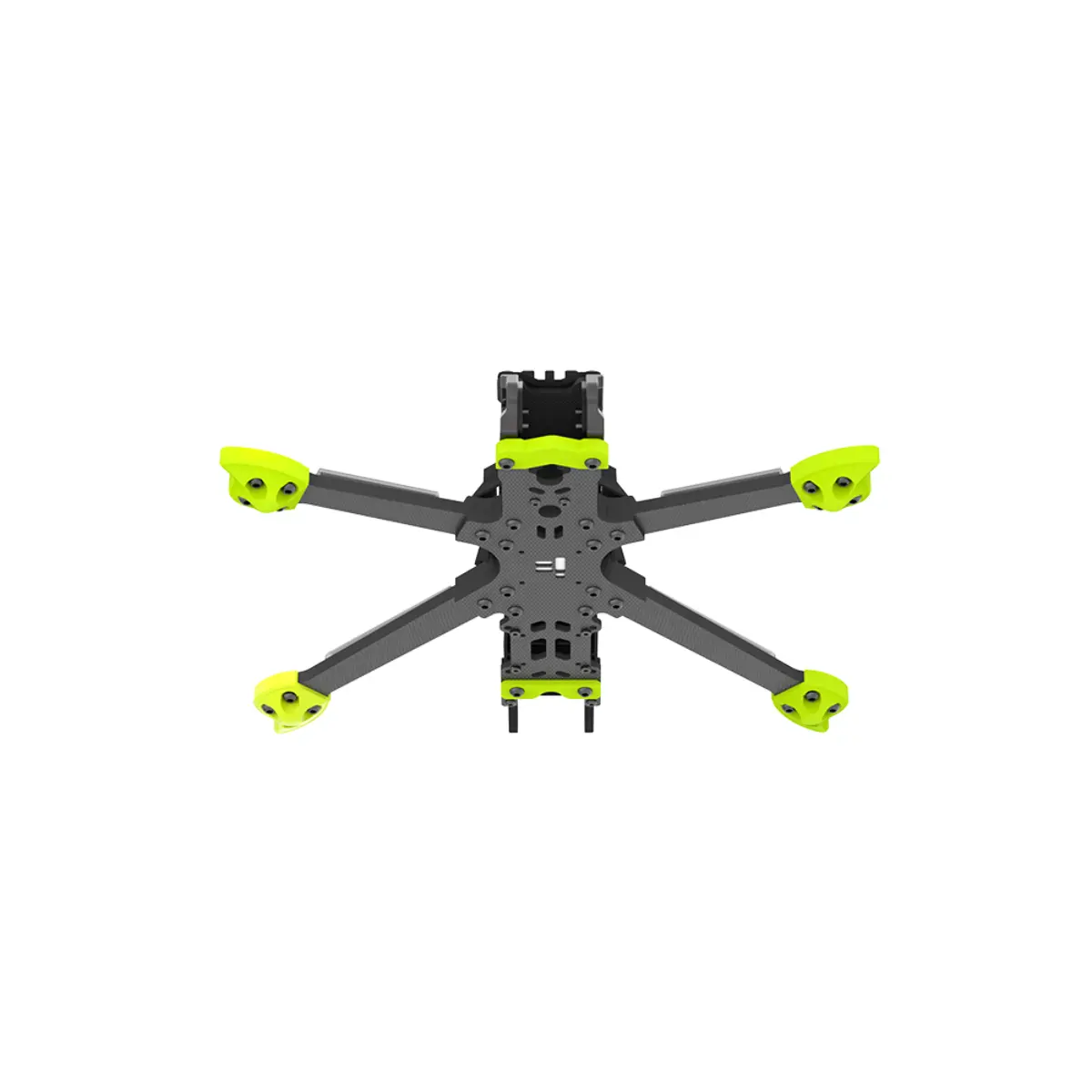

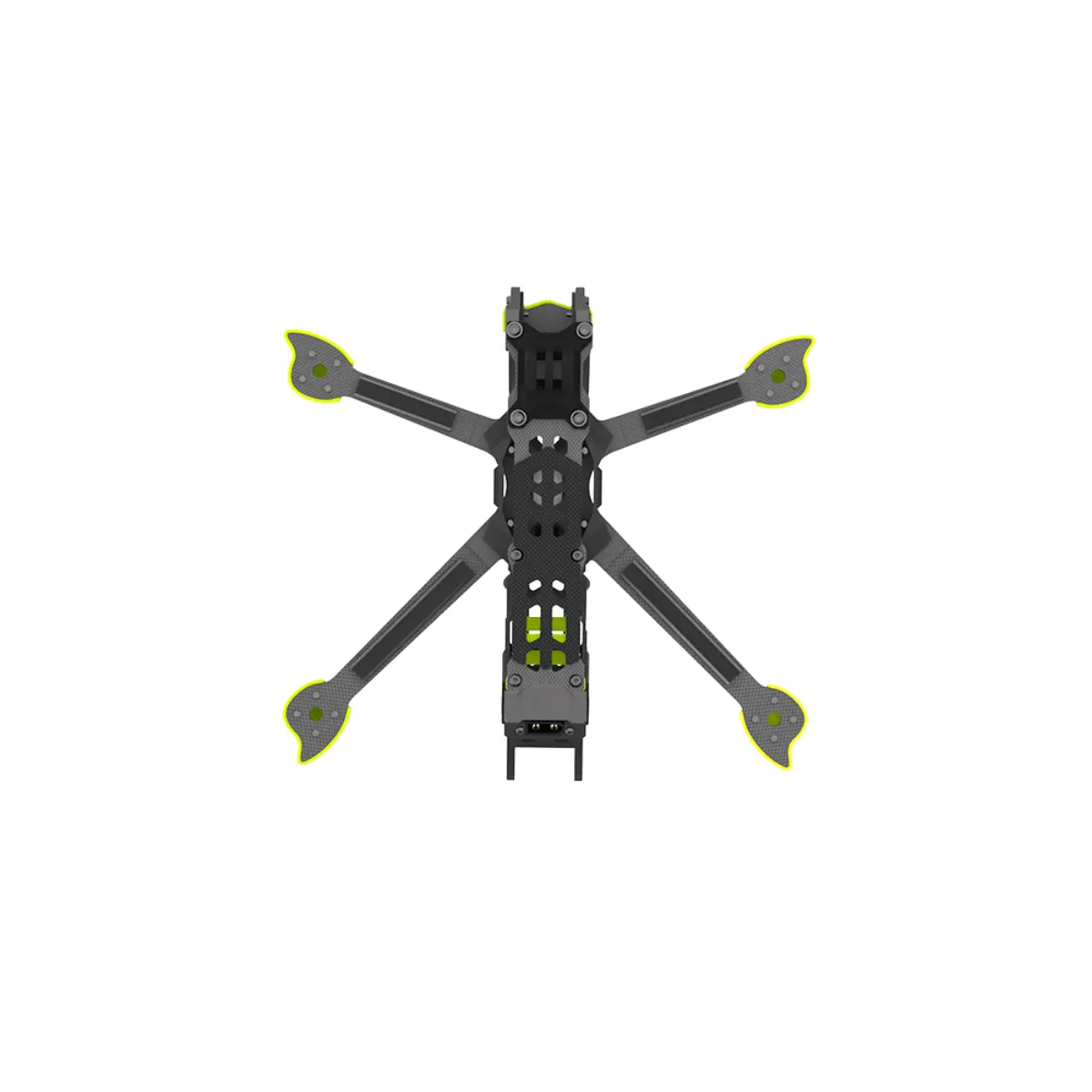

The iFlight Nazgul ECO DC5 frame is a high-value 5-inch freestyle drone frame designed for pilots seeking an optimal balance between performance and cost. Constructed from exceptionally rigid carbon fiber to minimize resonance, it ensures stable and precise flight characteristics. Notably, no props or frames are in view! during flight. Recently updated, the Nazgul ECO DC5 now also supports the DJI O4 Air Unit Pro for enhanced compatibility with professional-grade equipment.

O3 to O4  was upgraded for the DJI O4 Air Unit Pro:

New Camera Mount for DJI O4 Air Unit Pro

New Silicone side panels

Different Screws

Product Name: Nazgul ECO DC5 V1.1 O4 Frame Kit

Geometry: DC (DeadCat)

Wheelbase: 240mm

Frame Dimension: 193*144*34mm

Arm Thickness: 5mm

Bottom Plate Thickness: 2.5mm

Upper Plate Thickness: 3mm

Max Flight Stack Height: 22mm

Max VTX Height: 29mm

FC Mounting: 20*20/Φ2mm 30*30/Φ3mm

Motor Mounting: 16*16/Φ3mm

VTX Mounting：30*30 φ3mm / 25.5*25.5 φ1.6mm / 20*20 φ2mm

Weight: 239g±5g

Compatibility: DJI O4 Air Unit Pro/DJI O3 Air Unit

1 x Nazgul ECO DC5 V1.1 O4 Frame Kit

1 x TPU set (Inclu. GoPro TPU Base Mount)

1 x Screw Bag

2 x Anti-slip Battery Pad

4 x Motor Wire Shield Tube

2 x Battery Strap

Due to manufacturing processes, the thickness of our products may have a standard manufacturing tolerance of ±0.2mm. The size of the hole may have a standard manufacturing tolerance of ±0.1mm.
