Matek mLRS MAVLink 2.4GHz TX Module KIT, mR24-30-TX
Stok habis
The Matek mR24-30-TX is a transmitter module for the mLRS system at a frequency of mLRS (mavlink long range system) is an opensource project that combines RC link with Mavlink telemetry in one. It is especially suitable for long range flights with classic drones or model aircraft using Ardupilot or iNav firmware.
Matek mR24-30 maximum transmit power is 1000mW(30dBm). The advantage of the mR24-30 is the available dual UARTs, where you can have a Mavlink output and a CRSF or SBUS output at the same time.

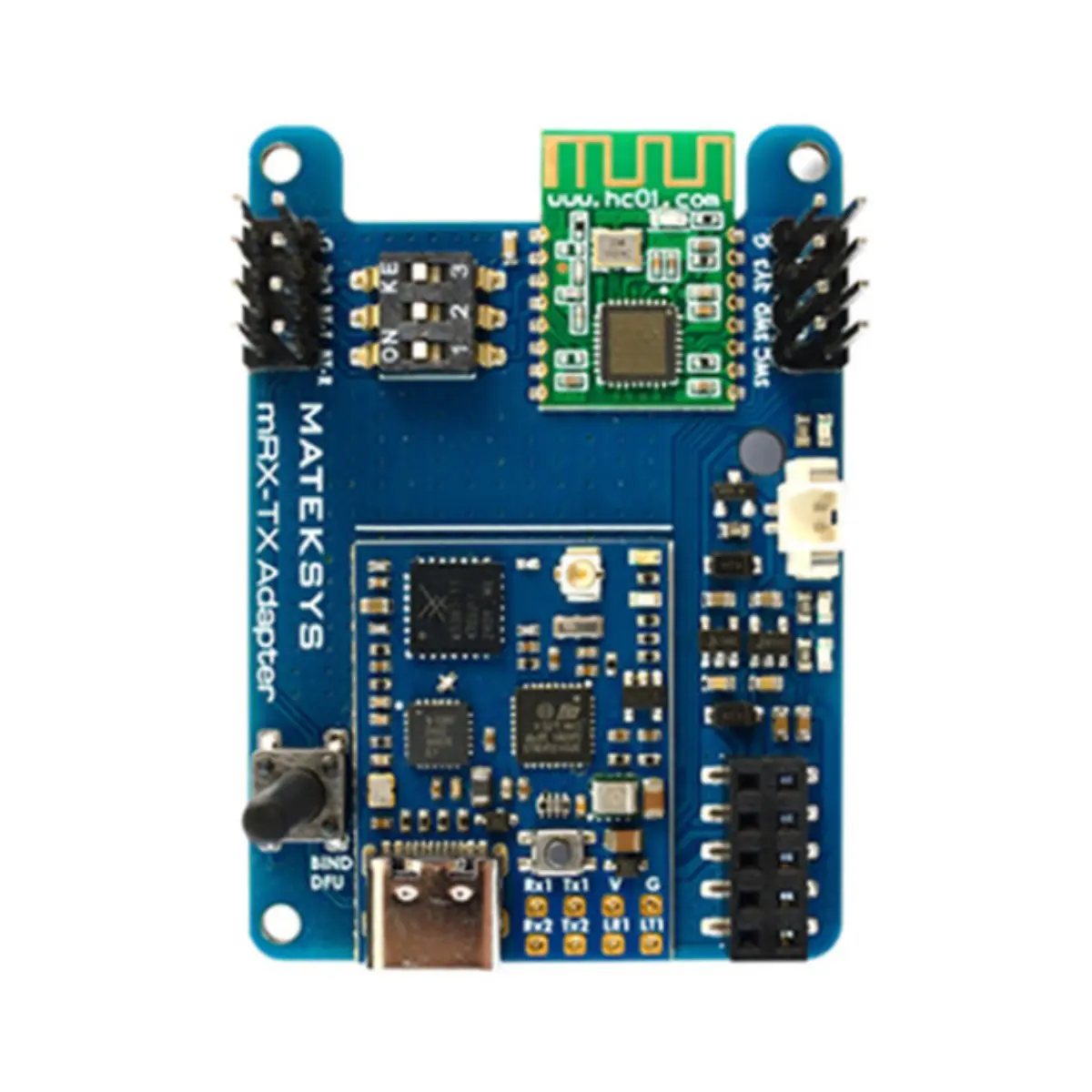

The TX kit includes the mR24-30 module and mRx-TX adapter. The kit adds bluetooth for easy connection to a PC, a fan for active cooling, easy JR shaft compatibility, LEDs for indication, and the ability to power in the 5-13V range.
The transmitter module does not include a box. 3D printing models are available for download here.
Key Features
- Processor: STM32G431KB, mLRS firmware
- LoRa chip: SX1281 with TCXO
- Amplifier: PA/LNA SKY68383-11
- Frequency: 2.4GHz ISM
- Transmit power:13dBm(min) / 20dBm / 24dBm / 27dBm / 30dBm(1000mW)
- Antenna connector: IPEX1
- Built-in HC-04 Bluetooth module
- Built-in fan
- Input voltage: 5-13V DC @ JR_PIN3 (VIN)

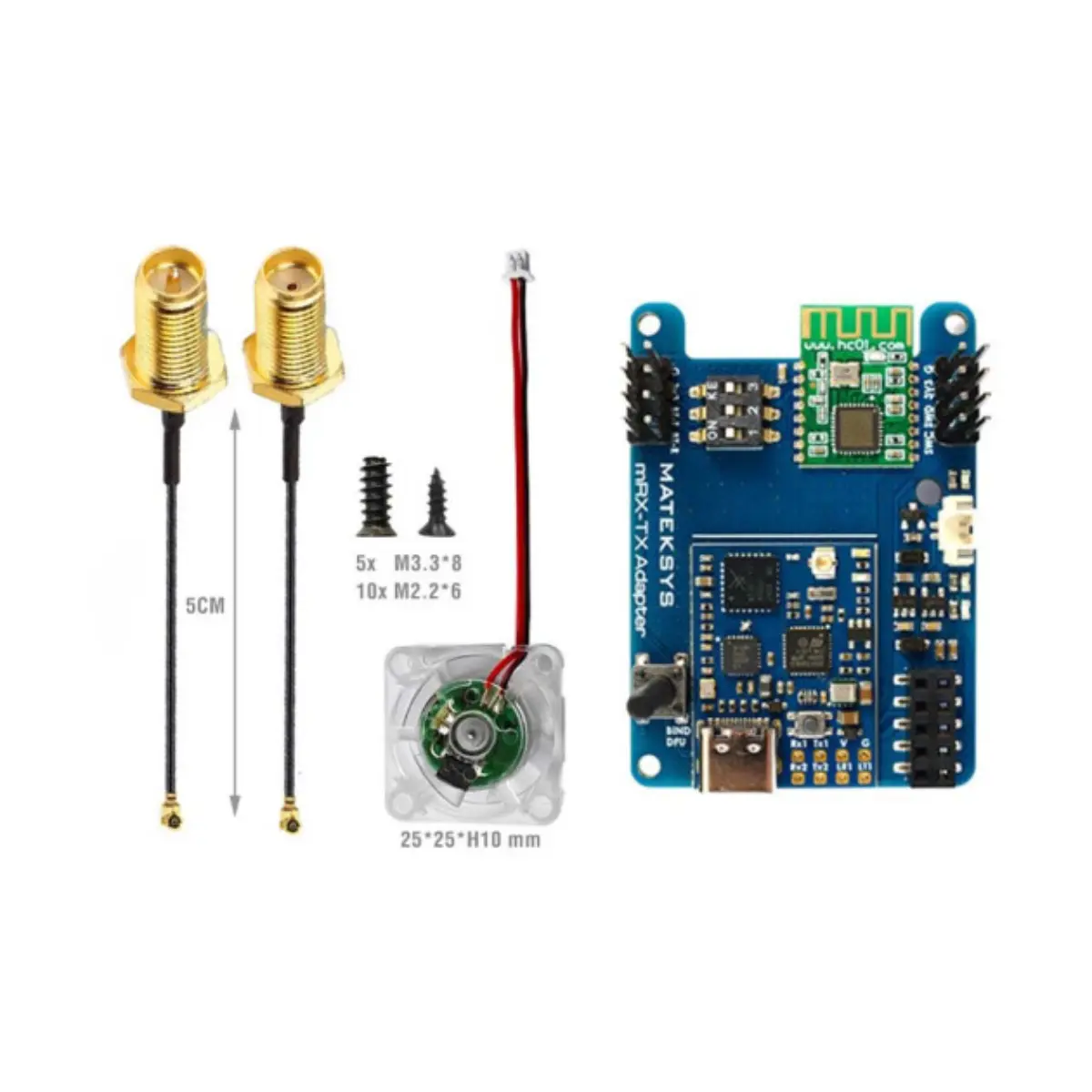

Package Includes
- 1x mR24-30-TX
- 1x SMA pigtail
- 1x RP-SMA pigtail
- 1x Fan
| Berat | 0,225 kg |
|---|
Hanya pelanggan yang sudah login dan telah membeli produk ini yang dapat memberikan ulasan.
Cek Ongkir
Setiap pesanan dikemas dengan aman untuk membantu menjaga produk selama proses pengiriman. Kami menawarkan produk original dengan harga yang kompetitif dan layanan terbaik. Pilihan metode pengiriman yang tersedia akan ditampilkan saat checkout sesuai dengan produk dan alamat tujuan.
Kami berkomitmen menyediakan produk original dan layanan terbaik. Apabila produk yang Anda terima tidak sesuai atau mengalami kerusakan saat diterima (DOA), silakan hubungi Customer Support maksimal 48 jam setelah paket diterima. Pengembalian barang, pengembalian dana, dan garansi mengikuti Kebijakan Pengembalian Dana dan Barang yang berlaku.
Read MoreProduk Terkait
-

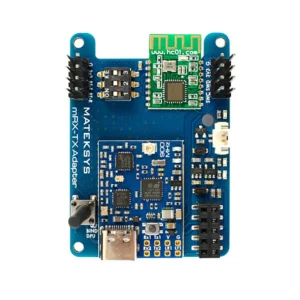

Matek mLRS MAVLink 900MHz TX Module KIT, mR900-30-TX
