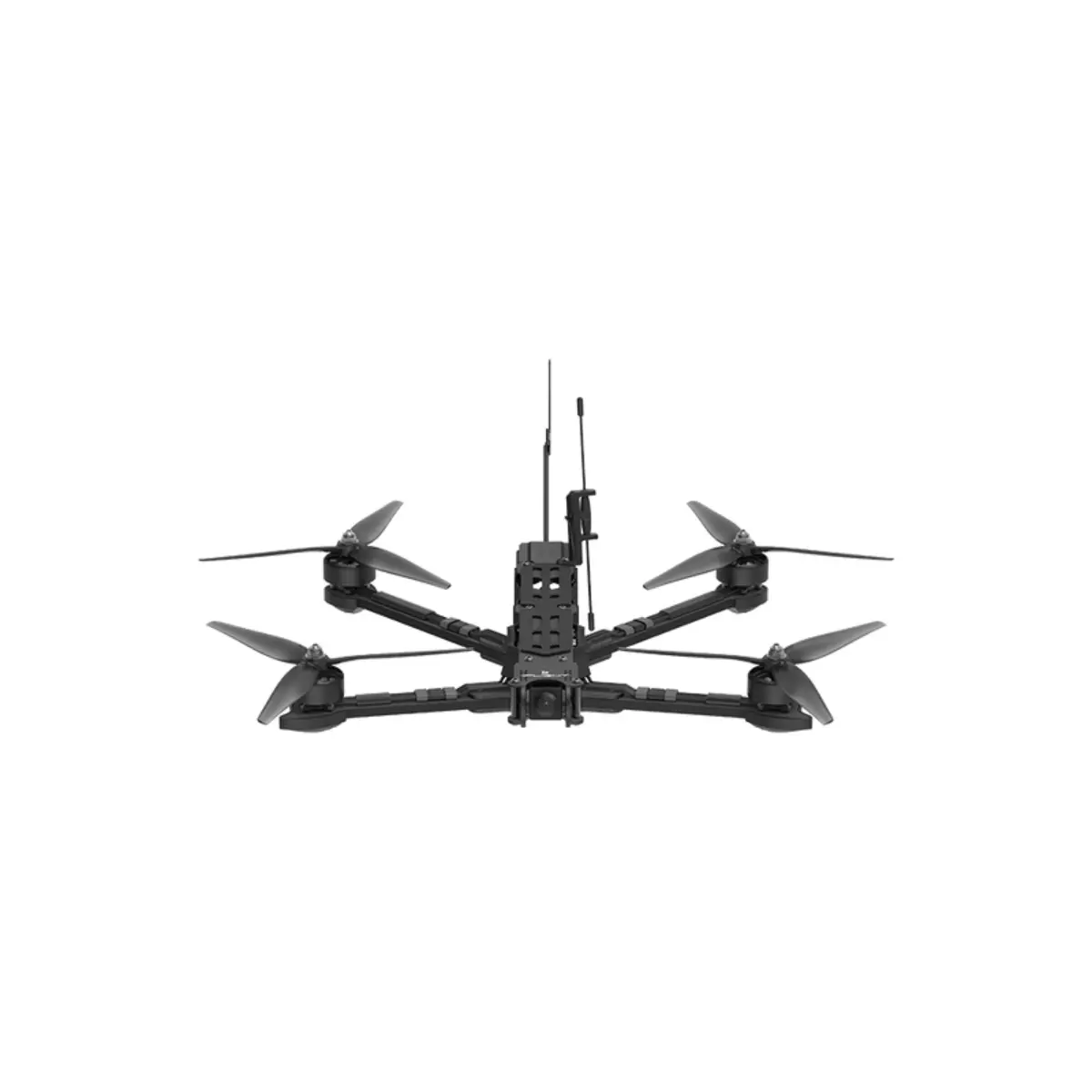

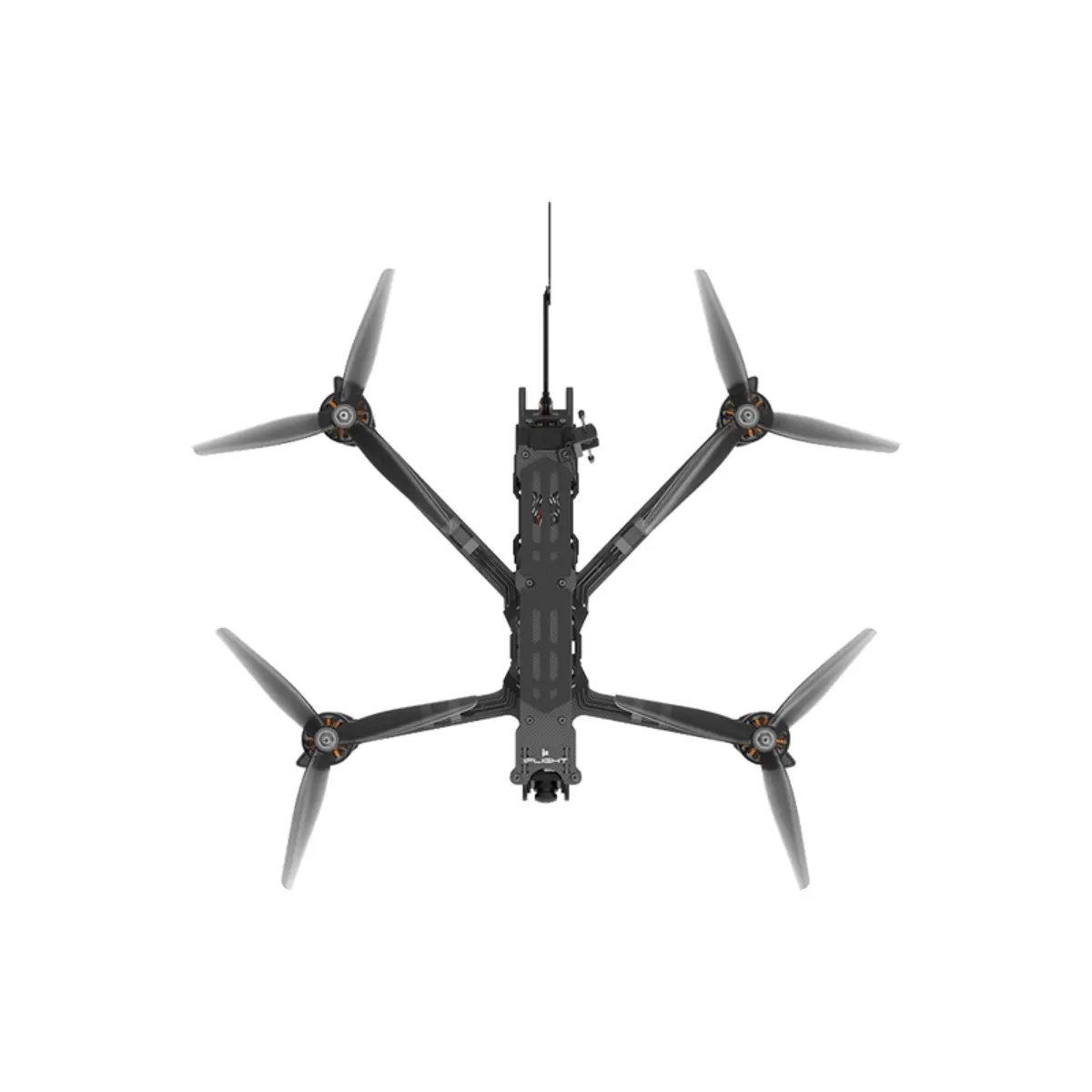

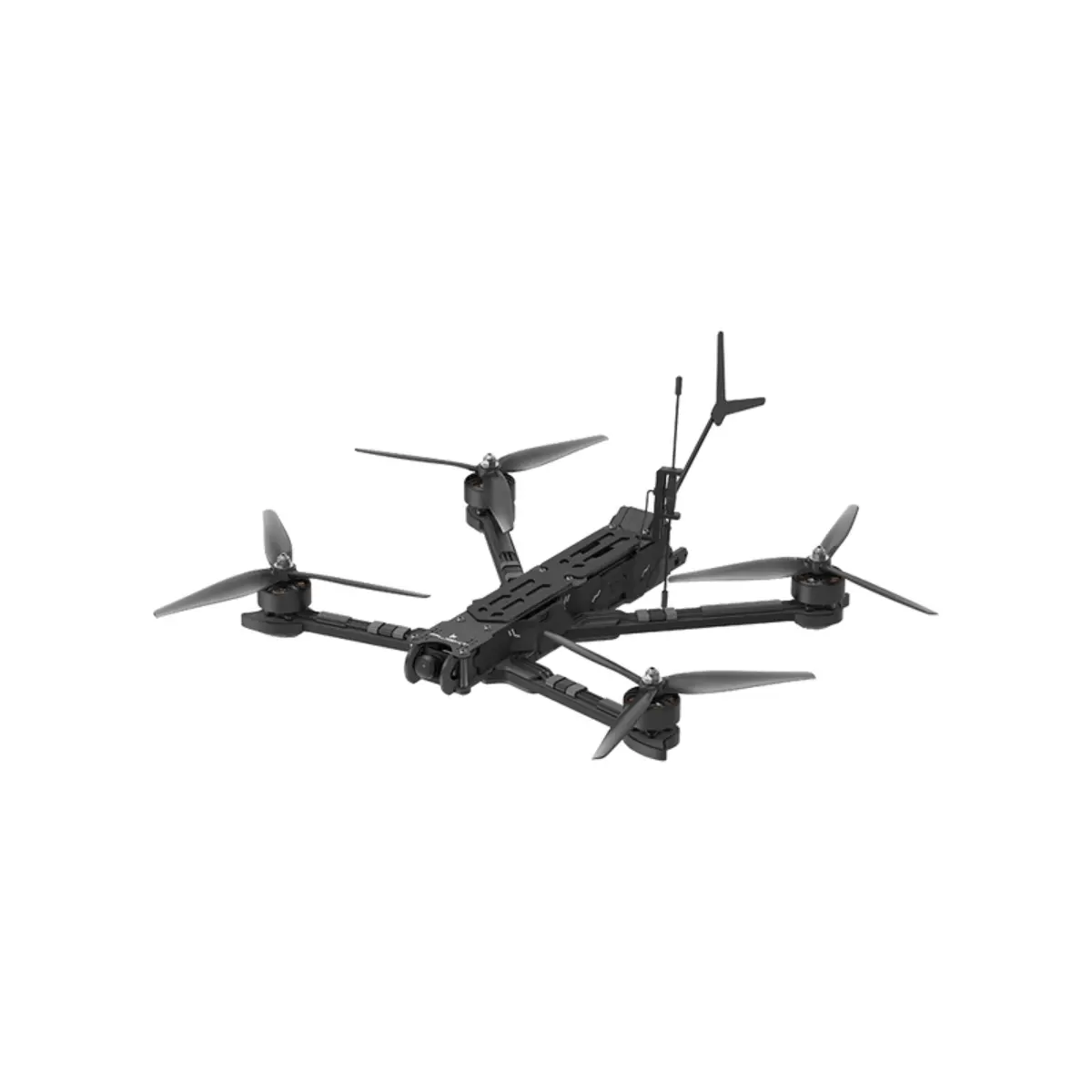

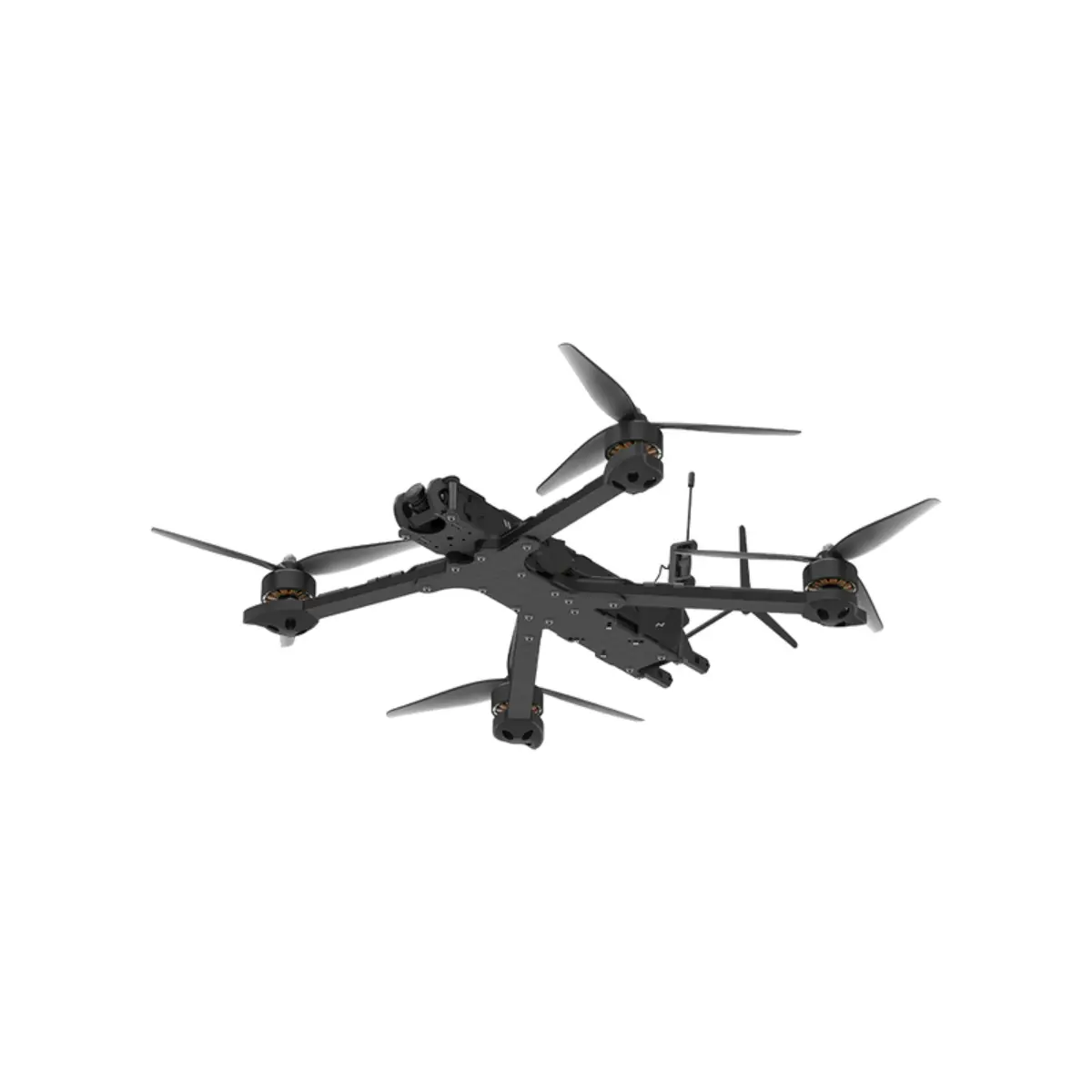

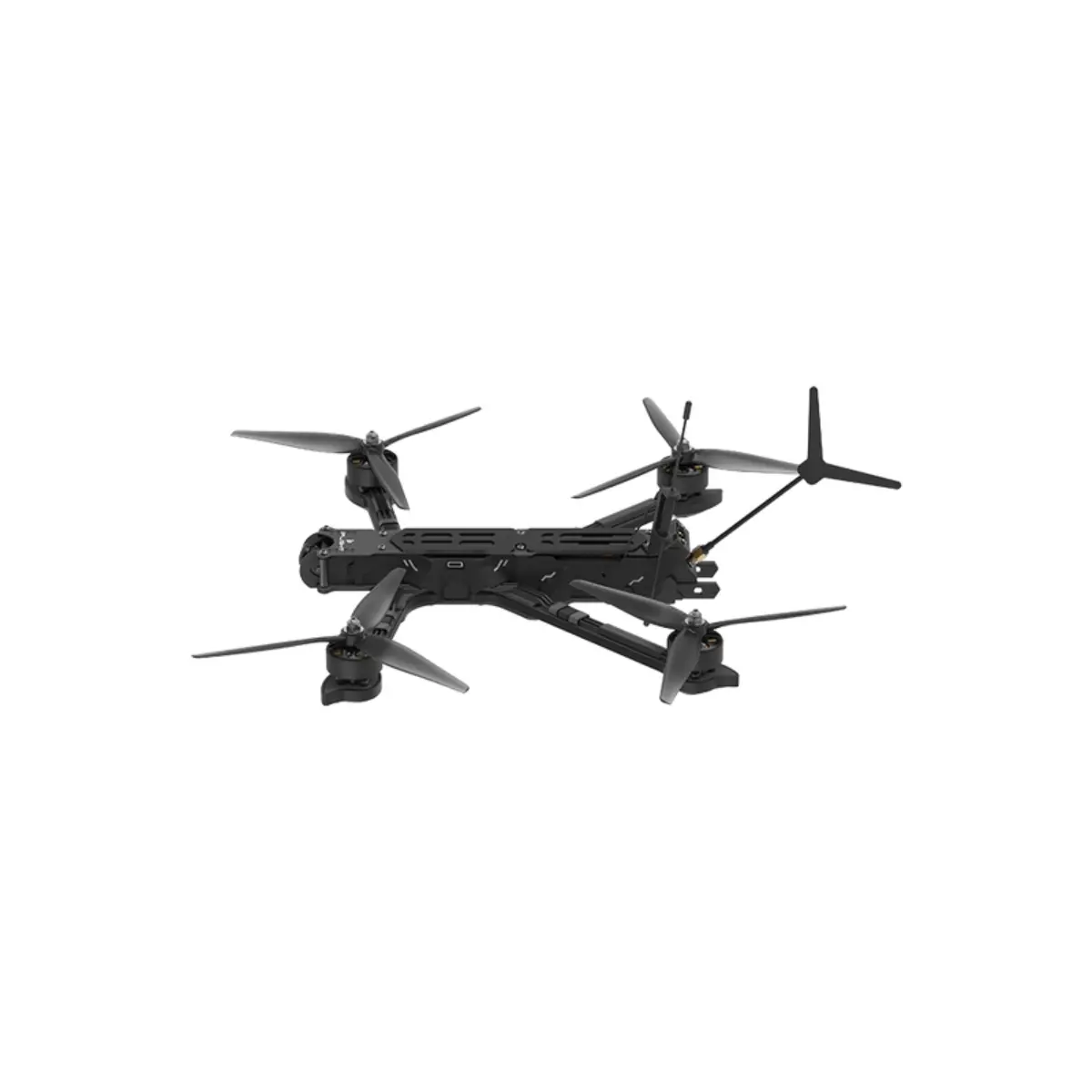

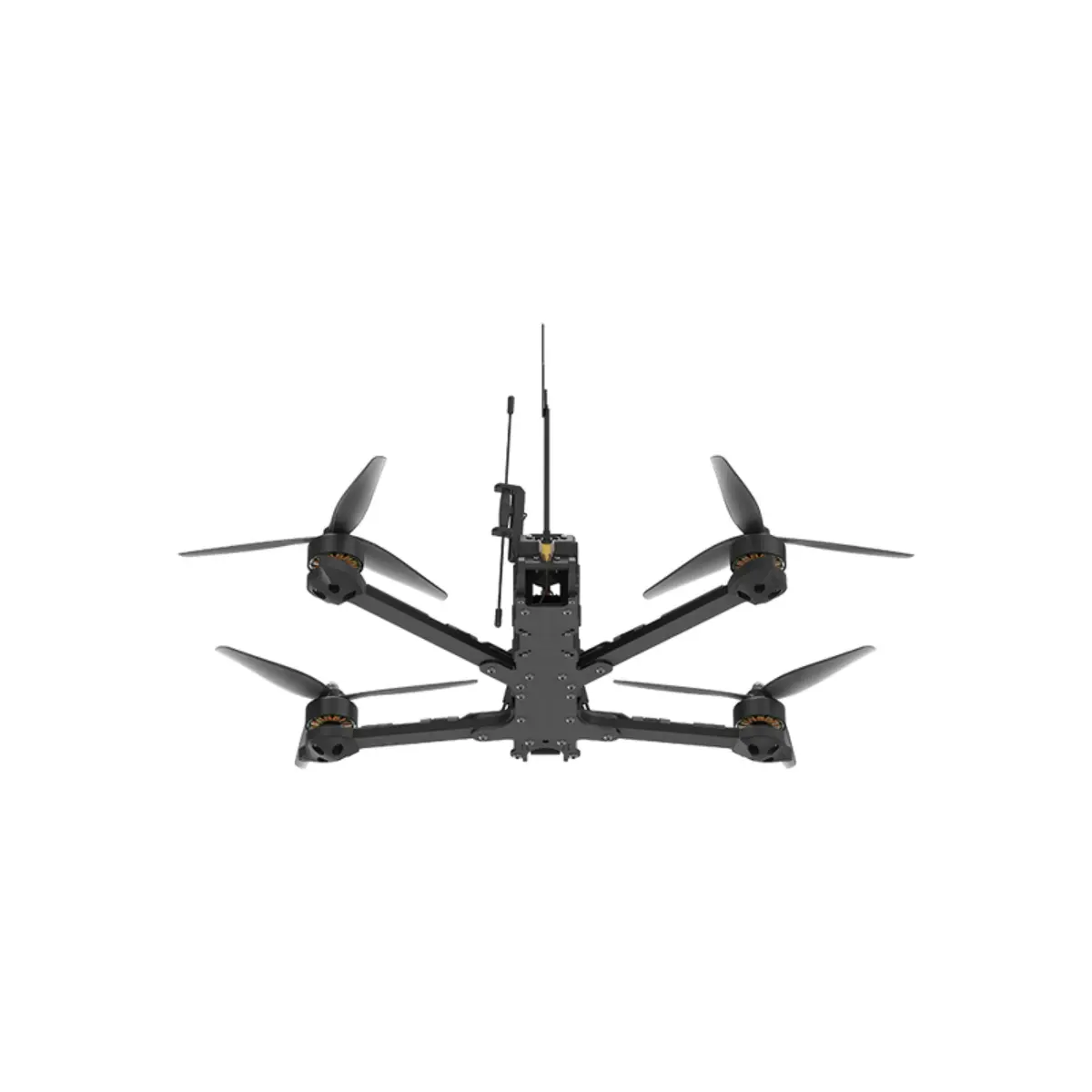

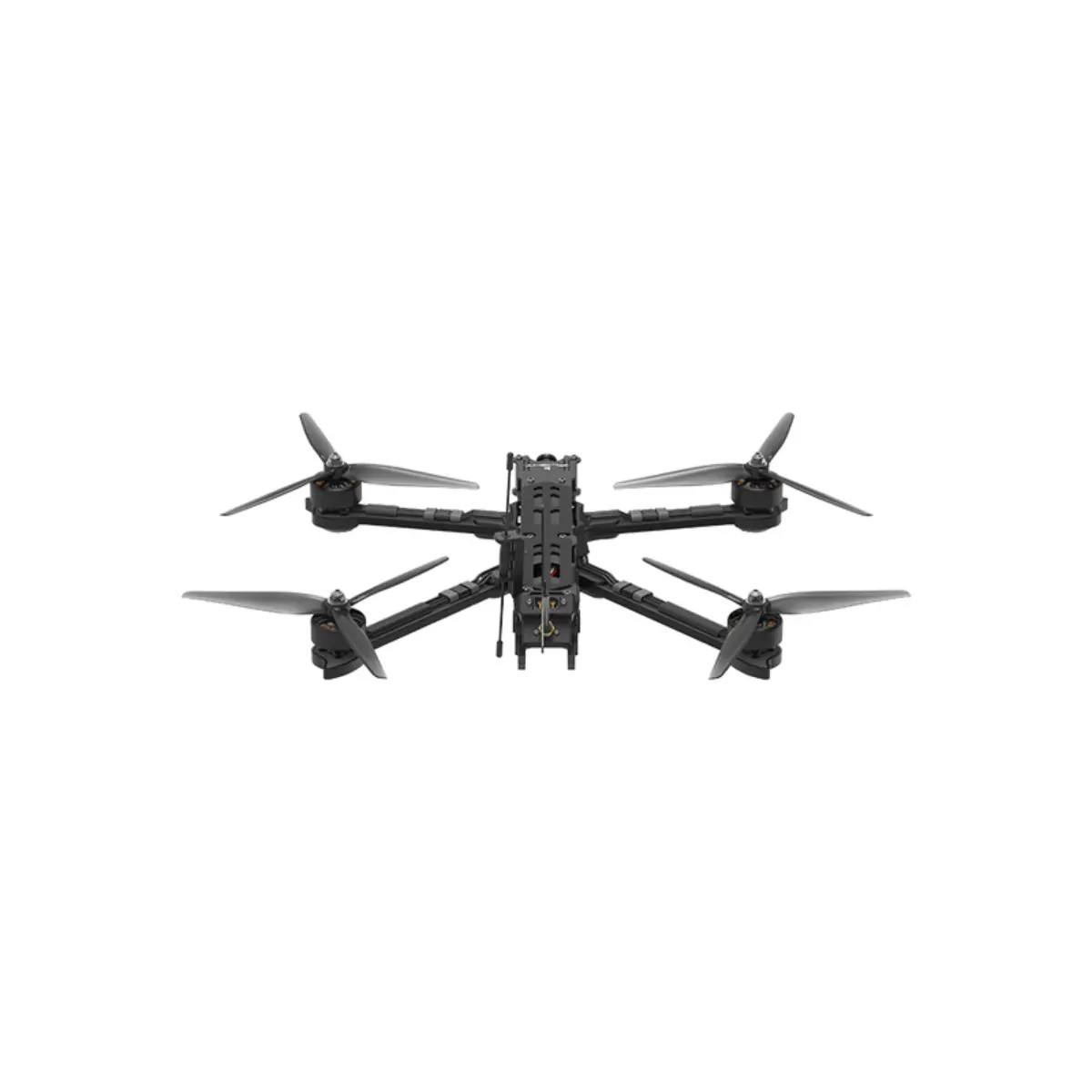

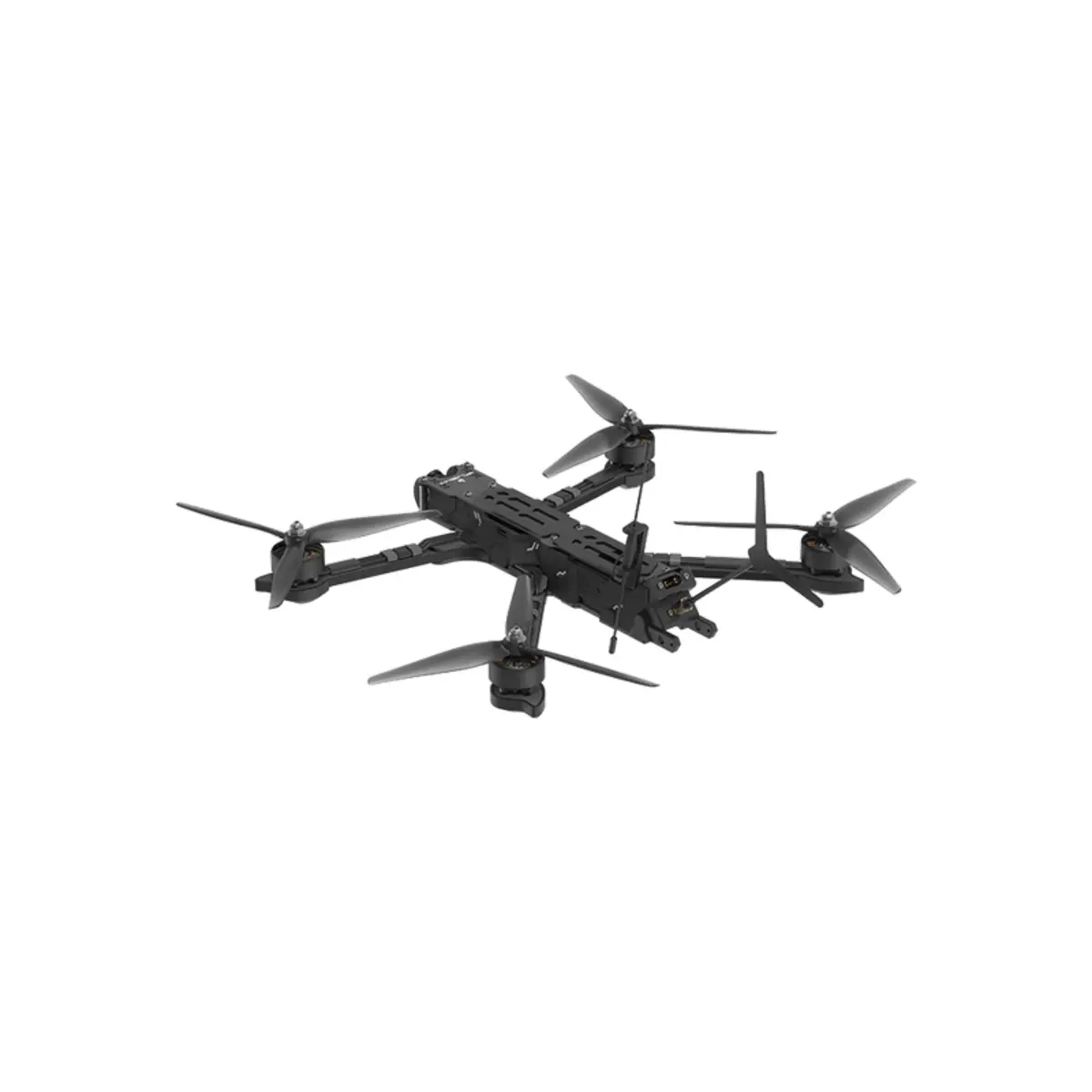

Latest Chimera7 ECO Frame for Maximum Protection

The old days are over, getting your electronics full of dirt and wet grass every time you crash. Our latest frame reduces contamination that could build up on your flight controller or ESCs, preventing failure or short circuits. Strategic airflow to keep your components cool and clean without taking any shortcuts in weight or performance. Illuminated side panels and 360-degree TPU protective parts.

Economic and Efficient Electrical System

A super stiff frame for minimum resonance and XING-E 2809 motors for 7.5inch prop control. Equipped with the powerful BLITZ F7 V1.2 Flight Controller, BLITZ 1.6W/2.5W Whoop VTX, and the BLITZ E55 4-in-1 ESC, this setup offers a high level of power and functionality.

Specifications:

Product Name: Chimera7 ECO 6S Analog

FC: BLITZ F7 V1.2 Flight Controller

ESC: BLITZ E55 4-IN-1 2-6S 55A ESC

Video Transmission: BLITZ Whoop 1.6W VTX / BLITZ Whoop 2.5W VTX

Frame diagonal motor distance: 327mm

Motor: XING-E 2809 1250KV motors

Prop: 7.5X3.7X3 propellers

Weight: 660g(Without Battery)

Dimensions (L×W×H)：270x199x34mm

Max Speed: 140km/h

Maximum Takeoff Altitude: 7000 m

Max Hover Time: Approx. 30 mins（With 6S2P 8000mAh Battery)

Operating Temperature Range: -10° to 40° C (14° to 104° F)

Transmission Power (EIRP): FCC: < 33 dBm / CE: < 14 dBm / SRRC: < 30 dBm

Antennas: Single Antennas

GNSS: GPS+SBAS+Galileo+QZSS+Glonass (Optional)

Video Transmission optional:

Product Name: BLITZ Whoop 5.8G 1.6W VTX

Output Power: 0-25-400-800-1600mw

Input Volts: 12V

Working Current: ≤pit @40mA，≤25mw@150mA，≤400mw@330mA，≤800mw@460mA，≤1600mw@660mA

Transmission fre: 40CH(A-B-E-F-R)

Antenna Interface: IPEX

Mounting Hole: 25*25/φ1.6mm

Weight: 16.5g (Antenna not included)

Dimensions: 37*31.5*10mm

Product Name: BLITZ Whoop 5.8G 2.5W VTX

Output Power: 0-25-400-1000-2500mw

Input Volts: 7-34V

Working Current: ≤pit @12V 140mA, ≤25mw@12V 200mA, ≤400mw@12V 340mA, ≤1000mw@12V 480mA, ≤2500mw@12V 780mA

Transmission fre: 40CH(A-B-E-F-R)

Antenna Interface: MMCX

Mounting Hole: 25*25/φ1.6mm

Weight: 32g

Dimensions: 50*30*16mm

Packing List:

1 x Chimera7 ECO 6S Analog BNF

1 x Battery pad

1 x Antenna

2 x Propellers(Pairs)

2 x Battery strap

Notice:

All iFlight BNFs are tested before shipment to guarantee the highest quality.

If you still encounter a problem after receiving your shipment, please immediately contact our iFlight customer support at www.iflightrc.freshdesk.com.
