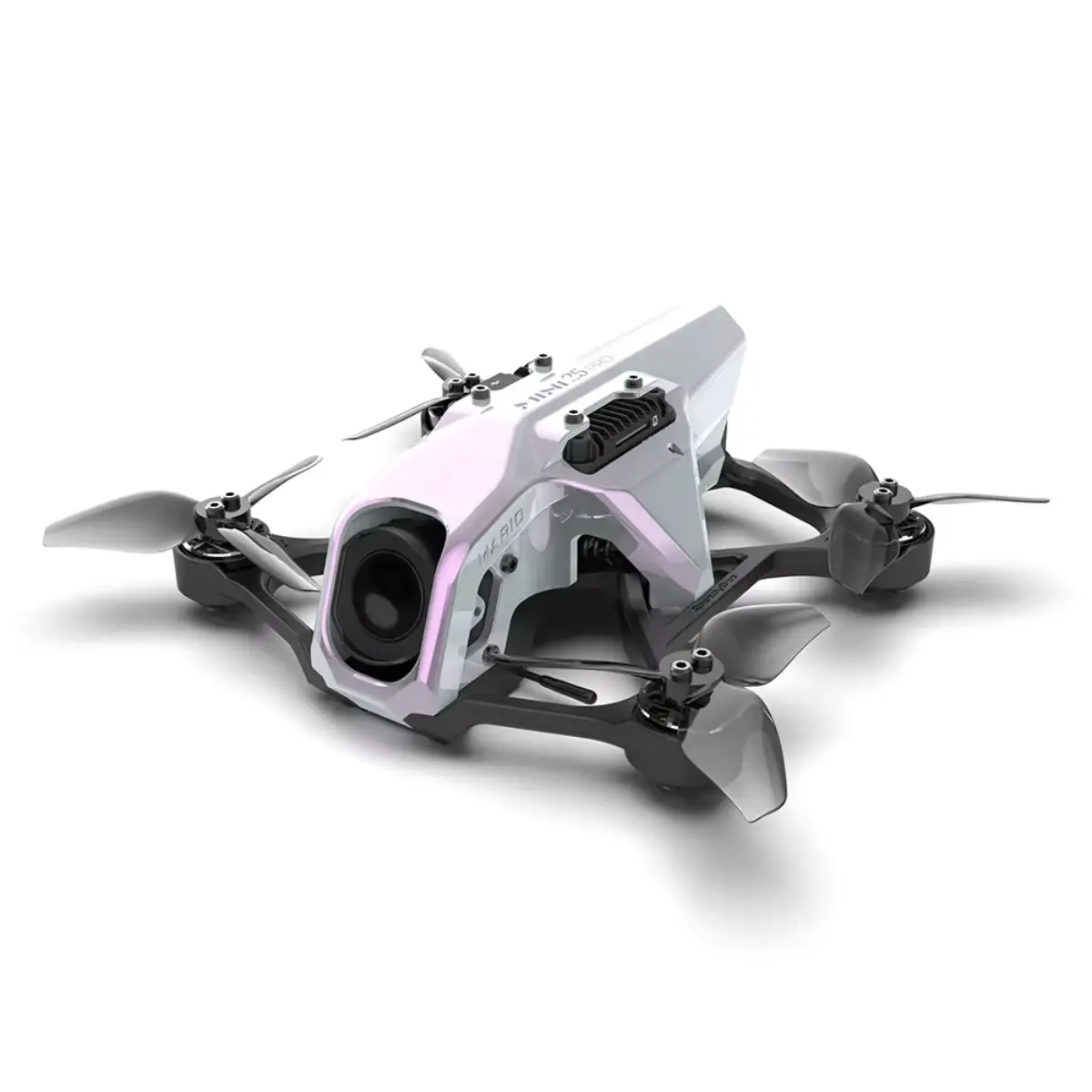

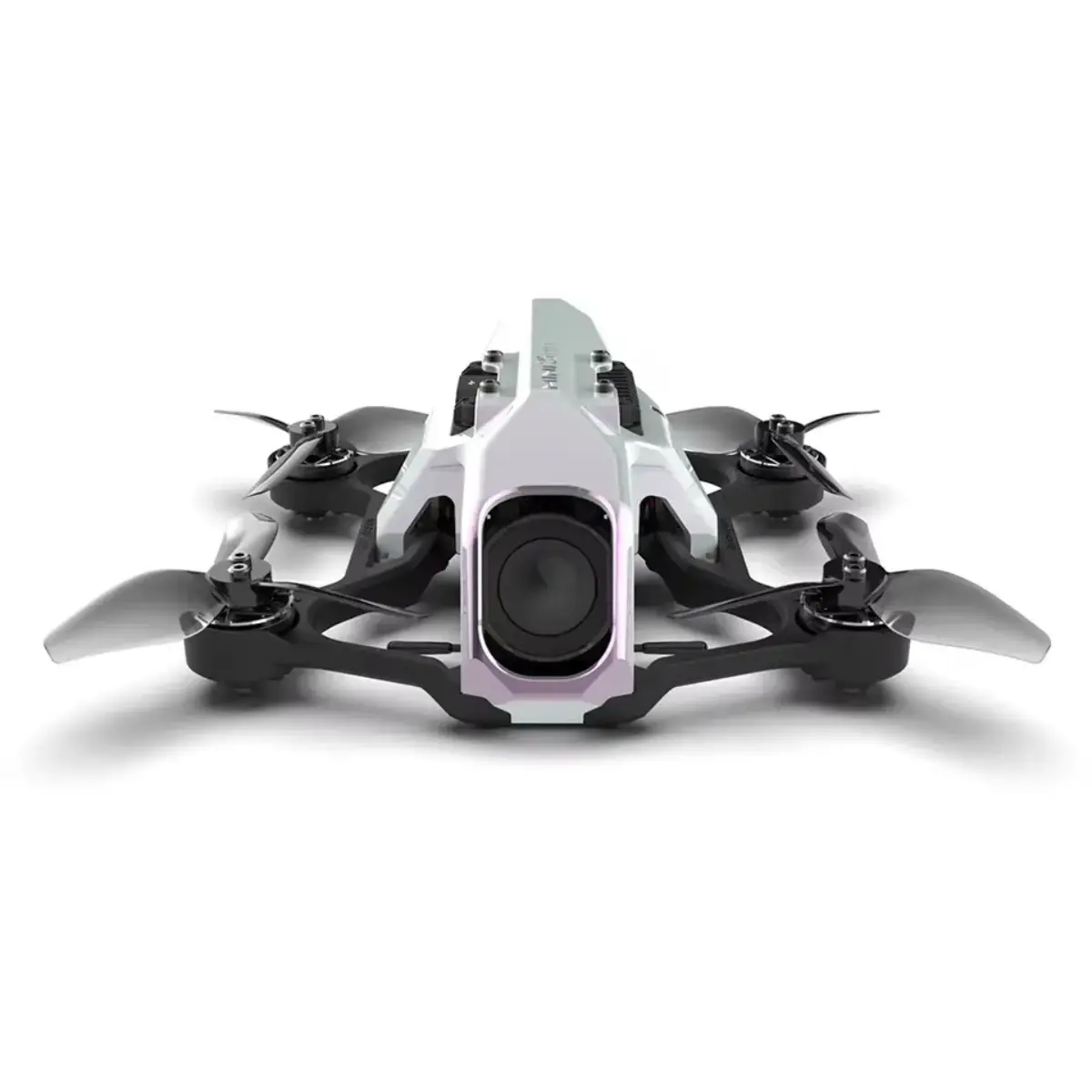

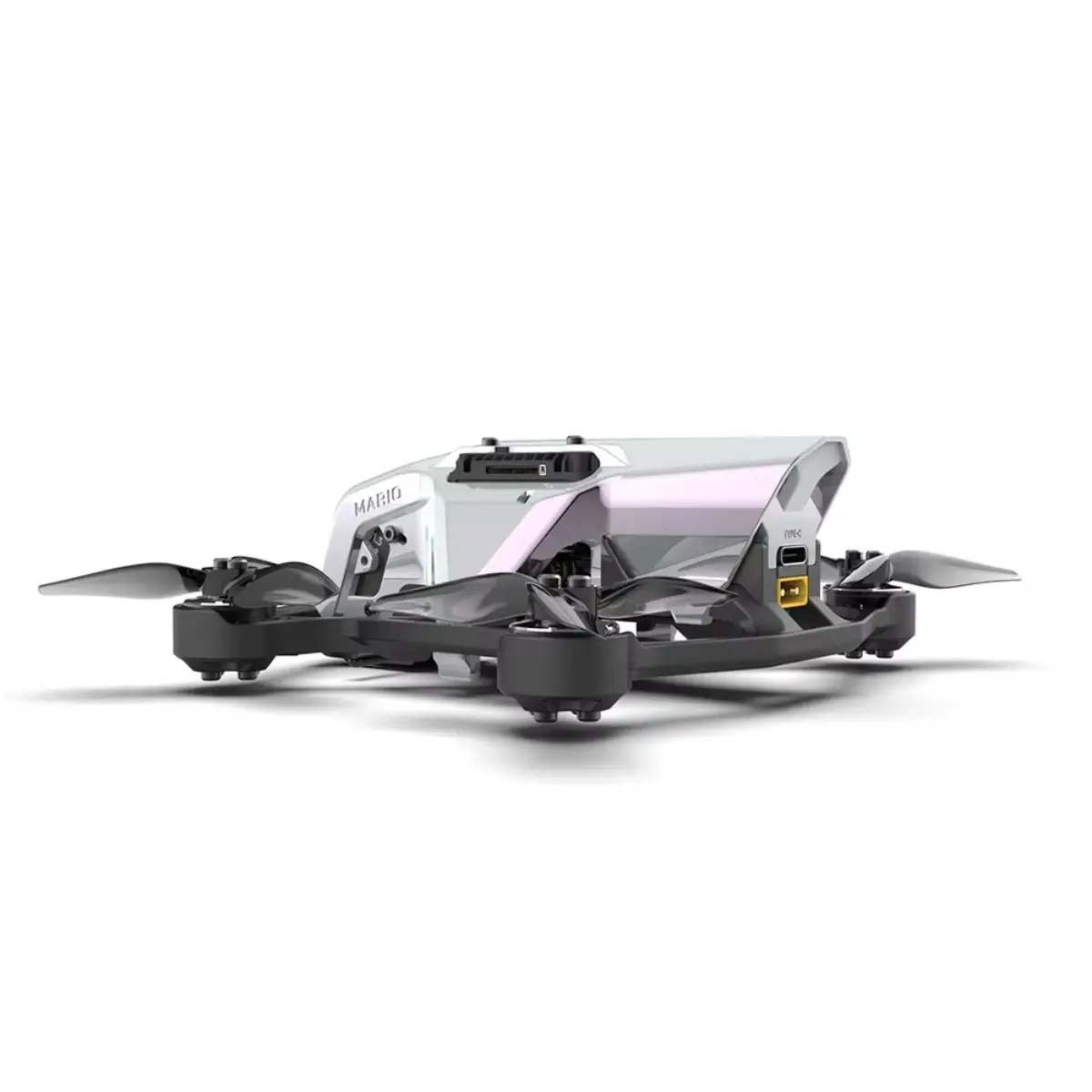

Speedybee Mario Mini25 Drone

Bagikan
0
(0)
0 Sold
Rp99.999.999
0 Sold
0
(0)
SKU: PR-PN001730_DRONE_SPE Kategori: , , Brand:

General Info & Frame

  • Brand: SpeedyBee

  • Model: Mario Mini25

  • Drone Class: 2.5-inch FPV Freestyle / Racing Drone

  • Use Case: Freestyle, racing, and cinematic micro FPV flying

  • Frame Material: Carbon fiber mini FPV frame

  • Frame Size: Designed for 2.5-inch propellers

  • Wheelbase (Diagonal): 125 mm (4.9 in)

  • Dimensions: L115mm × W120mm × H45mm

  • Weight: ~95–150 g (depending on configuration)

Flight Electronics

  • Flight Controller (FC): AT32 F435 AIO flight controller

  • ESC: 25A 4-in-1 32-bit ESC (OX32 firmware)

  • Gyroscope: ICM-42688-P

  • Black Box: 8MB

  • OSD (Analog Transmission): None

  • Flight Software: Betaflight compatible

  • Bluetooth Tuning: Supported via SpeedyBee mobile app for parameter adjustment

Propulsion

  • Motors: BeeStorm 1303.5 6660KV brushless motors

  • Propellers: HQProp RT2.5×2.1×3 tri-blade (2CW & 2CCW)

Power & Battery Specs

  • Input Voltage: 3S LiPo / LiHv

  • Power Input Connector: XT30PW-M

  • Recommended Battery Capacity: 3S 550mAh – 650mAh

  • Recommended Battery Weight: ≤ 60g

  • Recommended Battery Size: ≤ L60mm × W30mm × H20mm

  • Recommended Battery Connector: Amass XT30ULW-F A Type

Camera & Video System

  • Transmission Compatibility: DJI O4 Air Unit / Air Unit Pro / Lite digital FPV systems

  • Camera Installation Width: ≤ 20mm

  • Adjustable Camera Angle: 10–30°

Connectivity & Hardware Interfaces

  • Receiver: Built-in ExpressLRS 2.4 GHz

  • Port Interface: SH 1.0 (6P DJI, 6P GPS, 3P BF LED, and 3P S LED)

  • GPS Module Size Supported: 12mm × 12mm

Mario Mini 25 Comparison

Model Mario Mini 25 Power Kit Mario Mini 25 O4 Air Unit Mario Mini 25 O4 Air Unit Pro
Color White Iridescent Flash White
Flight Controller SpeedyBee F435 AIO
ESC SpeedyBee 25A 4-in-1 32bit (OX32)
Motor BeeStorm 1303.5 6660kv
Propeller HQProp RT2.5X2.1X3
Bluetooth Parameter Adjustment SpeedyBee APP
Receiver AIO Built-in ELRS 2.4G
Transmission None O4 Air Unit O4 Air Unit Pro
O4 CNC Not included Yes None
Weight 95g±3g 115g±3g 127g±3g
GPS G12 GPS(Not included)
Recommended Battery 3S 150C 650mAh(Not included)
Speed 135km/h
Analog Transmission Not Support Analog Transmission OSD

Berat N/A
Varian

Power Kit, O4 Lite, O4 Pro
