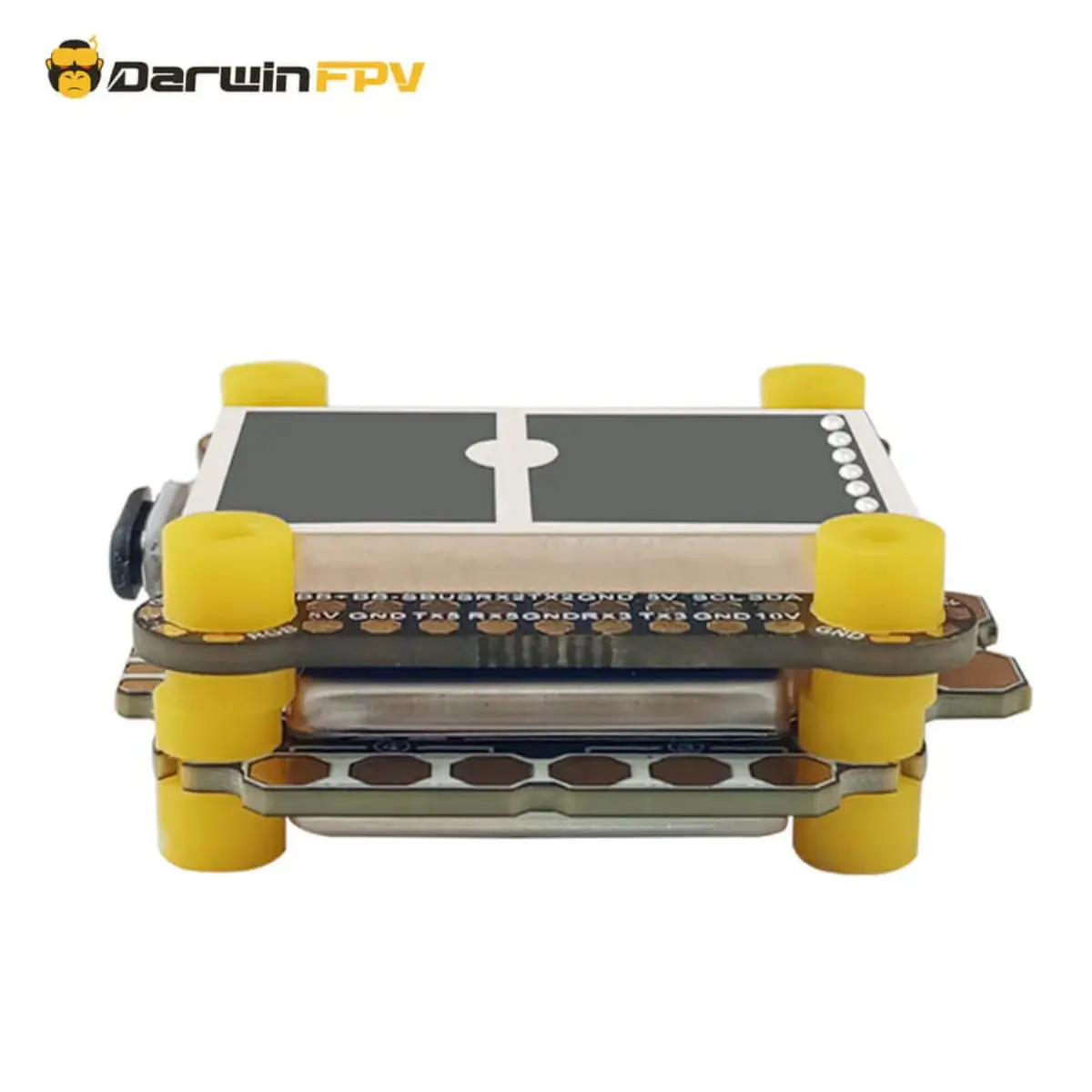

DarwinFPV Cement Ultra Durable F4 60A Waterproof FC Stack 30x30mm

Bagikan
0
(0)
0 Sold
Rentang harga: Rp275.000 hingga Rp1.145.000
0 Sold
0
(0)
SKU: PR-PN001507_FC_DAR Kategori: , , Brand:

Specification:

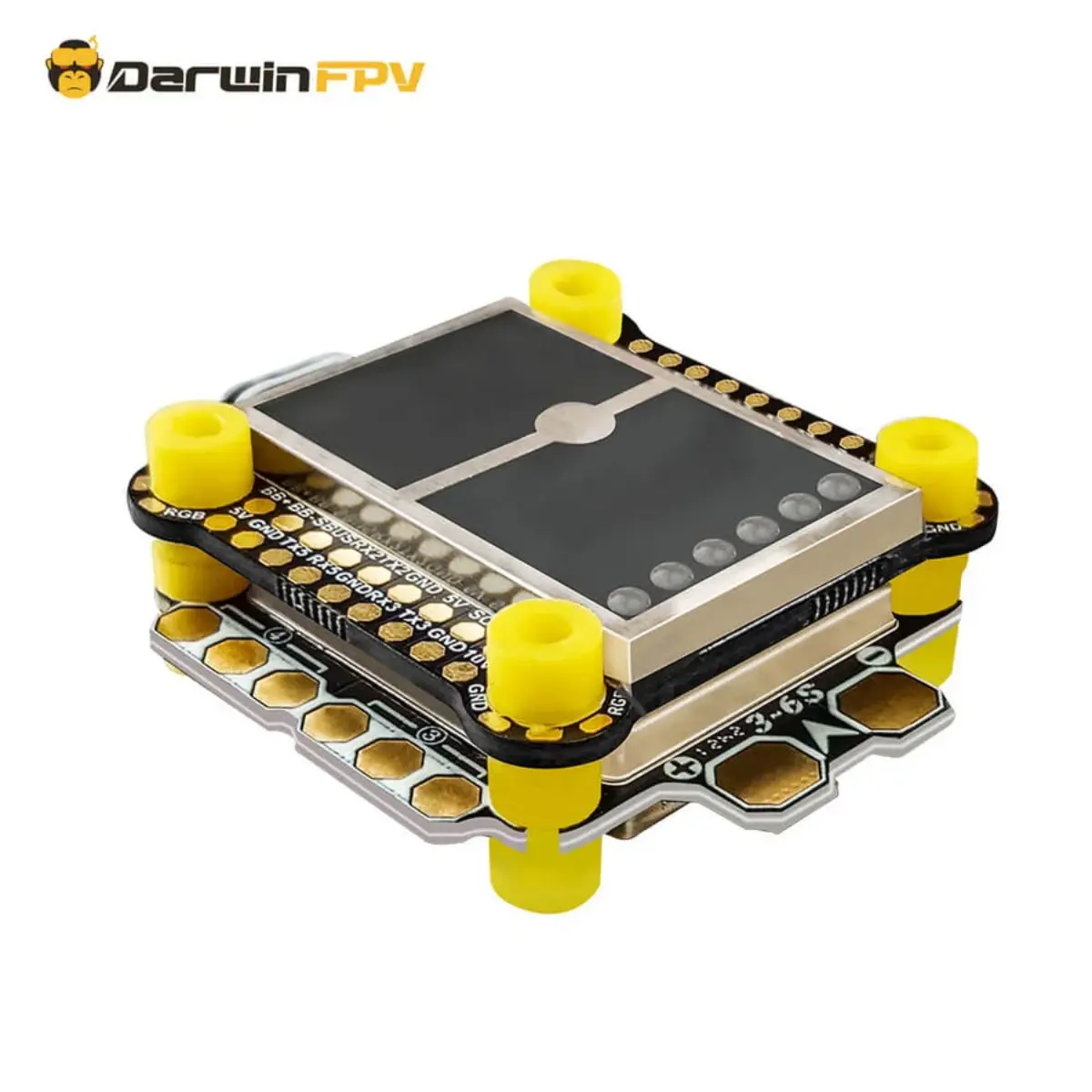

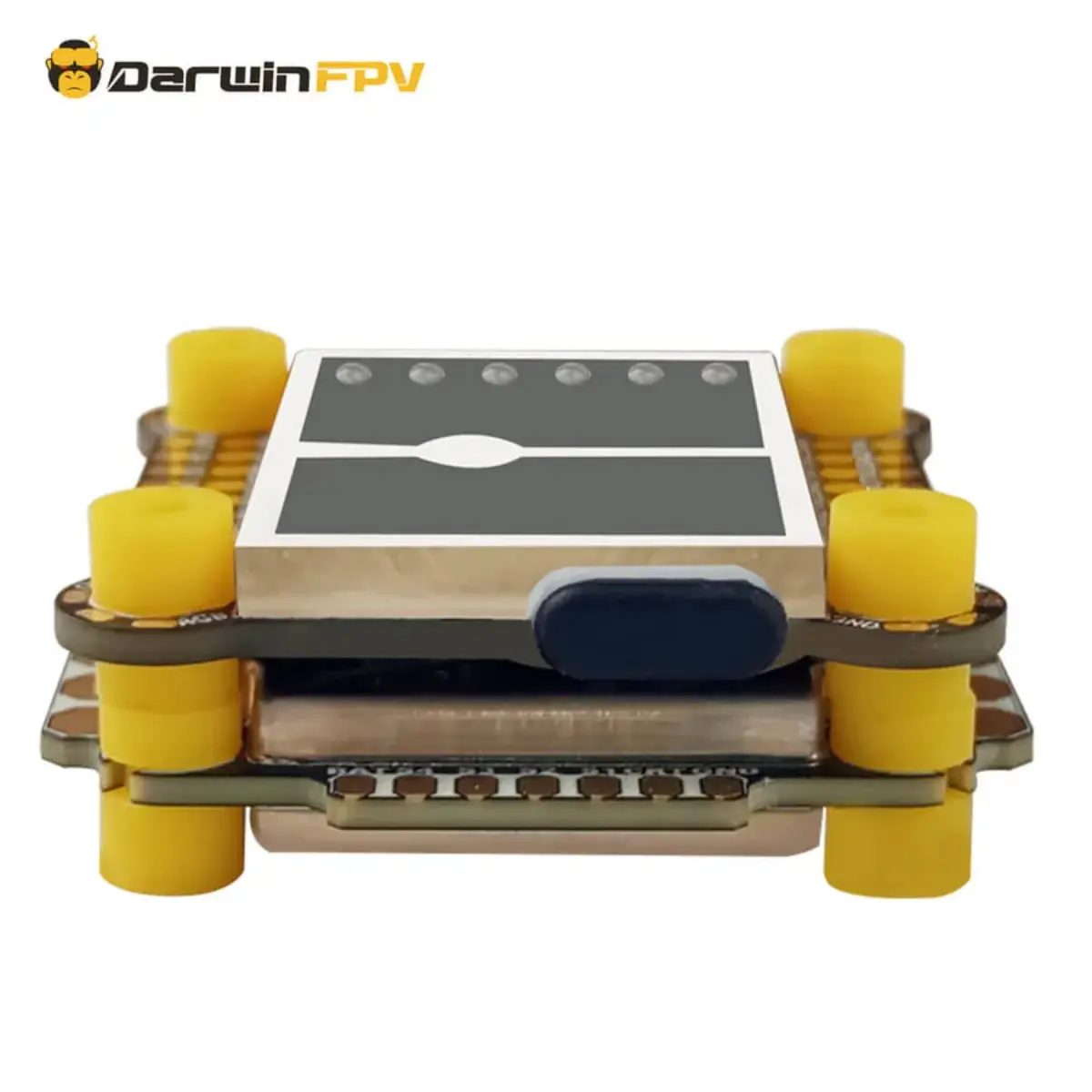

F4 60A Stack
  • Input voltage: 3-6S Lipo
  • Mounting dimensions: 30.5×30.5mm
  • Dimensions: 39.5×39.5×15.5mm

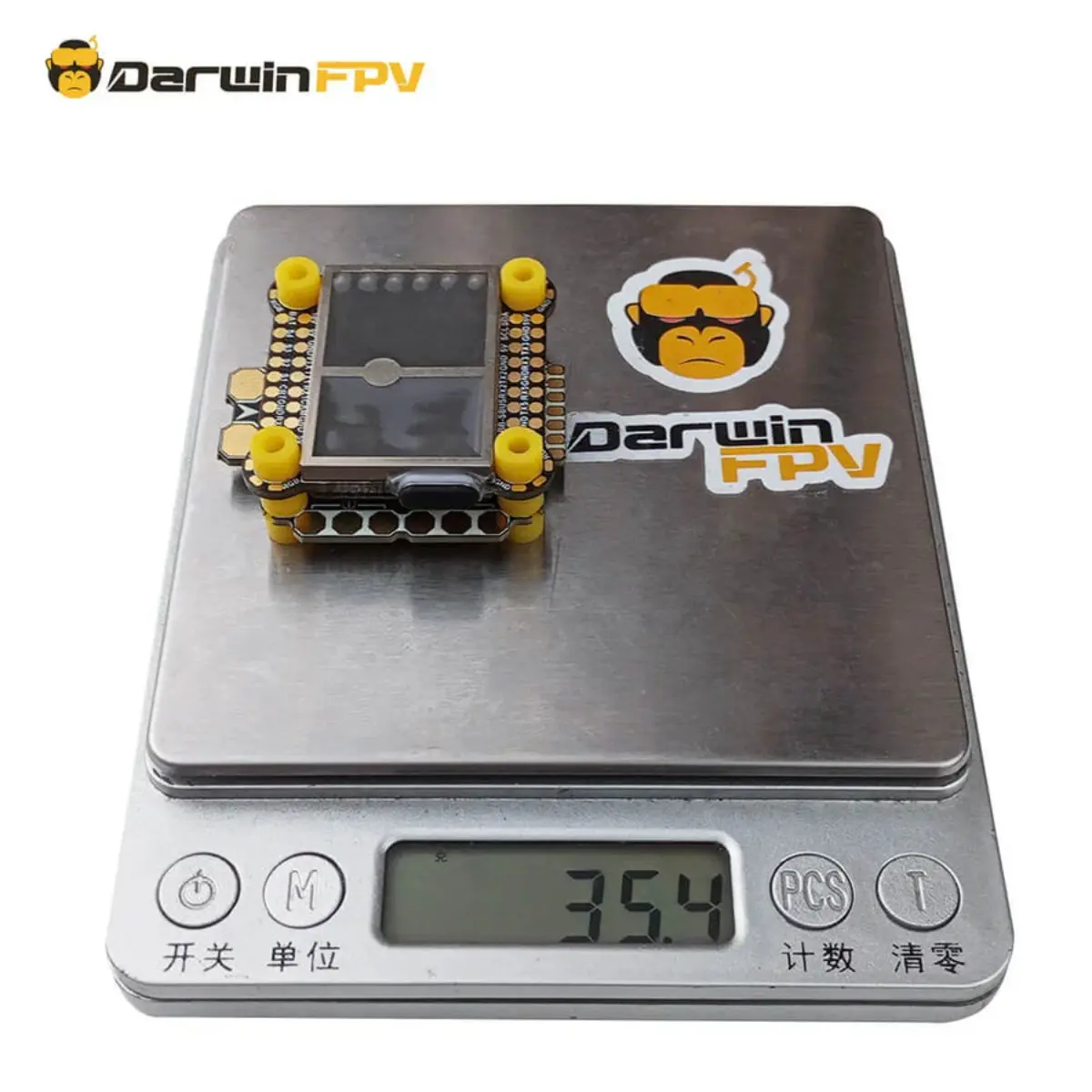

  • Weight: 35.4g

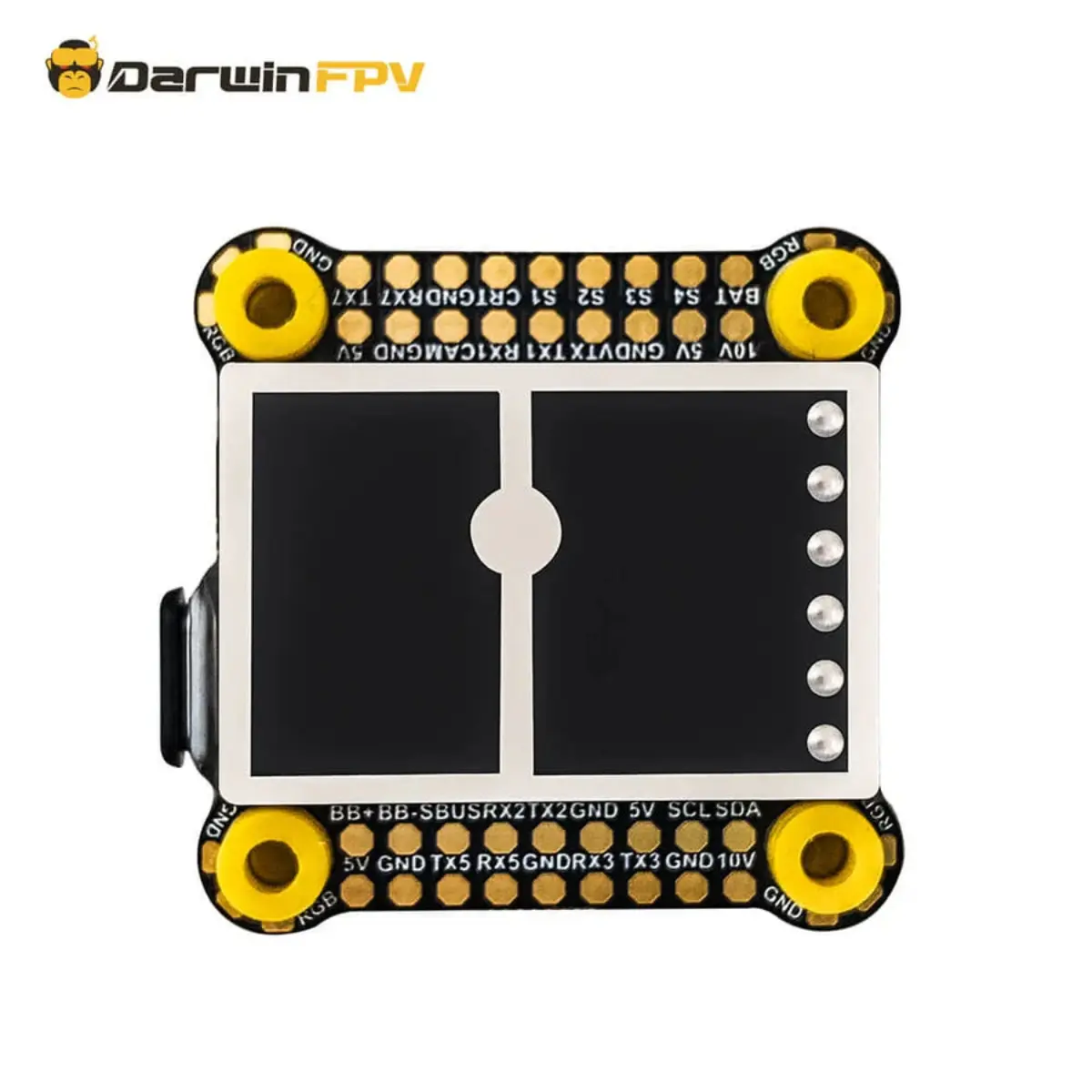

F4 Flight Controller
  • Main control chip: AT32F435
  • Gyro: MPU6000/ICM42688
  • OSD: AT7456E
  • Black box: 16M
  • Barometer: Non
  • Bluetooth: Non
  • Receiver: Non
  • Input voltage: 3-6S Lipo
  • BEC: 10V/3A 5V/3A
  • USB interface: 1x USB Type-C waterproof
  • Motor output port: M1-M4
  • Serial port: UART1, UART2, UART3, UART5, UART7
  • Soft serial port: Non
  • 12C: 1× 12C
  • USER: Non
  • RSSI: Non
  • RGB: 4x RGB soldering pads
  • Buzzer: 1x BB-
  • Firmware: DARWINF435 (BetaFlight)
  • Mounting dimensions: 30.5×30.5mm
  • Dimensions: 39.5×39.5mm
  • Weight: 11g

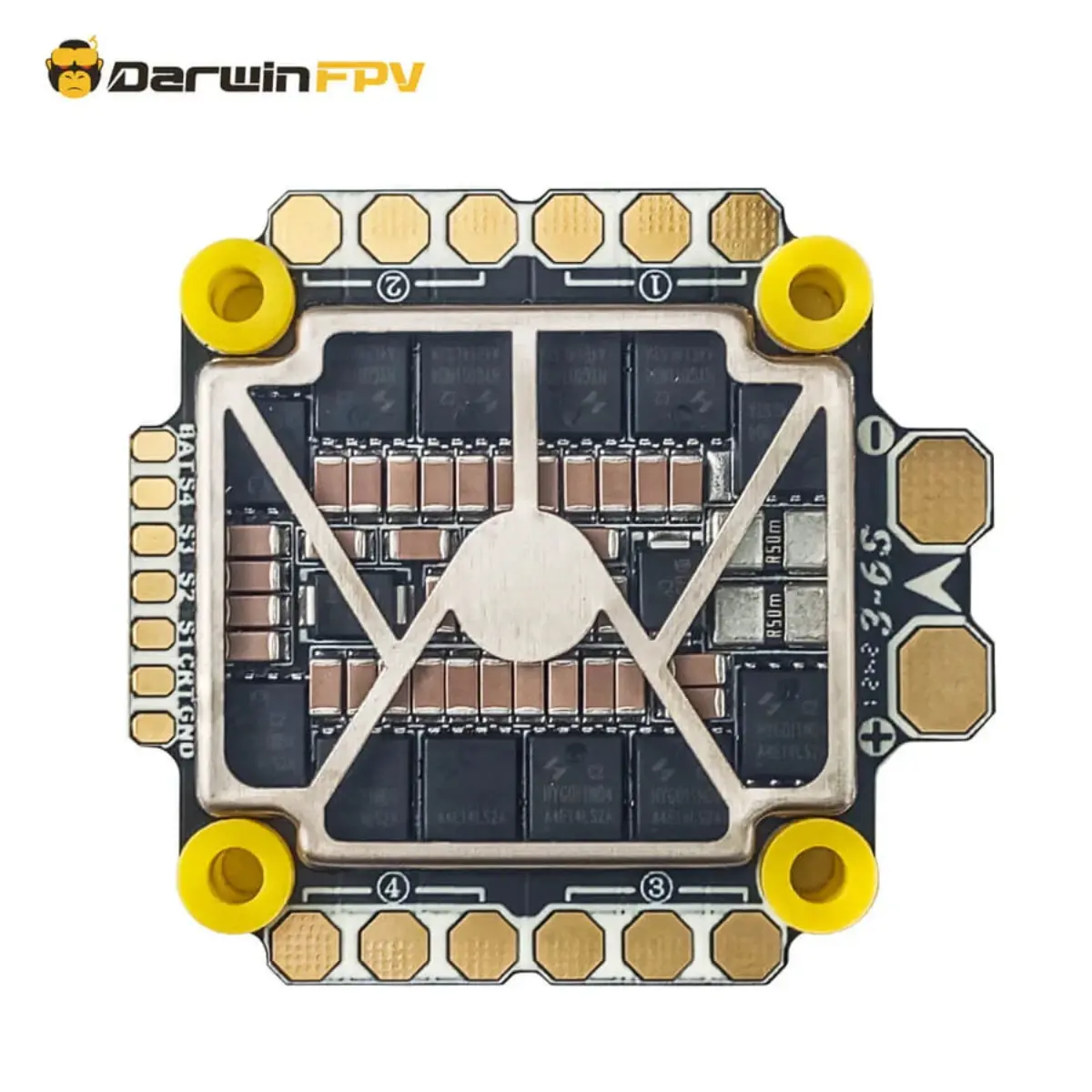

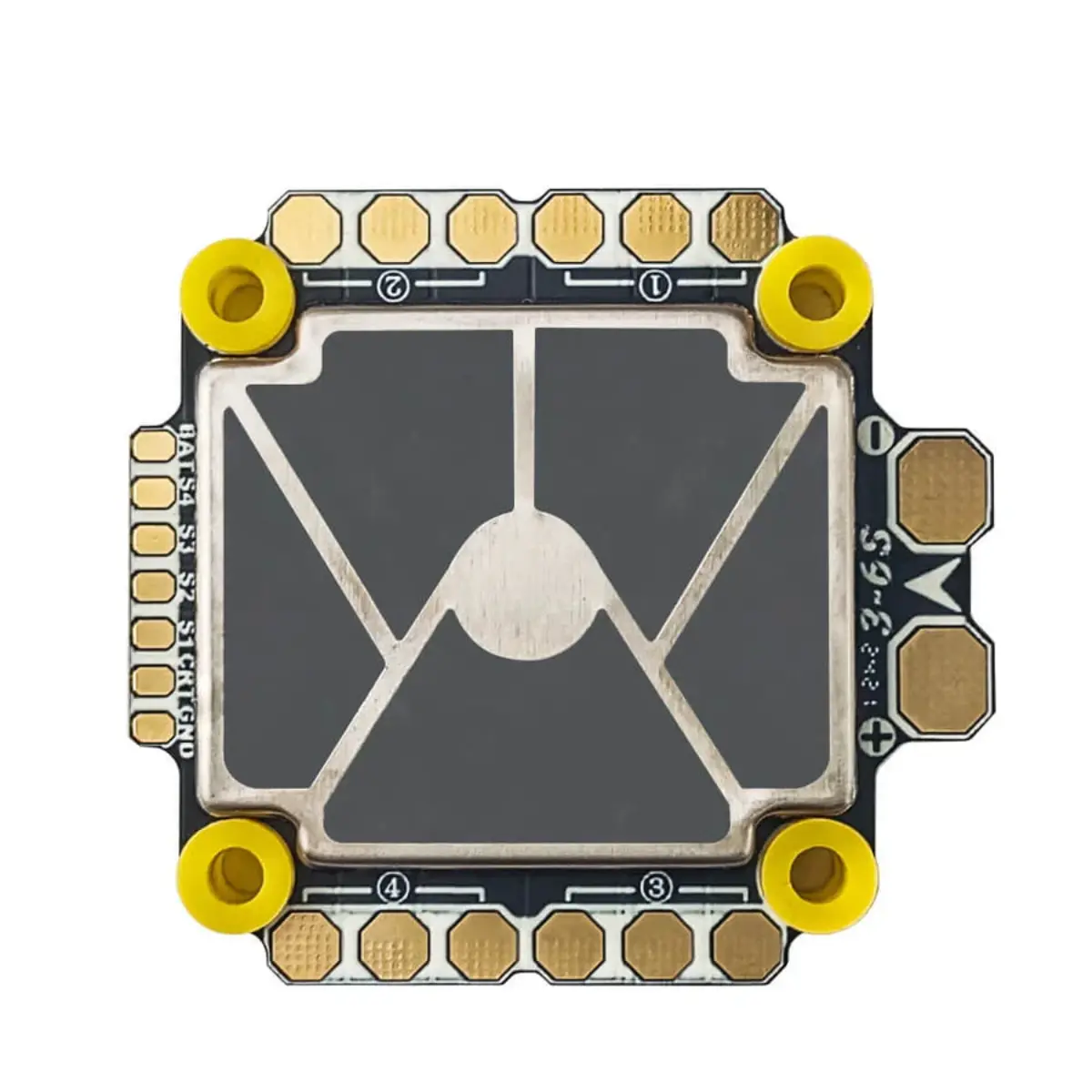

Cement Ultra Durable 60A ESC
  • Main control chip: EFM8BB21 (8bit 48MHz)
  • Input voltage” 3-6S Lipo
  • Continuous: 4×60A
  • Peak current: 4×80A (5S)
  • Support throttle protocol: Dshot 300/600
  • Galvanometer: Support (Current Meter Scale=125)
  • Telemetry: Non
  • Firmware: J_H_30 (BlueJay)
  • Power cable: #14AWG/120mm
  • Mounting dimensions: 30.5×30.5mm
  • Dimensions: 46×42.5mm
  • Weight: 24.4g

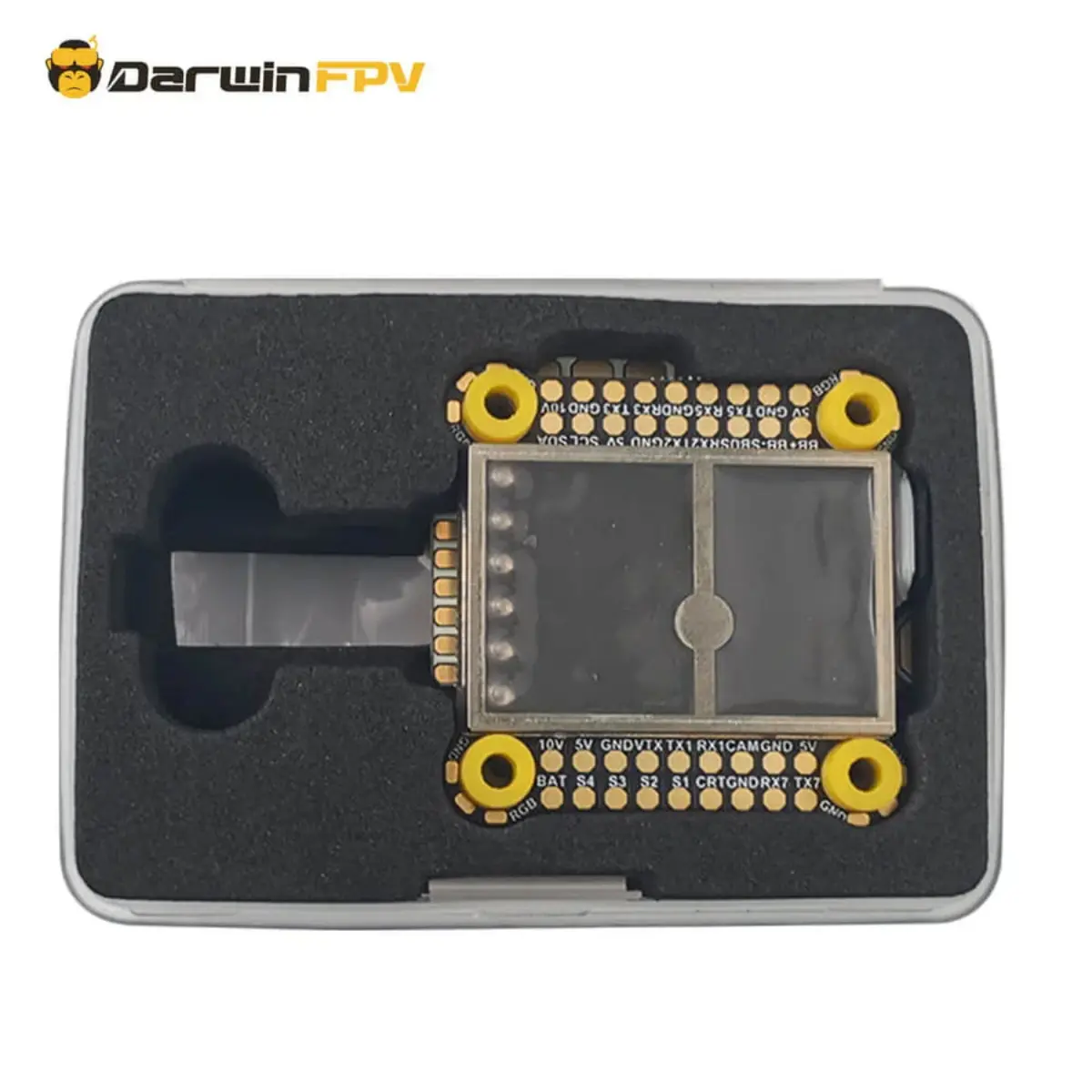

Package included:



Cement Ultra Durable F4 60A Waterproof Stack (ICM42688/MPU6000)
  • 1 x DarwinFPV “Cement” Ultra Durable F4-60A Waterproof Stack
  • 1 x 30mm ESC cable (8P)
  • 1 x 65mm analog VTX cable (4P)
  • 1 x 65mm GPS cable (6P)
  • 1 x 65mm receiver cable (4P)
  • 1 x 65mm HD VTX cable (6P)
  • 1 x XT60
  • 1 x 14AWMG power cable (length 120mm, soldered to the ESC)
  • 1 x 35V/1000uF electrolytic capacitor (soldered to the ESC)
  • 4 x M3*4.5mm shock-absorbing balls (installed on FC)
  • 4 x M3*6.6mm shock-absorbing balls (installed on the ESC)
  • 4 x M3*25 hexagon socket head black 304 screws (installed on the stack)
  • 4 x M3 nylon nuts
  • 1 x Sticker
Cement Ultra Durable F4 waterproof FC(ICM42688/MPU6000)
  • 1 x DarwinFPV “Cement” Ultra Durable F4 Waterproof Flight Controller
  • 1 x 30mm ESC cable (8P)
  • 1 x 65mm analog VTX cable (4P)
  • 1 x 65mm GPS cable (6P)
  • 1 x 65mm receiver cable (4P)
  • 1 x 65mm HD VTX cable (6P)
  • 4 x M3*4.5mm shock-absorbing balls (installed on FC)
  • 1 x Sticker
Cement Ultra Durable 60A Waterproof ESC
  • 1 x DarwinFPV “Cement” Ultra Durable 60A Waterproof ESC
  • 1 x 30mm ESC cable (8P)
  • 1 x XT60
  • 1 x 14AWMG power cable with a length of 120mm (soldered to the ESC)
  • 1 x 35V/1000uF electrolytic capacitor (soldered to the ESC)
  • 4 x M3*6.6mm shock-absorbing balls (installed on the ESC)
  • 1 x Sticker
Berat N/A
Varian

FC (ICM42688), FC Stack (ICM42688), FC (MPU6000), FC Stack (MPU6000), ESC 60A
