Note: Only the 24mm length Version has a connector, suitable for the Pavo20 Pro.

Description:

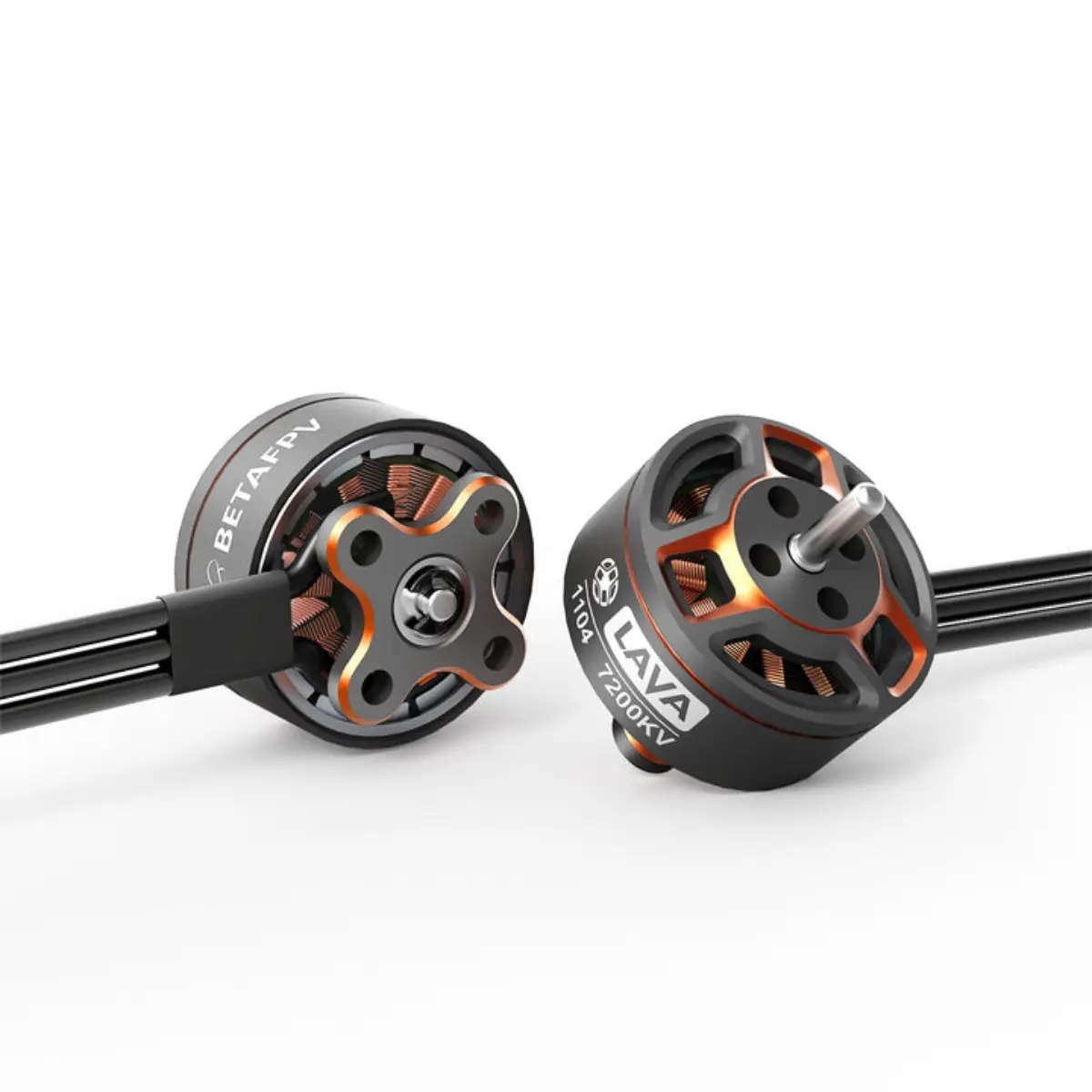

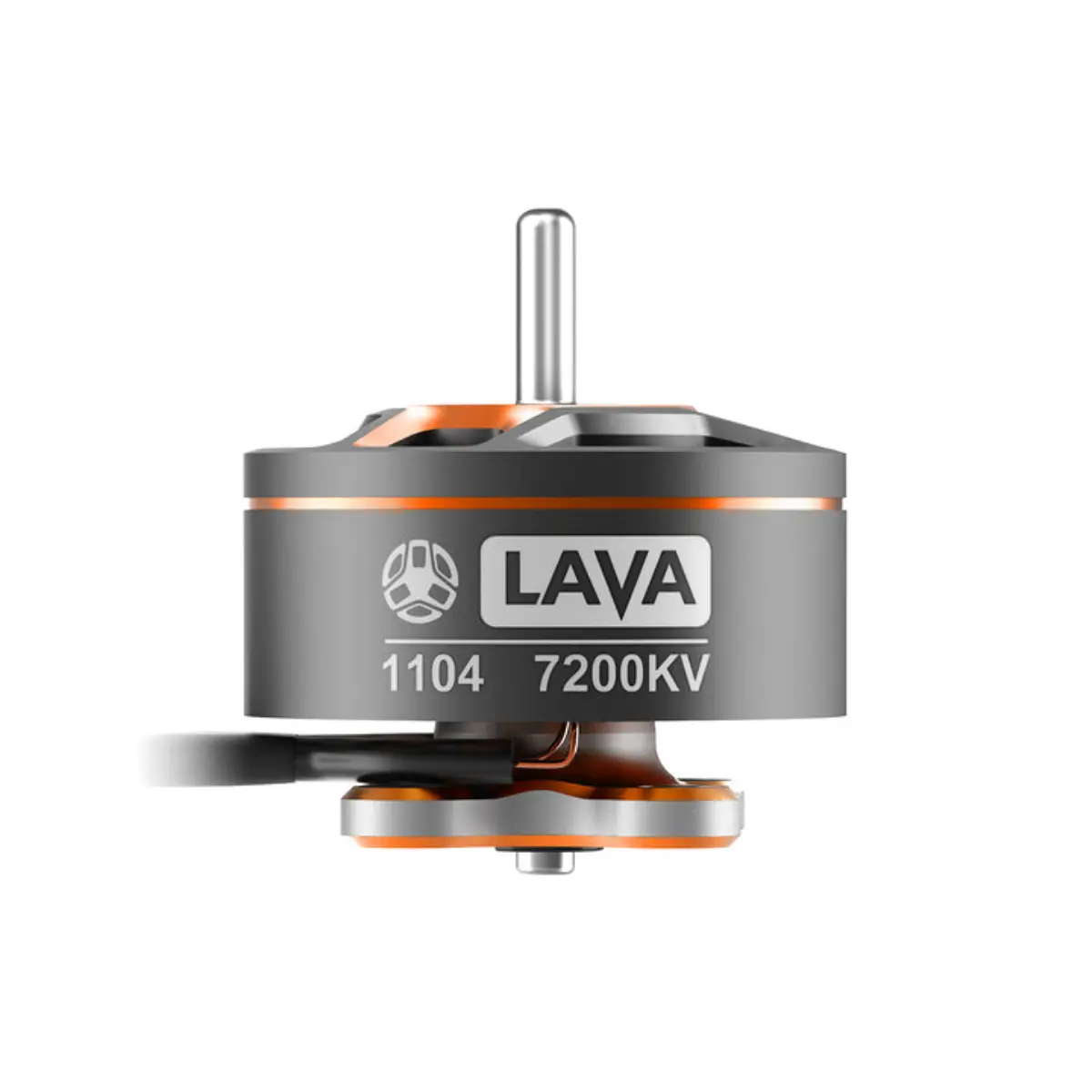

LAVA Series 1104 | 7200KV Brushless Motors is designed for the 3S 2.2” quads, with smoother torque output performance. Combined with the lower pitch Gemfan 2218 3-Blade Propellers (1.5mm Shaft) and the F4 2-3S 20A AIO FC V1, it could enable pilots to swift, agile, and smooth freestyle. Ensuring enough creative space for cinewhoop to explore and capture the most imaginative aerial feats, easily meet professionally shot film creation needs, leading the 3S 2.2” quads for cinewhoop to new heights.

Bullet Points:
– Unleash the power of freestyle with the LAVA Series 1104 | 7200KV motors, precision-engineered for 3S 2.2” quads. Experience a quantum leap in performance, taking the Pavo20 Pro Brushless Whoop Quadcopter freestyle experience to new heights.
– With the lower pitch Gemfan 2218 3-Blade Propellers, the max thrust can reach more than 230g, achieving a thrust-to-weight ratio greater than 5:1, delivering a faster and more agile freestyle experience.
– Paired with the above GF props, the force efficiency is as high as 4.7g/w when flying at low throttle, and even at full throttle load conditions, it can reach 1.9g/w, providing an efficient propulsion system for the quad.

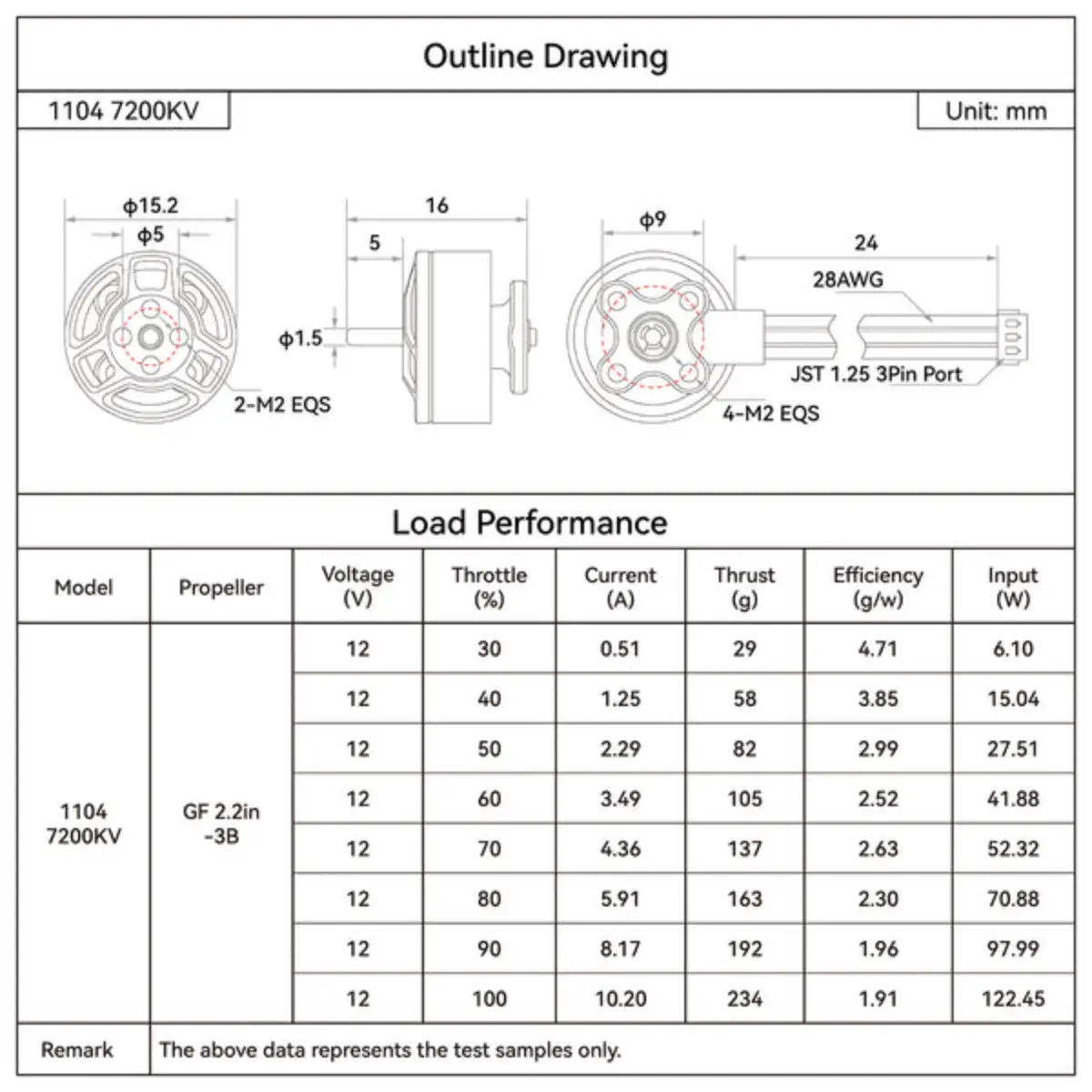

Specification:
Brand: BETAFPV
Items: LAVA Series 1104 | 7200KV Brushless Motors
Maximum Power: 122.5W
Maximum Current: 10.2A

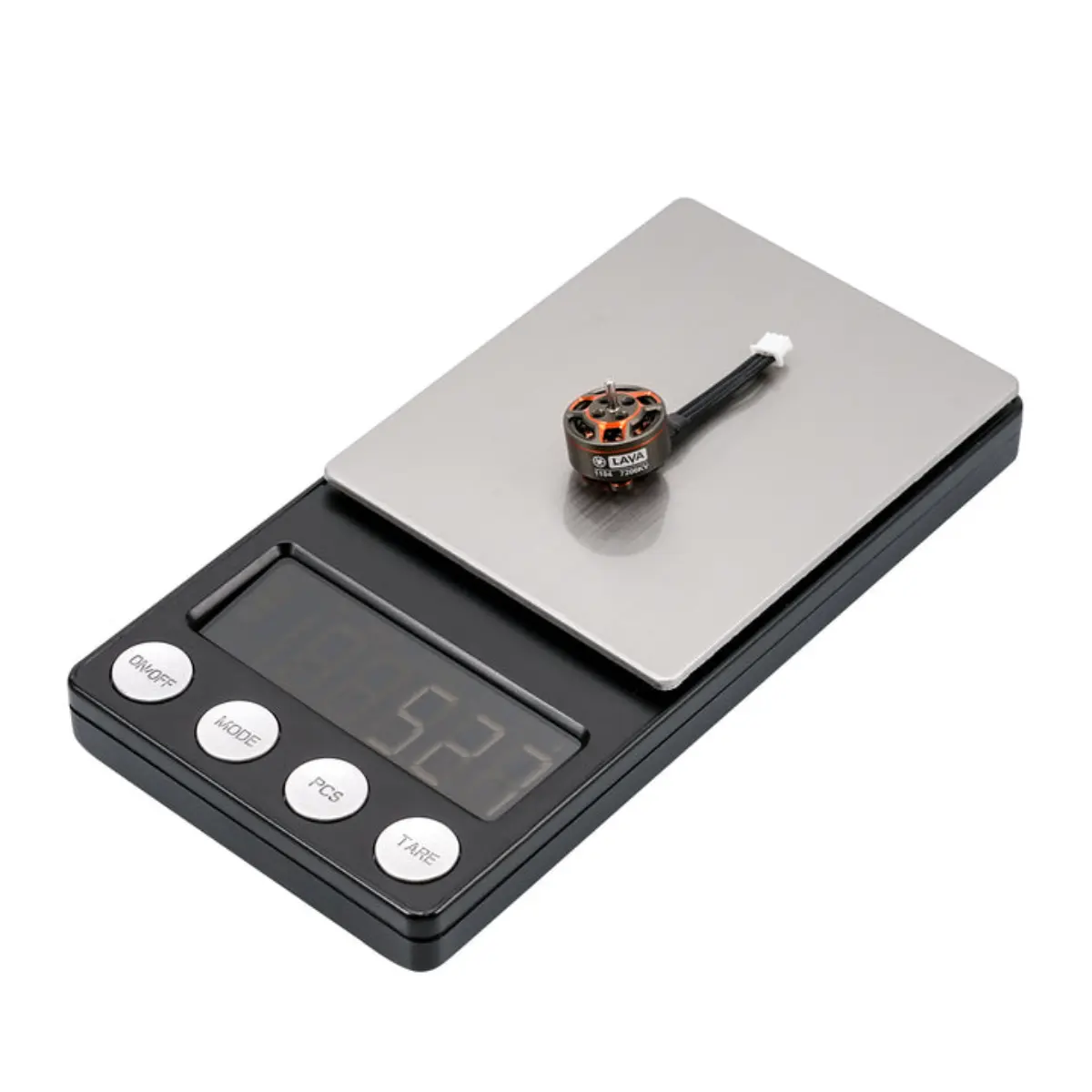

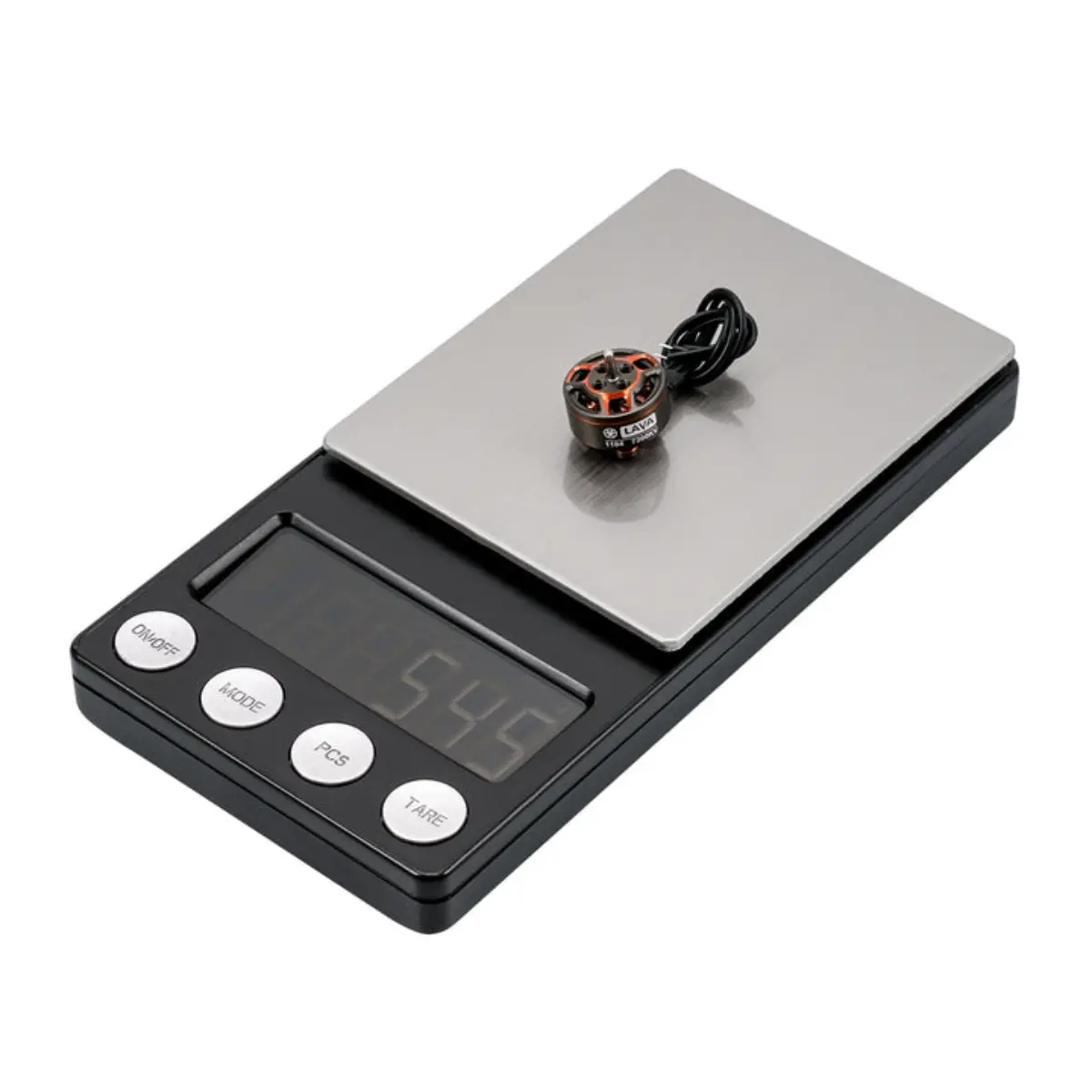

Weight: 5.3g
Shaft Diameter: ø1.5mm
Shaft Length: 5mm
Wire Specification: 28AWG
Wire Length: 24/80mm(Optional)
Motor Mounting Hole Size: 4*M2 Ø9mm
Propeller Mounting Hole Size: 4*M2 Ø5mm

Recommended Parts(Not included):
Props: Gemfan 2218 3-Blade Propellers (1.5mm Shaft)
Quad: Pavo20 Pro Brushless Whoop Quadcopter
FC: F4 2-3S 20A AIO FC V1
Battery: LAVA Series 3S 450mAh / 550mAh Battery

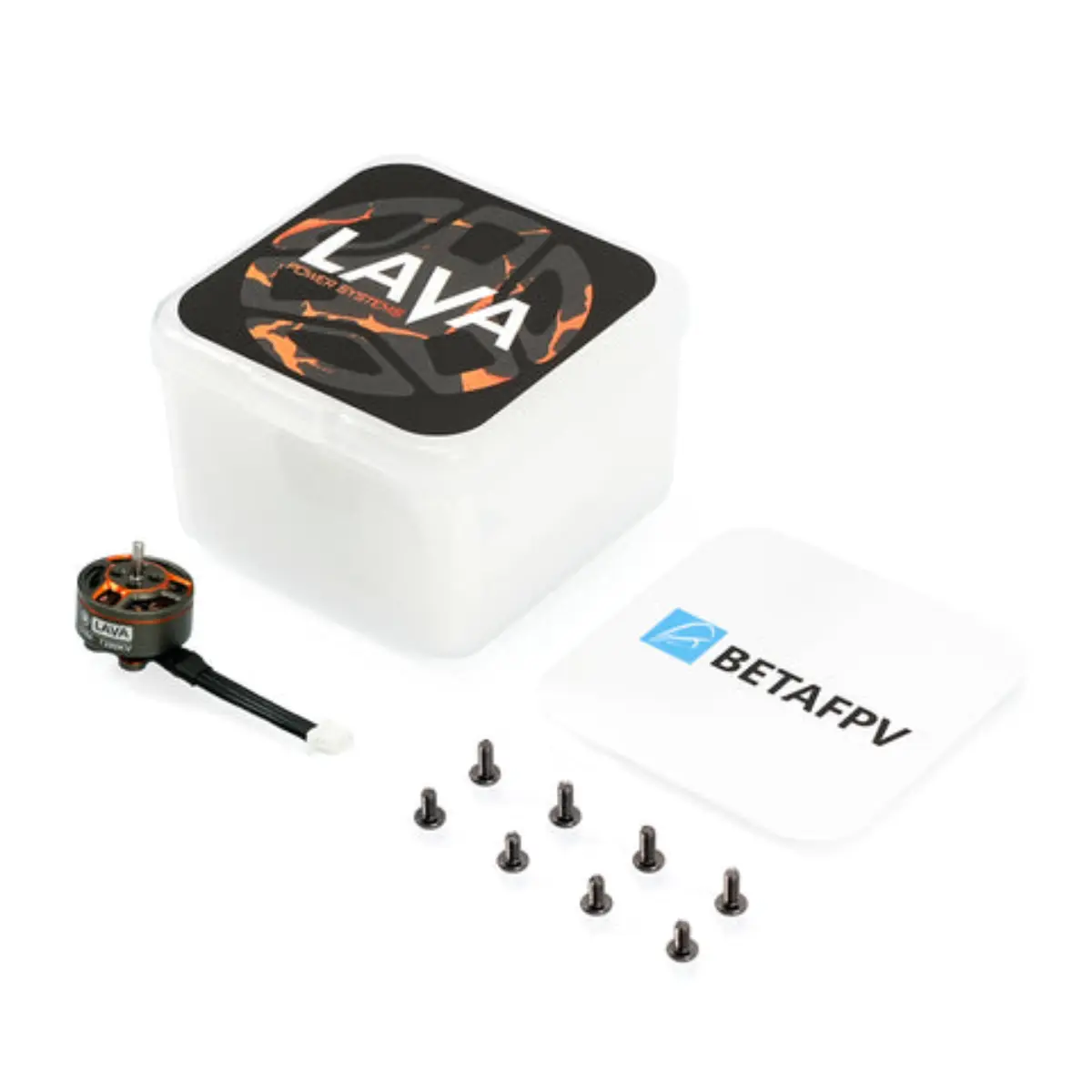

Package included:
1 * LAVA Series 1104 | 7200KV Brushless Motors
4 * M2 * 4 Hex Flat Head Screw
4 * M2 * 5 Hex Flat Head Screw
