Specification:
Camera:

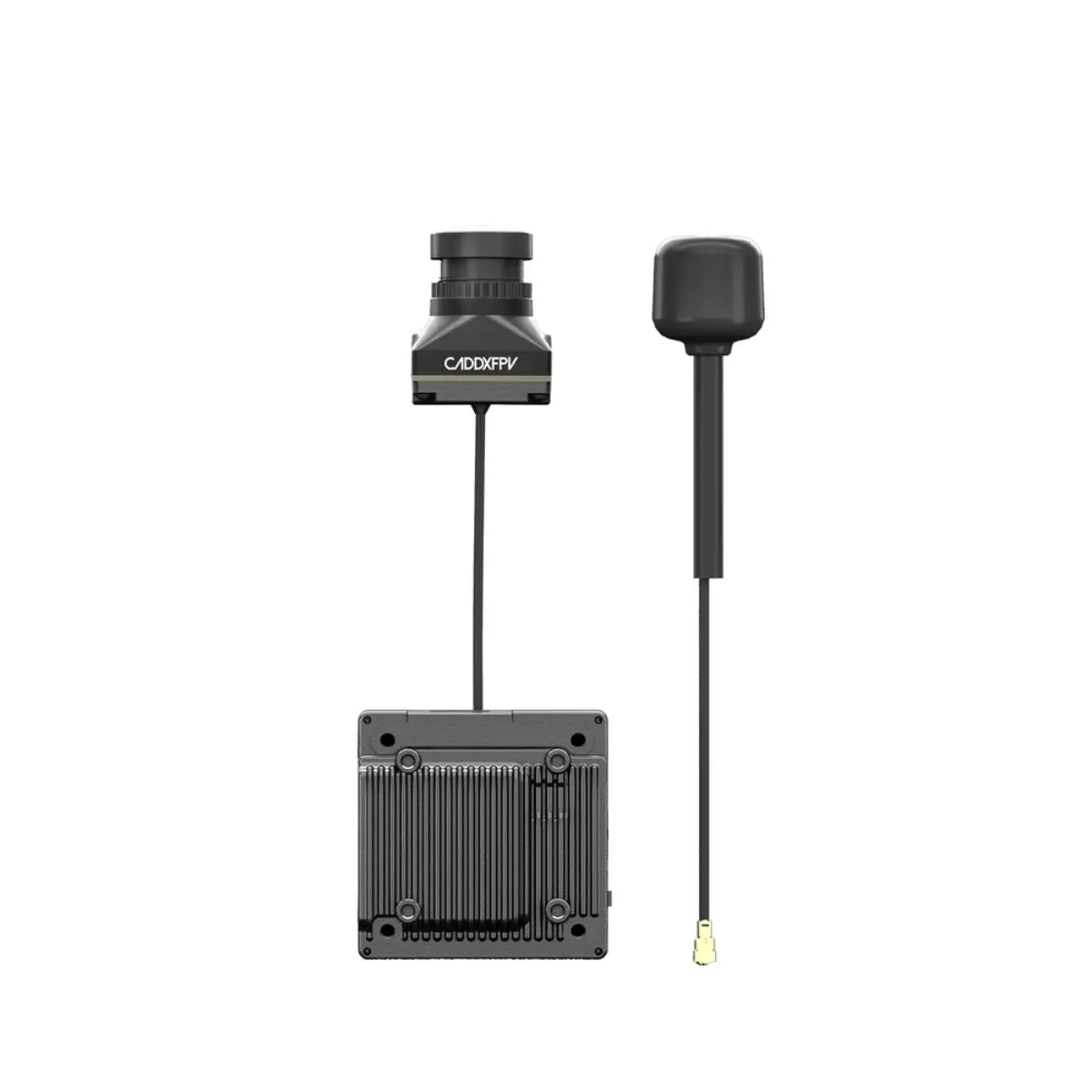

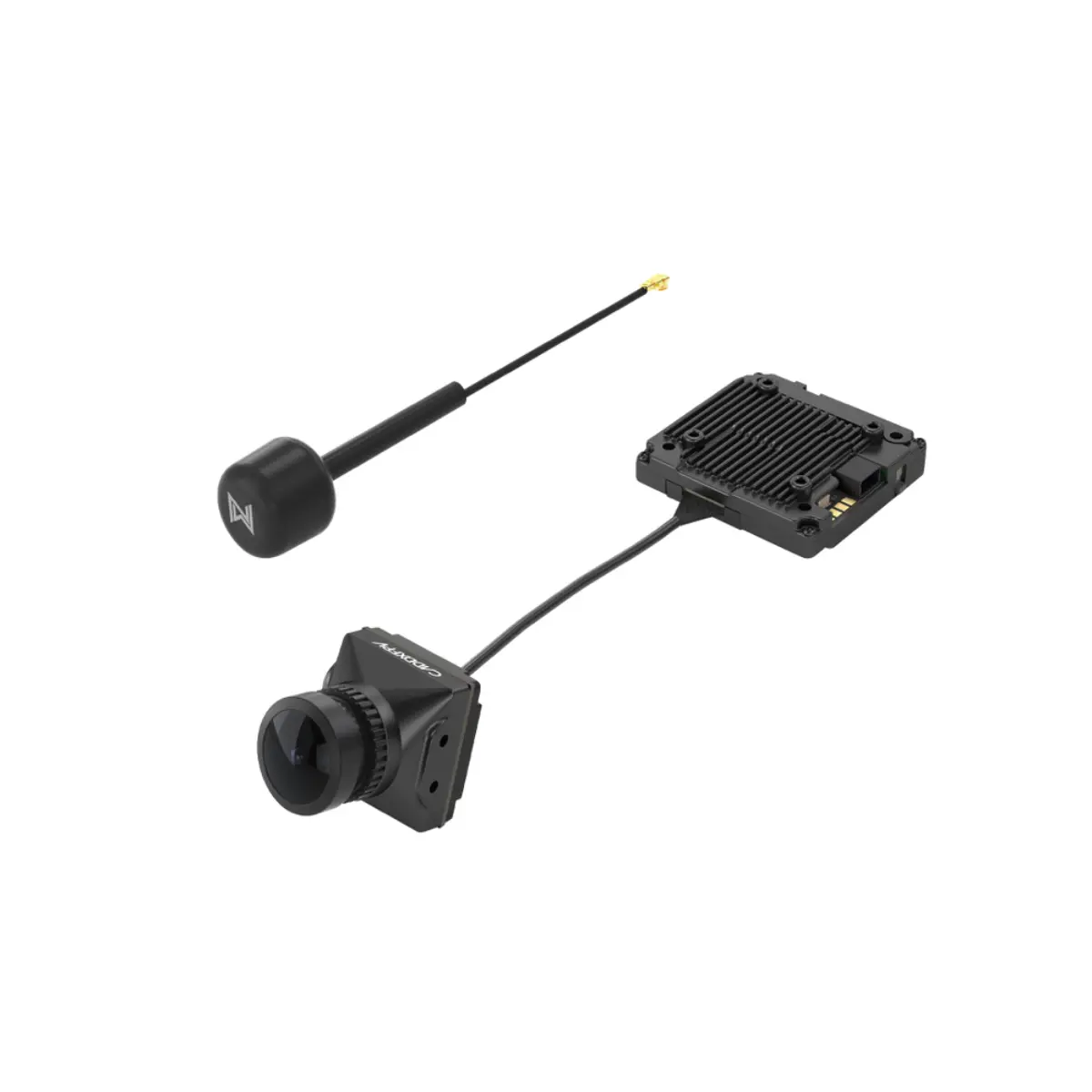

Model: Avatar HD Pro Camera
Image Sensor: 1/1.8-Inch Sony Starvis Ⅱ Sensor
Resolution: 1080P/60fps;720P/120fps,720P/60fps;1080P/120fps compatibility;
Ratio: 16/9; 4/3
Lens: 8Mp
FOV: 160°
Aperture: F1.6
Shutter: Rolling shutter
Min.Illumination: 0.00001Lux
Weight: 9.5g
Dimensions: 19*19*24mm
Coaxial Cable: 140mm

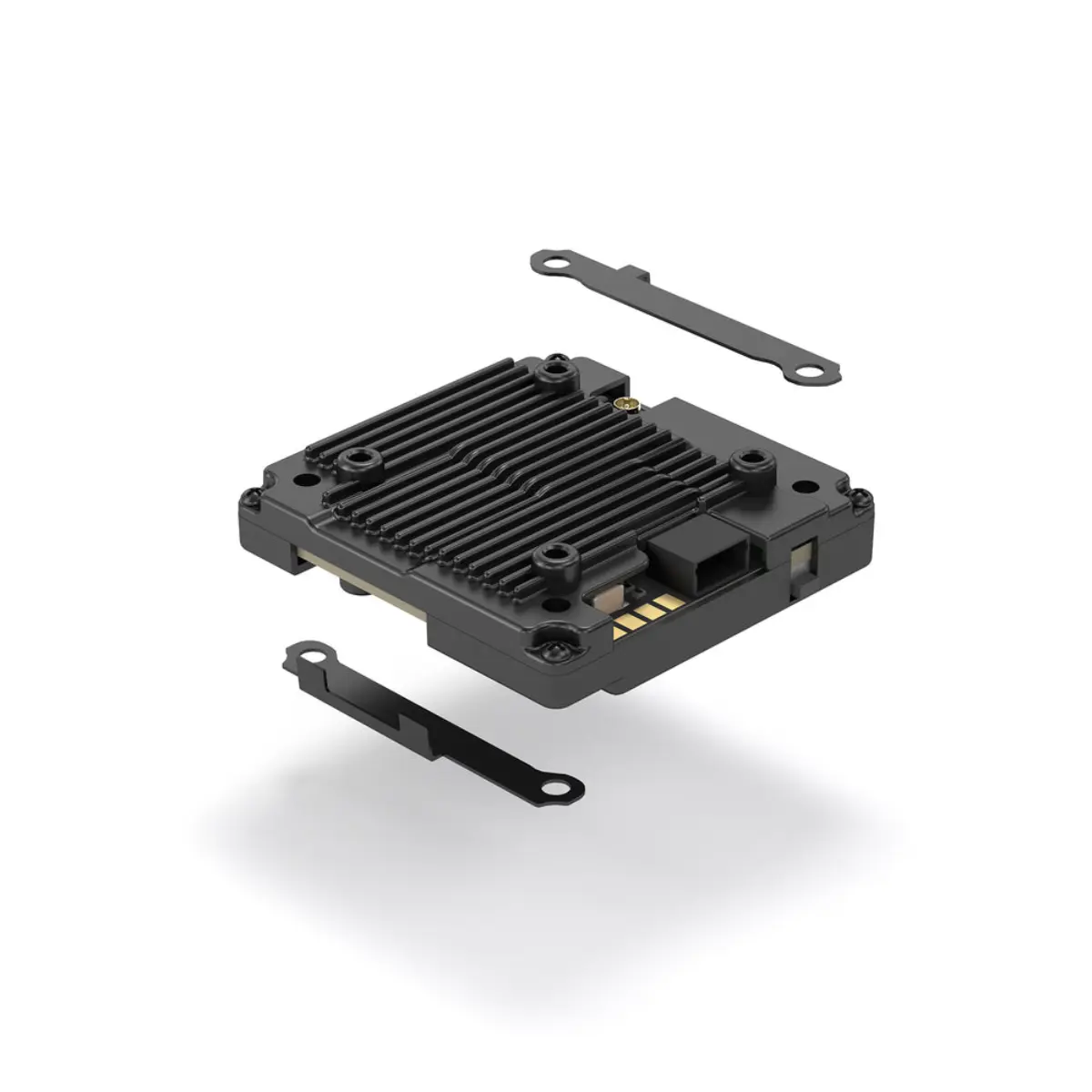

VTX:
Model: Avatar V2 Module
Communication Frequency: 5.725-5.850GHz
Transmitter Power (EIRP): FCC:<30dBm;CE:<14dBm;SRRC:<20dBm;
MIC:<25dBm
1/O Interface: JST1.0*4(Power in)JST0.8*6(USB)
Mounting Holes: 25.5*25.5mm; 20*20mm
Dimensions: 33.5*33.5*10.5mm
Storage: 8G/32G
Recording: 1080p/720p
Weight: 17.6g
Operating Temperature: -20-40℃
Channels: 8
Wide Power Input: 6V-25.2V
Supported FC System: Betaflight; Inav; Fettec; ArduPilot;Kiss
OSD: Canvas mode
Latency: Average delay 22ms
Antenna: 1(IPEX)

Avatar V2 Antenna:
Polarization: LHCP
Frequency range: 5600MHz-6000MHz
Gain: 1.9dBi
VSWR: ≤1.5
Input Impedance: 50Ω
Interface: IPEX-1
Size: R15 X 45mm(without cable)
Weight: 2g

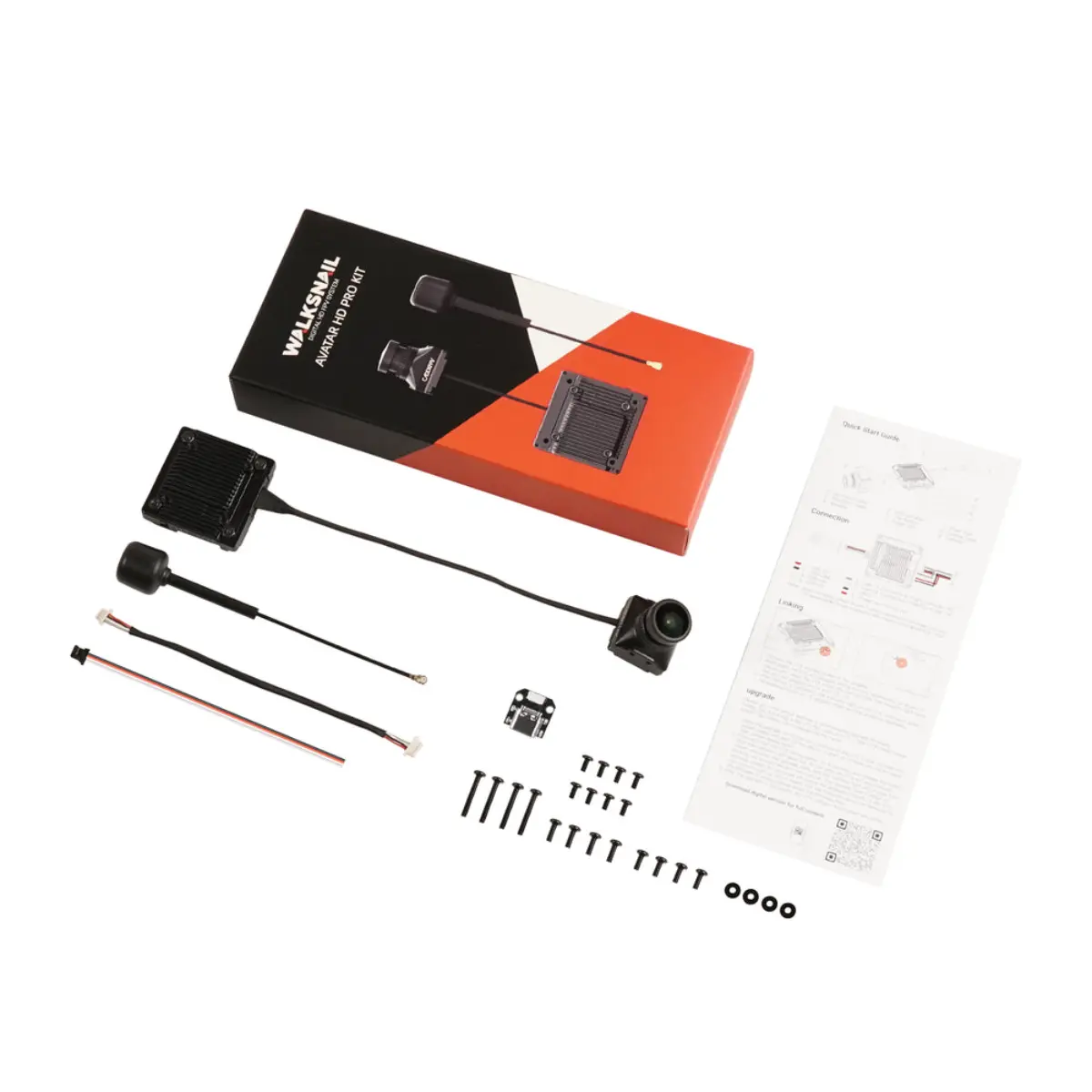

Packing List:
USB transfer extension cable: X1
4 Pin silicone cable: X1
M2*4mm screws: X8
M2*5mm screws: X4
M2*6mm screws: X4
M2*14mm screws: X4
M2*5*0.5mm gasket: X4″
