T-MOTOR MN3510 3510 3-6S Brushless Motor for Fixed Wing
About T-MOTOR MN3510 Multirotor Fixed Wing UAV Motor KV360/KV630/KV700
T-Motor MN3510 KV360/KV630/KV/700 Navigator Series brushless motor is designed for superior performance in UAV applications. With oversized high-quality ball bearings, it ensures smooth, stable operation at low speeds and withstands pressure for enhanced frame stability. Featuring a maximum thrust of 2.2kg and an MTBF of about 1000 hours, the MN3510 offers exceptional balance and durability. Ideal for multi-rotors, VTOL, and fixed-wing UAVs, it combines precision engineering with high-strength construction for reliable, long-lasting performance.
Navigator MN3510 Highlights:
-
Max. thrust:2.2kg
-
MTBF：About1000hours
-
Features：Super Balance; High Strength Construction
Application Areas：
Multi-rotors, VTOL, and Fixed-wing UAVs.

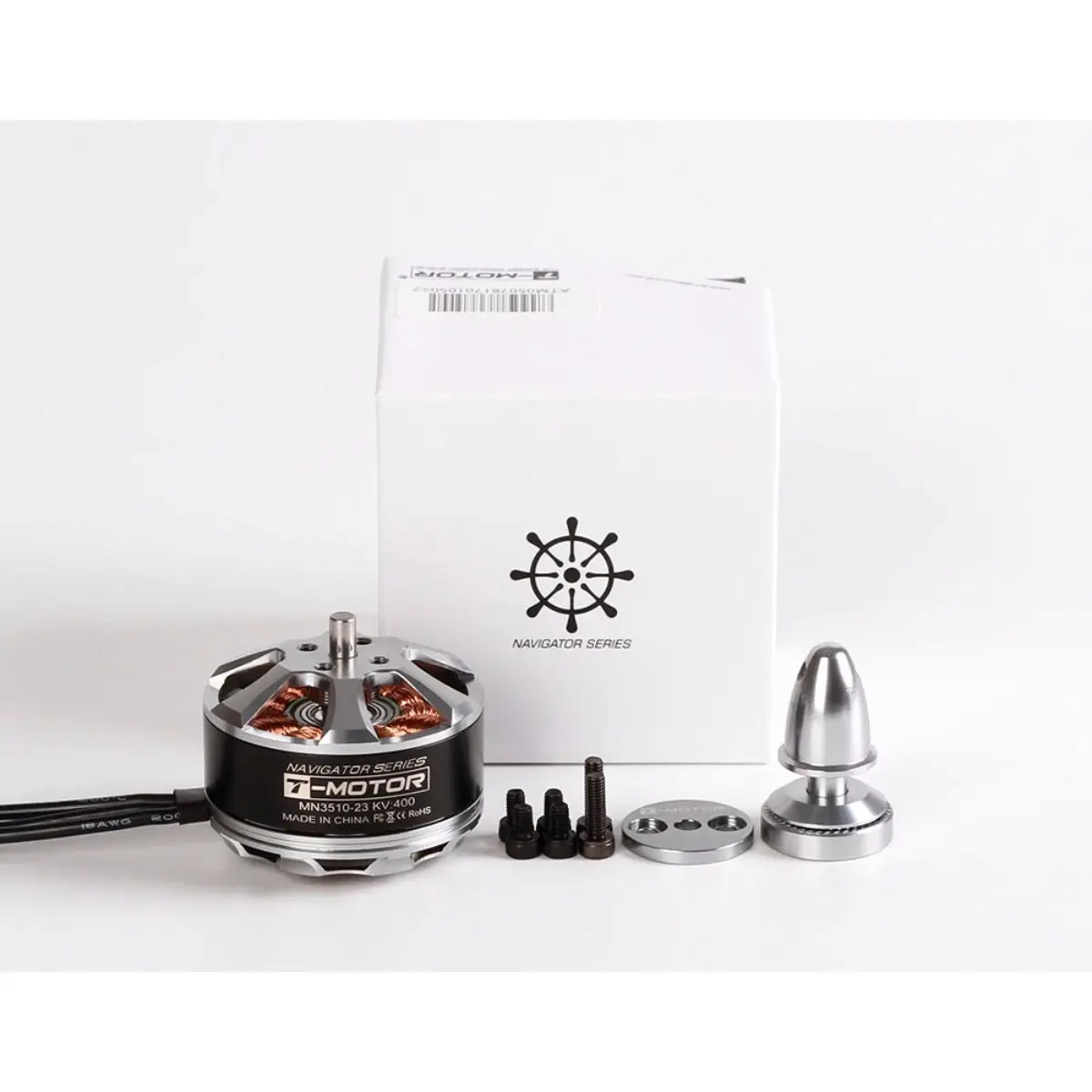

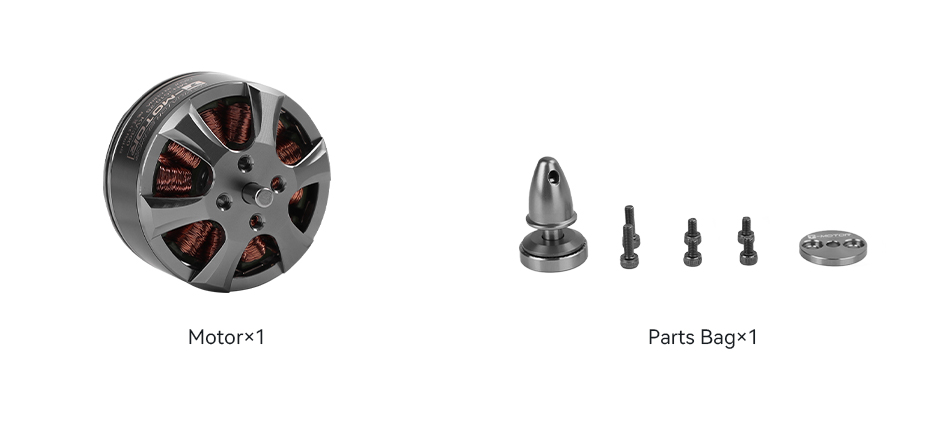

Packing List Includes:
1x T-MOTOR MN3510 Motor KV360/KV630/KV700( kv which you choose)
1x Hardware pack

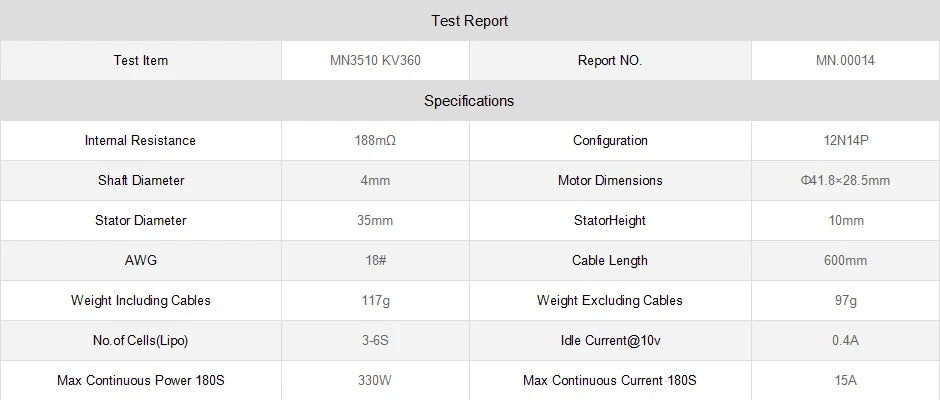

Specifications for the MN3510 KV360 motor include an internal resistance of 188mΩ, a configuration of 12N14P, a shaft diameter of 4mm, and a stator height of 10mm. The AWG 18 cable has a length of 600mm, weighing 97g without cables. This brushless motor is suitable for use with lithium-ion polymer (Lipo) batteries in the range of 3-6S cells. At idle current at 10V, the motor draws 0.4A. Its maximum continuous power output is 180S and 330W, with a maximum continuous current of 15A (or 3.3A per phase).

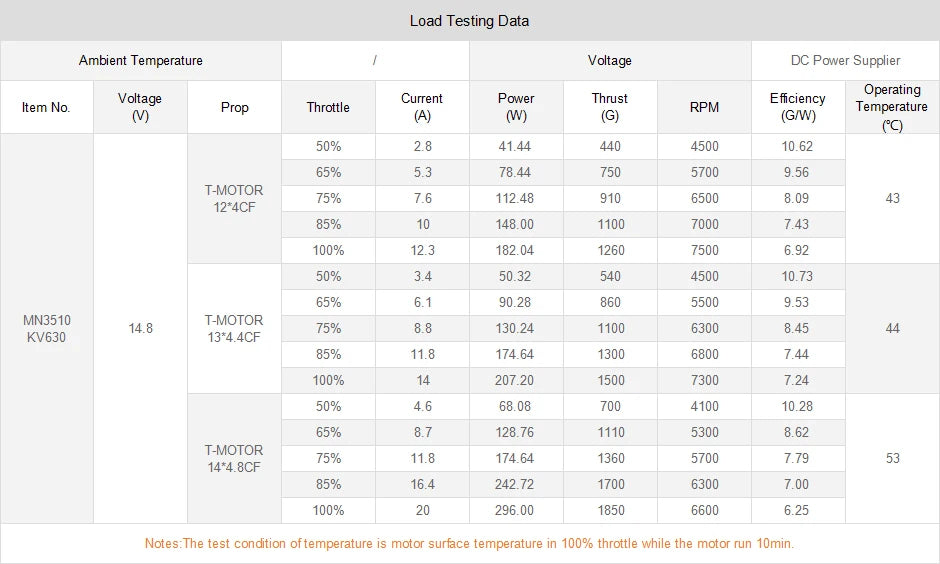

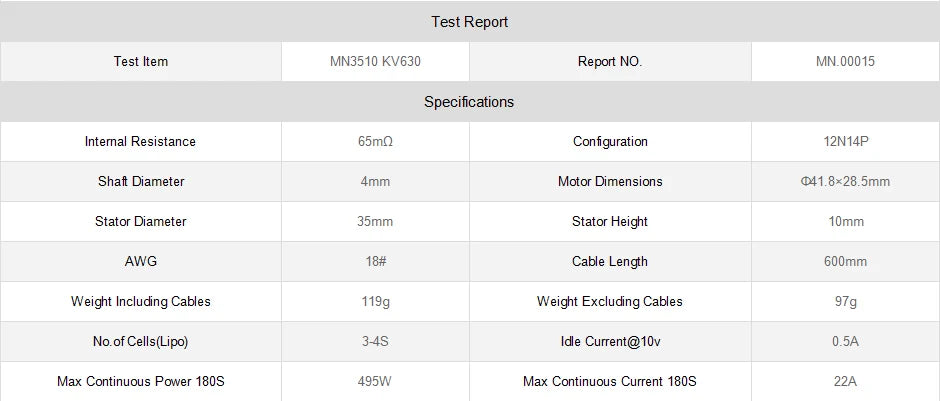

Test Report: MN3510 KV630 (Report No. MN00015) Specifications: * Internal Resistance: 65mΩ * Configuration: 12Ni4P * Shaft Diameter: 4mm * Stator Height: 10mm * Cable Material: AWG 18# * Cable Length: 60cm * Weight (including cables): 119g * Weight (excluding cable): 97g * Number of Cells (Lipo): 34S * Idle Current @ 1.0V: 0.5A * Maximum Continuous Power: 180S, 495W * Maximum Continuous Current: 180S, 22A

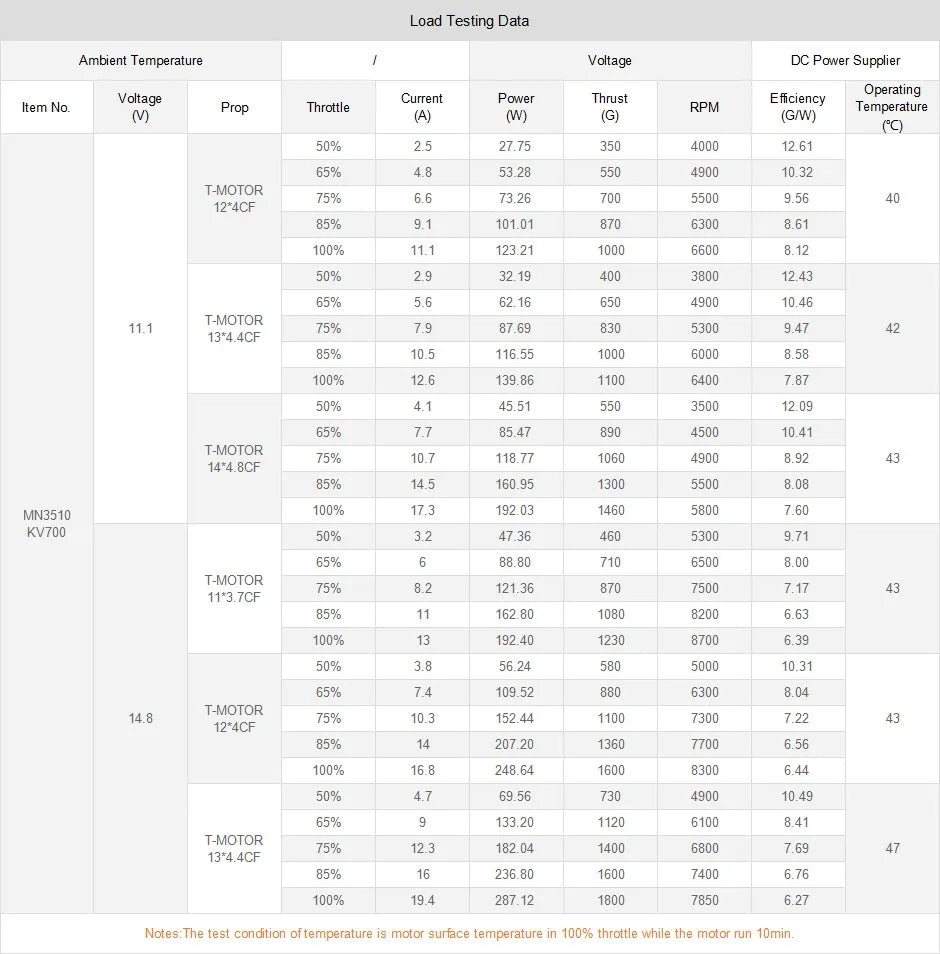

Test Report Test Item MN3510 KVZOO Report NO. MN.00016 Specifications Internal Resistance 50mf Configuration 12NI4P Shaf Diameter 4mm Motor Dimensions 041.8*28.5mm Stator Diameter 35mm stator height 1Omm AWG 18# Cable Length 60Omm Weight Including Cables 118g Weight Excluding cables 97g Noof Cells(Lipo) 34S Idle Current@1Ov 0.5
| KV | 360KV, 630KV, 700KV |
|---|
