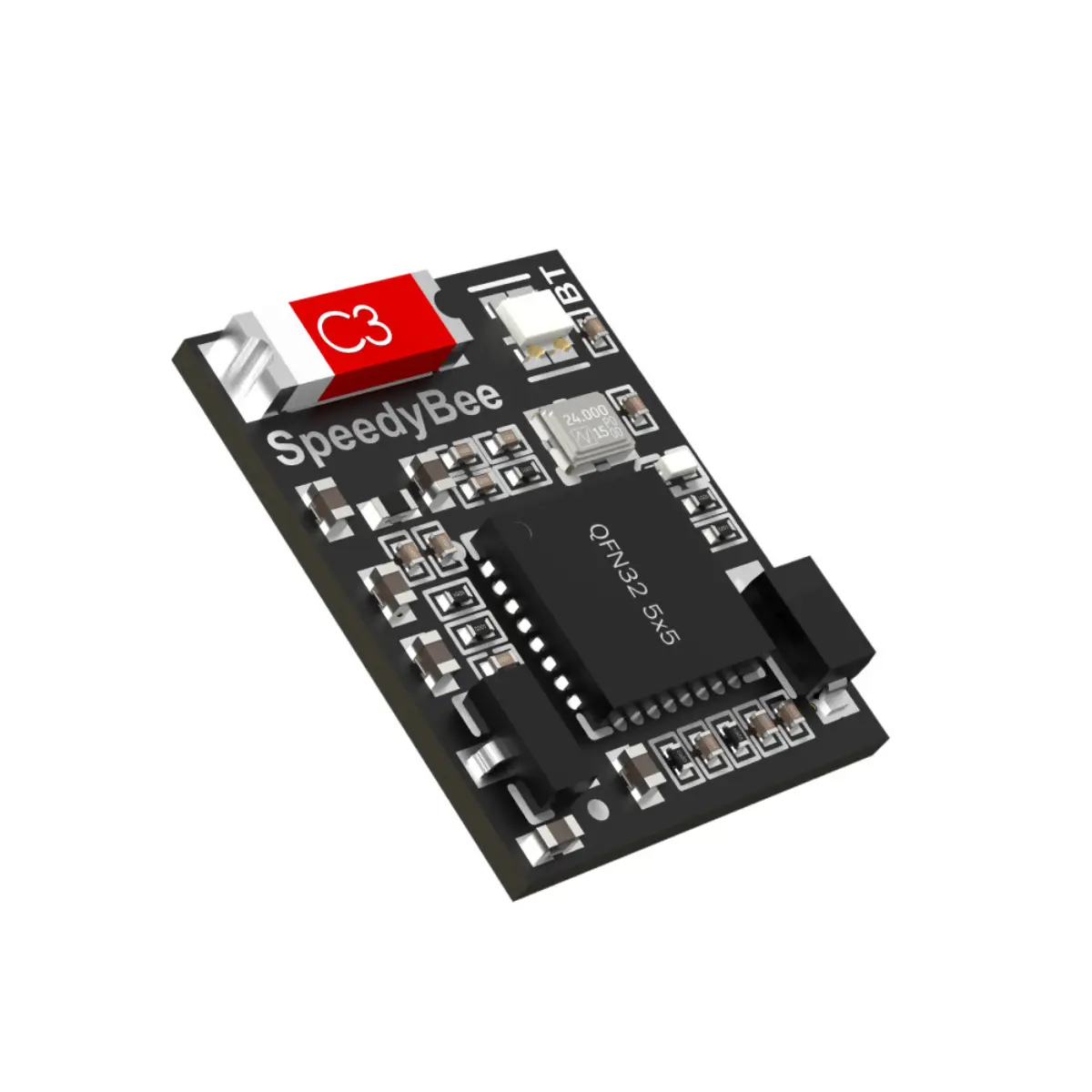

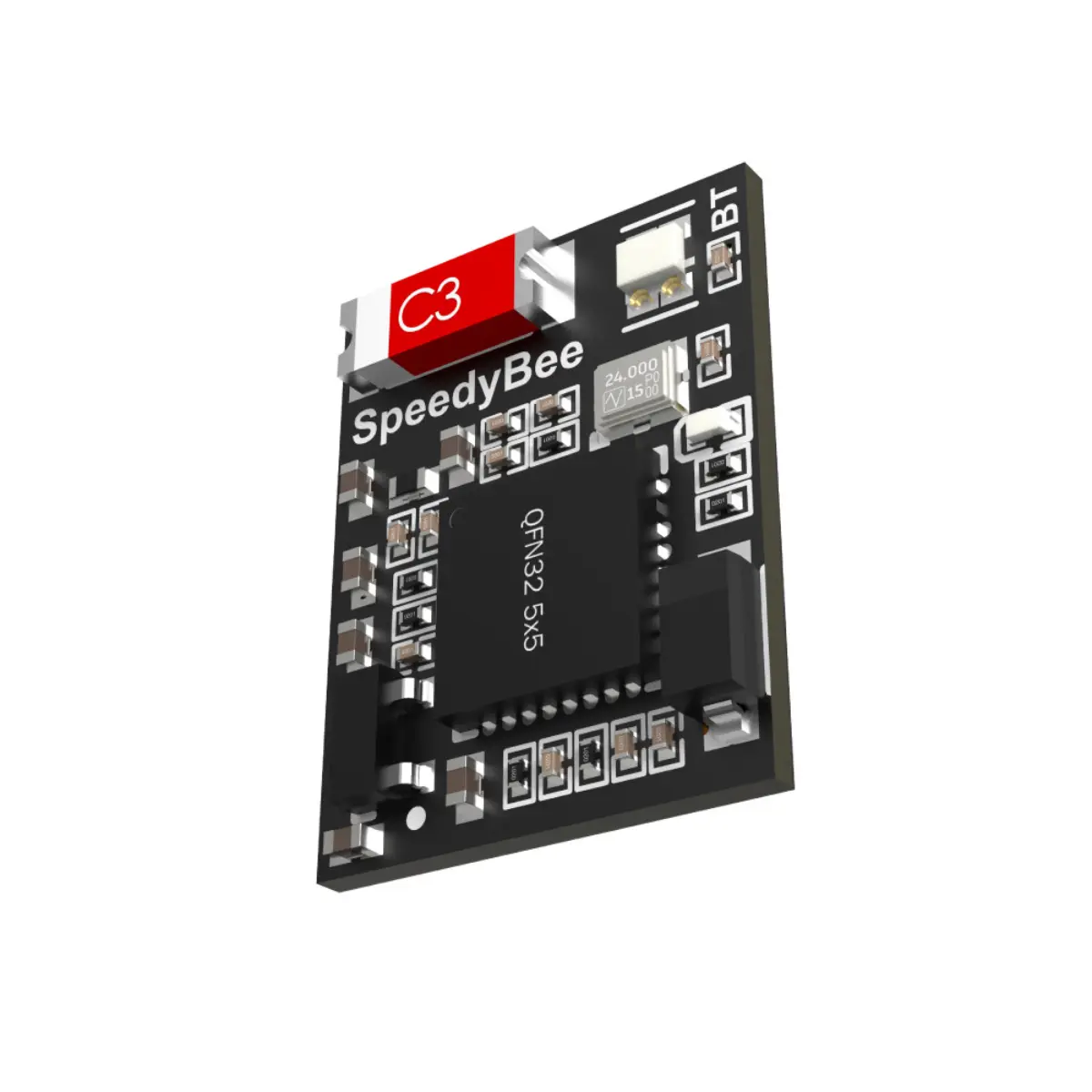

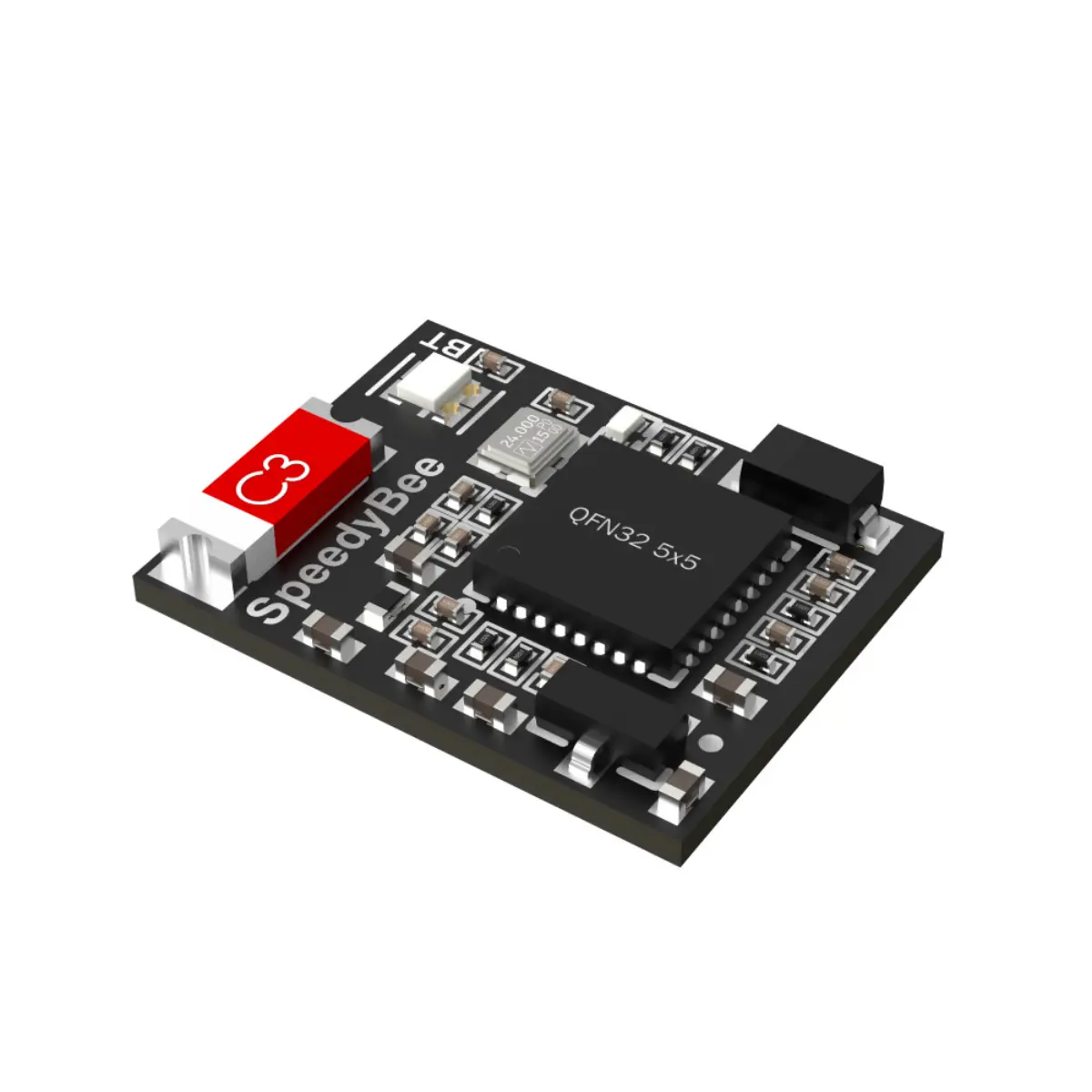

SpeedyBee BT Nano 3 Wireless FC Configuration
Stok 10
Specifications
| Product Name | SpeedyBee BT Nano 3 |
| Operating Voltage | 5V |
| Working Current | MAX~87mA(5V) |
| Bluetooth Low Energy | Supports |
| WiFi | Supports. It will be turned on automatically only when upgrading the firmware of the module itself. |
| Communication Port | UART |
| Baudrate | 115200 |
| Bluetooth Automatically Turns Off | Enabled by default, the module will automatically detect the armed/ disarmed status of the FC. During the flight of the drone, the Bluetooth function will be disabled to prevent other wireless devices from being interfered by the Bluetooth signal. |

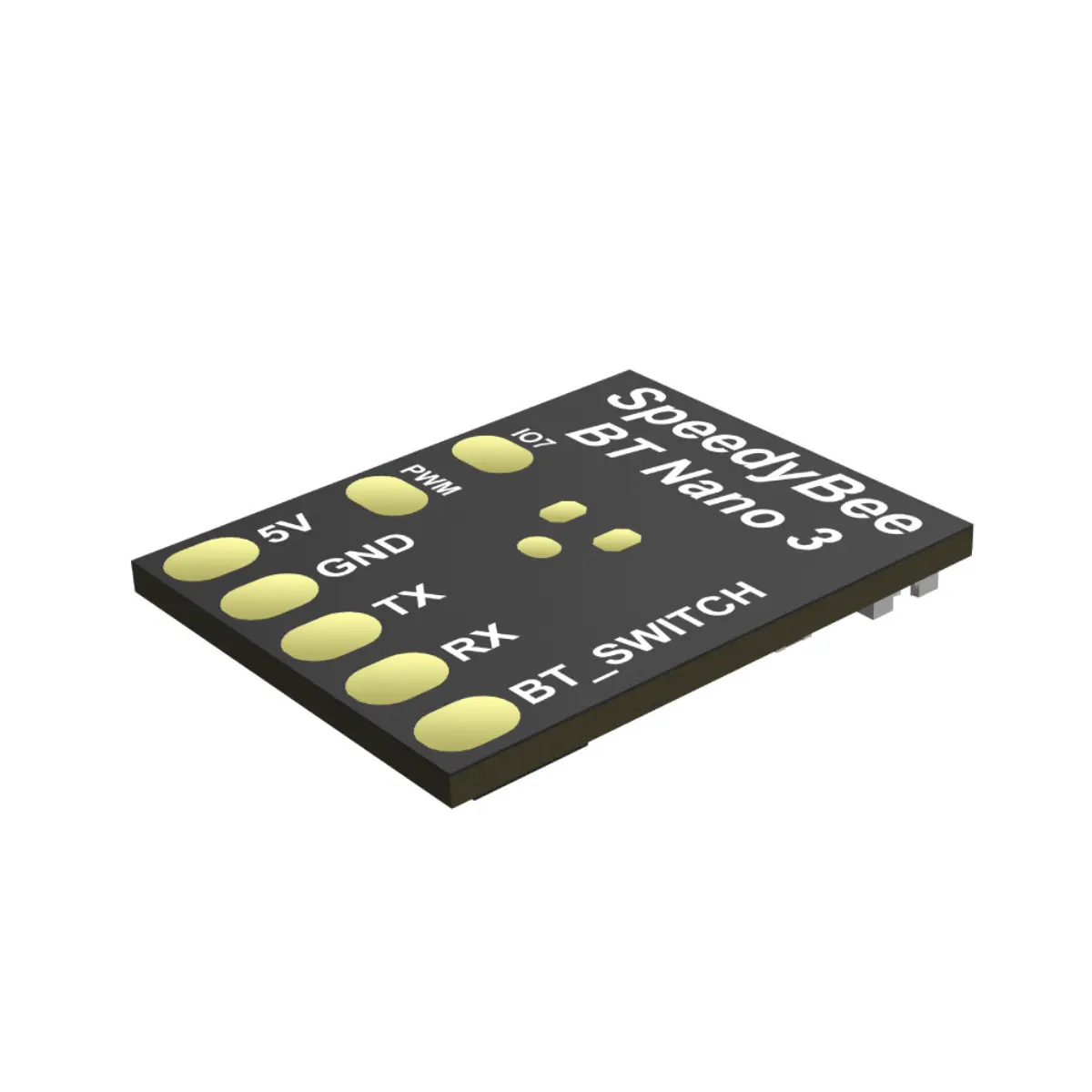

| BT Switch Pad | The Bluetooth function will be disabled when it receives a Low signal.In the BT Switch section of the manual, you can learn about the detailed instructions |
| Power Indicator | Solid Red: Indicates that the module is powered. |
| Working Status Indicator | Flashing white: Indicates that the UART communication with FC is abnormal, please check whether the wiring and settings are correct.
Solid White: Indicates that the communication with FC is normal, you can use the App for wireless parameter adjustment Flashing green: Indicates that the wireless signal is being connected Solid Green: Indicates that the connection with the App has been successful |
| Size | 14*11*0.8mm |
| Weight | 5g |
Manufacturer website:
https://www.speedybee.com/speedybee-bt-nano-3-wireless-fc-configuration/
| Berat | 0,1 kg |
|---|
Cek Ongkir
Setiap pesanan dikemas dengan aman untuk membantu menjaga produk selama proses pengiriman. Kami menawarkan produk original dengan harga yang kompetitif dan layanan terbaik. Pilihan metode pengiriman yang tersedia akan ditampilkan saat checkout sesuai dengan produk dan alamat tujuan.
Kami berkomitmen menyediakan produk original dan layanan terbaik. Apabila produk yang Anda terima tidak sesuai atau mengalami kerusakan saat diterima (DOA), silakan hubungi Customer Support maksimal 48 jam setelah paket diterima. Pengembalian barang, pengembalian dana, dan garansi mengikuti Kebijakan Pengembalian Dana dan Barang yang berlaku.
