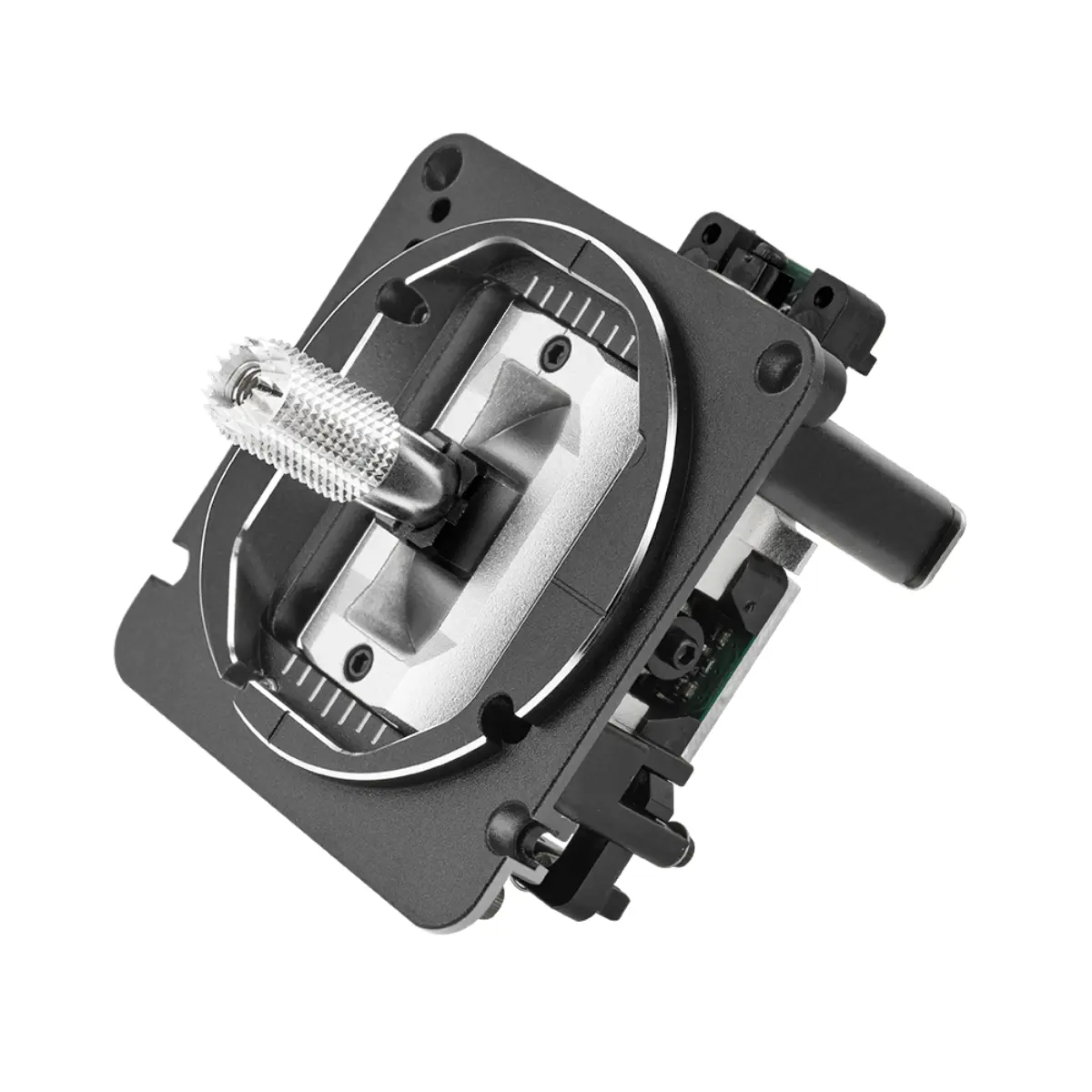

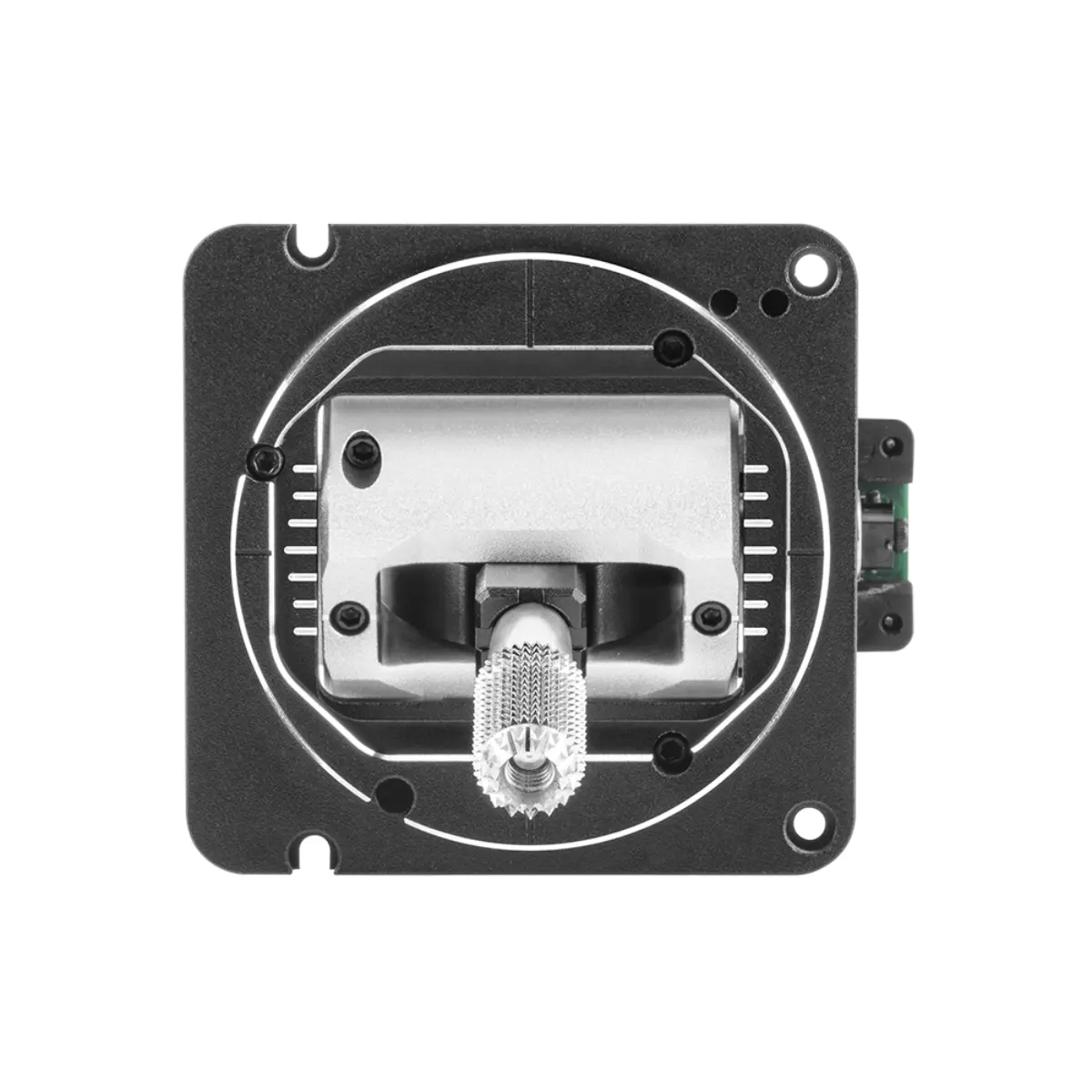

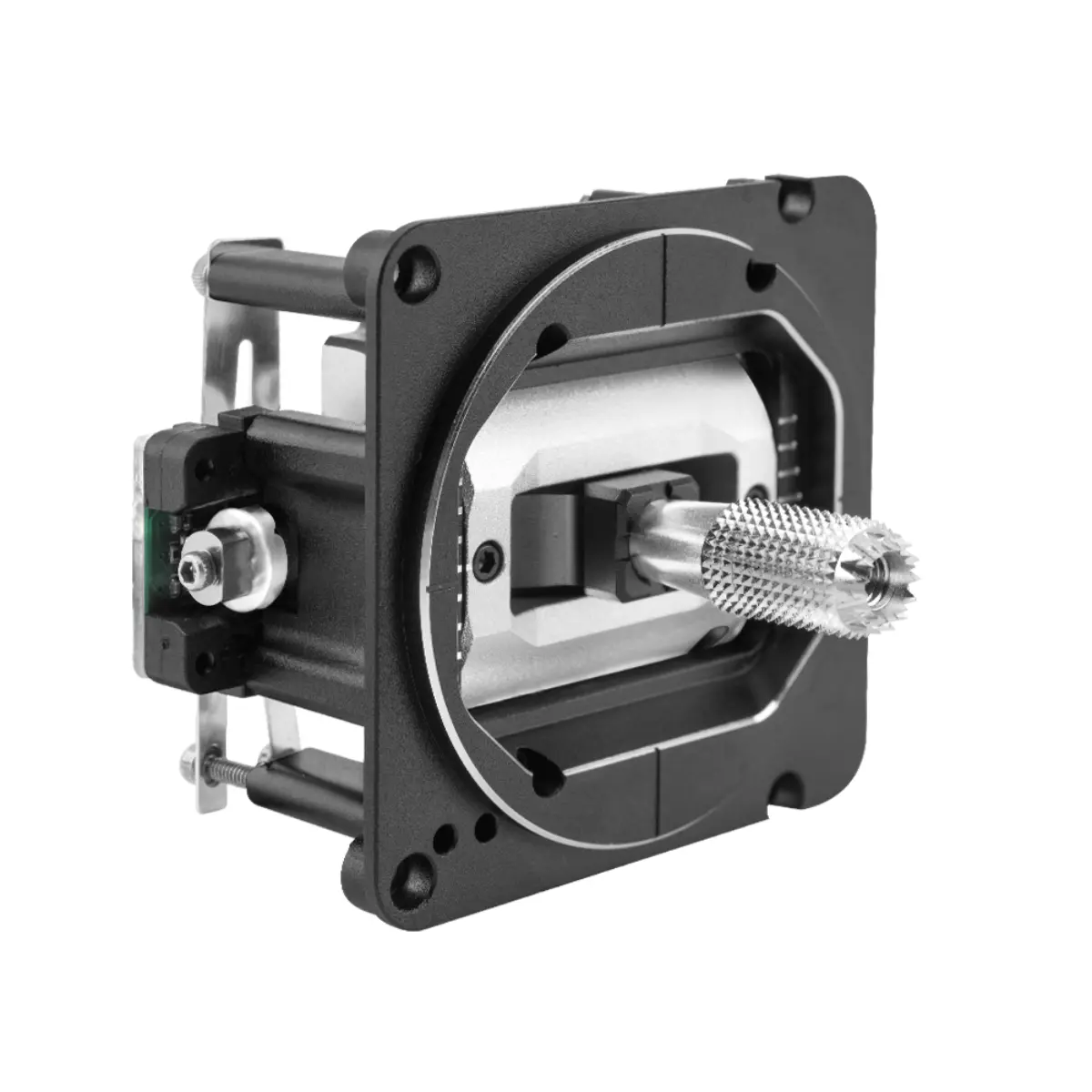

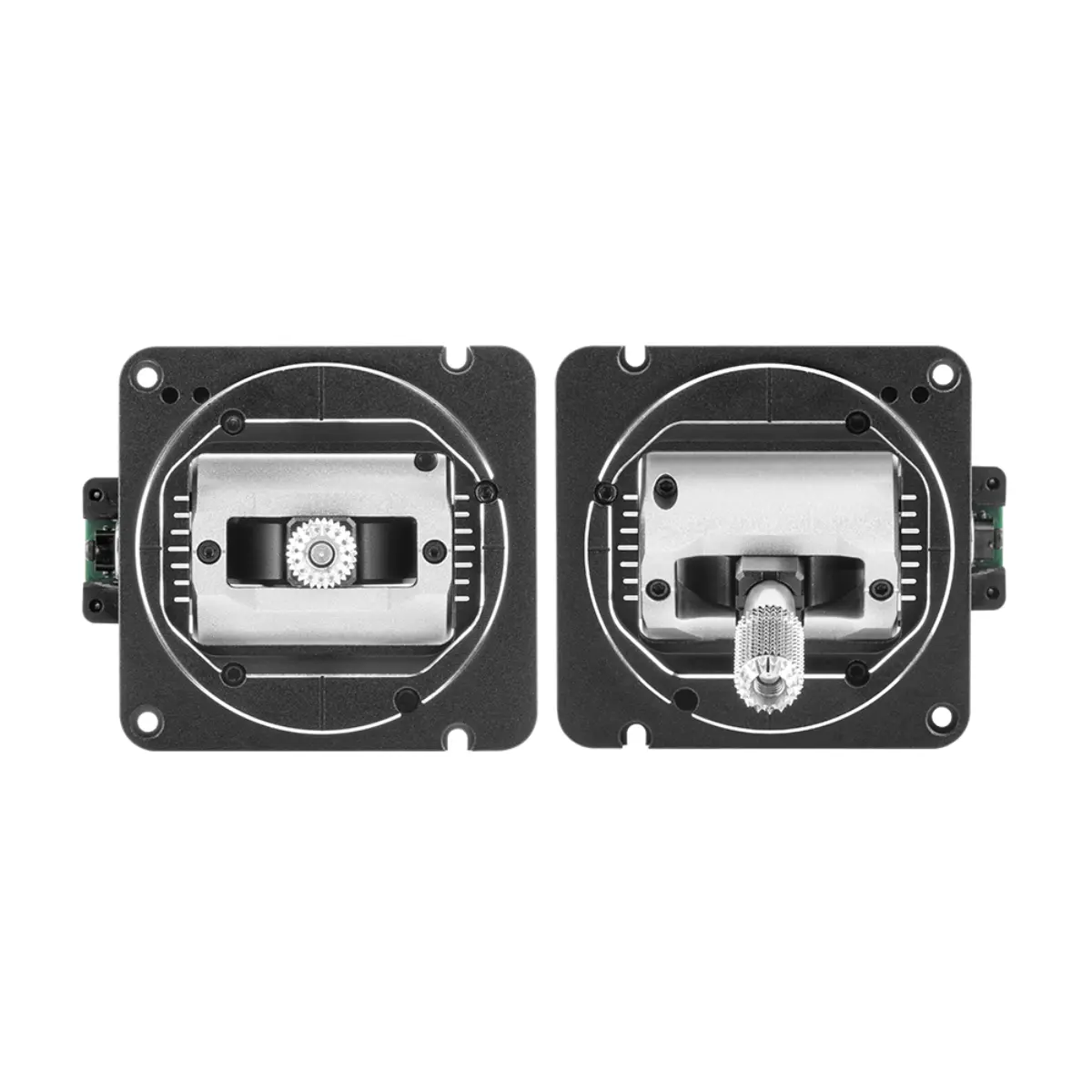

The AG02 gimbals are precision-engineered from machined aluminum, offering adjustable travel on both vertical and horizontal axis for highly responsive, customizable control. A redesigned, lightweight structure reduces rotational inertia by 21.6% compared to the previous generation, delivering smoother, faster stick input for improved response.

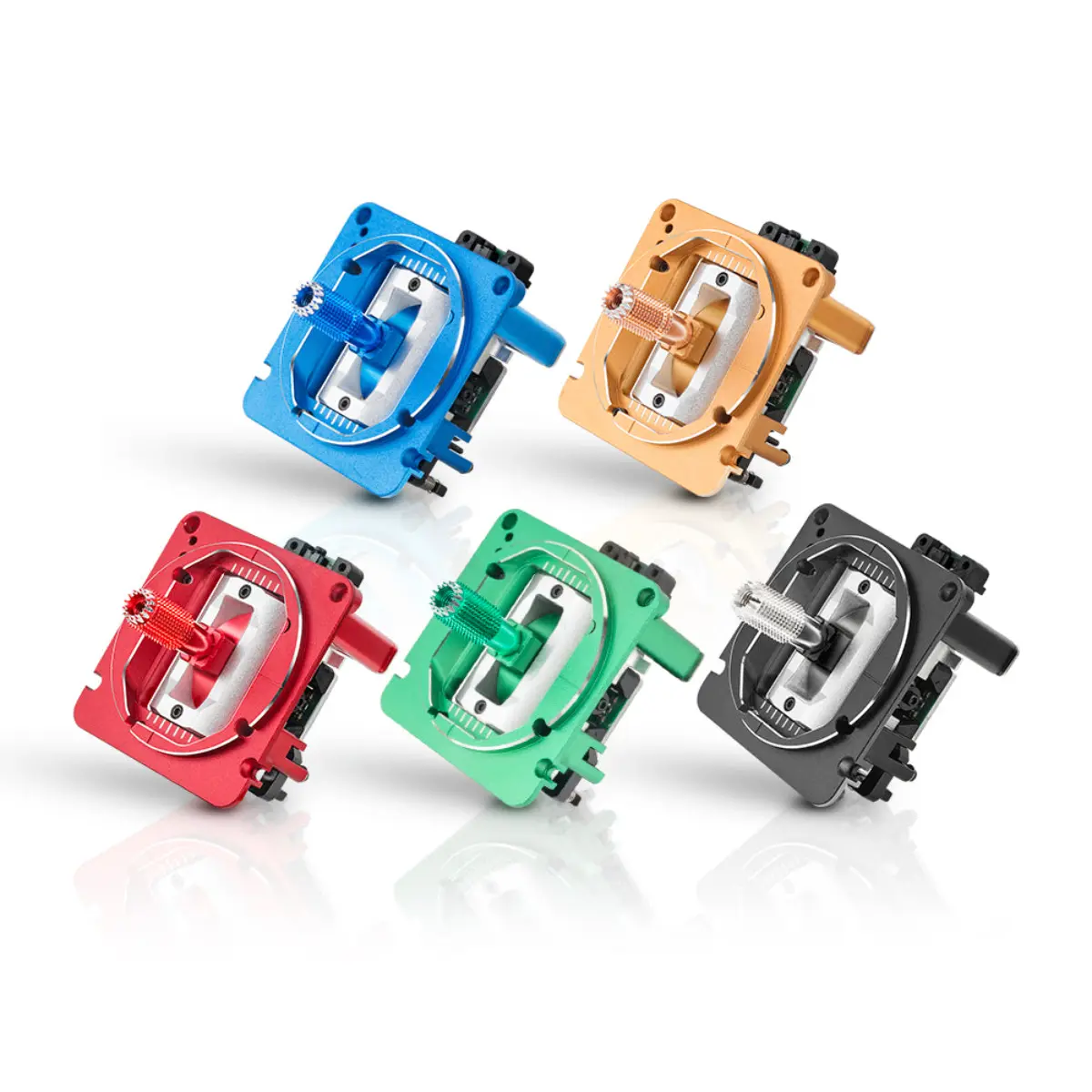

Equipped with advanced Hall effect sensors, the AG02 provides low-noise, rapid response, and exceptional accuracy. The anodized aluminum finish—available in Black, Red, Blue, Green or Gold—offers durability with a refined, professional look. Mounting is fully compatible with AG01 gimbals, ensuring an easy upgrade path.

Features
Full Aluminum Construction: Key structural areas are optimized to reduce rotational inertia by over 20% while maintaining rigidity, delivering smoother and more responsive control.

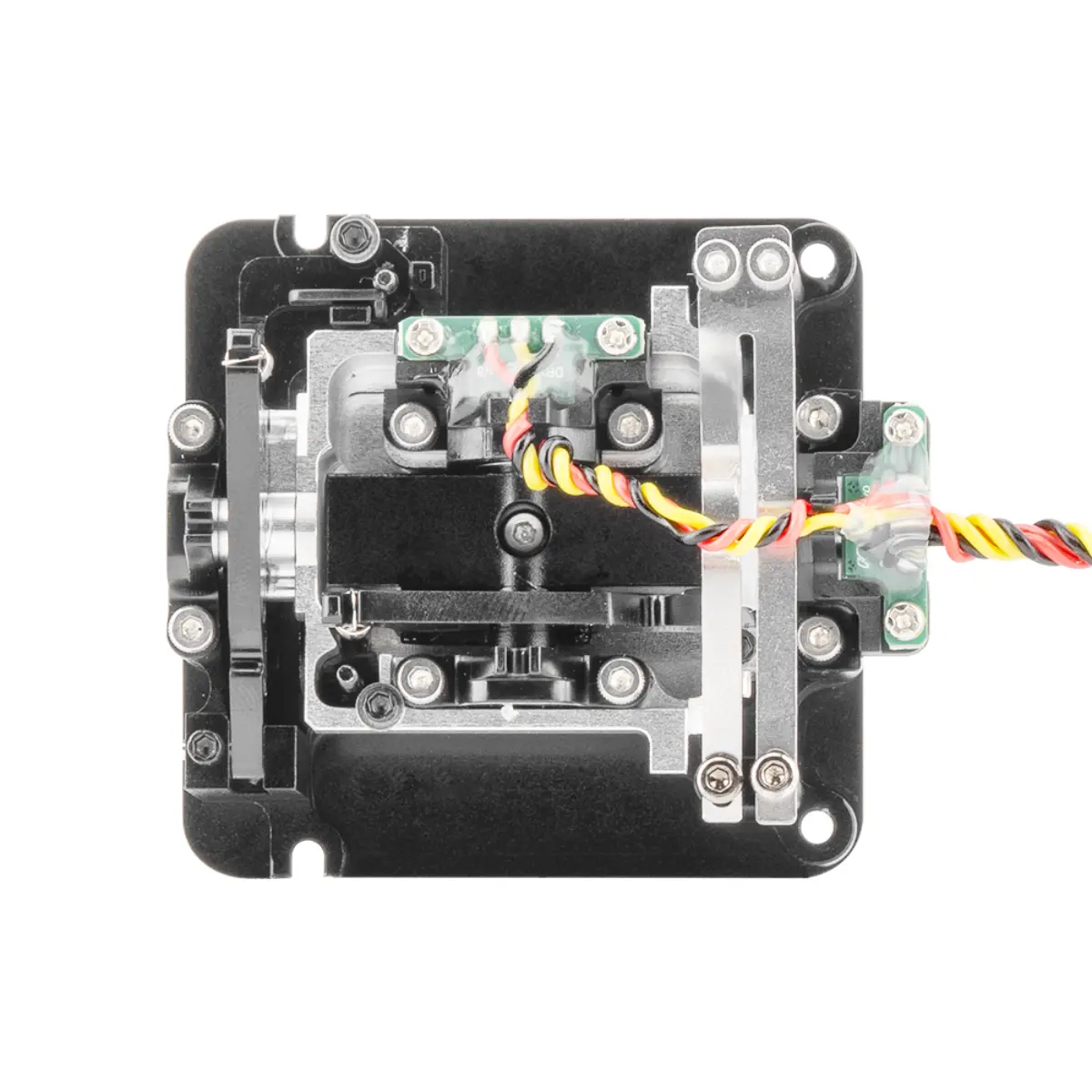

Next-Generation Low-Noise Hall Sensors: Offer ultra-fast response without compromising accuracy or stability.
Adjustable Travel: Vertical and horizontal Travel adjustment for the perfect feel for any pilot.
Quad precision bearings: For unparalleled stick feel.
100% Mounting Compatibility with Previous Generations: If you already use full-size RadioMaster gimbals, the AG02 can be directly installed as an upgrade—no modifications required.
Designed for RadioMaster TX16, TX15, Boxer Radio Controllers

Specifications
Item: AG02 CNC Hall Gimbals Set
Sensor Type: Hall Analog
Operating Voltage: DC 3.3V
X-Axis Travel Adjustment Range: 30° – 56°
Y-Axis Travel Adjustment Range: 38° – 54°
Throttle Mode Switch (Mode 1/2) Without Disassembly: Supported
Spring Tension Adjustment Without Disassembly: Supported
Quad Ball Bearings: Yes
Operating Temperature Range: -20°C to +85°C
Dimensions (Excluding Stick Ends): 53 × 53 × 33.3 mm
Weight: 73 g ± 1 g (per unit)

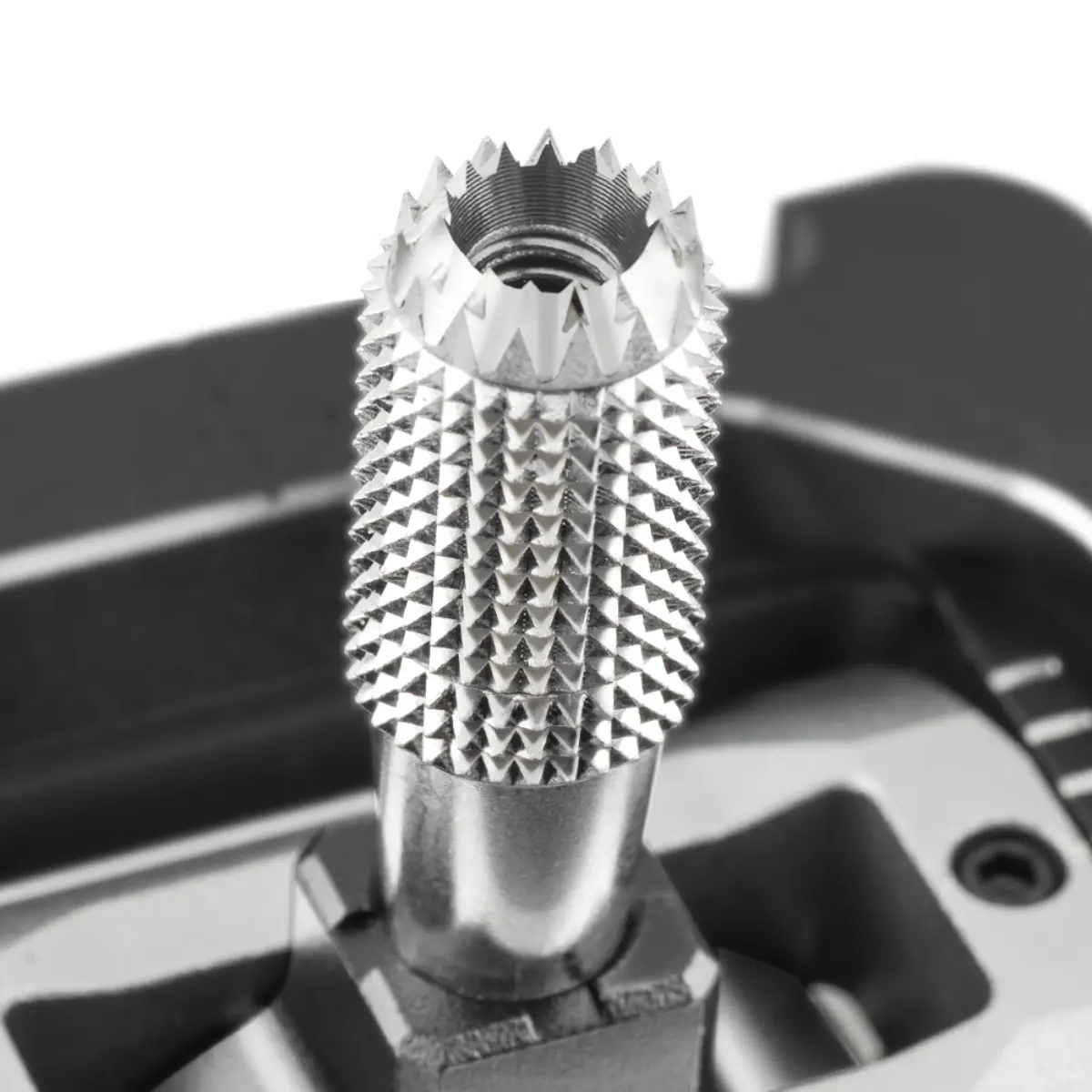

Gimbal Sticks: M4

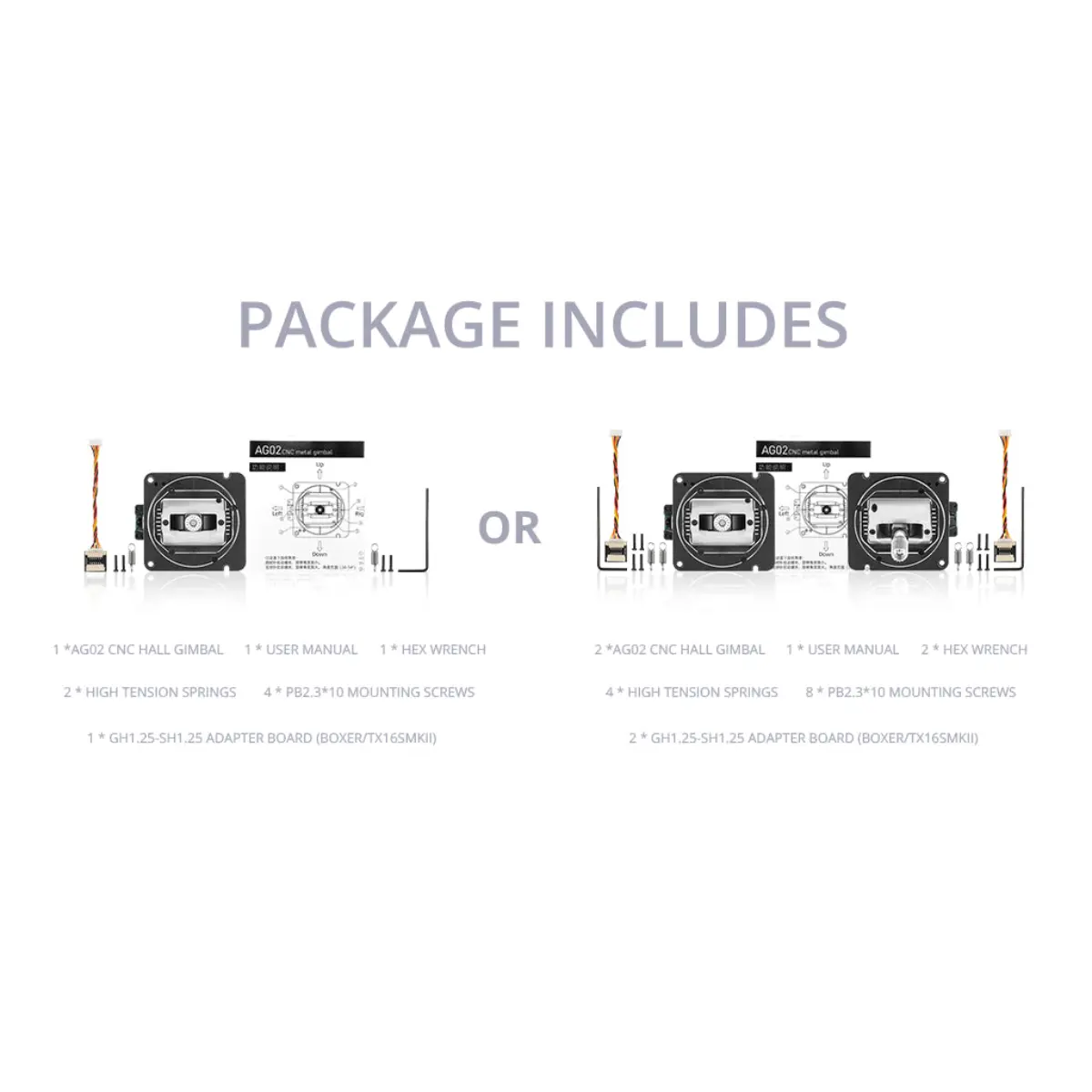

Package Includes
1 Pair of AG02 CNC Hall Sensor Gimbals
4 * High Tension Springs
2 * GH1.25-SH1.25 adapter board (Boxer/TX16sMKII)
8 * PB2.3*10 Mounting Screws
2 * Hex Wrench
1 * User Manual
Or

1 * AG02 CNC Hall Gimbal (Centering)
2 * High Tension Springs
1 * GH1.25-SH1.25 adapter board (Boxer/TX16sMKII)
4 * PB2.3*10 Mounting Screws
1 * Hex Wrench
1 * User Manual
