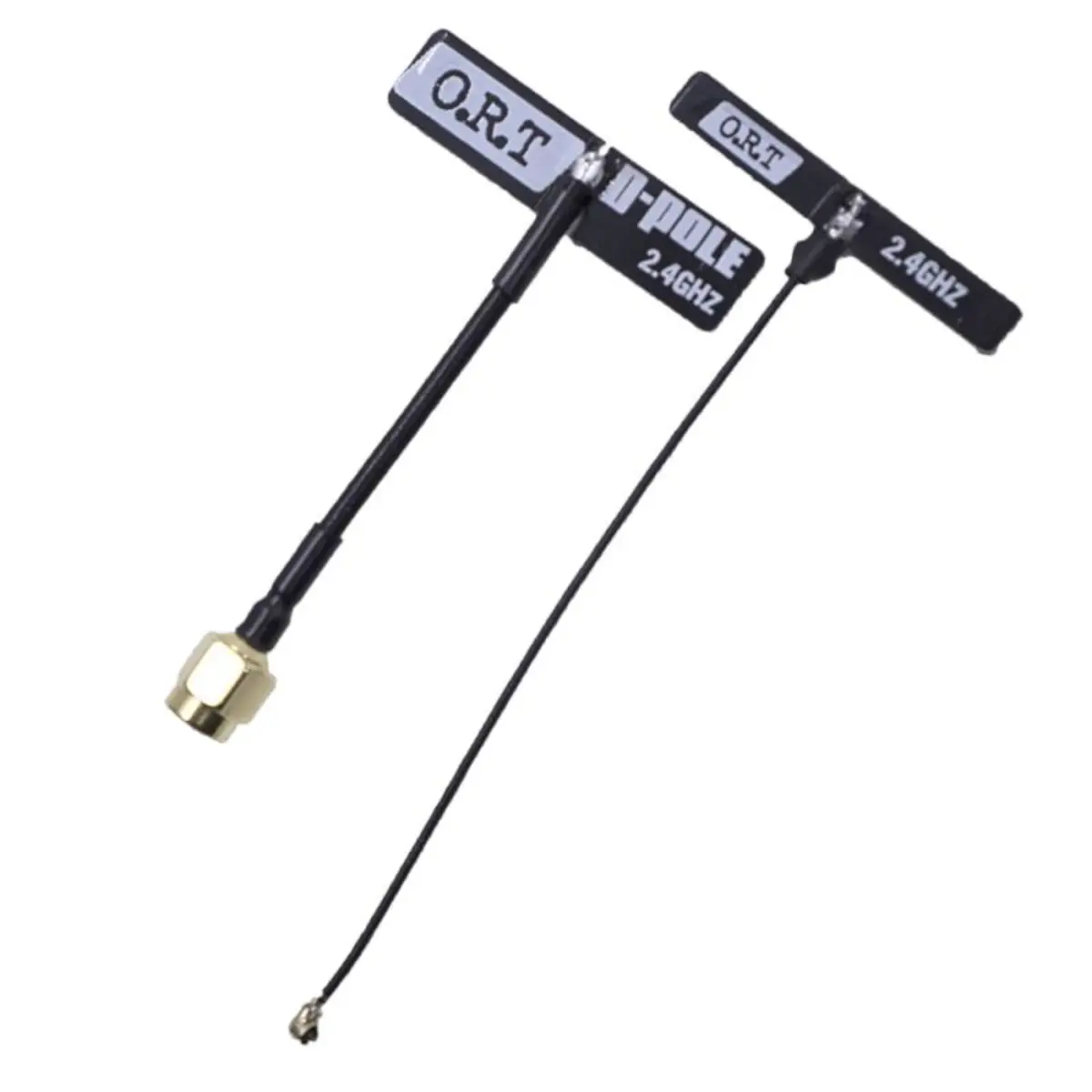

ORT D-Pole 2.4GHz TX RX set Antenna
ORT D-POLE 2.4GHZ Transmitter and Receiver Antenna Set
ORT RX D-Pole 2.4GHz is an upgraded fine-tuned antenna for your Receiver 2.4GHz system. Consist of 2 pcs ORT D-Pole rx antenna. Designed from refined dipole antenna with less null zone & using high grade 1.13mm cables, U.fl/Ipex1 connector for compact built to ensure stable signal at all area. Small, light yet powerful for your compact long range/racing drone build.
Specifications.
Freq Channel : 2350-2500 MHz
Gain (dBi) : 3 dBi
SWR/S11 : < 1:1.4
Polarization : Linearly Polarized
Gain Pattern : OmniDirectional
Cable length : 10cm
Antenna width : 4cm
Weight : 0.8gr /pcs
Connector: UFL/IPEX1 for receivers, SMA/RP-SMA for Tx
In the box.
1 x ORT D-POLE 2.4GHZ TX SET ANTENNA (UFL & SMA / RP-SMA)
| Berat | N/A |
|---|---|
| Konektor | RP-SMA, SMA |
