Highlights

No Props or frame in view!
DJI O3 HD Air Unit Low-Latency digital transmission
Secured Battery Plug and CNC bracket – Easy to install battery straps
High-performance True-AIO Board BLITZ F7 AIO 55A to save weight and space
T700 Quality Carbon – 40% more tensile strength compared to common 3K carbon
Lightweight one-piece frame design – Less flexibility, more Rigid, more Durable
Low Resonance frame construction – Less Jello, more Cinematic footage

Specifications

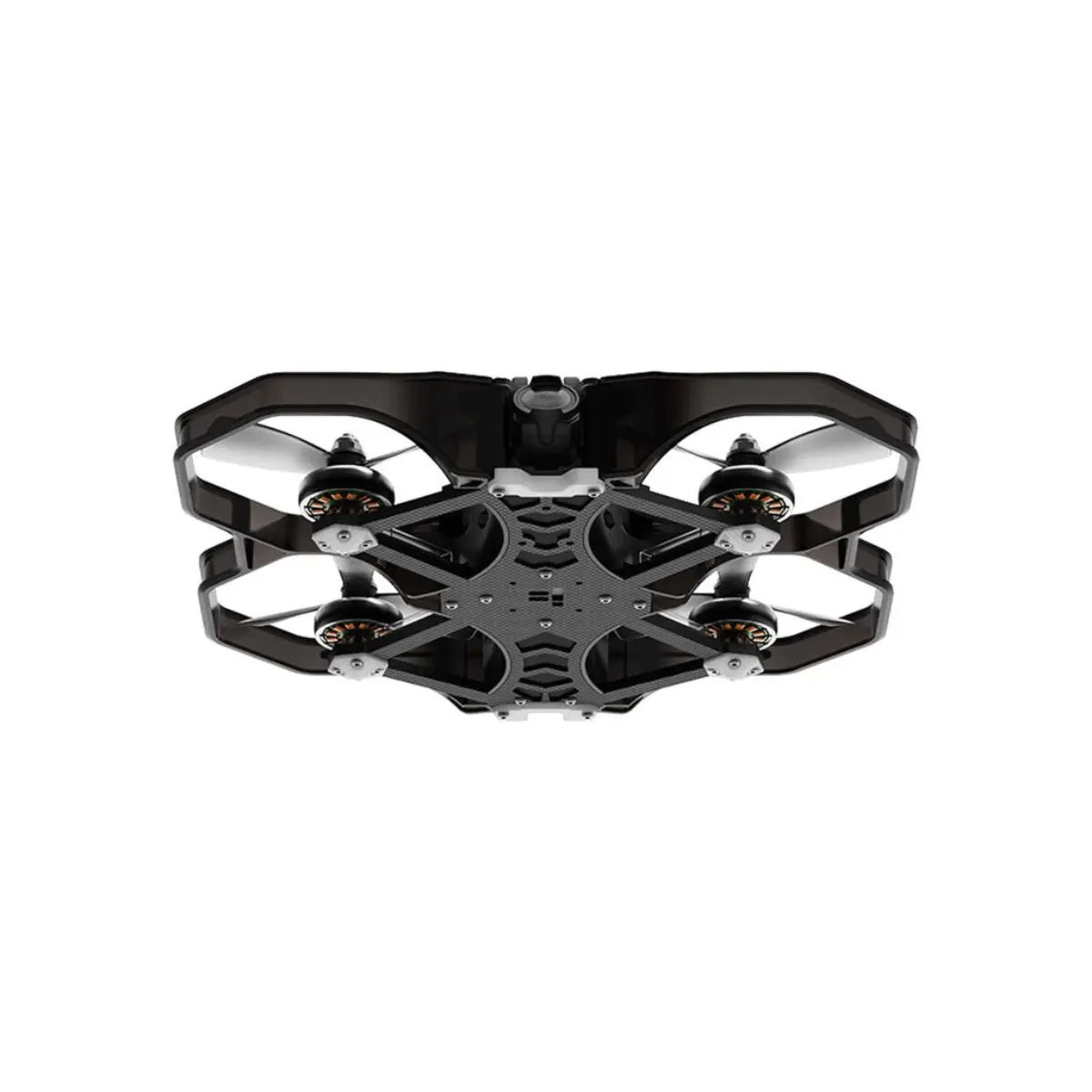

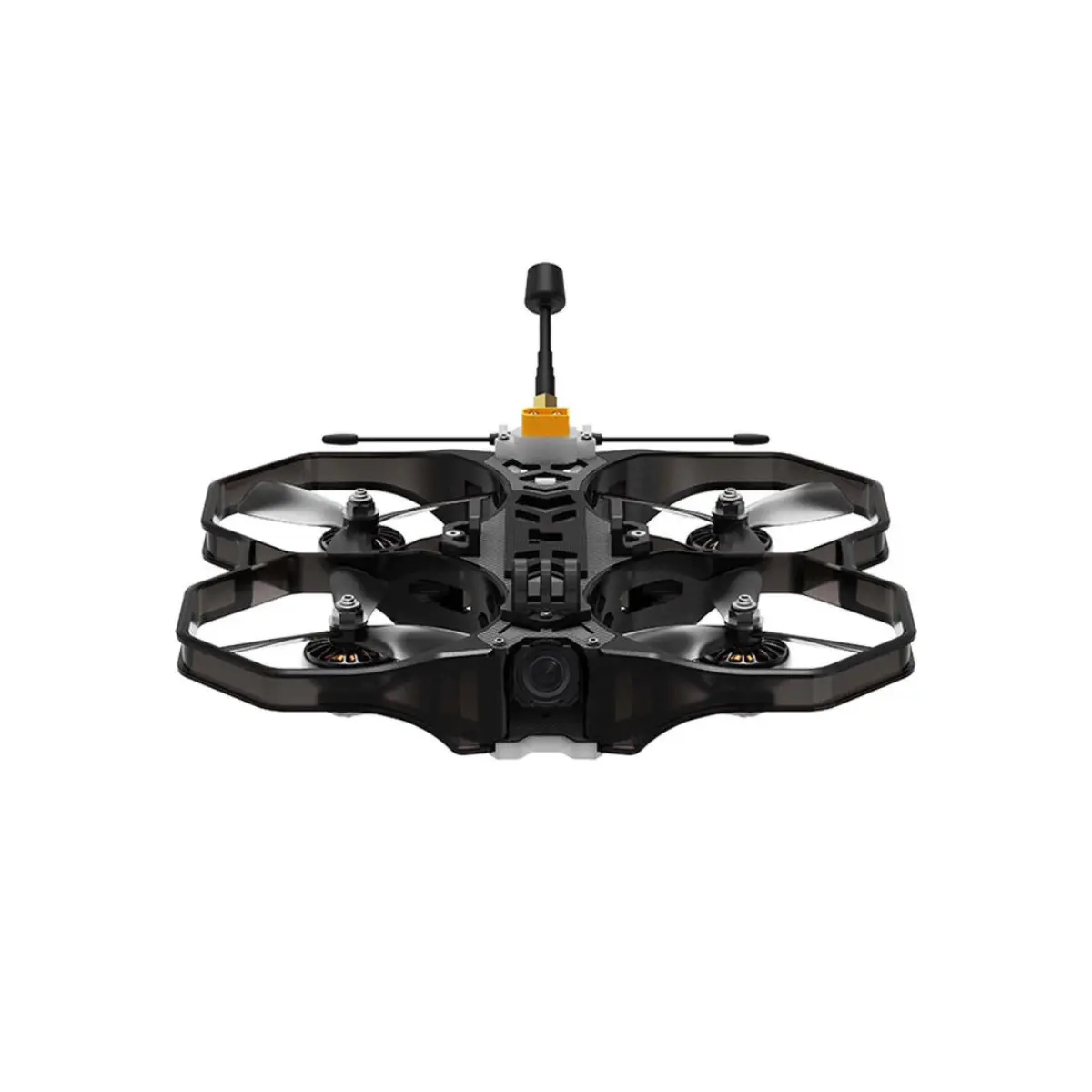

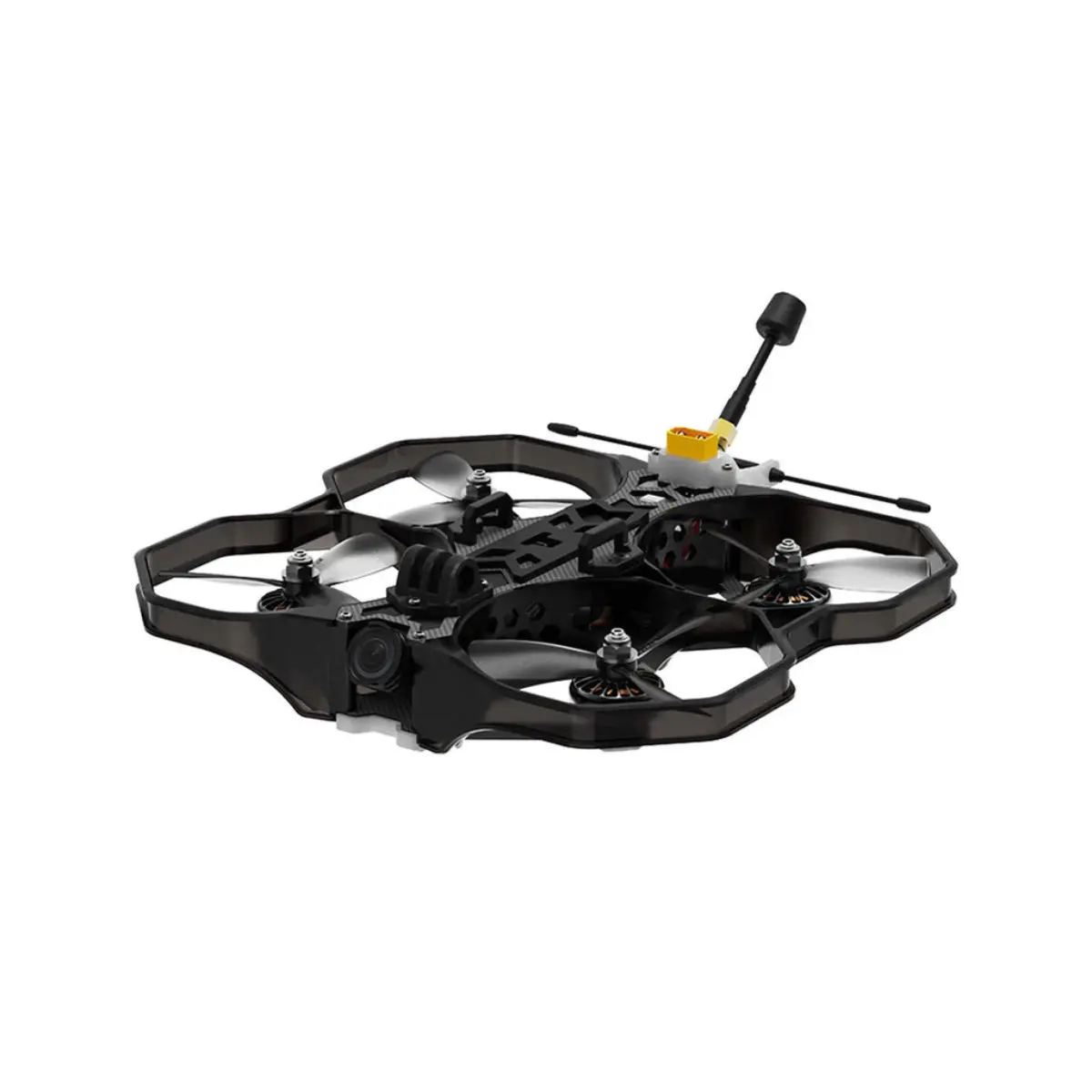

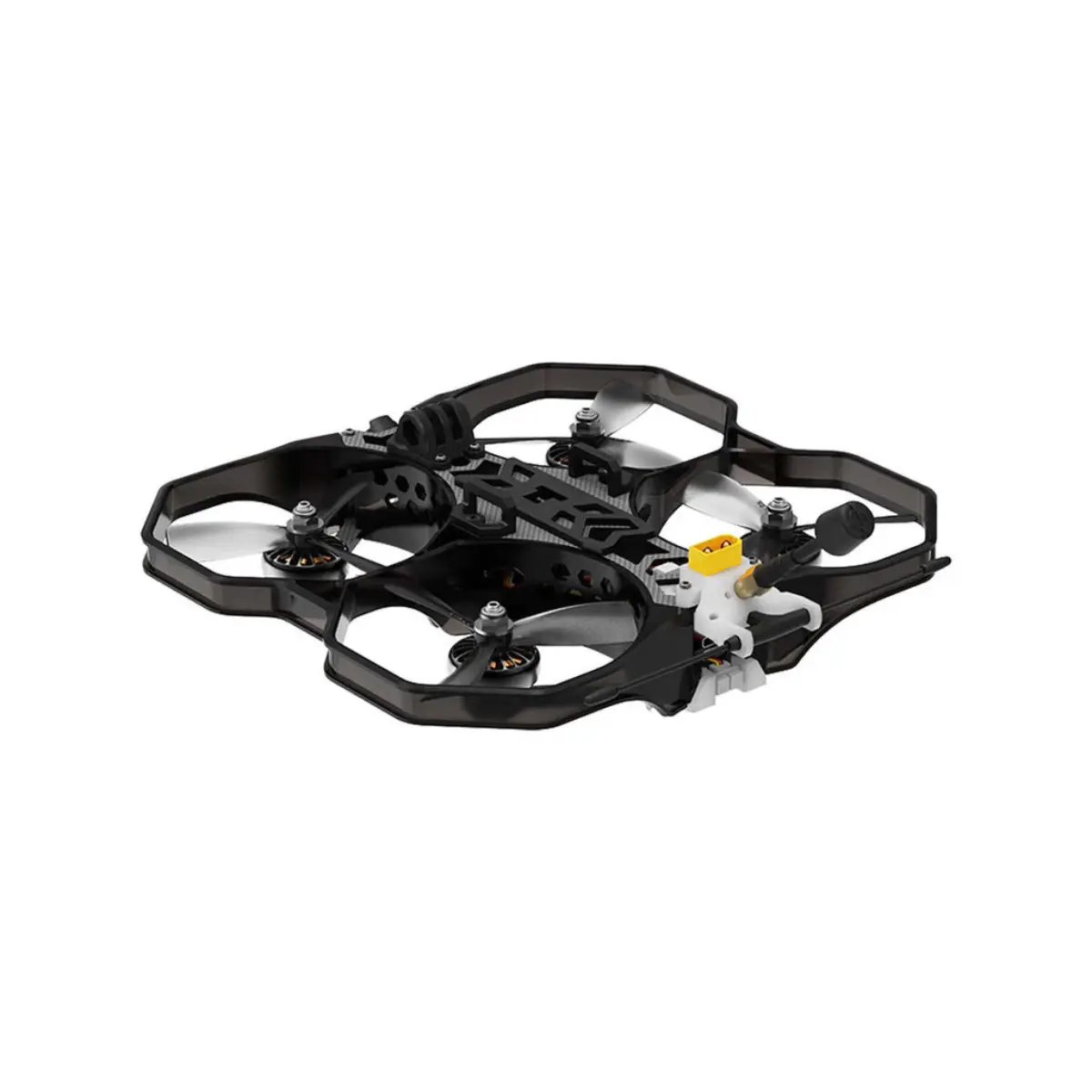

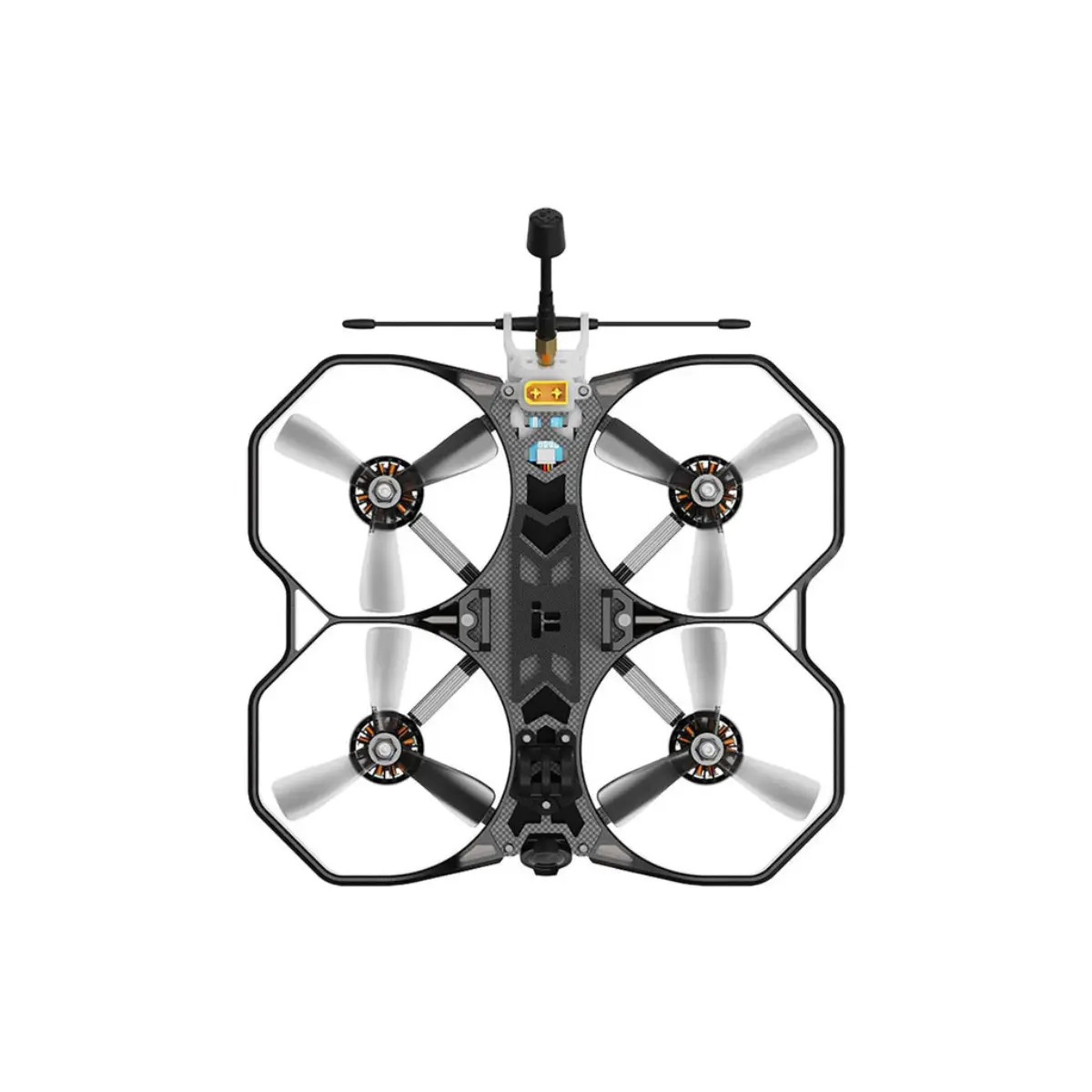

Product Name: ProTek35 V1.4 O3 6S HD
AIO: BLITZ Whoop F7 AIO
Video Transmission: DJI O3 Air Unit
Frame: 151mm wheelbase
Motor: XING 2205 2300KV motors
Prop: Nazgul 3535 propellers
Weight: 363 g (Without Battery)
Dimensions (L×W×H): 217×194×32.5 mm
Max Speed: 140 km/h
Maximum Takeoff Altitude: 5000 m
Max Hover Time: Approx. 6 mins（With 1400 battery no load）
Max Wind Speed Resistance: Level 4
Operating Temperature Range: -10° to 40° C (14° to 104° F)
Antennas: Single Antenna
GNSS: N/A

Video Transmission

Product Name: DJI O3 Air Unit
Weight: Approx. 36.4 grams（headband included）
Communication Bandwidth： Max 40 MHz
FOV (single screen): 155°
Communication Frequency：2.400-2.4835 GHz (RX only) / 5.725-5.850 GHz (RX and TX)
End-to-End Latency
With DJI FPV Goggles V2:
810p/120fps Video Transmission Quality: The latency is lower than 28 ms.
810p/60fps Video Transmission Quality: The latency is lower than 40 ms.
With DJI Goggles 2:
1080p/100fps Video Transmission Quality: The latency is as low as 30 ms.
1080p/60fps Video Transmission Quality: The latency is as low as 40 ms.
Max Video Transmission Bitrate: 50 Mbps
Max Video Transmission Range：10 km (FCC), 2 km (CE), 6 km (SRRC)
Operating Temperature Range: -10º to 40º C (14° to 104° F)
Power Input: 7.4-26.4 V
Audio Transmission: N/A

Packing List

1 x ProTek35 V1.4 O3 6S HD BNF
1 x 3.5 inch prop (2 pairs)
2 x Battery pad
1 x Battery strap

Battery Recommendations: 1400mAh 6S
