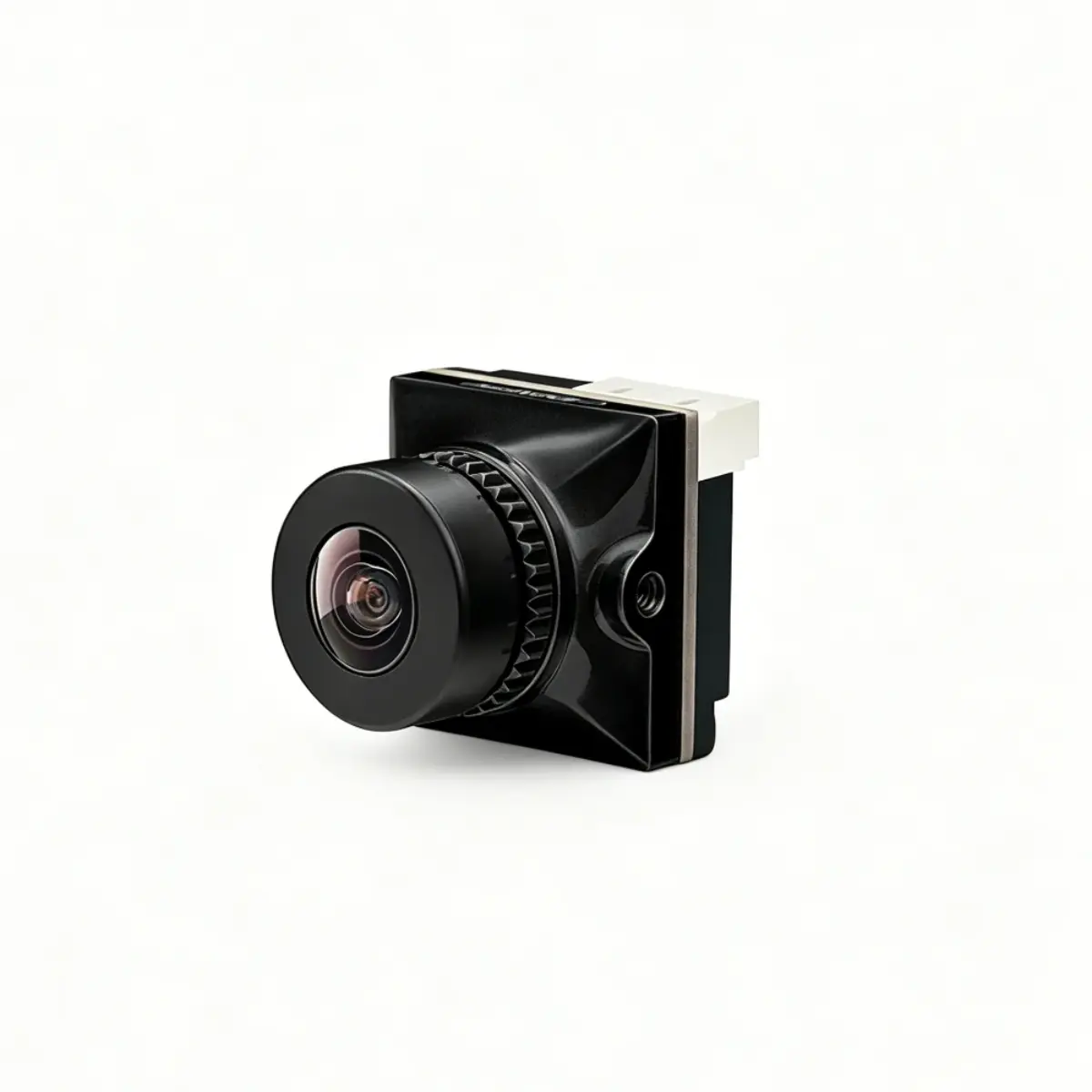

CADDX RATEL2 ANALOG CAMERA
The Caddx Ratel 2 HDR Starlight 1200TVL FPV Camera features superb night vision, clear and sharper images. The Ratel 2 is equipped with high quality 1/1.8″ inch starlight, a Super WDR sensor, providing up to 0.0001 sensitivity of lux, 8ms low latency, 4:3/16:9, and PAL/NTSC switchable, and a separate OSD menu.

FEATURES:
High quality 1/1.8″ Inch starlight HDR sensor
OSD menu
Switch between PAL and NTSC video standards or between 4:3 and 16:9 video formats
Ultra-low latency of 8ms
SPECIFICATIONS:
Name: Caddx Ratel V2

Model Name: Ratel
Lens: 2.1mm
Image Sensor: 1/1.8″ Inch starlight HDR sensor
Horizontal Resolution: 1200TVL
FOV: 165 Degree
Min. Latency: 8ms
TV System: NTSC & PAL (changeable)
Image: 16:9 & 4:3 (changeable)
WDR: Super WDR (HDR)
Min. Illumination: Starlight
Synchronization: Internal
Electronic Shutter: PAL: 1/50~100,000; NTSC: 1/60~100,000
S/N Ratio: >60dB (AGC OFF)
Video Output: CVBS
DNR: 3-DNR
Language: ENG/FRANCE/RUS/SPA/PU/KOREA/CHN/JAPAN
Day/Night: Auto/Color/B&W/EXT
Dimensions: 19mm*19mm*20mm
Wide Power Input: DC 5-40V
Work Temperature: -20~+60°C
Weight: 5.9g

PACKAGE CONTENTS:
1 x Caddx Ratel 2 HDR FPV Camera
1 x 5D-OSD Menu Board
1x 2Pin Silicon Cable
1x 3Pin Silicon Cable
1 x 1.5mm Allen Wrench
1 x Warranty Card
