The Pavo20 Pro II Brushless Whoop Frame is tailored for the 2.2″ Pavo20 Pro II cinewhoop, now offering expanded compatibility with both DJI O4 Air Unit and O4 Air Unit Pro through its new carbon plate. Its revolutionary assembly system upgrades to a 4-screw configuration with embedded nuts and supported structure, enabling quicker, more secure builds with exceptional rigidity. Designed with a 93.9mm wheelbase and constructed from crash-proof PA12 thickened whoop ducts, this frame combines durability with aerodynamic efficiency, delivering an 8-11% thrust boost. Perfectly paired with a robust 3S propulsion system, it generates unparalleled power for freestyle and cinematic flights. Available in classic black and transparent grey.

Bullet Points
Hassle-Free Assembly: An integrated injection-molded bracket and supported structure enable a quick, tool-light build secured with just 4 screws—eliminating tedious adjustments.
O4 & O4 Pro Compatibility: A redesigned carbon plate seamlessly integrates both O4 and O4 Pro for stunning HD footage and build versatility.
Durable PA12 Whoop Duct: Featuring a crash-proof construction with a reinforced cross-section design for superior impact resistance and longevity.
Aerodynamic Thrust Boost: Engineered airflow dynamics deliver an 8–11% thrust increase compared to ductless designs.
O4 Air Unit Pro Bracket: Camera protection panel, dual fixing holes and 30° angled antenna mounts gurantee smooth cinematic shooting.
Pavo Series Rubber Damper Design: Proprietary vibration-damping system guarantees buttery-smooth, jitter-free HD footage in all flight modes.
Versatile Battery Mounting System: Open-ended strap + side-limitation slot ensures a rock-solid battery grip, accommodating a wide range of battery sizes while preventing shifts during hard maneuvers.

Specifications
Item: Pavo20 Pro II Brushless Whoop Frame
Wheelbase: 93.9mm
Material: PA12/PP
Top Plate Thickness: 2mm

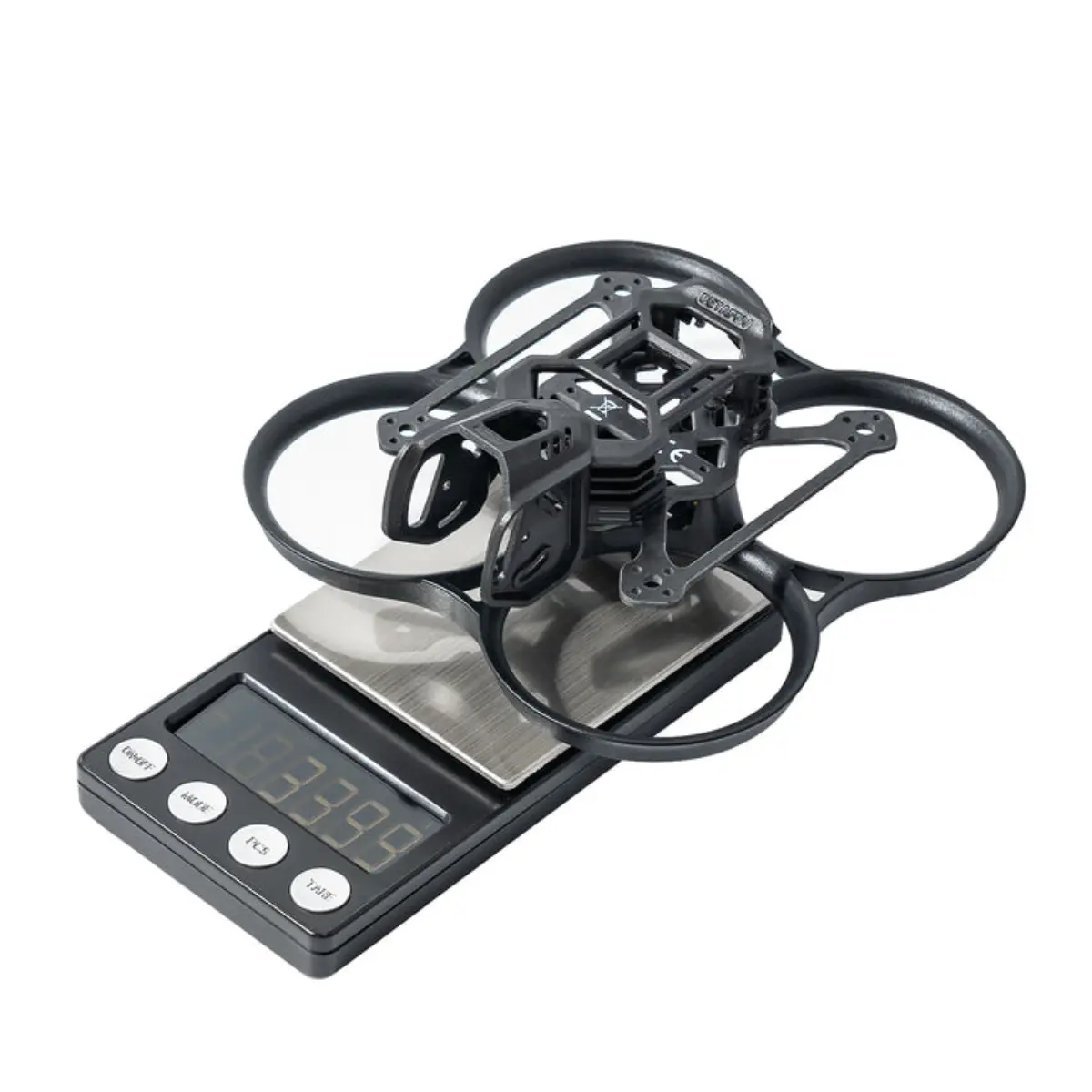

Frame Weight: 35.7g (With O4 Air Unit Pro Bracket)
Whoop Duct Weight: 17.8g

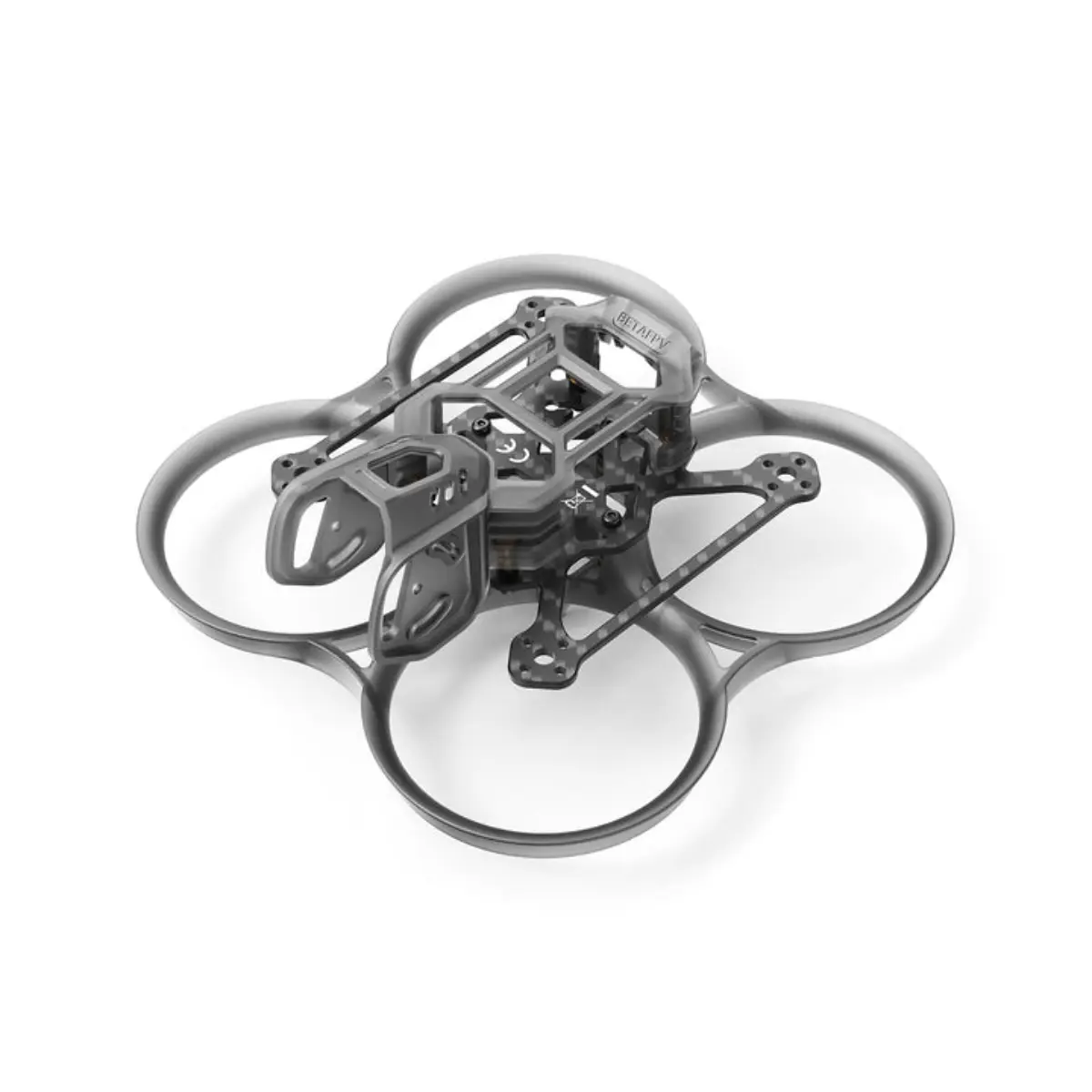

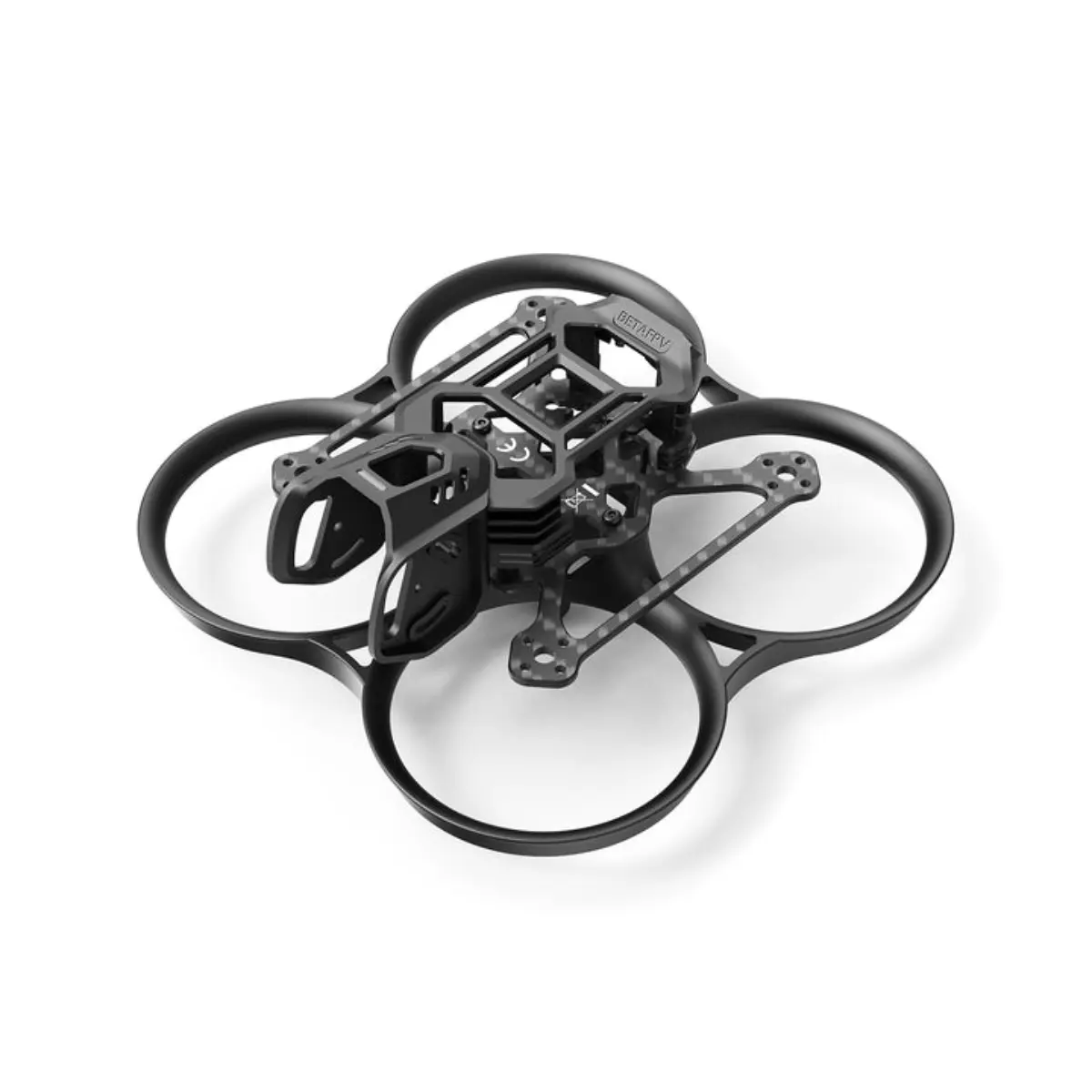

Color: Black/Transparent Grey
Camera Mounting Spacing: 20mm
FC Mounting Hole Size: 26×26mm
Motor Mounting Hole Size: 4-M2-φ9mm
Battery Slot Width: 20mm
Camera Filter: Supported

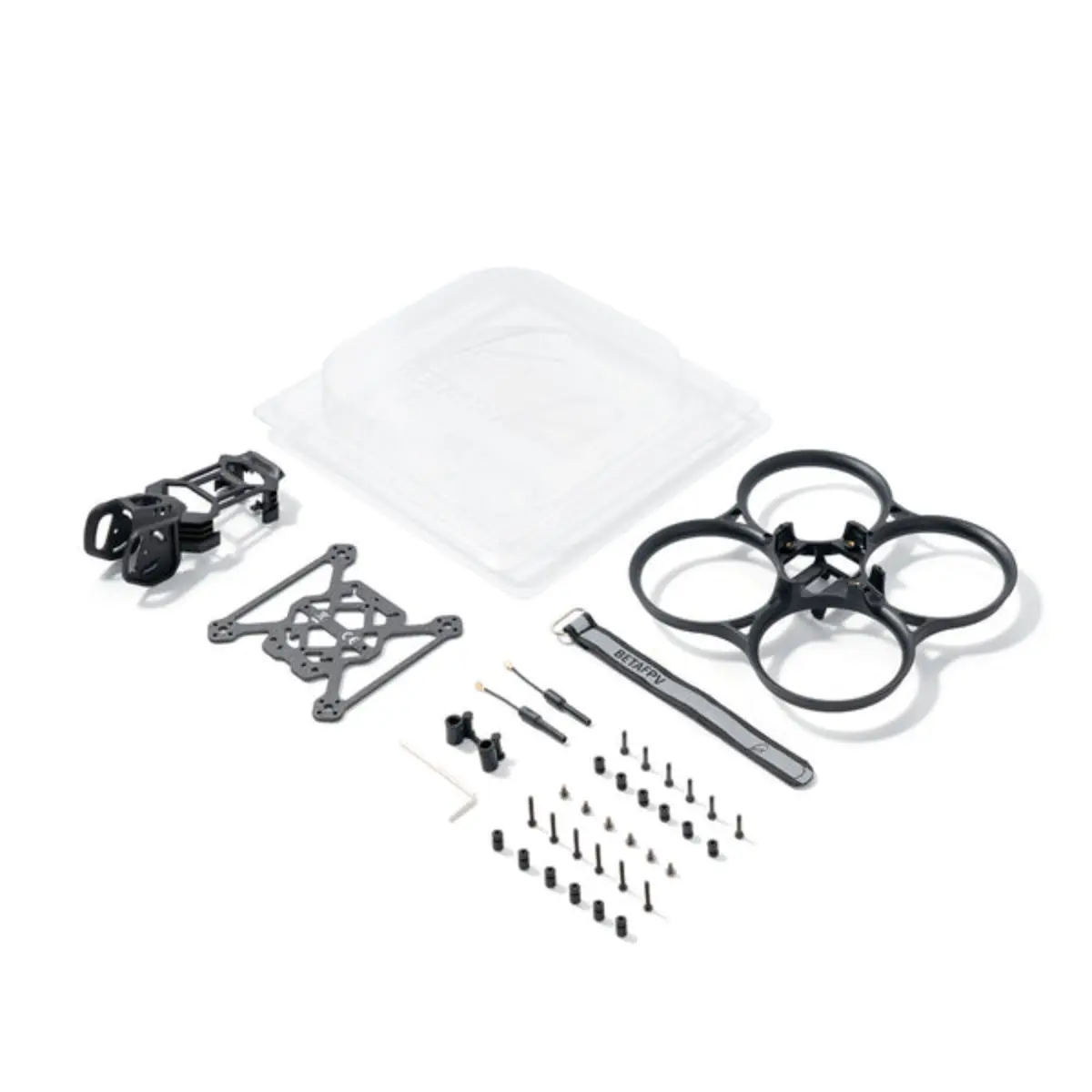

Package
Pavo20 Pro II Brushless Whoop Frame (O4 Air Unit Pro Frame Version)
1 * Pavo20 Pro II Top Plate
1 * Pavo20 II Whoop Duct
1 * O4 Air Unit Pro Bracket
6 * Shock-absorbing Balls for Flight Controller (8mm)
6 * Shock-absorbing Balls for O4 Air Unit Pro Bracket (6.6mm)
6 * M2*10 Screws
6 * M2*4 Screws
6 * M2*14 Screws
1 * 130mm Battery Strap
2 * 5.8g Antenna
1 * 5.8G VTX Antenna Mount
1 * H1.5 Hex Screwdriver

Pavo20 Pro II Brushless Whoop Frame (Whoop Duct Version)
1 * Pavo20 II Whoop Duct
1 * 130mm Battery Strap
