Description:
The 2.2 Inch Pavo20 Pro II redefines lightweight freestyle performance, now offering seamless compatibility with both the DJI O4 at 79g and O4 Pro at 107.7g. This next-generation model introduces the upgraded II Frame with a supported structure and 4-screw assembly for enhanced rigidity and easier building, alongside a new integrated RGB LED strip for improved visibility and style.
Engineered for cinematic agilty, the Pavo20 Pro II pairs the explosive thrust of 1104 7200KV Brushless Motors and co-developed Gemfan 2218 3-Blade Props with an aerodynamic frame that delivers an 8–11% thrust boost. The O4 Air Unit Pro Bracket ensures vibration-free stability for perfectly smooth footage, while the ultra-light F4 2-3S 20A flight controller provides crisp digital performance. The Pavo20 Pro II is the ultimate whoop for pilots demanding professional freestyle performance.

Bullet Points:
– Next-Gen Frame: The supported structure with guided mouting points and 4-screw design make assembly quick and incredibly rigid.
– O4 & O4 Pro Compatibility: A redesigned carbon plate seamlessly integrates both O4 and O4 Pro for stunning HD footage and build versatility.
– Lightweight Powerhous: Weighing only 107.7g (O4 Pro Version), this 2.2″ cinewhoop is the perfect gateway for DJI pilots to dive into FPV.
– Freestyle-Tuned Propulsion: The co-developed GF 2218 3-Blade Props and 1104 | 7200KV Brushless Motors offers unparalleled thrust, while the
aerodynamic frame adds an 8–11% boost for aggressive maneuvers.
– Cinematic Stability: The integrated O4 Air Unit Pro Bracket gurantees every frame you captured is perfect.
– Flight Controller: The ultra-light F4 2-3S 20A AIO FC V1 (5.92g) is engineered for crisp digital performance, offering enhanced computing power and rapid response for precise freestyle control.
– New RGB LED Strip: Enhanced visibility for in-flight orientation and a striking visual presence.
– ND Filter Ready: ND/UV filters for O4 Pro let you master any lighting condition.
– Plug-&-Play Tuned: Pre-optimized PIDs for O4 & O4 Pro. Select & fly via OSD.

Specification:
Brand: BETAFPV
Model: Pavo20 Pro II
Item Name: 2.2 Inch O4 Pro Brushless Whoop FPV Drone
Wheelbase: 93.9mm
FC: F4 2-3S 20A AIO FC V1
Frame: Pavo20 Pro II Brushless Frame
Motor: 1104 | 7200KV Brushless Motors
Propellers: Gemfan 2218 3-Blade Propellers (1.5mm Shaft)
Flight Time: 6’30” (with 3S 550mAh Battery)
RX Version: Serial ELRS, DJI SBUS
HD VTX Bracket: O4 Air Unit Pro Bracket, O4 Air Unit Bracket II

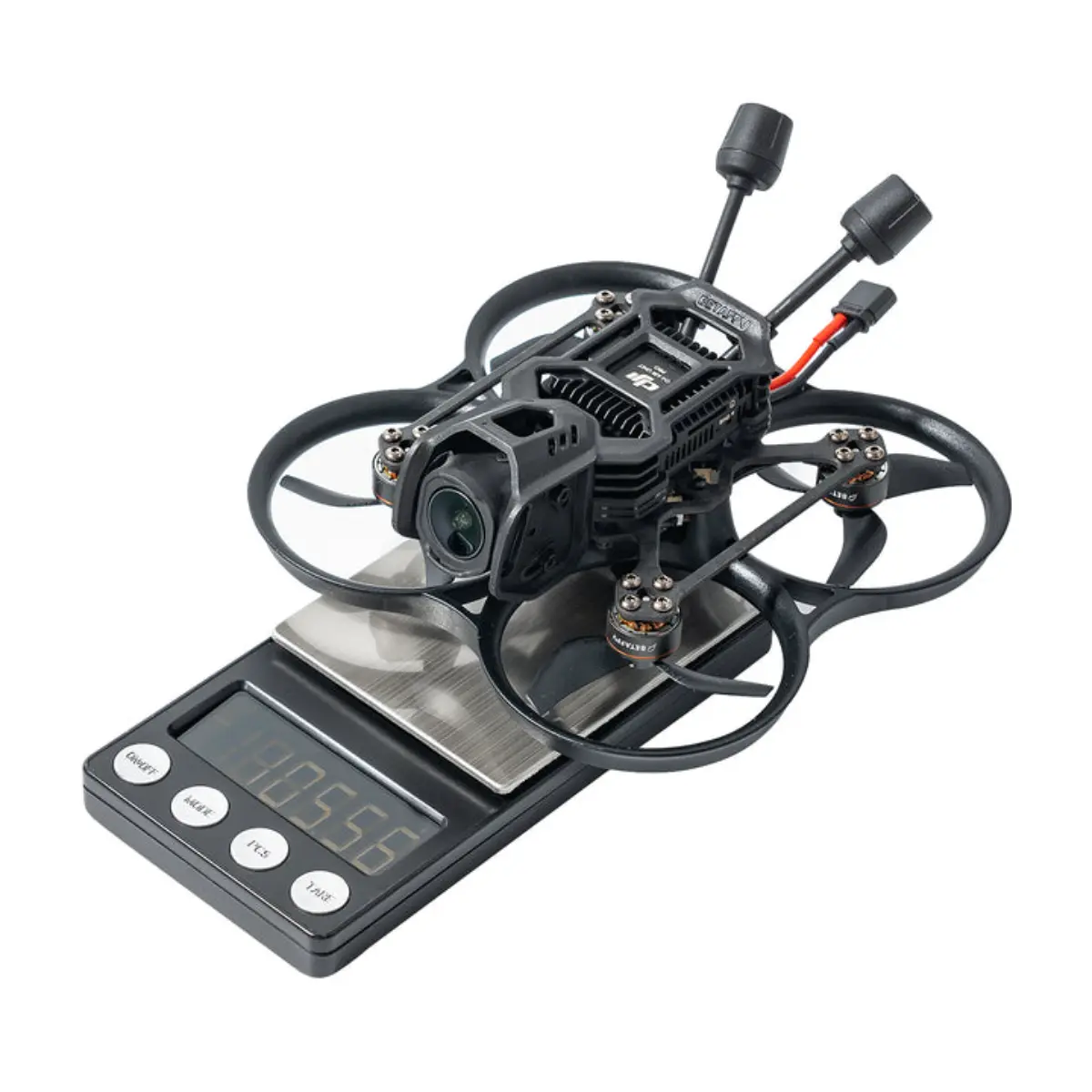

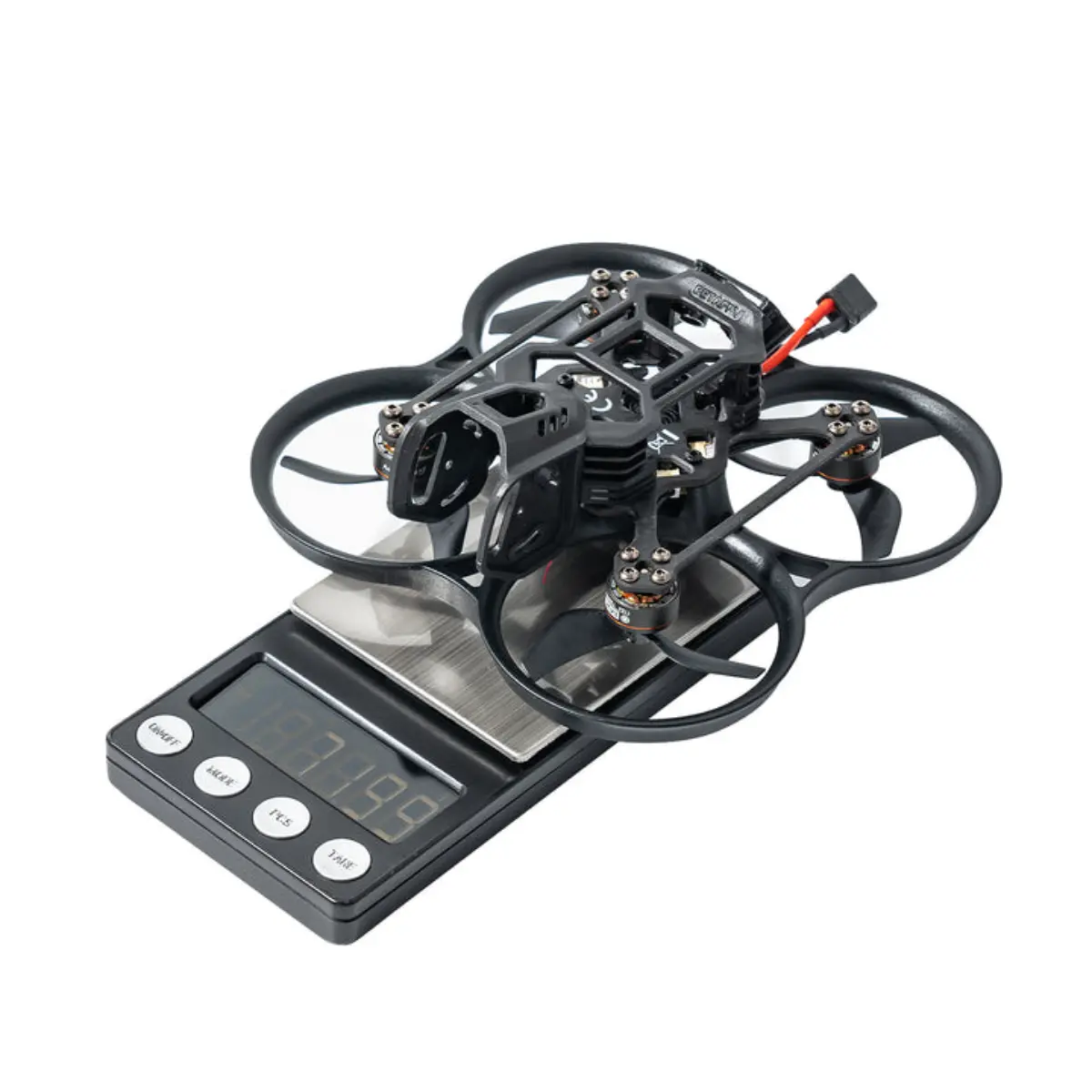

Weight: 65.2g (PNP Version), 107.7g (O4 Pro included)
Battery Connector: XT30
Battery Slot: 20mm * unlimited height
Strip: NightFire RGB LED Strip
Supported VTX: DJI O4 Air Unit Pro, DJI O4 Air Unit
Camera Filter Installation: Vertical
Recommended Filter: ND Filter for O4 Pro Camera(Not included)
Recommended Battery: 3S 450mAh 75C Battery, 3S 550mAh 75C Battery(Not included)

Pavo20 Pro II
Wheelbase: 93.9mm
Frame: Black Pavo20 Pro II Frame
Weight (PNP): 65.2g
Weight (without battery): 107.7g (O4 Pro) / 79g (O4)
RX: Serial ELRS, DJI SBUS
HD VTX Bracket: O4 Air Unit Pro Bracket
Compatible VTX: DJI O4 Air Unit, O4 Air Unit Pro
FC: F4 2-3S 20A AIO FC
Motor Connector: JST1.25-3Pin
Prop: GF 2218 3 Blade
Motor: 1104|7200KV
Recommended Battery: 3S 450mAh / 550mAh
Thrust-to-Weight Ratio: 6.2:1 (O4 Pro) / 8.4:1 (O4)
Battery Connector: XT30
Flight Time: 6:30 (O4 Pro)
Filter Installation: Vertical
LED Strip: RGB

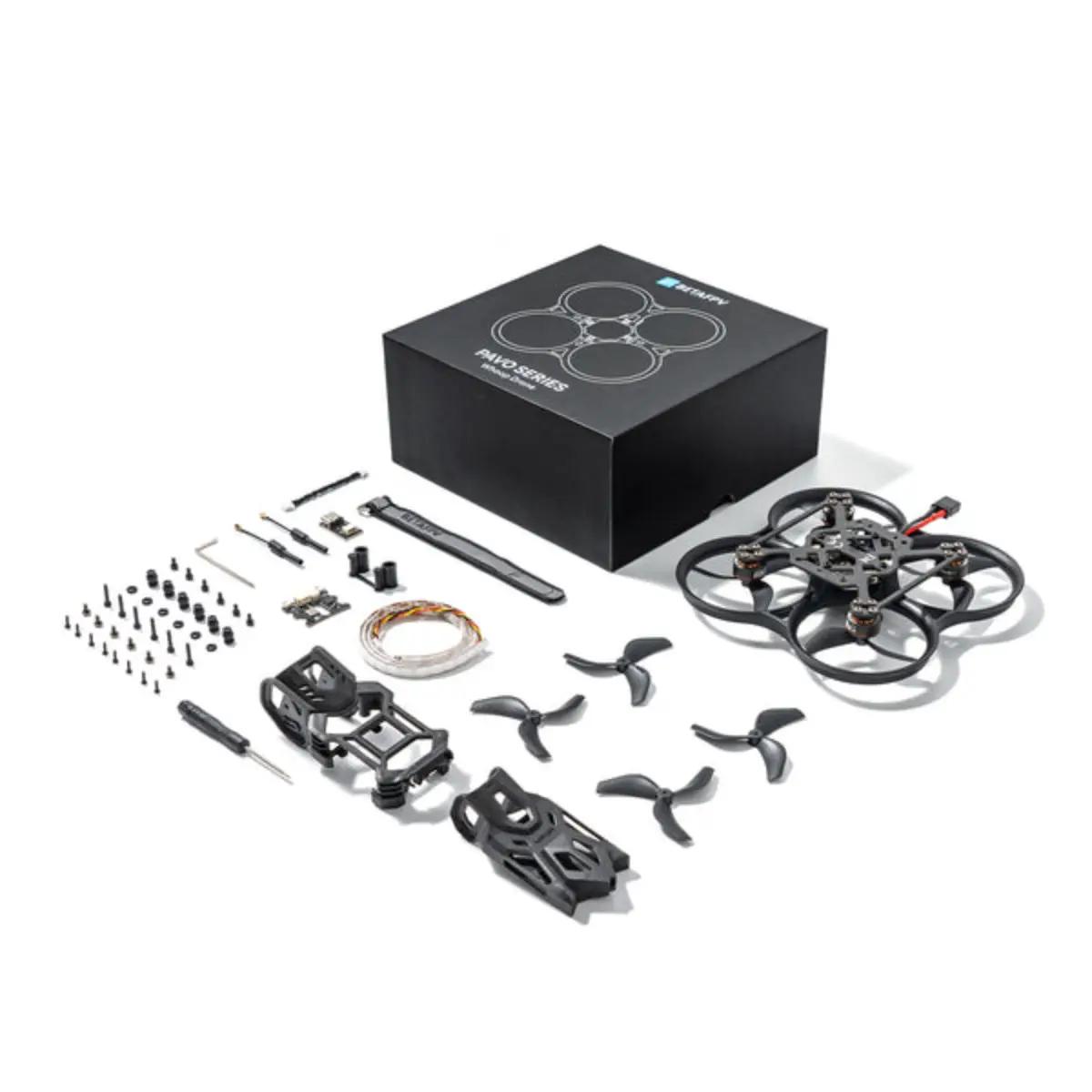

Package Included:
Pavo20 Pro II Brushless Whoop Quadcopter (without Cam&VTX Version)
1 * Pavo20 Pro II Brushless Whoop Quadcopter (without Cam&VTX Version)
1 * Top Plate for O4 Air Unit Bracket II
1 * Bottom Plate for O4 Air Unit Bracket II
1 * O4 Air Unit Pro Bracket
4 * Gemfan 2218 3-Blade Propellers (1.5mm Shaft)
1 * Type-C to SH1.0 Adapter
1 * SH1.0-4Pin Adapter Cable
1 * RGB LED Strip (500mm)
1 * RGB Board
6 * Shock-absorbing Balls for O4 Air Unit Pro Bracket (6.6mm)
6 * Shock-absorbing Balls for O4 Air Unit Bracket (8.8mm)
6 * Shock-absorbing Pads for O4 Air Unit Bracket (1.5mm)
6 * M2*10 Cylindrical Socket Head Cap Screws
6 * M2*4 Button Head Socket Cap Screws
6 * M2*4 Socket Head Cap Self Tapping Screws
8 * M1.4*6 Phillips Flat Washer Head Tapping Screws
2 * 5.8G VTX Antenna
1 * 5.8G VTX Antenna Mount
1 * Phillips Screwdriver
1 * H1.5 Hex Screwdriver

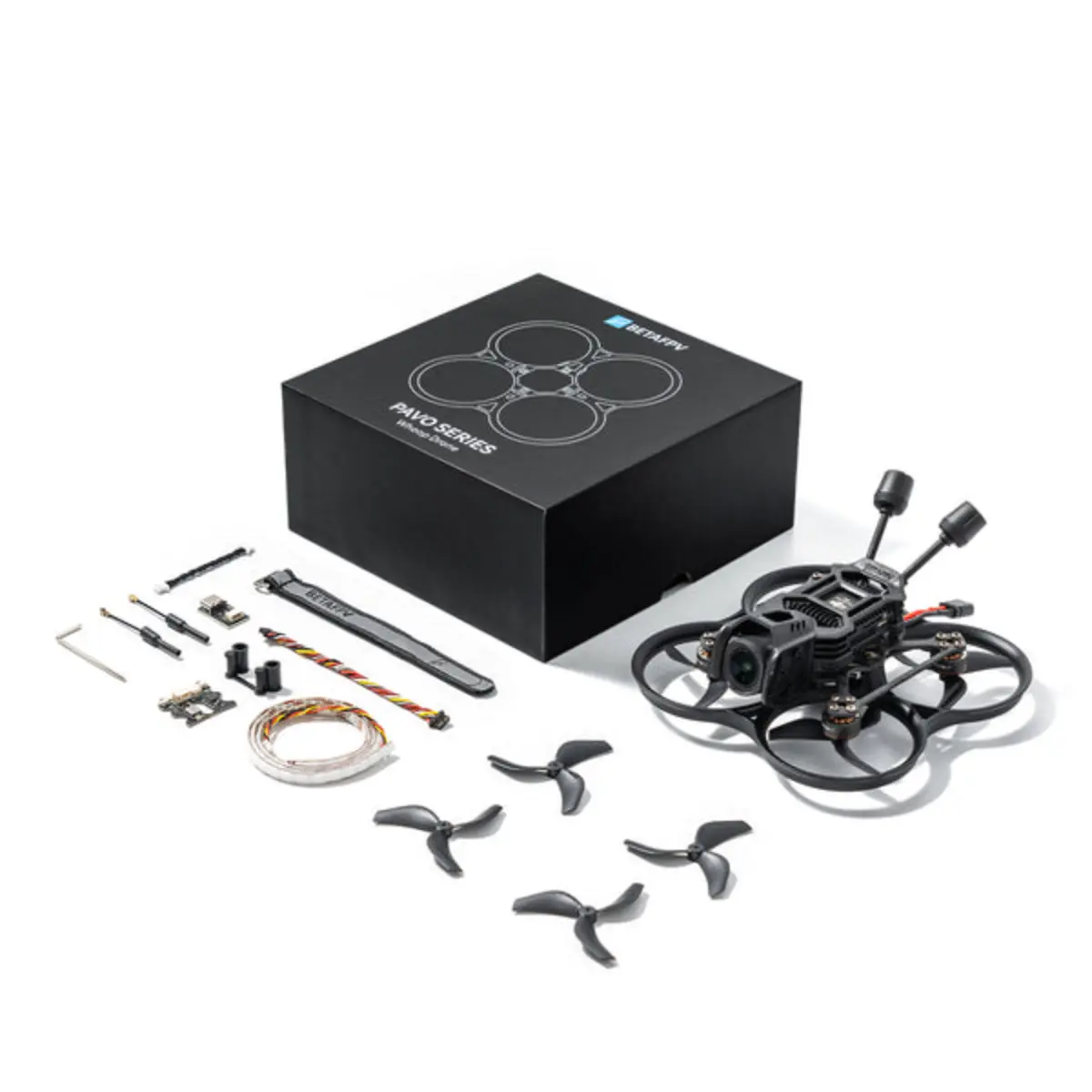

Pavo20 Pro II Brushless Whoop Quadcopter (O4 Pro Version)
1 * Pavo20 Pro II Brushless Whoop Quadcopter (O4 Pro)
4 * Gemfan 2218 3-Blade Propellers (1.5mm Shaft)
1 * Type-C to SH1.0 Adapter
1 * SH1.0-4Pin Adapter Cable
1 * SH1.0-6Pin HD Cable (100mm)
1 * RGB LED Strip (500mm)
1 * RGB Board
2 * 5.8G VTX Antenna Mount
1 * H1.5 Hex Screwdriver
1 * O4 Air Unit Pro User Manual
